Product Description
What’s Included:
Components | Description | Quantity |
Solar Panel | Mono 280W 60 Cells PV Module | 20 Pieces |
DC Disconnect Switch | IP66 1000VDC 16A | 2 Set |
On Grid Inverter | 5KW Single Phase | 1 Set |
AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |
DC Cable | 4mm 2 | 200 Meters |
MC4 Connector | 4mm 2 1000VDC | 10 Pairs |
Mounting System | Standards Pitched Roof ( Customized Optional) | 1 Set |
PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 1 Set |
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

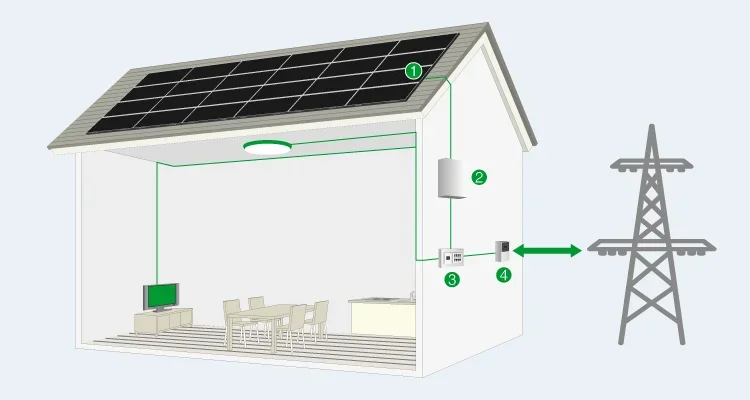

On Grid System Configuration
1. Solar Panel | 2. On Grid Inverter | 3. Switch Box | 4. Power Meter |
Mono Solar Panels
Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

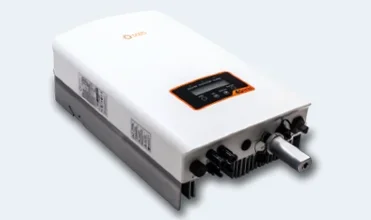

On Grid Inverter & Data Logging Stick
Max.DC Input Power: 5.8KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.
Remote Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Warranty
Packing & Delivery
Model | Single Set | 20′ Container Load | 40′ Container Load |
BSM5KW-ON | 1.62CBM | 12 Sets | 28 Sets |
Note: The Above packing information contained in this web is subject to change without notice.
Applications
Sunpal SP5KW-ON Install In Europe With Solis 5KW EU Version Grid Tied Inverter.
Sunpal SP5KW-ON Install In USA With Solis 5KW US Version Grid Tied Inverter.
Our Factory
What Our Distributor Receive | ||
System Design and Support | Technical Support | |
Installer Training Seminars | Solar PV Best Practices Documentation | |
Marketing & Sales Support | Samples Assets | |
Preferential Pricing | Exhibition Support | |
