- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- Place of Origin: Zhejiang, China
- Model Number: Solis-(25-50)K-5G
- Brand Name: Solis
- Input Voltage: 600V
- Output Voltage: 3/N/PE, 220/380V, 230/400V
- Output Current: 38.0-60.1A
- Output Frequency: 50 Hz / 60 Hz
- Output Type: Triple
- Size: 647*629*252 mm
- Type: DC/AC Inverters
- Inverter Efficiency: 98.8%
- Weight: 45 kg

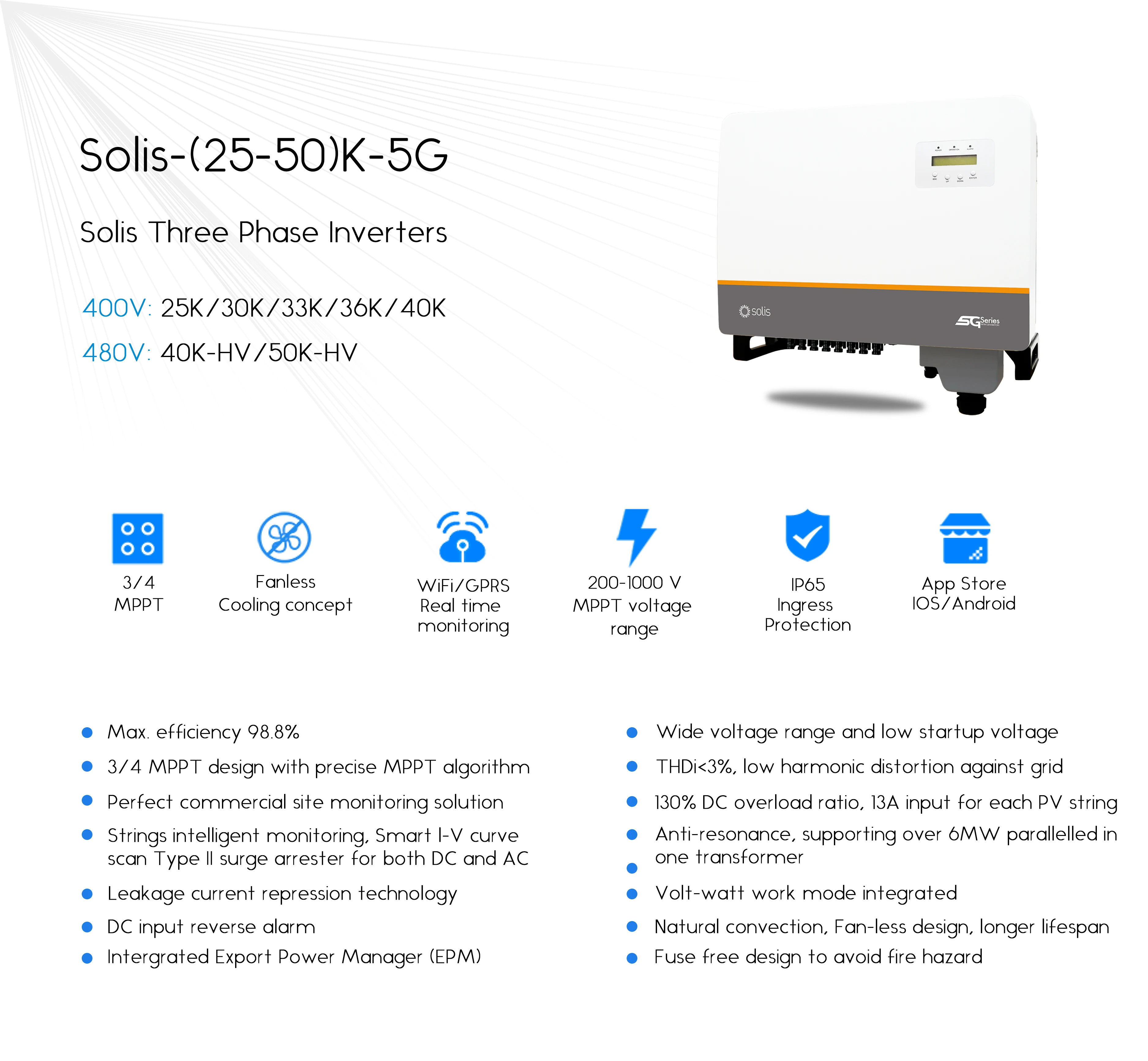

- Product Name: Solis Solar Inverter
- Application: Solar Power System, Home/Commercial/Factory
- Rated power: 25~50kW
- Start Voltage: 180V
- Protection: IP65
- Communication: RS485, Optional: Wi-Fi, GPRS
- Inverter type: Three Phase
- Certificate: EN/IEC/VED-AR-N/VDE/UTE/VFR/ABNT NBR/AS
- Warranty: 5 Year
Hi dear. Nice to meet you. I am Cecilia from China. Welcome to my store. Please tell me your question. I will reply to you immediately upon receipt. If the product you are purchasing comes in different models, please leave a note after placing your order to let me know which model you need,Thank you. Or add my Whats.app+8618670783243.You can also send an email to my mailbox 2929105408@qq.com. Wishing you a happy life.
#detail_decorate_root .magic-0{border-bottom-style:none;border-bottom-color:#7a90b2;font-family:Lucida Grande;font-size:32px;color:1D7EE9;text-align:center;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:421.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:421.25px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:693px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:219.6px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:219.6px}#detail_decorate_root .magic-8{vertical-align:top}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{font-size:24px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:727.021px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{text-align:center}#detail_decorate_root .magic-16{font-size:14px}#detail_decorate_root .magic-17{display:none}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:54px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:59px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:52px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:69px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:75px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:167px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:74px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{font-size:12px}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:538px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:7px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:12.556px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:16px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:0;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:56px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{font-size:7pt;color:#231f20}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:12px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:206.021px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:310.021px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{display:table-cell}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:175px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:58px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:57px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{mso-spacerun:’yes’;font-size:7pt;font-family:SourceSansPro-Regular;color:#231f20}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:60px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-44{min-height:28px;padding:5px 10px;width:371px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:137.021px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:530px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:578px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px;padding:5px 10px;width:131px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:323px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:28px;padding:5px 10px;width:379px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-53{min-height:28px;padding:5px 10px;width:322px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-54{min-height:28px;padding:5px 10px;width:233px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-55{min-height:28px;padding:5px 10px;width:468px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:100px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:-7px;margin-left:3px;width:750px;height:119.99999999999999px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:150px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:-26px;margin-left:20px;width:712px;height:487px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:119.99999999999999px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:119.99999999999999px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:422.4016853932584px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:0;margin-left:0;width:750px;height:422.4016853932584px}#detail_decorate_root .magic-64{overflow:hidden;width:750px;height:1200px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-65{margin-top:-9px;margin-left:0;width:750px;height:1328.75px}#detail_decorate_root .magic-66{margin-top:-9px;margin-left:0;width:750px;height:119.99999999999999px}#detail_decorate_root .magic-67{overflow:hidden;width:750px;height:1507px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:750px;height:1507px}#detail_decorate_root .magic-69{overflow:hidden;width:750px;height:80px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-70{margin-top:5px;margin-left:30px;width:712px;height:76px}#detail_decorate_root .magic-71{overflow:hidden;width:750px;height:700px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-72{margin-top:-33px;margin-left:10px;width:747px;height:747px}#detail_decorate_root .magic-73{overflow:hidden;width:750px;height:80.16px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-74{margin-top:0;margin-left:0;width:750px;height:80.16px}#detail_decorate_root .magic-75{min-height:28px;padding:5px 10px;width:174px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-77{font-size:18px}#detail_decorate_root .magic-78{min-height:28px;padding:5px 10px;width:86px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-79{min-height:28px;padding:5px 10px;width:111px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-80{min-height:28px;padding:5px 10px;width:290px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-81{font-size:13px}#detail_decorate_root .magic-82{min-height:28px;padding:5px 10px;width:170px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-83{min-height:28px;padding:5px 10px;width:48.25px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-84{min-height:28px;padding:5px 10px;width:110px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-85{min-height:28px;padding:5px 10px;width:49.5px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-86{font-family:Roboto}#detail_decorate_root .magic-87{min-height:28px;padding:5px 10px;width:530px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-88{margin-top:50px;margin-left:45px;width:676px;height:51px}
Product Description
Input (DC)
Solis – (25-30)K-5G | Solis – (25-30)K-5G | |||||||||||||
Model Number | 25K | 30K | 33K | 36K | 40K | 40K-HV | 50K-HV | |||||||
Recommended max. PV power | 33kW | 39kW | 43kW | 47kW | 52kW | 52kW | 65kW | |||||||
Max.input voltage | 1100V | |||||||||||||
Rated voltage | 600V | |||||||||||||
Start-up voltage | 180V | |||||||||||||
MPPT voltage range | 200-1000V | |||||||||||||
Max. input current | 26 A/26 A/26 A | 4*26A | ||||||||||||
Max. short circuit current | 40 A / 40 A /40 A | 4*40A | ||||||||||||
MPPT number | 3/6 | 4/8 | ||||||||||||
Output (AC)
Rated output power | 25 kW | 30 kW | 33 kW | 36 kW | 40 kW | 40 kW | 50 kW | ||||||
Max. apparent output power | 27.5kVA | 33kVA | 36.3kVA | 39.6kVA | 44kVA | 44kVA | 55kVA | ||||||
Max. output power | 27.5kW | 33kW | 36.3kW | 39.6kW | 44kW | 44kW | 55kW | ||||||
Rated grid voltage | 3/N/PE,220V/380V,230V/400V | 3/PE,480V | |||||||||||
Rated grid frequency | 50 Hz / 60 Hz | ||||||||||||
Rated grid output current | 38.0 A/ 36.1 A | 45.6 A/ 43.3 A | 50.1 A/ 47.6 A | 54.7 A/ 52.0 A | 60.8 A/ 57.7 A | 48.1 A | 60.1 A | ||||||
Max. output current | 41.8 A | 50.2 A | 55.1 A | 60.2 A | 66.9 A | 53.0 A | 66.2 A | ||||||
Power Factor | >0.99(0.8 leading – 0.8 lagging) | ||||||||||||
THDi | <3% | ||||||||||||
Efficiency
Max Efficiency | 98.8% | ||||||
EU efficiency | 98.3% | ||||||
Protection
DC reverse-polarity protection | Yes |
Short circuit protection | Yes |
Output over current protection | Yes |
Surge protection | DC Type II / AC Type II |
Grid monitoring | Yes |
Anti-islanding protection | Yes |
Temperature protection | Yes |
Strings monitoring | Yes |
I/V Curve scanning | Yes |
Integrated PID recovery | Optional |
Integrated AFCI (DC arc-fault circuit protection) | Yes |
Integrated DC switch | Optional |
General Data
Dimensions (W*H*D) | 647*629*252 mm |
Weight | 45 kg |
Topology | Transformerless |
Self consumption (night) | <1 W |
Operating ambient temperature range | -25 ~ +60°C |
Relative humidity | 0-100% |
Ingress protection | IP65 |
Cooling concept | Natural convection |
Max. operation altitude | 4000 m |
DC connection | connector |
AC connection | OT terminal |
Display | LCD |
Communication | RS485, Optional: Wi-Fi, GPRS |
Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 |
Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |

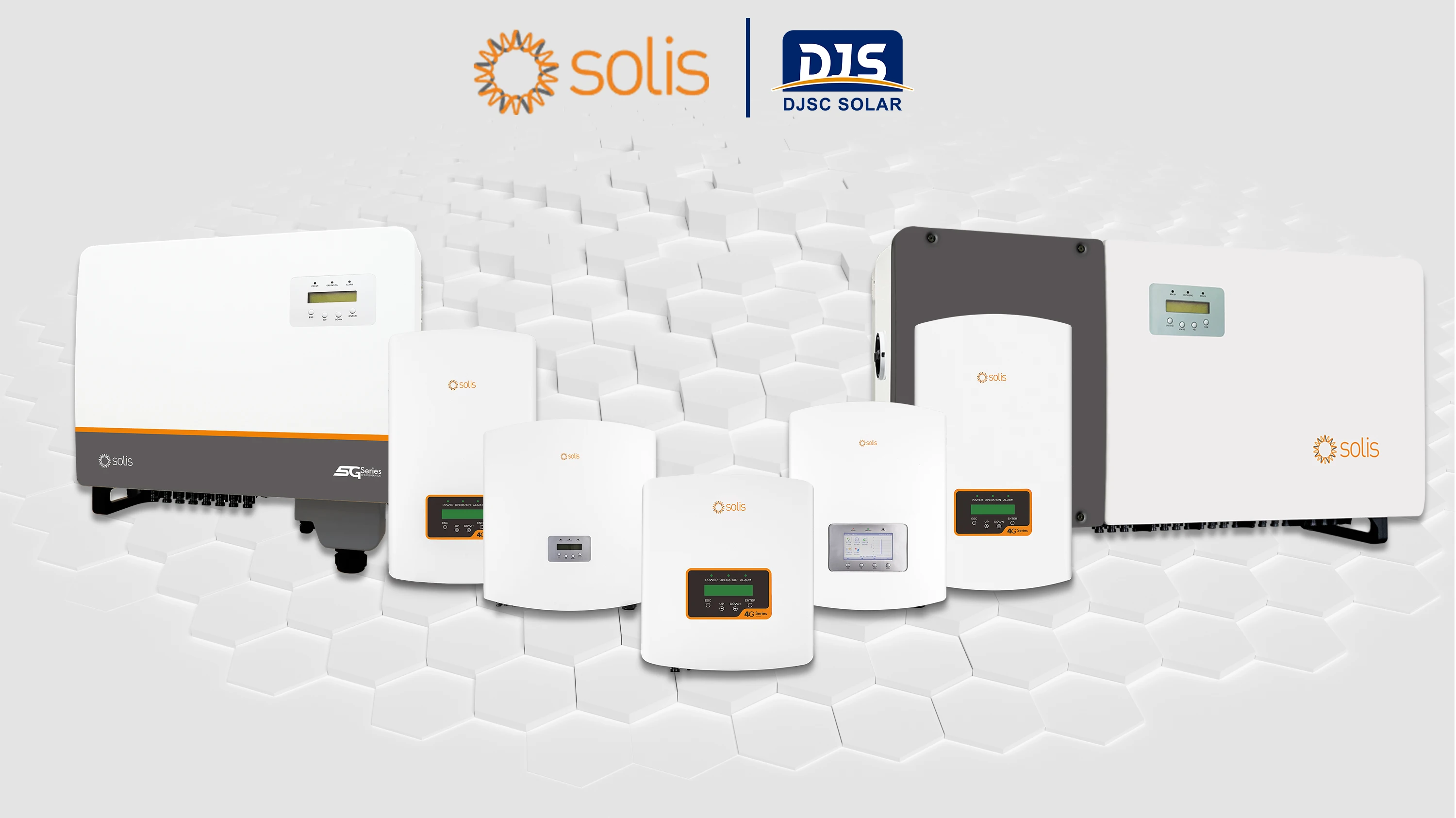

DJSC Solar, founded by a passionate team with over 35 years experience in solar industry, is committed to bring professional service with quick response to our customers.Being one of the top distributor of Tier 1 solar product brands like LONGi, Sungrow, Trina, JA, Solis, Growatt, Goodwe, DJSC Solar provides not only solar panels and solar inverters with competitive price, but also great thoughtful customer support for on-grid systems, off-grid systems, energy storage systems, etc. Besides, DJSC solar has a strong expert technical team, which can also provide you best solution and customer service. In the future, after going through localization process, we will be able to build a global network, providing the best products and convenience for our customers.
Payment Term | T/T | EXW | 30% T/T in advance, balance paid before shipment. | ||
FOB | |||||
CNF | 30% T/T in advance, balance paid against copy of B/L | ||||
CIF | |||||
Delivery Time | Ship from factory within 15 working days after received the deposit | ||||
