- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Other
- Origin: Mainland China
- Model Number: LV5032US
- Place of Origin: Guangdong, China
- Size: 623mm*610mm*130mm
- Type: DC/AC Inverters
- Inverter Efficiency: 90%
- Certificate: RHOS/CE
- Warranty: 12 months
- Weight: 30KG
- Waveform: Pure Sin Wave
- Battery Voltage: 48V
- Rated output power: 5000W
- Solar Charger type: MPPT
- Maximum PV Input Power: 8000W
- Maximum Charging Current: 160A(80A*2)
- MPPT Range: 60-110VDC
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:1038px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:1038px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#fff;font-family:Roboto;font-size:24px;color:#fff;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:37px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:37px}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-8{font-size:20px}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{font-size:16px}#detail_decorate_root .magic-13{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-14{margin-bottom:0}#detail_decorate_root .magic-15{position:relative;width:100%}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:243px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:457px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:728px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{display:none}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:466px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:655.1935325820676px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:655.1935325820676px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:75px}#detail_decorate_root .magic-26{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:862px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:862px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:641px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:641px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:1071px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:1071px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:776px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:776px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:1274px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:1274px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:683px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:683px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:36px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:36px}#detail_decorate_root .magic-41{font-size:18px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:423.3301975540922px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:423.3301975540922px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:101px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:101px}
Products Description
Products Description

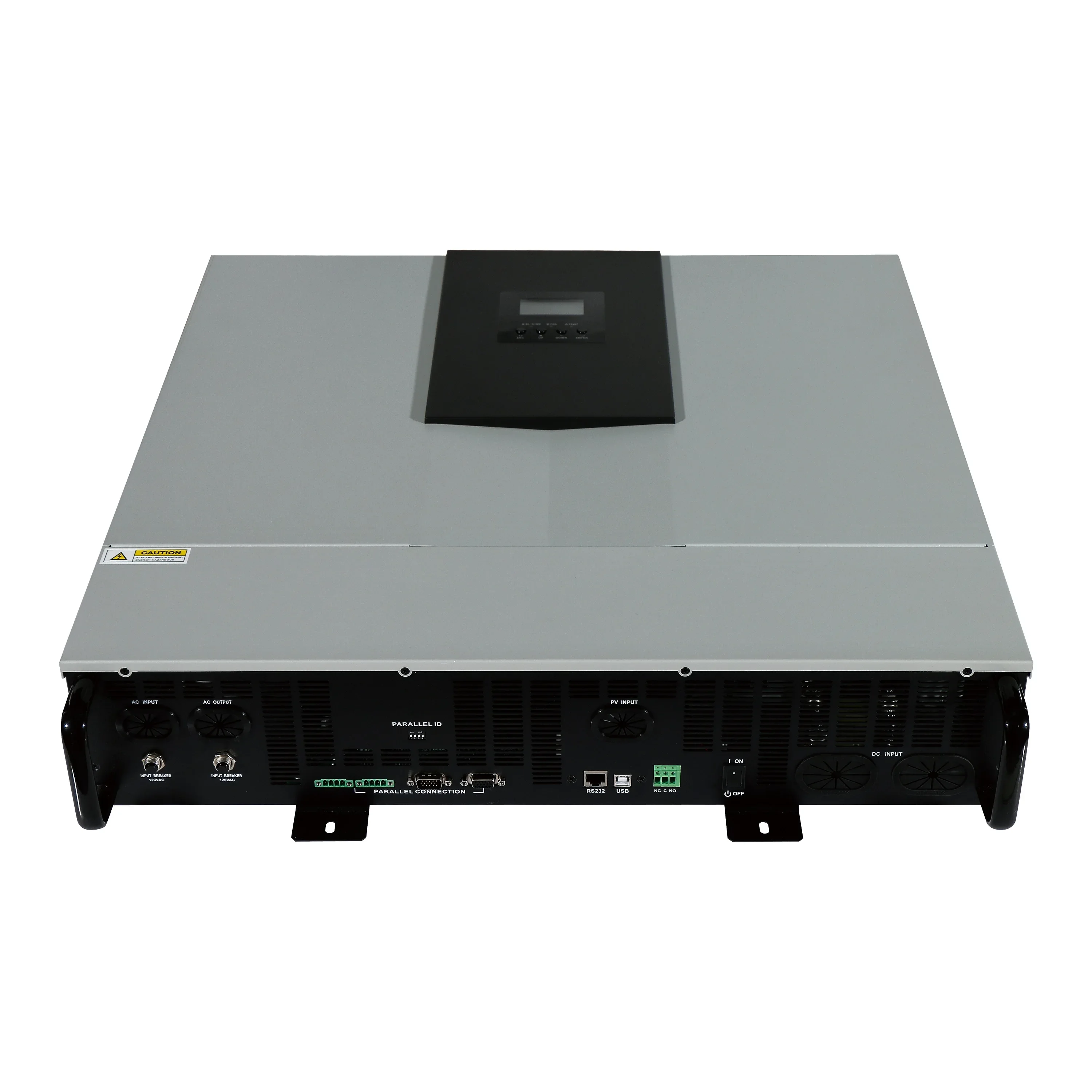

LV 5032US
120V/240V SPLIT PHASE OFF GRID SOLAR INVERTER
Suitable for use in USA/Puerto Rico,and Canada where split phase power standard is used.
Main Features
1. Versatile AC output modes: single phase 120v, split phase 240v, and 3-phase 208V 2. Pure sine wave output 5KW/48VDC 3. Dual MPPT Input up to 160A max charge 4. Max PV input power up to 8KW(4KW*2) 5. Utility charging up to 60A Max. 6. Max total system charing up to 220A 7. Parallel operation up to 3 units max 8. Genset starter dry contact 9. Programmable parameters 10. Ideal for Off-Grid or Grid-backup application 11. Easy to install 12. FREE monitoring software 13. LCD Display & LCD indicators 14. USB,RS232 communication interface.
Model | LV 5032US | |
Continuous Output | 5000VA/5000W | |
System DC Volt | 48VDC | |
AC Input Voltage | 110/120VAC (Phase-Neutral) | |
Maximum Parallel | Up to 3 units | |
PV INPUT/SOLAR CHARGING | ||
Max PV Input Power | 8000W(4000W each input) | |
Max PV input Volt | 145V(open circuit Voc) | |
MPPT Range | 60-110VDC | |
Number of PV Input | 2 | |
Max Charging Current | 160A (80Ax2) | |
OUTPUT MODE | ||
Output Waveform | Pure Sine Wave | |
AC Output Mode | 120V L-N/240V L1-L2 /208V L1-L2 3-Phase | |
Frequency | 50 / 60 Hz,auto-sensing | |
Max Bypass Current | 40A | |
Max Efficiency | > 90% | |
Max Utility Charging | 60A | |
Max Utility + Solar Charging | 220A | |
Max Bulk/Float Charge | 58.4V | |
ENVIRONMENTAL / MECHANICAL SPECIFICATIONS | ||
Communication Port | USB / RS232/Dry Contact | |
Operating Temp. | 0 ~50℃ | |
Dimension,D x W x H(mm) | 623*610*130mm | |
Net Weight | 30KG | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humid ty(Non-condensing) | |
Operating Temperature | 0C-55°℃ | |
Storage Temperature | -15°C-60°C | |
