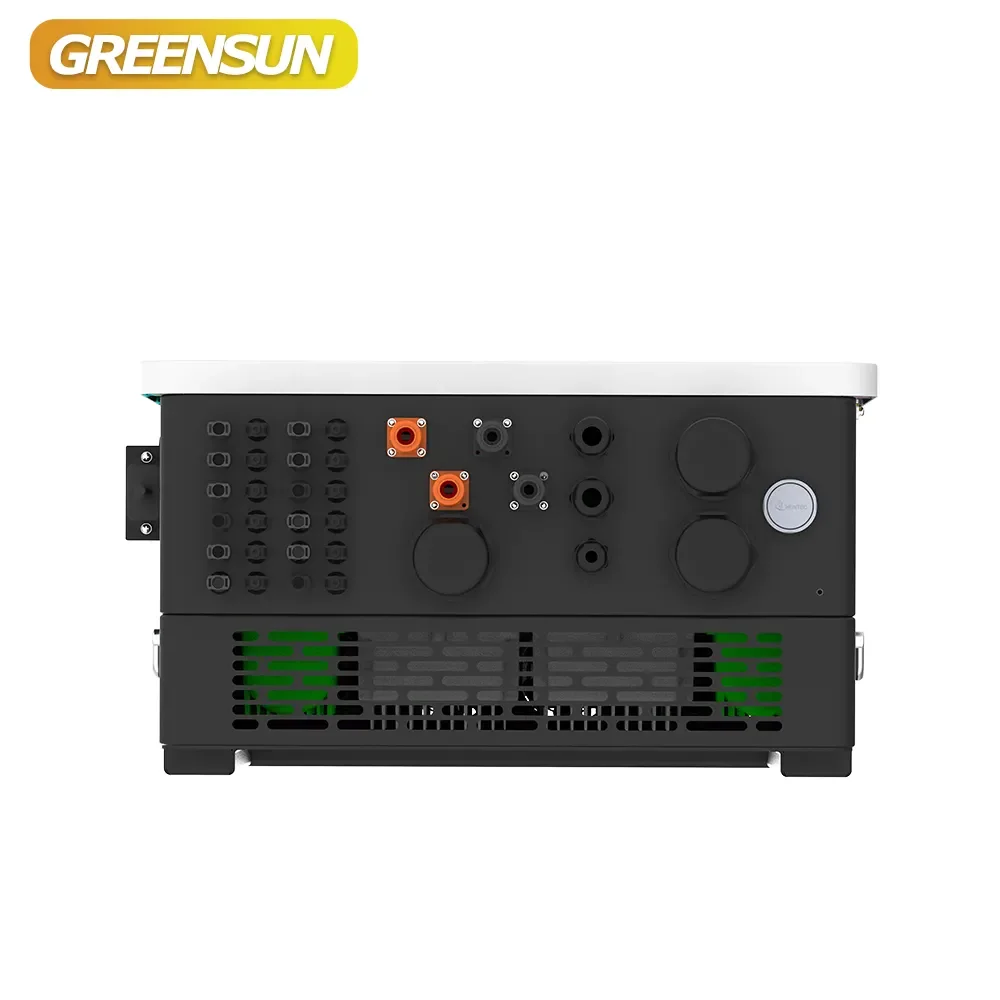

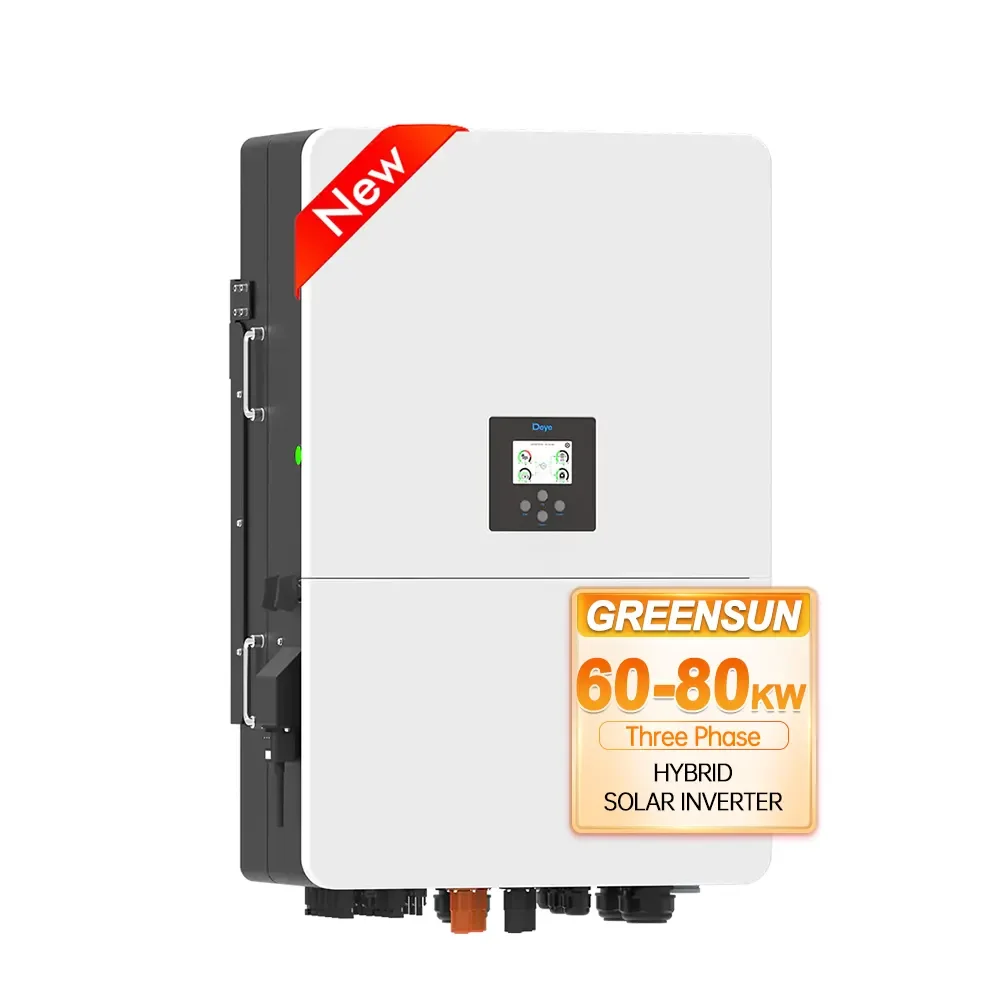

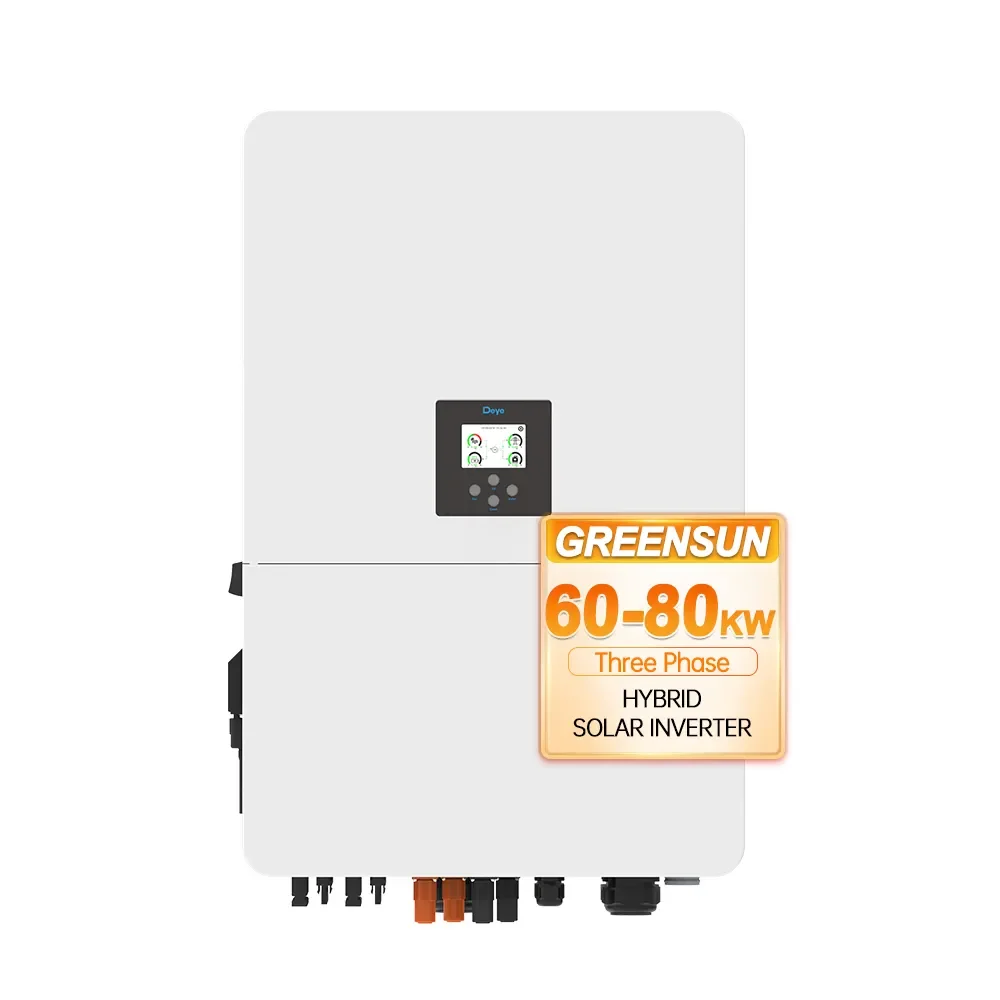

Wall Mounted Deye Hybrid 60kw Solar Inverter

Name: Wall Mounted Deye Hybrid 60kw Solar Inverter
SKU: 1005009126871283
Price: 1602.64 EUR
Availability: InStock

1602,64 €

37 people are viewing this product right now

🔥 11 items sold in last 3 hours

Add to compare

SKU: 1005009126871283

Category: Solar Inverters

Tag: Inverters

Description
Reviews (0)

Brand Name: XMSJ
Battery Included: No
Origin: Mainland China
Hign-concerned Chemical: None
Certification: CE
Place of Origin: Tianjin, China
Model Number: SUN-60K-SG02HP3-EU-EM6
Brand Name: Deye
Input Voltage: 150-850VDC
Output Voltage: 50/60Hz; 3L/N/PE 220/380, 230/400Vac
Output Current: 95.7A
Output Frequency: 50/60HZ
Output Type: Three Phase
Size: 606W x 927H x314D
Type: DC/AC Inverters
Inverter Efficiency: 97.60%
Weight: 97.5kg
Product name: 60kw solar inverter
Application: Solar Power System Home
Warranty: 5/10Years
Protection: IP65
Max PV Input Power: 60KW
Communication: RS485; CAN
MPPT Efficiency: 99.9%
Cooling: Smart cooling
Certificate: IEC 62116,G99, VDE 0126-1-1, RD 1699
Installation Style: Wall Hanging

If you have any questions, Please contact our customer service
whatsApp：+86 15232153826
Email：kaigui8882@163.com

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#b8bec9;font-family:Georgia;font-size:24px;color:#d3a86b;background-color:#fff;font-style:italic;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:615px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:615px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:187px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:177px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:153px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:147px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:148px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:518px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:320px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:753px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:747px;height:750px}#detail_decorate_root .magic-17{vertical-align:top}#detail_decorate_root .magic-18{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-19{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-20{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{margin-top:-44px;margin-left:-3px;width:371px;height:495px}#detail_decorate_root .magic-25{margin-top:-109px;margin-left:-3px;width:373px;height:663.1111111111111px}#detail_decorate_root .magic-26{border-bottom-style:solid;border-bottom-color:#b0b6bd;font-family:Georgia;font-size:24px;color:#d9b98b;background-color:#fff;font-style:italic;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:472px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:472px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:439.91999999999996px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:439.91999999999996px}

Specification

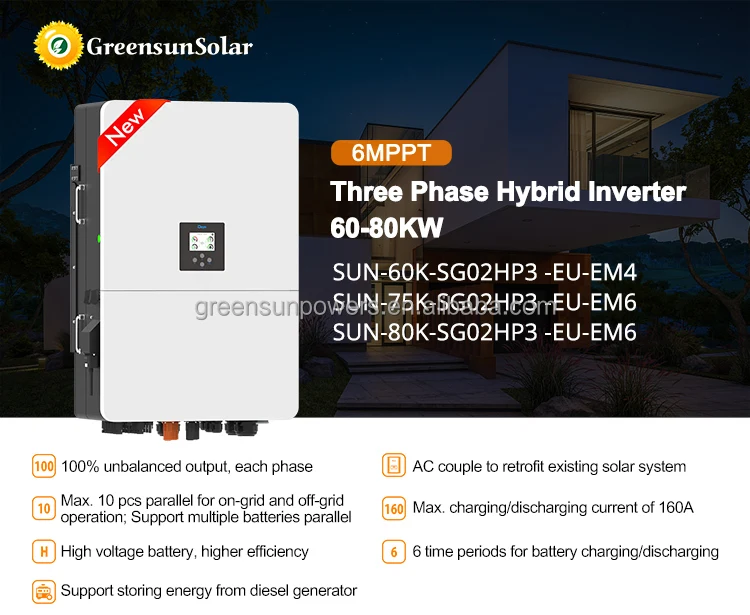

Model	SUN-60K-SG02HP3 -EU-EM4	SUN-75K-SG02HP3 -EU-EM6	SUN-80K-SG02HP3 -EU-EM8
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160-1000
Max. Charge/Discharge Current (A)	80+80
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	2
PV String Input Data
Max. PV Access Power (W)	120000	150000	160000
Max. PV Input Power (W)	96000	120000	128000
MPPT Voltage Range (V)	150-850
Rated PV Input Voltage (V)	650
Max. Operating PV Input Current (A)	36+36+36+36	36+36+36+36+36+36
No. of MPP Trackers/ No. of Strings MPP Tracker	4/2+2+2+2	6/2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	60000	75000	80000
Rated AC Input/Output Current (A)	91/87	113.7/108.7	121.3/115.9
Max. AC Input/Output Current (A)	91/87	113.7/108.7	121.3/115.9
Max. Continuous AC Passthrough (grid to load) (A)	200
Peak Power (off-grid) (W)	1.5 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	3L+N+PE
DC Injection Current	<0.5% In
Total Current Harmonic Distortion THDi	<3% (of nominal power)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.0%
MPPT Efficiency	>99%
