- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Power Tool Parts
- Origin: Mainland China
- country of origin: Anhui, China
- Model: UE-5-8K -SG01LP1-US/EU
- input voltage: 370 (125-500)
- output voltage: 230Vac (single phase)
- Output current: 44A
- output frequency: 50/60Hz
- output type: single row
- size: 420*670 * 233mm
- type: DC/DC inverter, DC/AC inverter
- Inverter efficiency: 93%
- weight: 32kg
- MPPT voltage range: 120V-500V
- maximum efficiency: 93%
- standby ac output voltage: 230Vac (single phase)
- communication: RS485/WIFI
- Operating temperature range: -25 ~ + 60 °C
- Battery type: Lithium ion, lead acid
- AC reverse charging: Yes

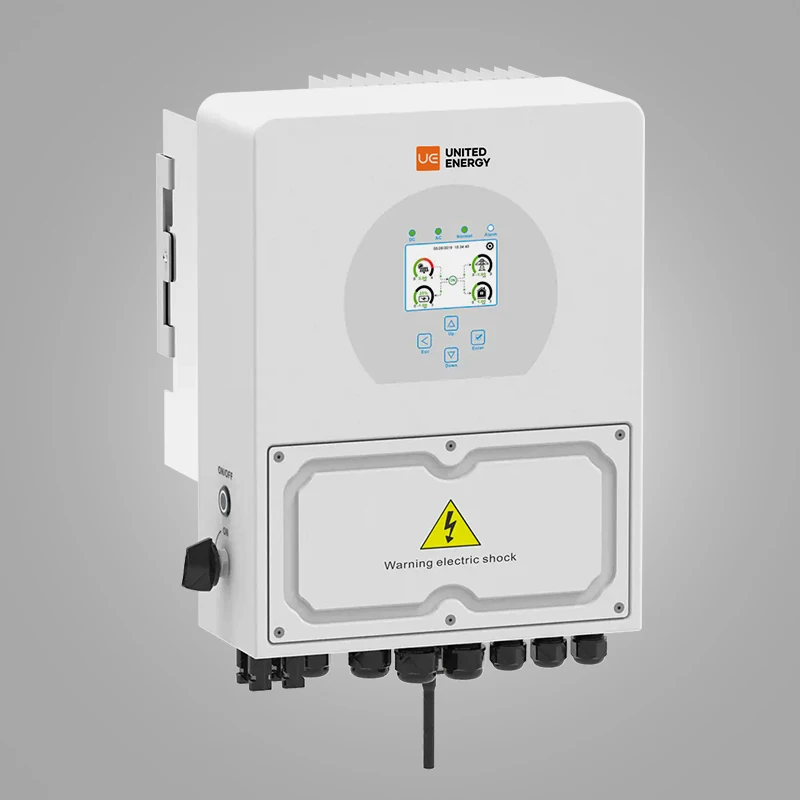

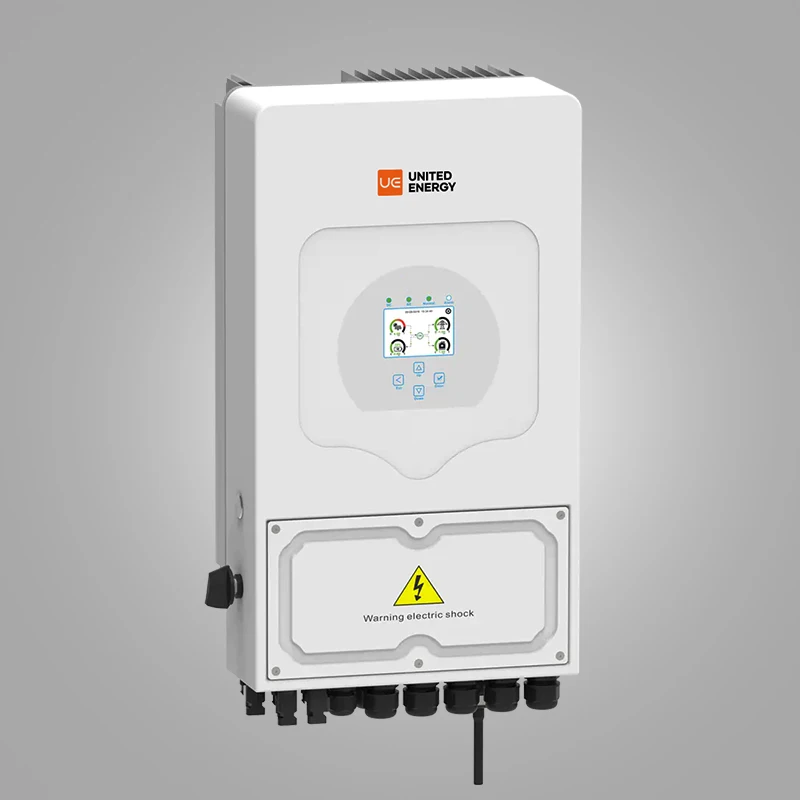

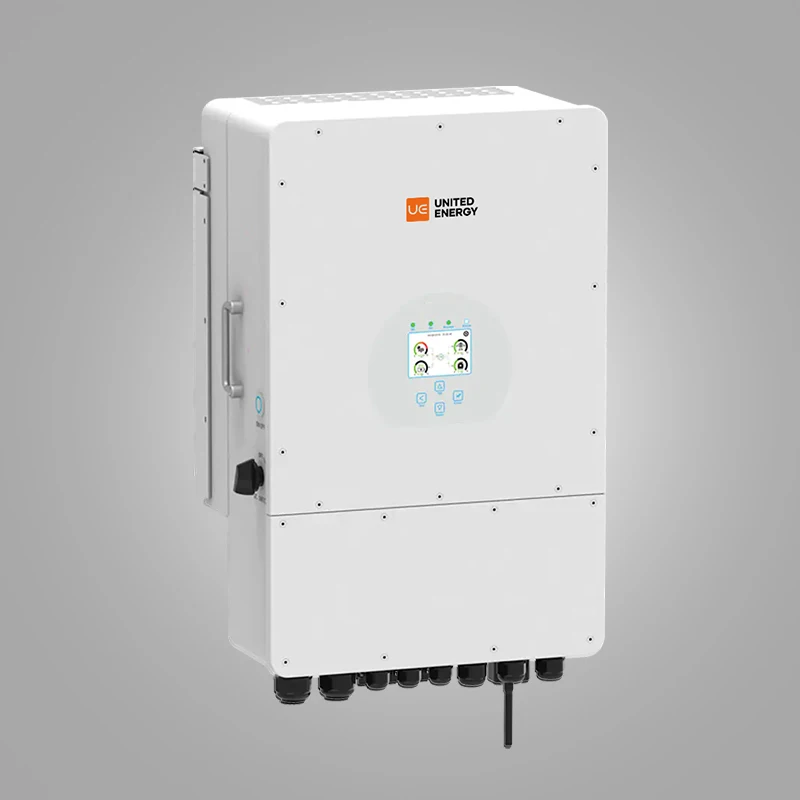

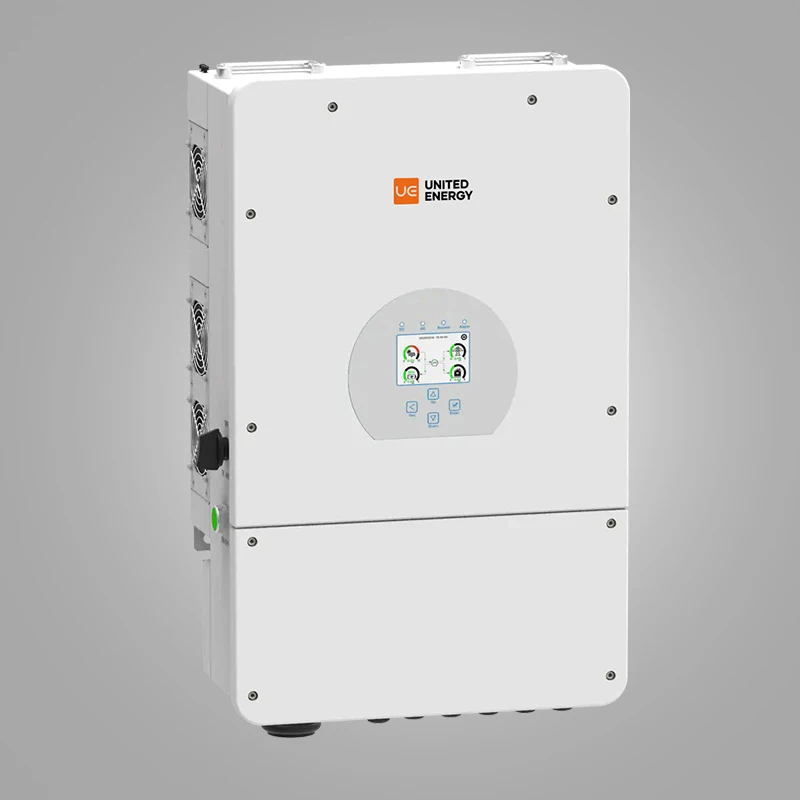

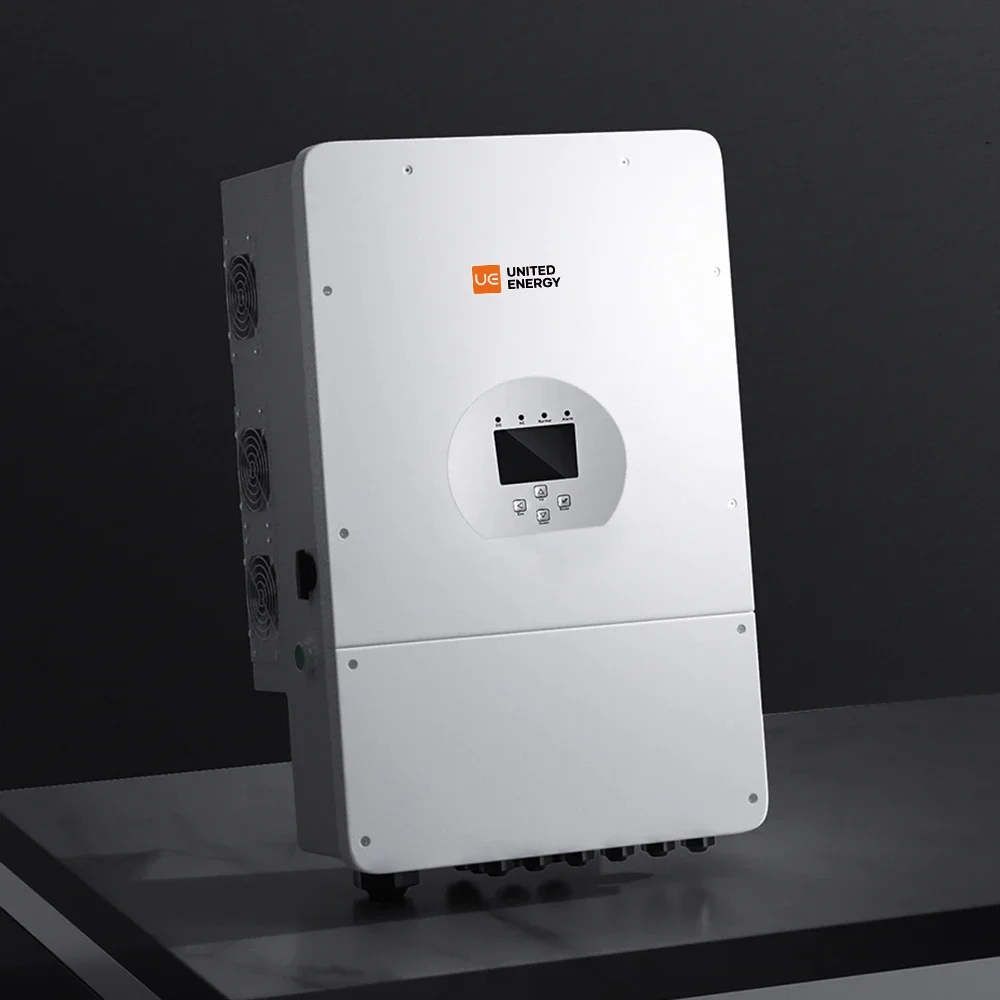

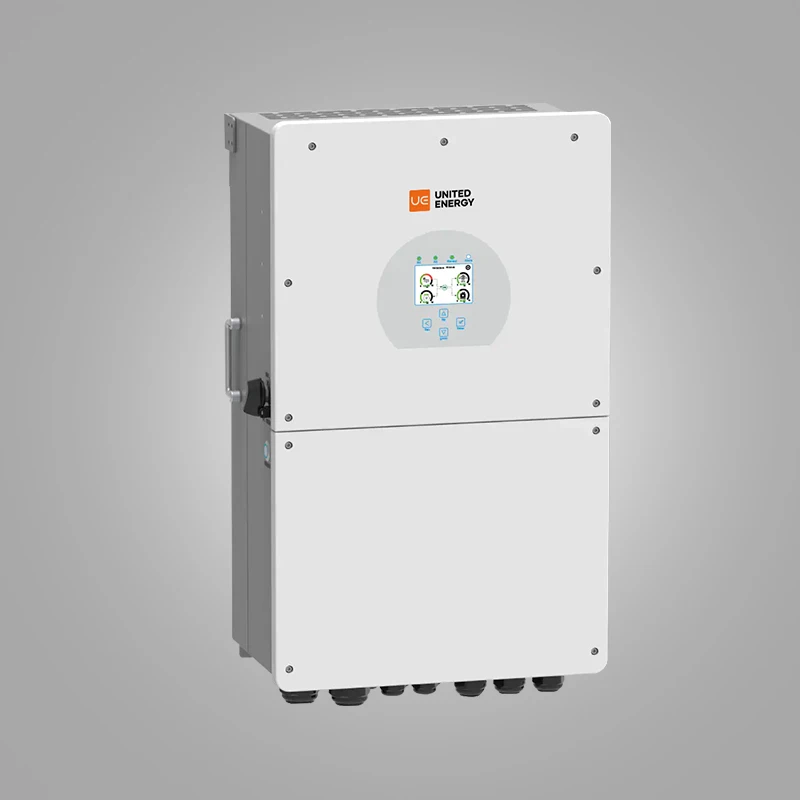

- Product name: Deye Hybrid Inverter

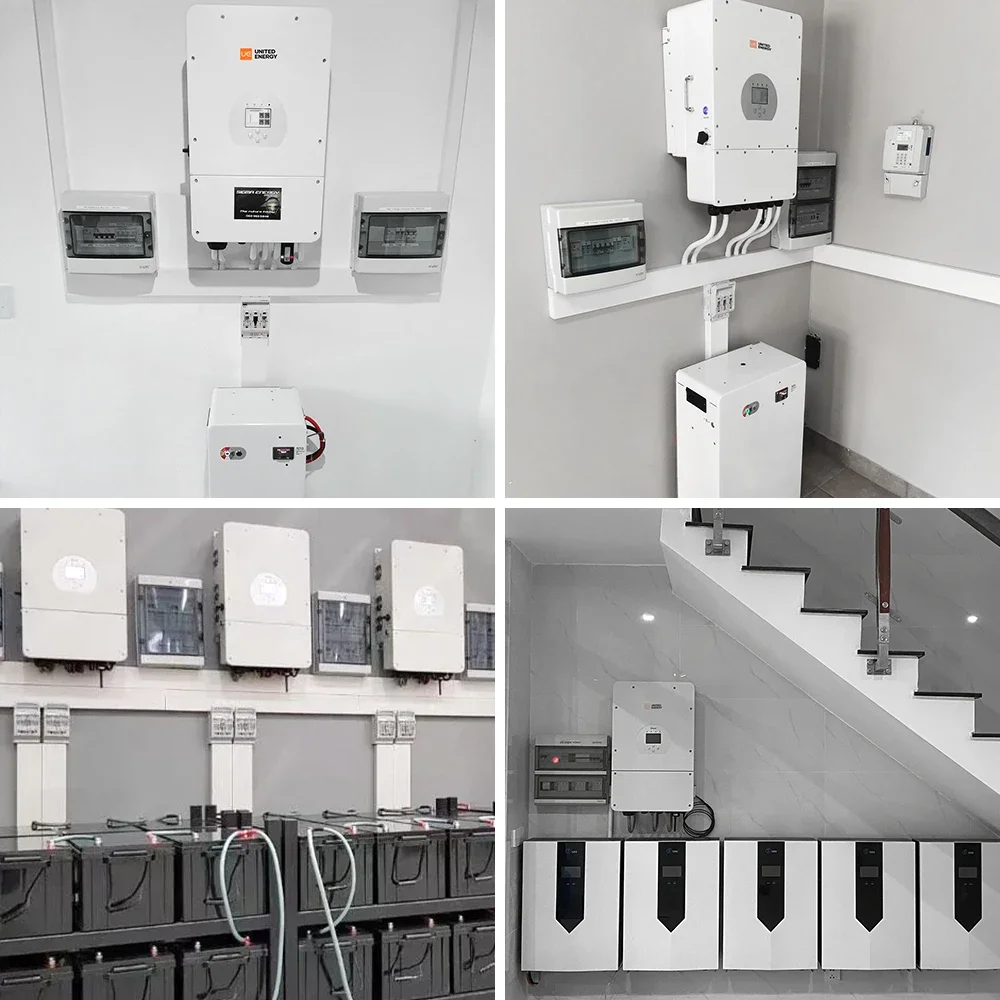

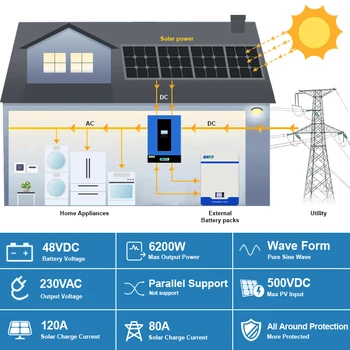

- application: Household solar power generation system:
- PV input power: 5kw 8kw hybrid inverter
- Warranty period: 5 years
#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:353.77358490566036px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:353.77358490566036px}#detail_decorate_root .magic-4{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-5{overflow:hidden;width:750px;height:396.22641509433964px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:750px;height:396.22641509433964px}#detail_decorate_root .magic-7{vertical-align:top}#detail_decorate_root .magic-8{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-9{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-10{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:662.2641509433962px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:662.2641509433962px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:615.566037735849px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:615.566037735849px}#detail_decorate_root .magic-15{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-16{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-17{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-18{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-19{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-20{font-size:13px}#detail_decorate_root .magic-21{width:750px;border-collapse:collapse}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:193px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:110px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{text-align:center}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:121px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:109px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-29{display:none}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:512px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{text-align:left}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:636.7924528301887px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:636.7924528301887px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:1065.566037735849px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:1065.566037735849px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:346.7321571772253px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:346.7321571772253px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:348.59572784810126px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:348.59572784810126px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:590.0943396226415px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:590.0943396226415px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:454.34183321847px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:454.34183321847px}
Products Description

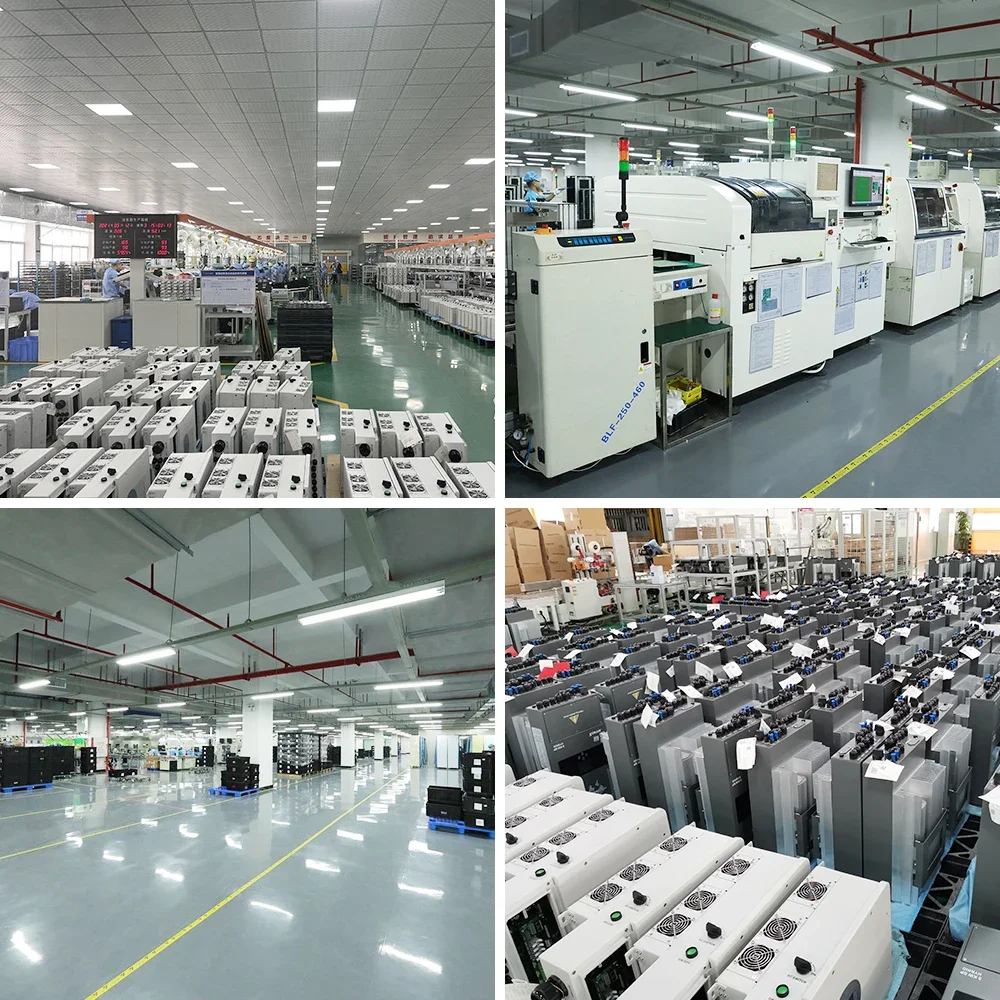

UE is committed to providing complete photovoltaic power system solutions, including residential and commercial power plant solutions. It is one of the world’s leading manufacturers of energy storage inverters, with major markets in Europe, America and Africa. The product range includes 1.5-110kW grid-connected PV inverters, 3kW-50kW hybrid inverters and 300W-2000W micro-inverters. As a technology-driven company, UE has always been committed to developing new cutting-edge technologies in order to provide highly efficient and reliable products. For example, the adoption of T-type three-level topology and enhanced SVPWM algorithm has further improved the conversion efficiency by 0.7% compared with normal SPWM.
Products Series
UE-3/3.6/5/6K-SG04LP1
Output Power: 3-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
UE-3.6/5/6K-SG03LP1-EU
Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Type: Lead-acid or Lithium-ion
UE-3.6/5/6/7.6/8K-SG05LP1-EU
Output Power: 3.6-8KW Single Phase Output Voltage: 220/230/240V Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion

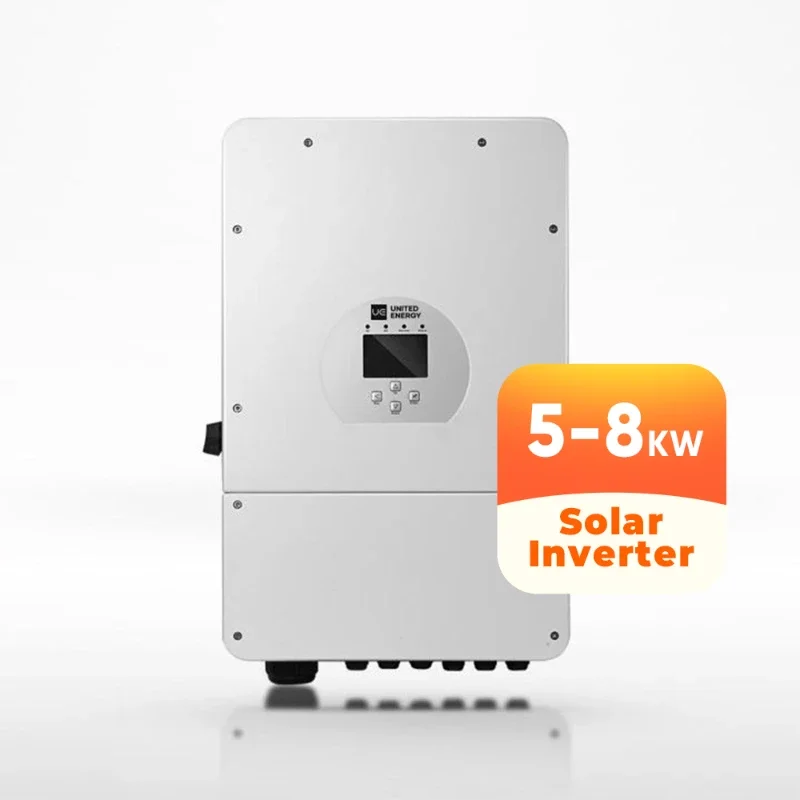

UE-5/6/7.6/8K-SG01LP1-US
Output Power: 5-8KW Split Phase
Output Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
UE-5/6/8/10/12K-SG04LP3
Output Power: 5-12KW Three Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Type: Lead-acid or Lithium-ion
UE-12/14/16K-SG01LP1
Output Power: 12-16KW Single Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Type: Lead-acid or Lithium-ion
Product Paramenters
Model | UE-5K-SG01LP1 -US | UE-6K-SG01LP1 -US | UE-7.6K-SG01LP1 -US | UE-8K-SG01LP1 -US | ||||
ON GRID AC OUTPUT | ||||||||
Rate AC Output Power | 5KVA | 6KVA | 7KVA | 8KVA | ||||
AC Output Voltage | 120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase) | |||||||
AC Output Frenquecny | 50/60Hz | |||||||
Grid Type | Single Phase, Split phase, 2/3 phase | |||||||
Max Output Current | 24A | 28.8A | 36.5A | 38.3A | ||||
AC reverse charging | Yes | |||||||
PF | 0.8leading…0.8lagging | |||||||
BACK-UP AC OUTPUT | ||||||||
Rated Backup output power | 5KVA | 6KVA | 7.6KVA | 8KVA | ||||
Max Backup output power | 6.25kVA 60S. 7.5KVA 1S | 7.5kVA 60S. 9KVA 1S | 7.5kVA 60S. 9KVA 1S | 10kVA 60S. 12KVA 1S | ||||
Backup AC output Voltage | 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase) | |||||||
AC Frenquency | 50/60Hz | |||||||
PV INPUT | ||||||||
PV input power | 7.5kW | 9kW | 12kW | 12kW | ||||
MPPT number | 4 | |||||||
PV voltage range | 350V/85V-500V | |||||||
MPPT voltage range | 120V-500V | |||||||
Single MPPT input current | 12A | 12A | 12A | 12A | ||||
BATTERY | ||||||||
Max charging /discharging current | 120A / 120A | 135A / 135A | 190A / 190A | 190A / 190A | ||||
Battery Voltage range | 48V | |||||||
Battery Type | Lithium-ion,Lead-acid | |||||||
PROTECTION | ||||||||
Ground protection | Yes | |||||||
AFCI protection | Yes | |||||||
Islanding protection | Yes | |||||||
DC disconnect detection | Yes | |||||||
Battery Reverse protection | Yes | |||||||
Battery charge and discharge protection | Yes | |||||||
Insulation testing | Yes | |||||||
Input overvoltage & under-voltage protections | Yes | |||||||
Output overvoltage & under-voltage protections | Yes | |||||||
AC & DC over-current protection | Yes | |||||||
AC short-circuit current protection | Yes | |||||||
Overheating protection | Yes | |||||||
GENERAL DATA | ||||||||
Operation Temperature range | -25 ~ +60°C | |||||||
Environment humidity | 0-95% | |||||||
IP rank | IP65/NEMA 3R | |||||||
Weight | 32kg | |||||||
Dimension (W × H × D) | 430 × 710 × 210mm | |||||||
Cooling | Fan Cooling | |||||||
Noise (dB) | <25dB | <29dB | <29dB | |||||
Display | LCD | |||||||
Communication / Safty / EMC / On Grid | Modbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B EC62109-1, IEC62109-2 / UL1741 ,IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99 | |||||||

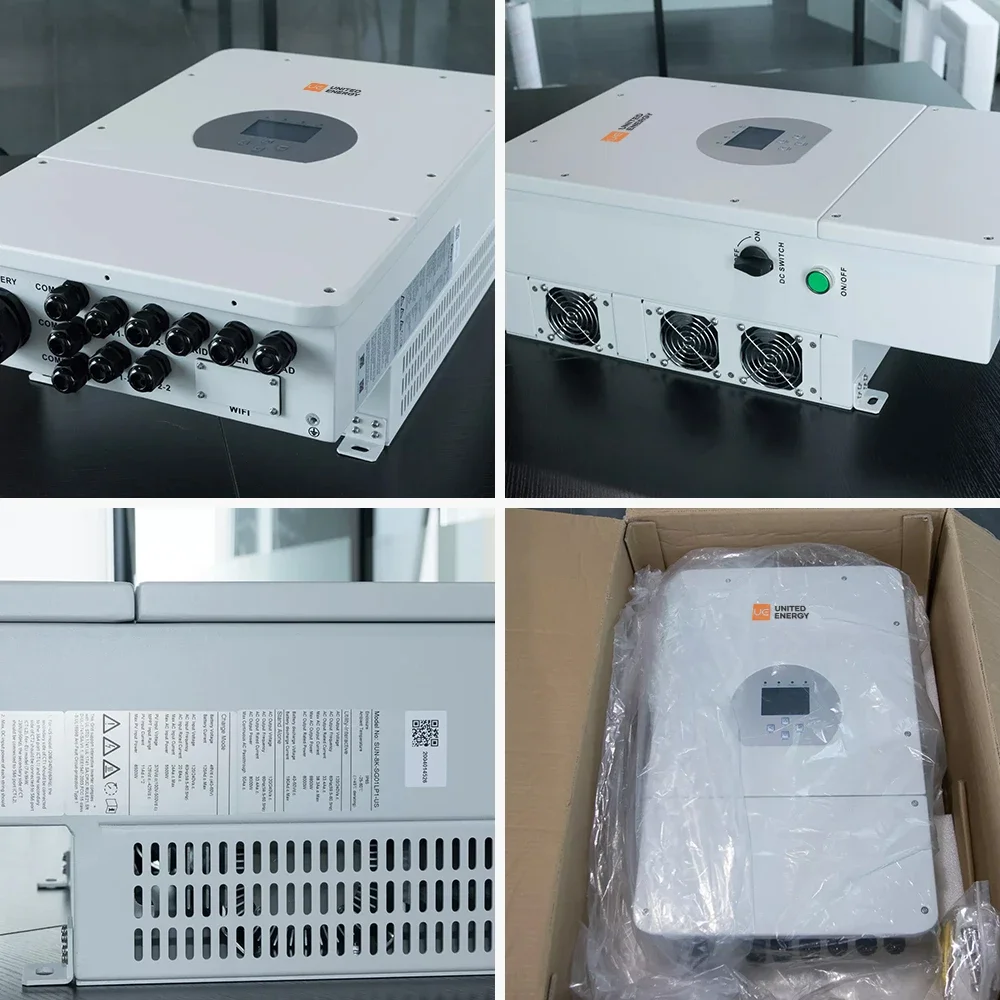

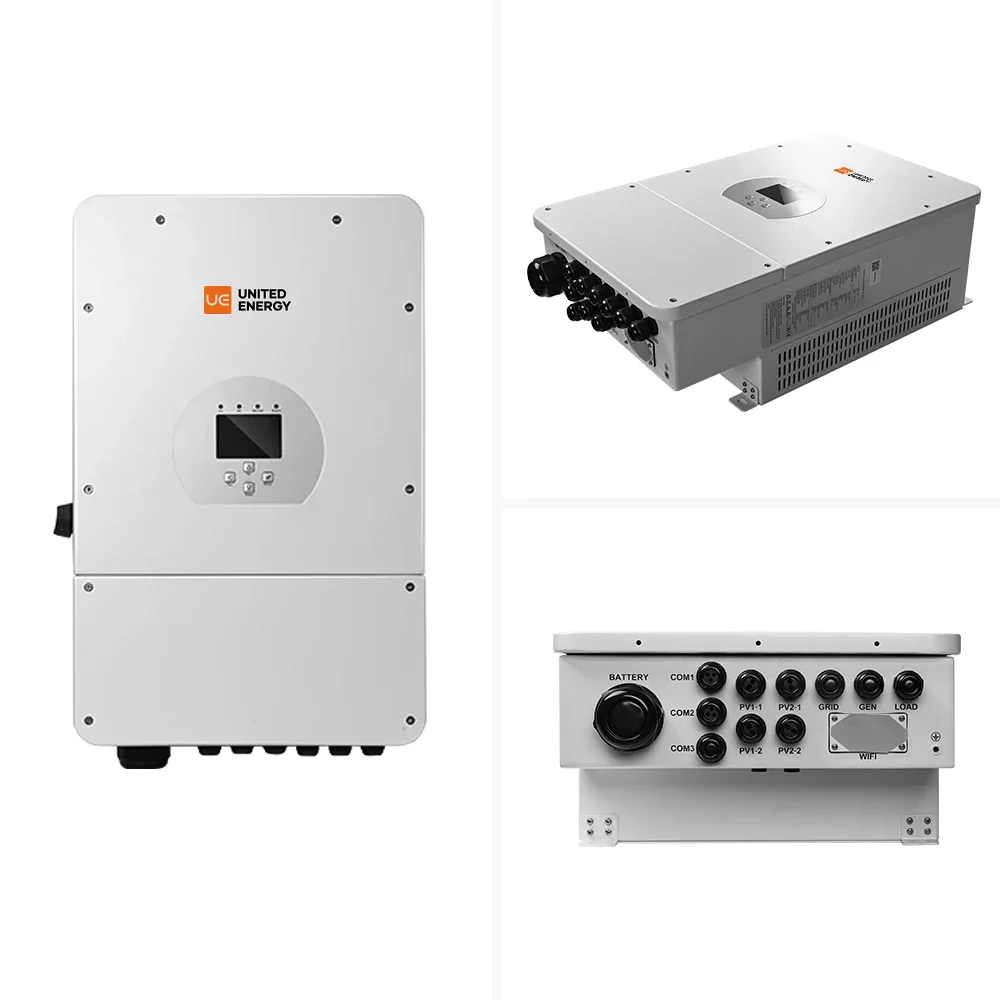

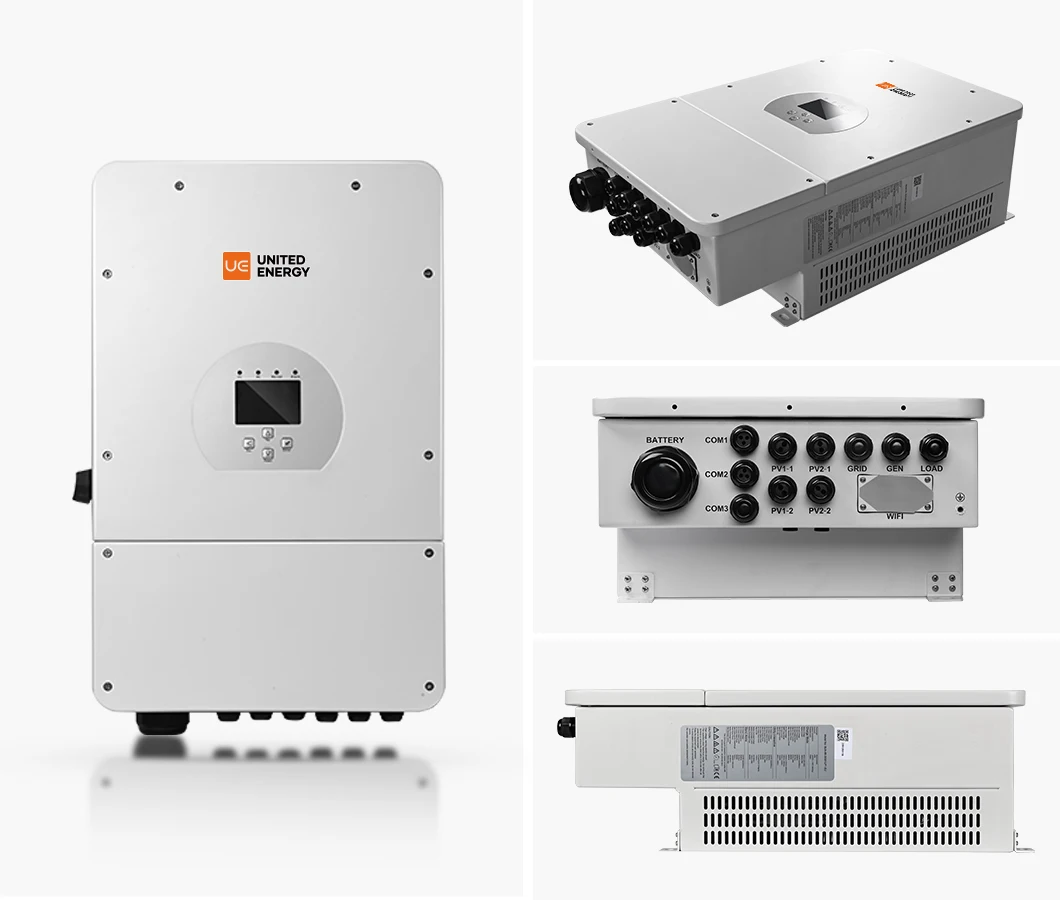

Details Images & Packing
