- Brand Name: LanYuXuan
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Place of Origin: Anhui, China
- Brand Name: HW
- Model Number: SUN2000-60KTL-M0
- Input Voltage: 1100V
- Output Voltage: 480 V/ 400 V/ 380 V, 3W+(N)+PE
- Output Current: 91.2 A @380 V, 86.7 A @400 V, 72.2 A @480 V
- Output Frequency: 50Hz/60Hz
- Output Type: Triple, Multiple
- Size: 1,075 x 555 x 300 mm (42.3 x 21.9 x 11.8 inch)
- Type: DC/DC Converters, DC/AC Inverters
- Inverter Efficiency: 98.9% @480 V; 98.7% @380 V / 400 V
- Certificate: Contact us for product certification
- Warranty: 5 Years or more
- Weight: 74 kg (163.1 lb.)

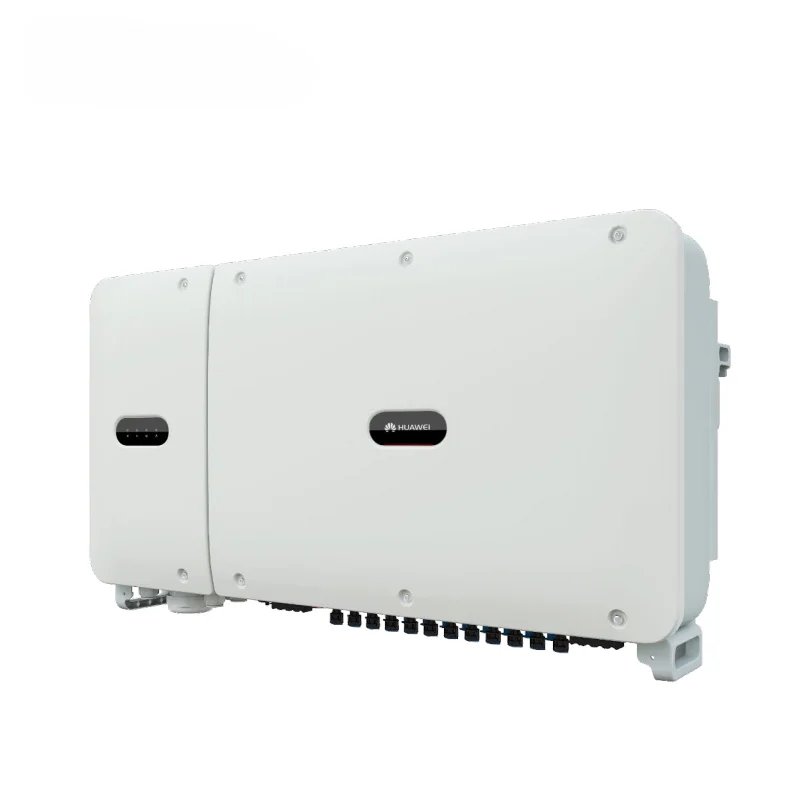

- Product name: SUN2000-60KTL-M0 Smart PV Controller
- Application: Solar Power System Home
- Inverter type: On-grid Solar Power Inverter
- Operating temperature range: -25°C ~ 60°C (-13°F ~ 140°F)
- Cooling Method: Natural Convection
- Max. Operating Altitude without Derating: 4,000 m (13,123 ft.)
- Relative Humidity: 0 ~ 100%
- DC Connector: Amphenol Helios H4
- AC Connector: Waterproof PG Terminal + Terminal Clamp
- Protection Degree: IP65
Hello! Dear customer! 1. Due to the factory’s production cycle, the inventory of goods may be affected. In order to avoid a long wait or possible disappointment after you place an order, please be sure to contact the merchant to confirm whether there is inventory before purchasing, so that we can provide you with better and more efficient services. (Note: Otherwise the factory will not be able to ship) 2. Due to different regions, there is a time difference. For example, your region is in a different time zone from ours, resulting in different work and rest time. So I may not be able to reply to you immediately, but please rest assured that I will reply within 12 hours. If you need other models of this product, please feel free to contact us. You can contact us in the following ways: WhatsApp: +86 18163618306 Email: 285185920@qq.com WeChat: 18692842106 Mobile number: +86 18692842106 We will send you the product link in time for your convenience.
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#23a193;font-family:Roboto;font-size:24px;color:#23a193;text-align:center;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:1060px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:1060px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:502px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:502px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:90px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{text-align:center}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:83px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:75px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:412px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{display:none}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:137px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:91px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:84px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:74px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:257px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:413px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:509px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:614px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{border-bottom-style:solid;border-bottom-color:#009e96;font-family:Roboto;font-size:24px;color:#009e96;text-align:center;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-22{overflow:hidden;width:373px;height:250px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:373px;height:250px}#detail_decorate_root .magic-24{overflow:hidden;width:373px;height:250px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:1479px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:1479px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:969px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:969px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:100px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:100px}
Product Description
Packing & Delivery
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||||
West Union | Amount lower than 5000usd | ||||||
Delivery Time | 3-7 working days after receiving payment (should be decided according to quantity) | ||||||
