- Brand Name: Growatt
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE, FCC, RoHS, UL, weee

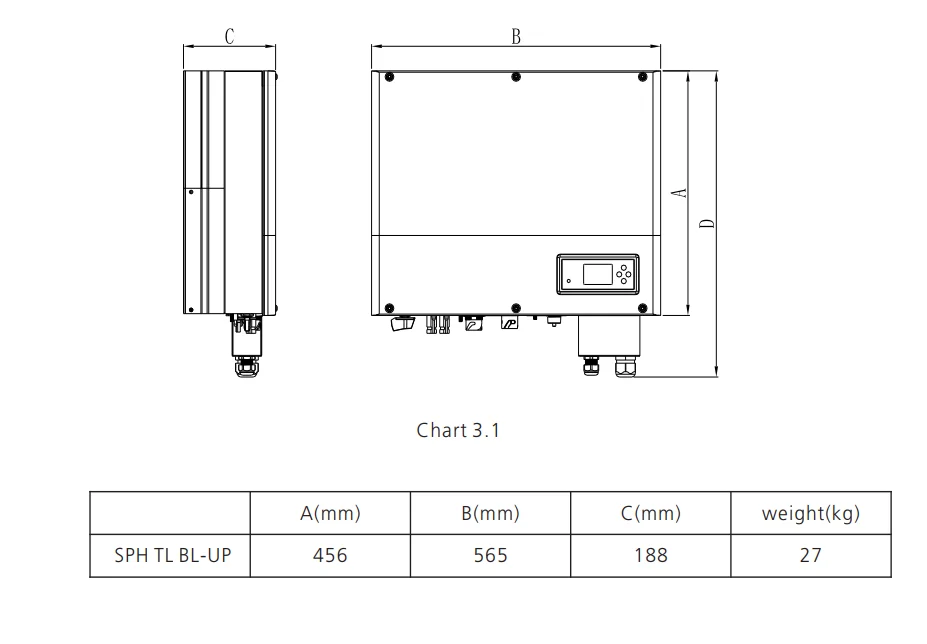

- Size: 458/565/188mm
- Output Frequency: 50/60HZ
- Output Type: SINGLE
- is_customized: Yes
- Output Current: 27A
- Output Power: 1 – 200KW
- Weight: 31kg
- Is Smart Device: Yes

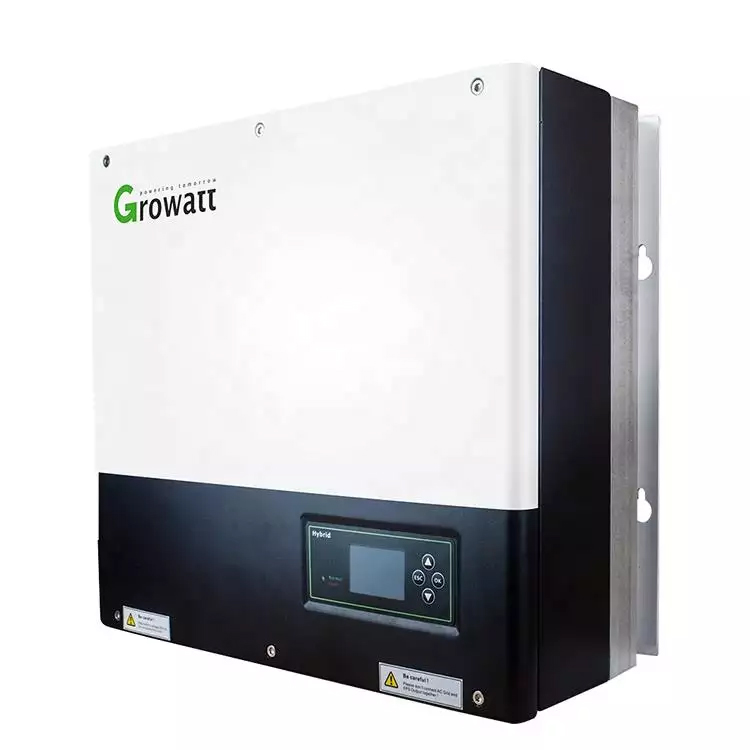

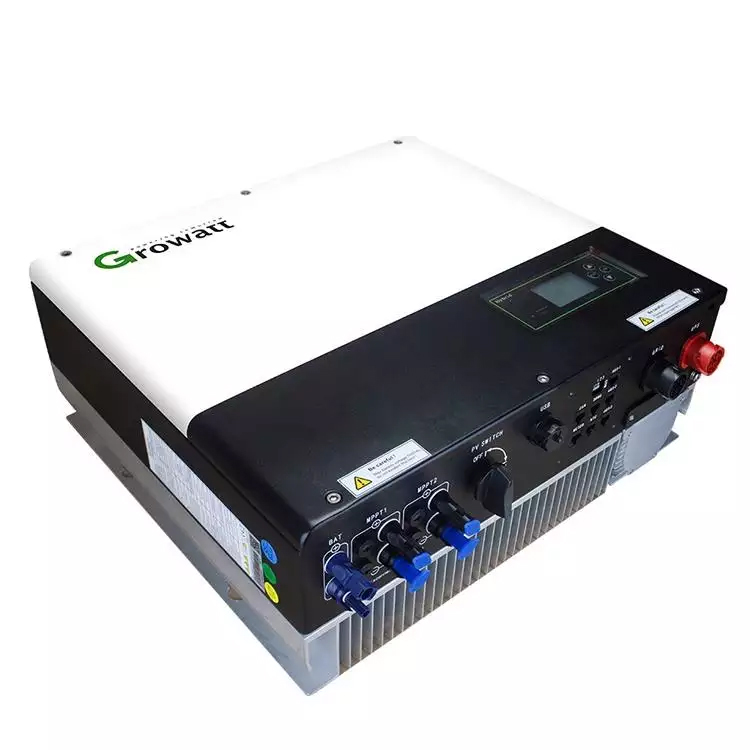

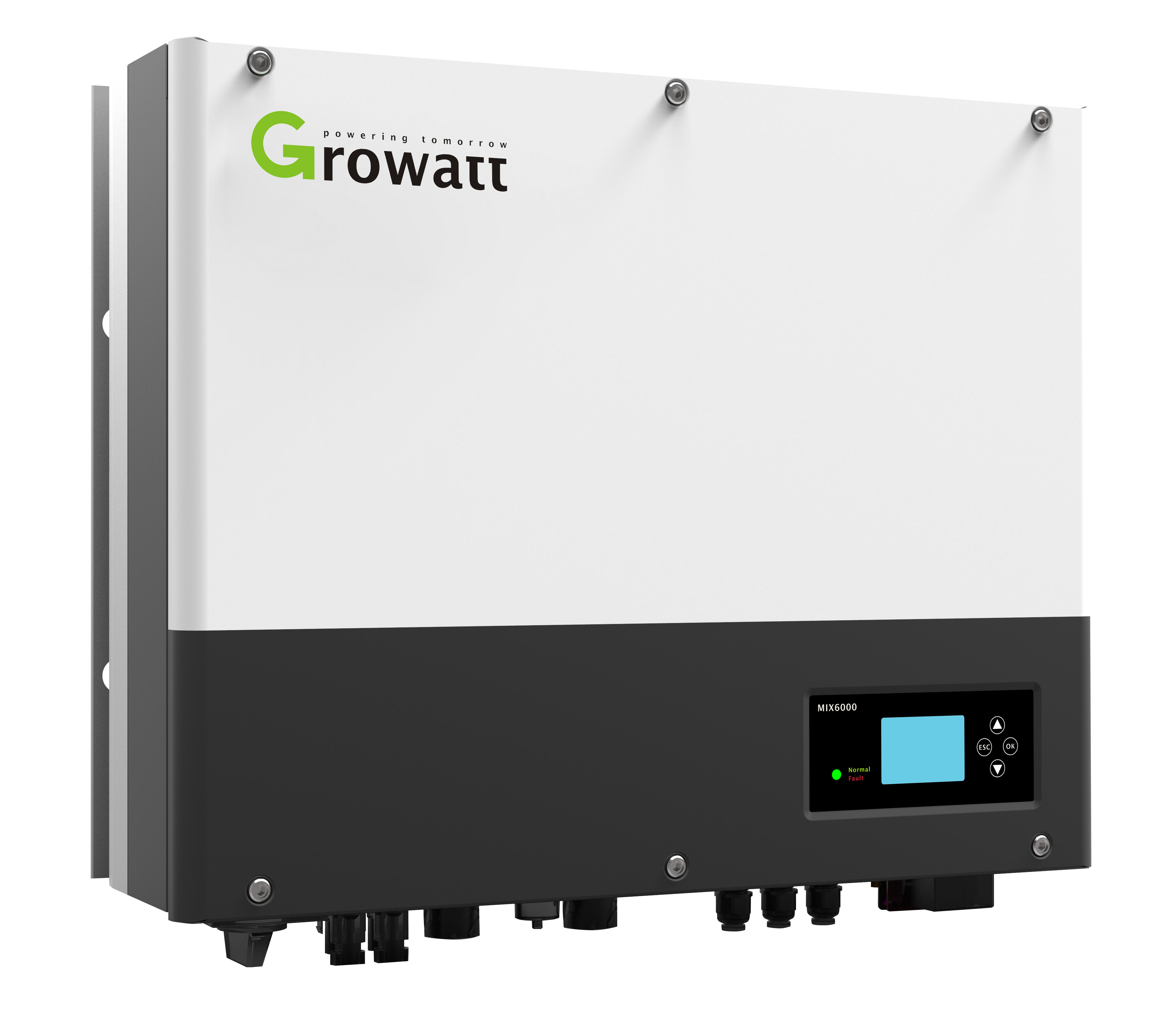

- Model Number: SPH5000-6000TL BL-UP
- Max. DC voltage: 550V
- Start voltage: 120V
- MPP voltage range: 120-550V/360V
- No. of MPP trackers: 2
- Max. input current per MPP tracker: 13.5A
- Max. short-circuit current per MPP tracker: 16.5A
- AC nominal power: 3000-6000W
- Nominal AC voltage (range): 230V/(180Vac-270Vac)
- Battery voltage range: 42~59V
- Type of battery: Lithium /Lead-acid
- Max. output current: 17.4A
- Protection degree: IP65
- Altitude: 2000m
- PV DC Connection: H4/MC4(Optional)
- Interfaces:: RS485/CAN/USB
- Monitor: RF/WIFI/GPRS
- Warranty: 5 years / 10 years
- MPPT efficiency: ≥99.5%
Product Detail

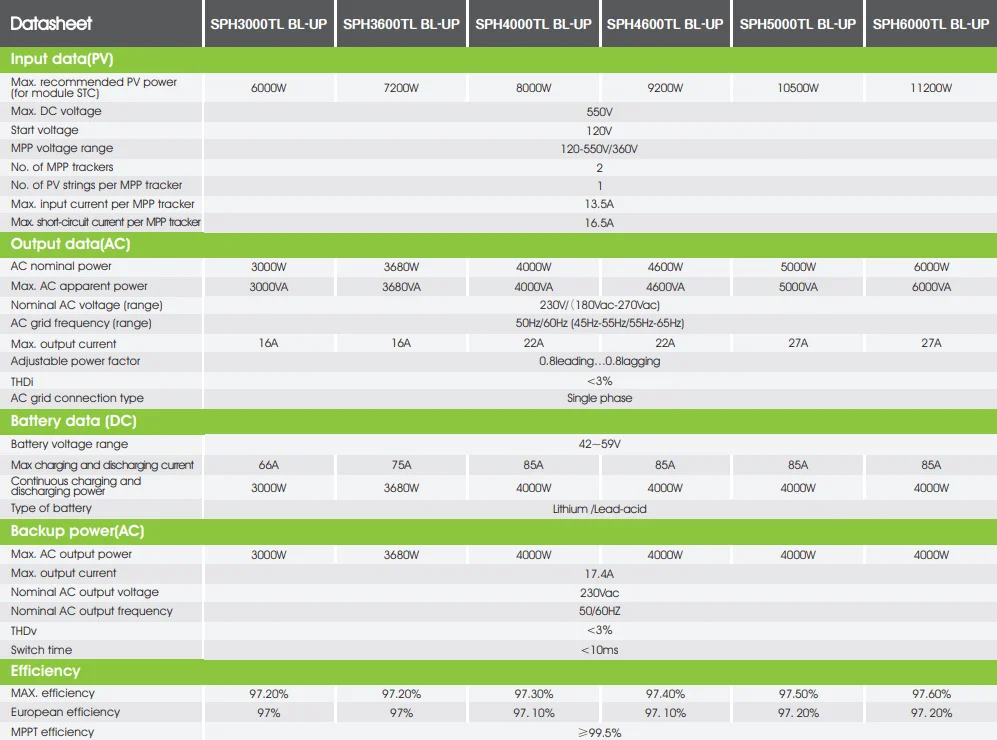

Product Parameter

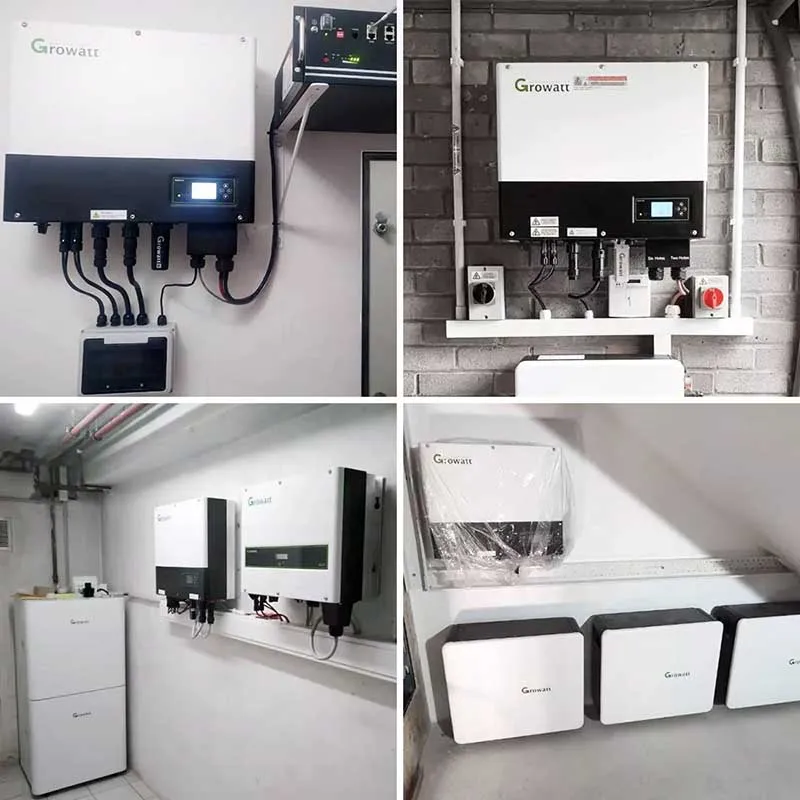

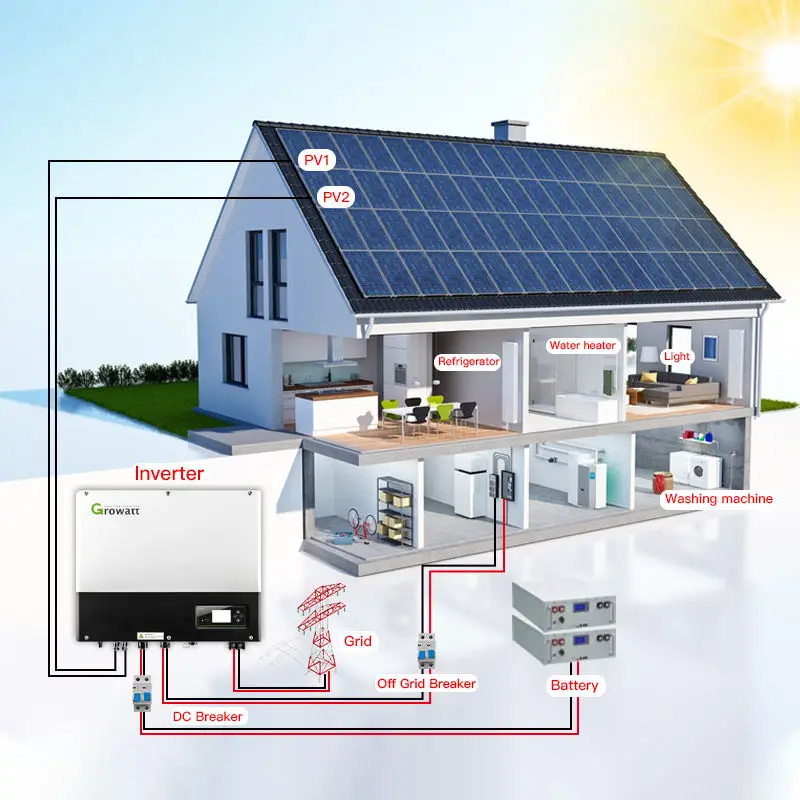

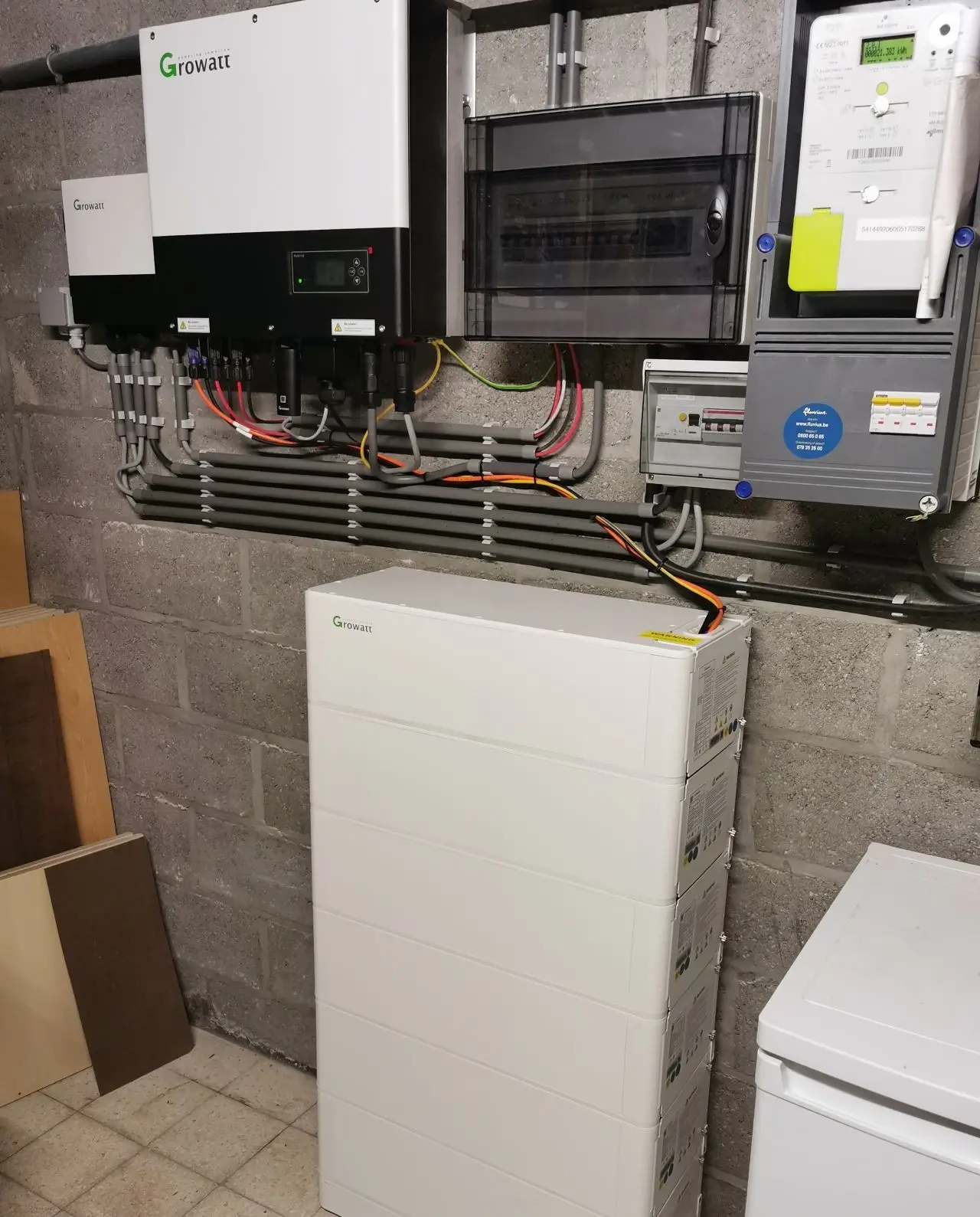

Product Application
Product Package
Company Exhibition
