Solis 80Kw 100Kw 110Kw AC DC Smart With Rs485 3 Phase on Grid Solar Inverter Energy Storage System

Name: Solis 80Kw 100Kw 110Kw AC DC Smart With Rs485 3 Phase on Grid Solar Inverter Energy Storage System
SKU: 1005009074682846
Price: 2967.12 EUR
Availability: InStock

2967,12 €

29 people are viewing this product right now

🔥 7 items sold in last 3 hours

Add to compare

SKU: 1005009074682846

Category: Solar Inverters

Tag: Inverters

Description
Reviews (0)

Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Type: Hand Tool Parts
Origin: Mainland China

you can add my Whats.app86 18374980760. Thank you again! Wishing you a happy life

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:404.7169811320755px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:404.7169811320755px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:353.77358490566036px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:353.77358490566036px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750.7075471698113px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750.7075471698113px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:153px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:174px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:166px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:160px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:716px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:161px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:542px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:347px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:566.7452830188679px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:566.7452830188679px}#detail_decorate_root .magic-21{width:446px}#detail_decorate_root .magic-22{overflow:hidden;width:446px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:446px;height:400px}#detail_decorate_root .magic-24{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-25{font-size:26px}#detail_decorate_root .magic-27{font-size:24px}#detail_decorate_root .magic-28{font-size:22px}#detail_decorate_root .magic-29{font-size:14px}#detail_decorate_root .magic-30{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:708.2547169811321px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:708.2547169811321px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:720.2830188679245px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:720.2830188679245px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:672.877358490566px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:672.877358490566px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:379.79539641943734px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:379.79539641943734px}#detail_decorate_root .magic-39{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-40{vertical-align:top}#detail_decorate_root .magic-41{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-42{font-size:22px;color:#1d41ab}#detail_decorate_root .magic-43{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-44{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-45{padding:0;margin:0;white-space:pre-wrap;font-size:14px}

Product Description

Specifications

Models	80K	100K	110K
Input DC
Max. input voltage	1100 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	160-1000 V
Max. input current	3*(40 A / 32 A)	4*(40 A / 32 A)
Max. short circuit current	6*50 A	8*50 A
MPPT number/Max. input strings number	6/12	8/16
Output AC
Rated output power	80 kW	100 kW	110 kW
Max. apparent output power	88 kVA	110 kVA	121 kVA
Max. output power	88 kW	110 kW	121 kW
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	121.6 A / 115.5 A	152.0 A / 144.3 A	167.1 A / 158.8 A
Max. output current	133.7 A	167.1 A	183.8 A
Power factor	>0.99 (0.8 leading – 0.8 lagging)
THDi	<3%
Efficiency
Max. efficiency	98.5%
EU efficiency	98.0%
General Data
Dimensions (WHD)	1065585363 mm (with AC switch)	1183585363 mm
Weight	79.5 kg	93 kg
Operating ambient temperature range	-30 ~ +60°C
Ingress protection	IP66
Grid connection standard	G99, IEC61727, EN50549-1/2
Safety/EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4

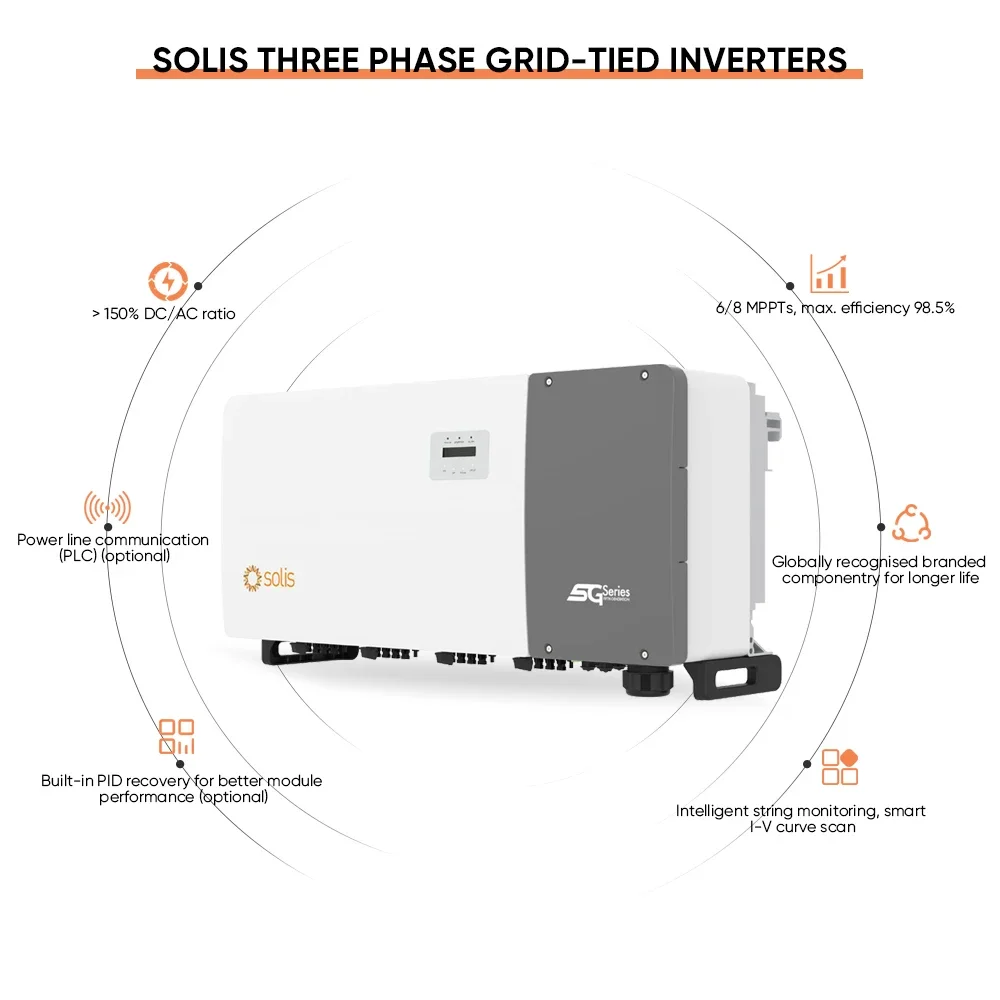

Features
DC connection	MC4 connector
AC connection	OT terminal (max. 240 mm²)
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS, PLC

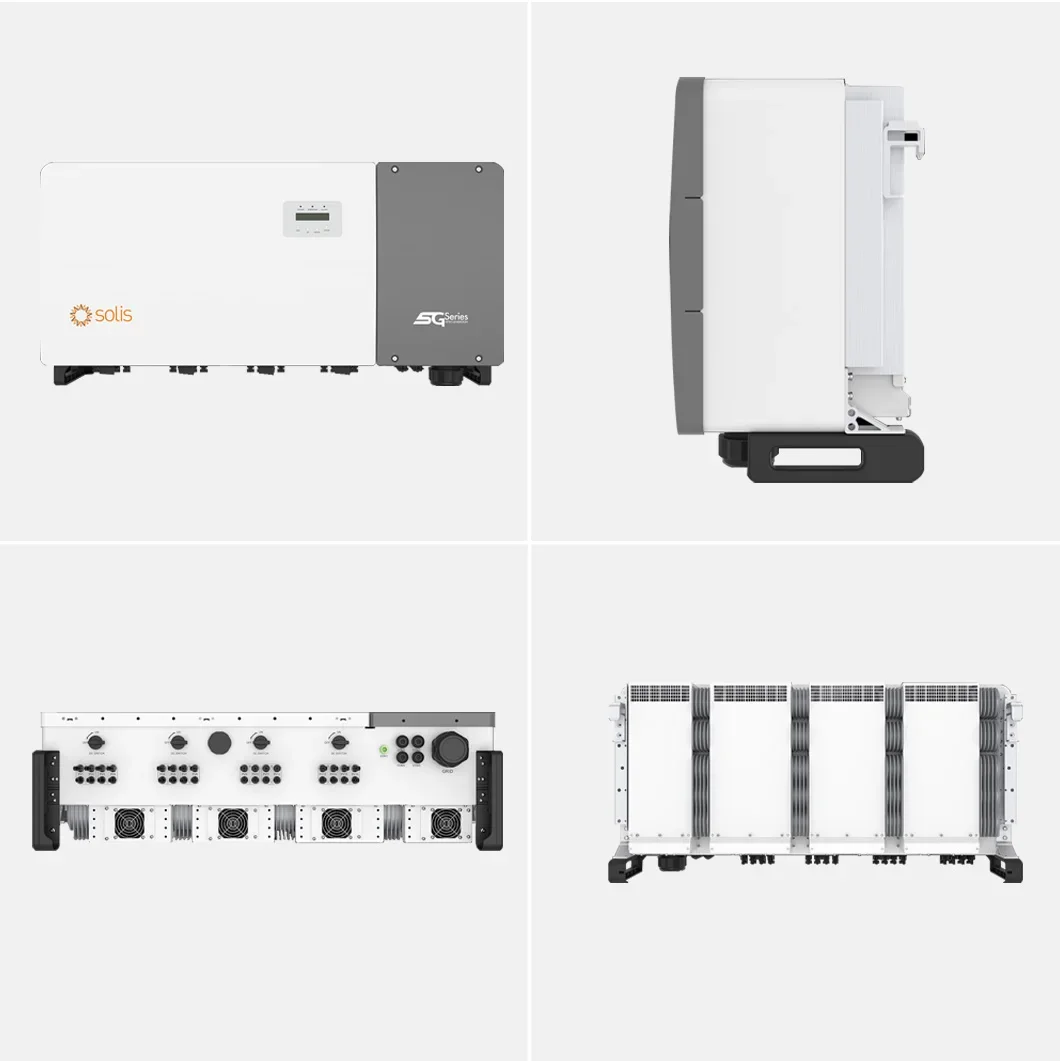

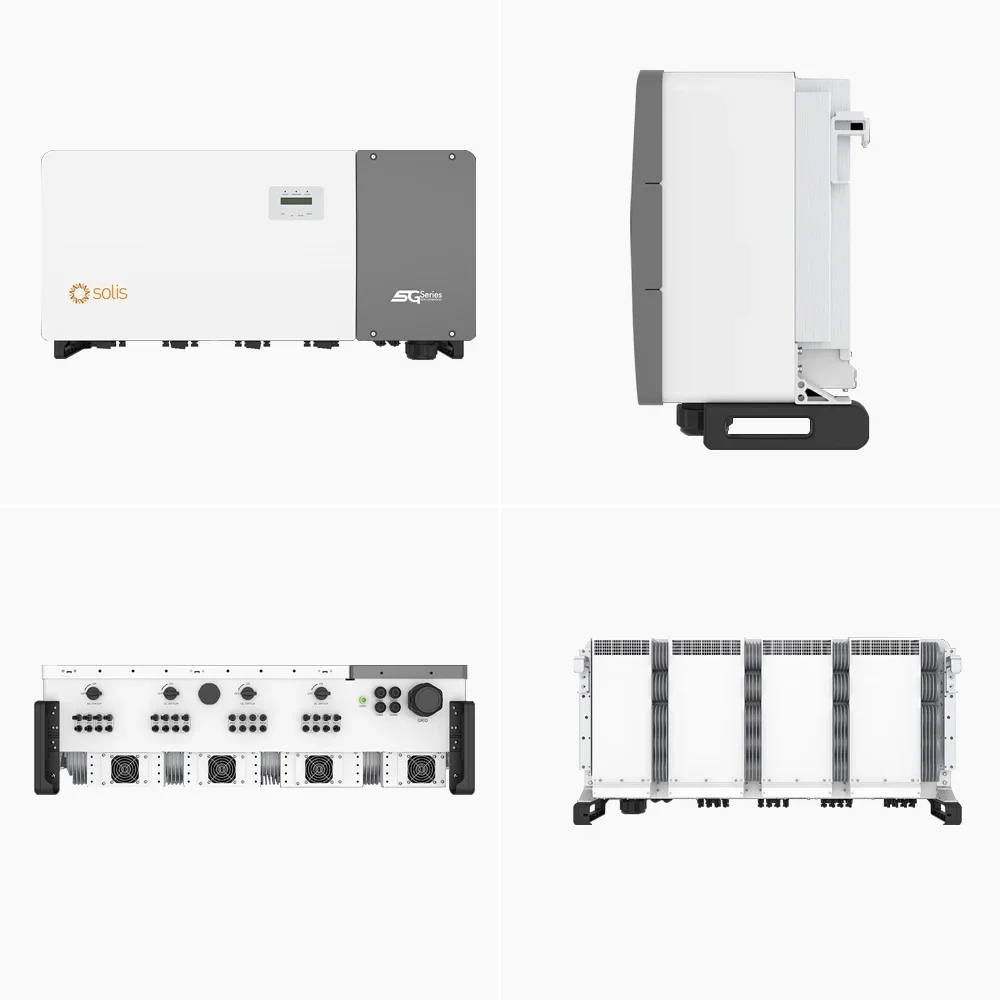

Product Exhibition

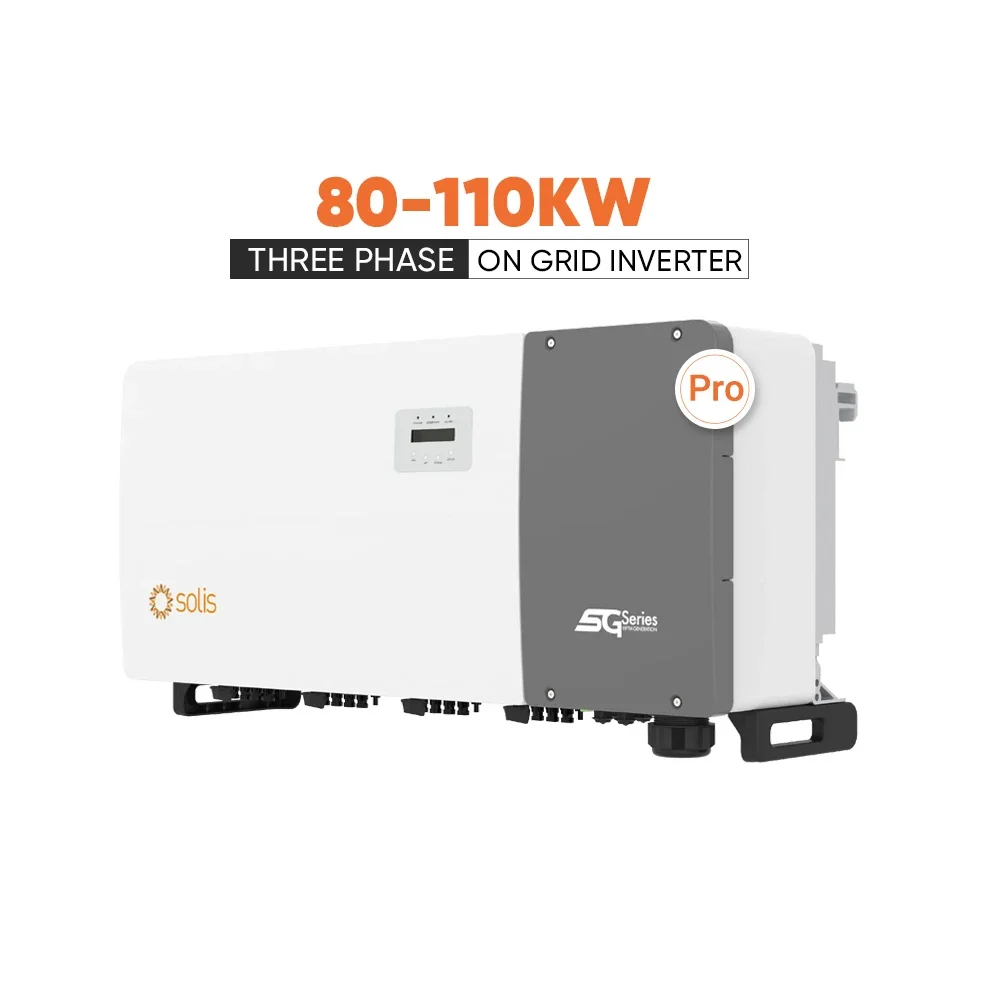

Solis-(80-110)K-5G

Rated output power锛�80-110KW

Max. input voltage: 1100V

Rated voltage: 600-720V

MPPT voltage range: 180-1000V

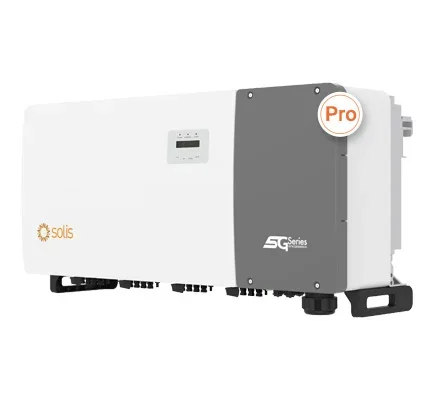

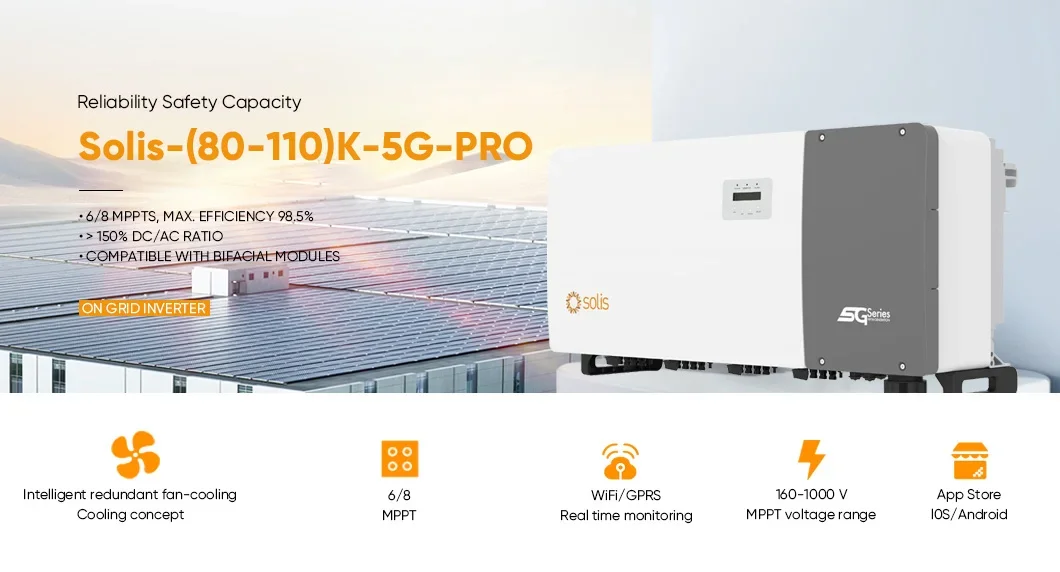

Solis-(80-110)K-5G-PRO

Rated output power锛�80-110KW
Max. input voltage: 1100V
Rated voltage: 600-720V
MPPT voltage range: 180-1000V

Solis-(100-125)K-5G

Rated output power锛�80-125KW
Max. input voltage: 1100V
Rated voltage: 600-720V
MPPT voltage range: 180-1000V

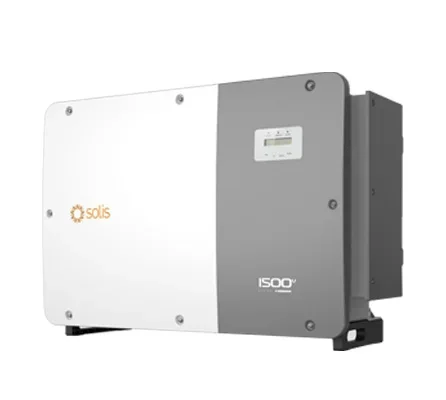

Solis-(215-255)K-EHV-5G

Rated output power锛�215-255KW

Max. input voltage: 1500V
Rated voltage: 1080V
MPPT voltage range: 480-1500V

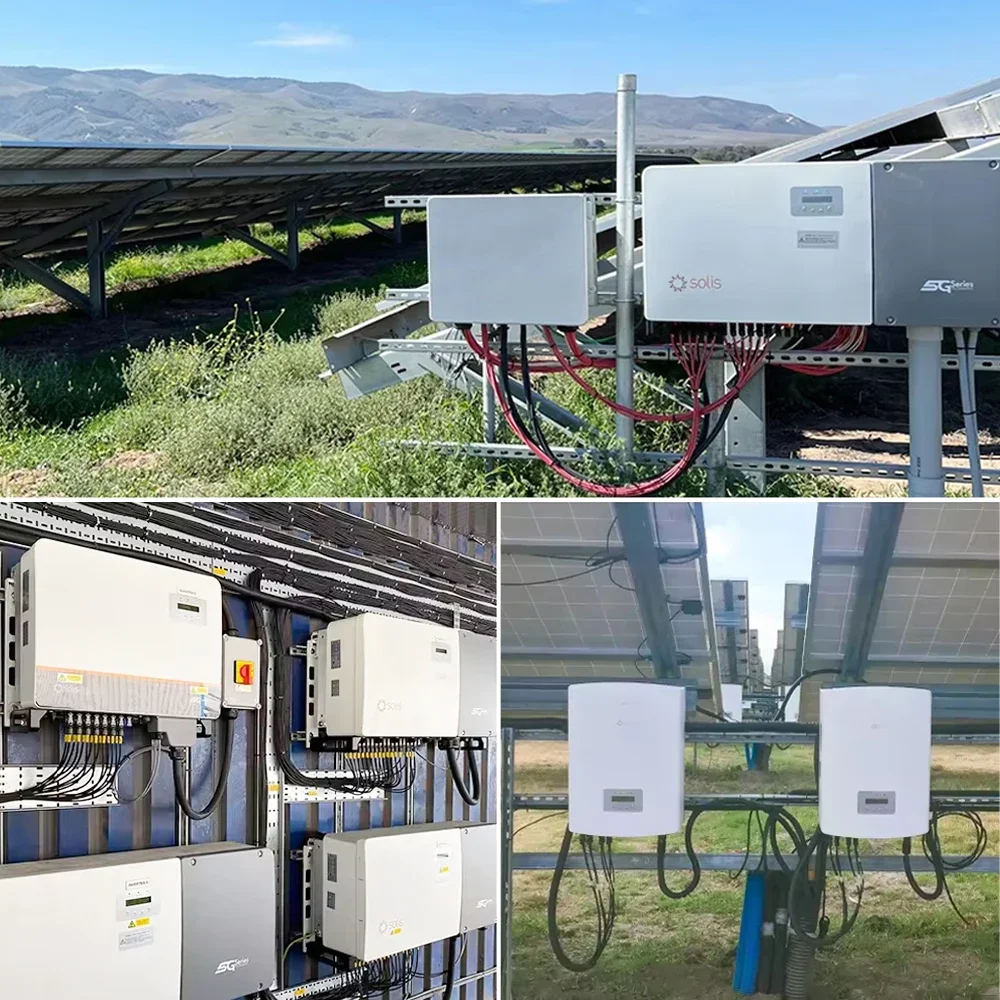

Projects

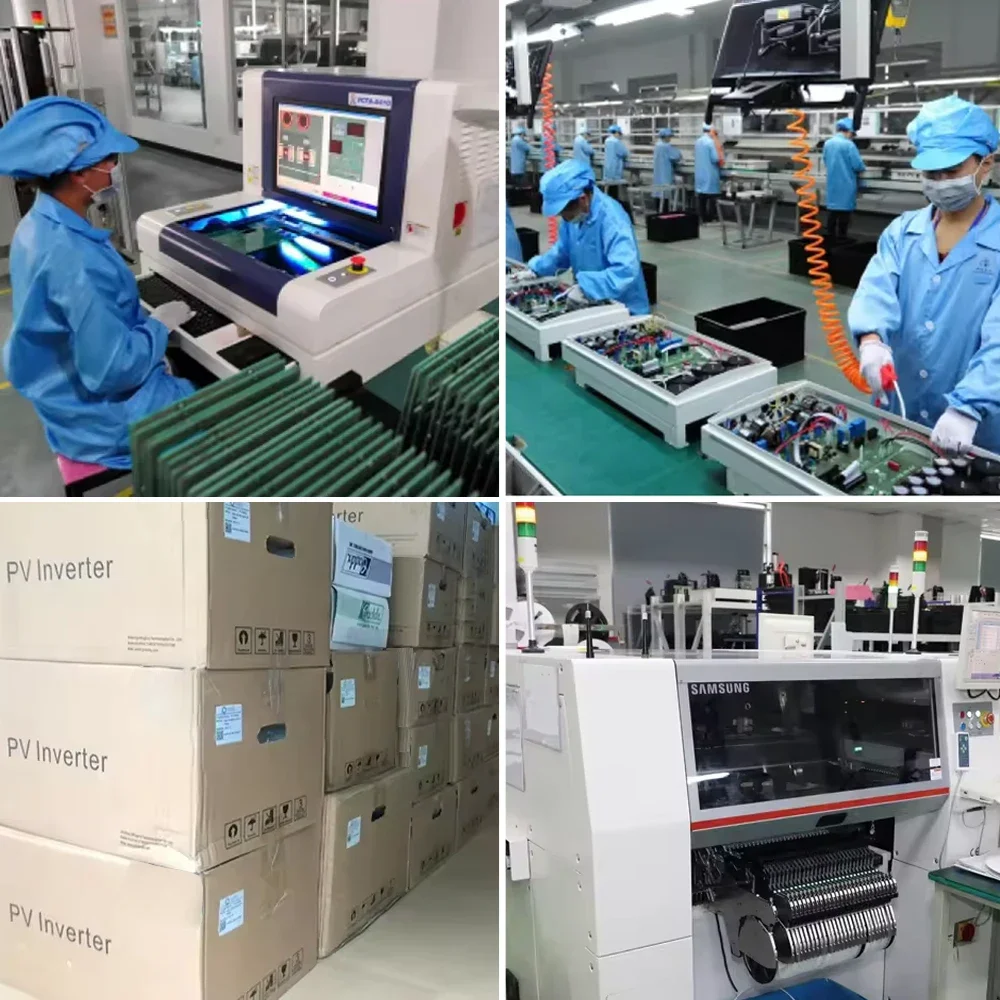

Our Factory

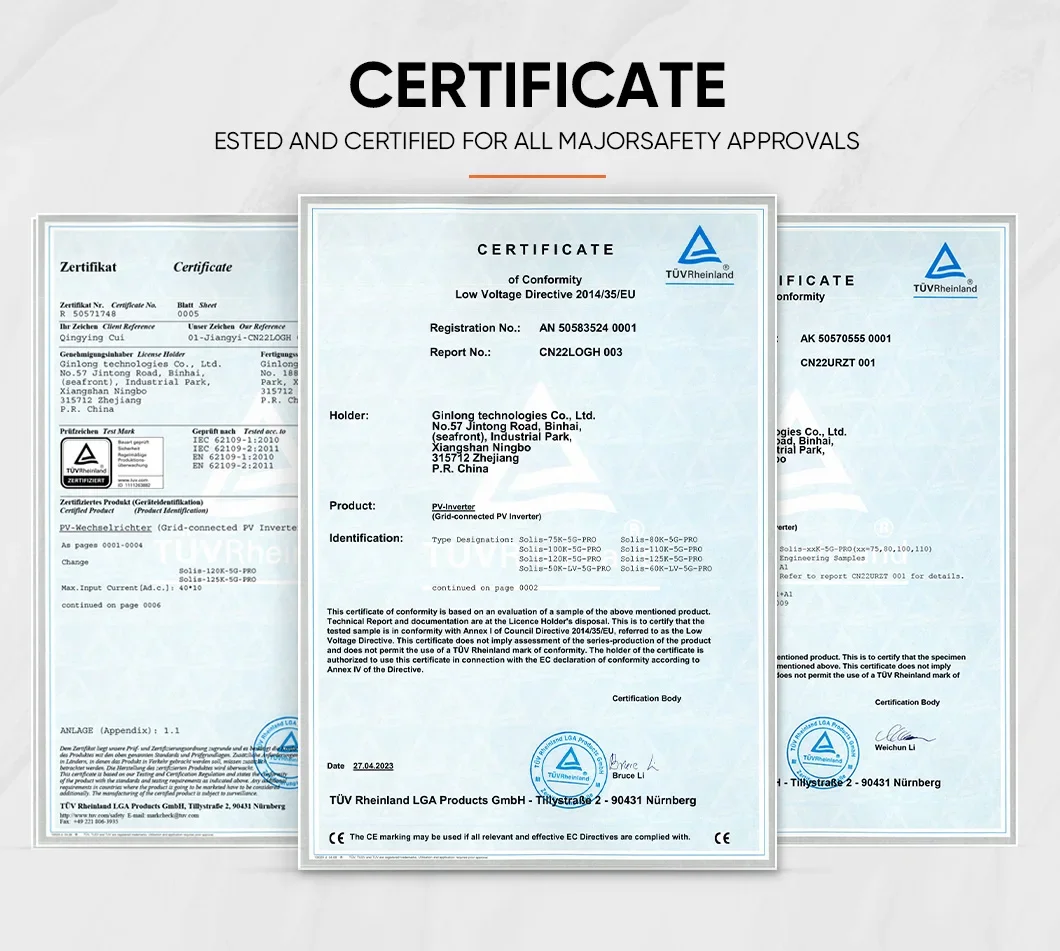

Certificates

Fast Contact

Why Choose Us

1. Rich project experience and successful cases

We have completed over 1000 new energy projects and accumulated rich project development experience. These experiences enable us to better understand customer needs and provide more practical solutions.

2. High quality products
We focus on the producing and selecting reliable quality products only, for solar power generation systems, energy storage systems to make the system efficient and low-cost.

3. Perfect supply chain and partners

We have a comprehensive supply chain system and have established long-term and stable cooperative relationships with multiple well-known suppliers. This ensures that we can obtain high-quality raw materials and components in a timely manner, providing strong guarantees for the production and delivery of products. Also provide customers with more diversified choices.

4. Comprehensive service with good culture
We provide comprehensive services from solution design, equipment selection, installation and debugging to operation and maintenance management. Customers only need to put forward their requirements, and we can provide tailored solutions. We will adhere to the core values of gratitude, reliability, responsibility and innovation, providing customers with efficient and cost-effective system solutions.
