- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Model Number: SV 5KHT-G2
- Brand Name: Solavita
- Input Voltage: 380/400/415V
- Output Voltage: 380/400/415V
- Output Current: 7.3-17.4A
- Output Frequency: 50/60hz
- Output Type: Three Phase
- Size: 545*465*205mm
- Type: DC/AC Inverters
- Inverter Efficiency: 99.9%
- Weight: 24.5 kg
- Product Name: Home Hybrid Solar Inverter Three Phase
- Certifications: VDE CEI IEC RD TUV UNE
- Internet Communication Interfaces: Wifi / LAN / 4G
- Battery Voltage Range: 120-600V
- Battery Type: LiFePO4
- MPPT Operating Voltage Range: 150 V ~ 950 V
- Max. Grid Output Current: 8.0A
- Rated Apparent Power: 5kVA
- Switch time: ≤10 ms
- No. of Independent MPPT Trackers: 2
- Certificate: VDE-AR-N 4105 UNE 217001
- Warranty: 5/10Y
Hi dear. Nice to meet you. I am Cecilia from China. Welcome to my store. Please tell me your question. I will reply to you immediately upon receipt. If the product you are purchasing comes in different models, please leave a note after placing your order to let me know which model you need,Thank you. Or add my Whats.app+8618670783243.You can also send an email to my mailbox 2929105408@qq.com. Wishing you a happy life.
#detail_decorate_root .magic-0{border-bottom-style:solid;font-family:Times New Roman;font-size:24px;color:#139dbd;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:411.84210526315786px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:411.84210526315786px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:848.0528511821975px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:848.0528511821975px}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:642.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:642.75px}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:115px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{text-align:center}#detail_decorate_root .magic-17{font-family:”Times New Roman”;background-color:#2196ed}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:100px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:98px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:101px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:107px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{font-size:14px}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:725px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{font-size:16px}#detail_decorate_root .magic-25{background-color:#2196ed}#detail_decorate_root .magic-26{display:none}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:108px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{font-size:12px;font-family:”Times New Roman”}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:589px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{font-family:”Times New Roman”}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:218px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:349px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:100.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:107.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:114.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:97.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:99.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:99px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{text-align:left}#detail_decorate_root .magic-40{background-color:#2196ed;color:#000;font-family:”Times New Roman”}#detail_decorate_root .magic-41{font-size:12px}#detail_decorate_root .magic-42{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-43{margin-bottom:0}#detail_decorate_root .magic-44{position:relative;width:100%}#detail_decorate_root .magic-45{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-46{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-47{width:245px;height:112.75958840037417px;overflow:hidden}#detail_decorate_root .magic-48{position:relative;left:0;top:0;width:245px;height:112.75958840037418px}#detail_decorate_root .magic-49{width:245px;height:112px;overflow:hidden}#detail_decorate_root .magic-50{position:relative;left:0;top:0;width:257px;height:148px}#detail_decorate_root .magic-51{position:relative;left:-22px;top:1px;width:279.552px;height:112px}#detail_decorate_root .magic-52{overflow:hidden;width:373px;height:179.91764705882352px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:373px;height:179.91764705882352px}#detail_decorate_root .magic-54{overflow:hidden;width:373px;height:179px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-55{margin-top:-36px;margin-left:1px;width:373px;height:242.08251231527092px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:591.8181818181819px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:591.8181818181819px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:551.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:9px;margin-left:18px;width:712px;height:523px}#detail_decorate_root .magic-62{border-bottom-style:solid;font-family:Times New Roman;font-size:24px;color:#139dbd;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-63{overflow:hidden;width:750px;height:542.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:750px;height:542.5px}

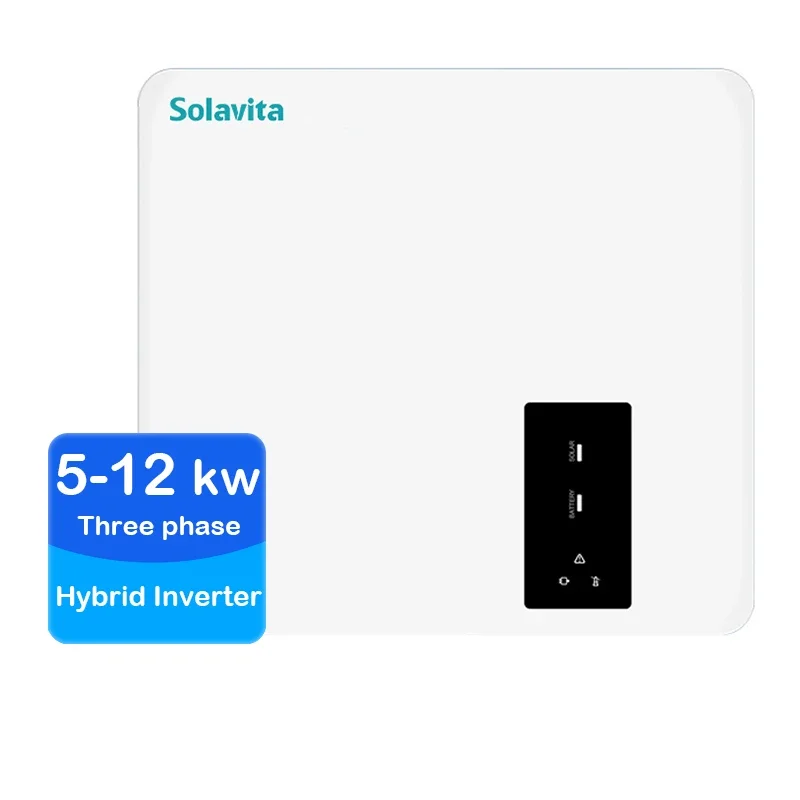

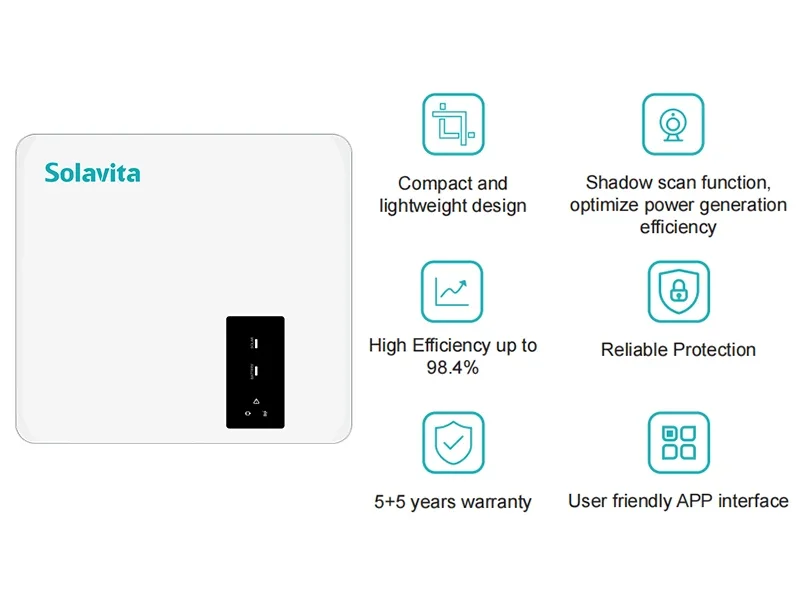

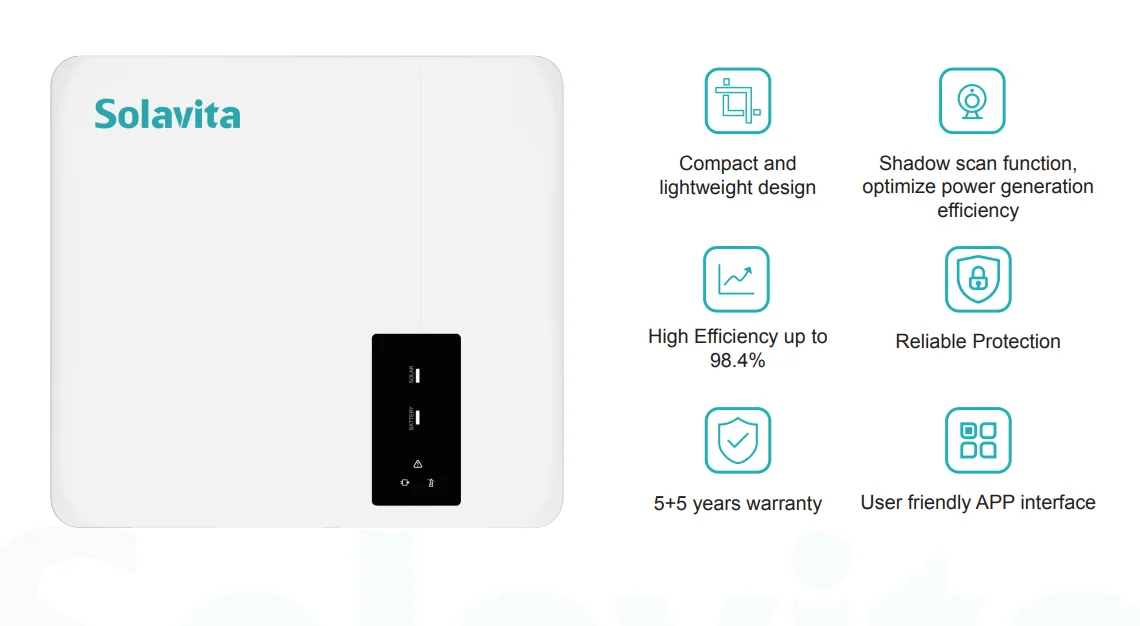

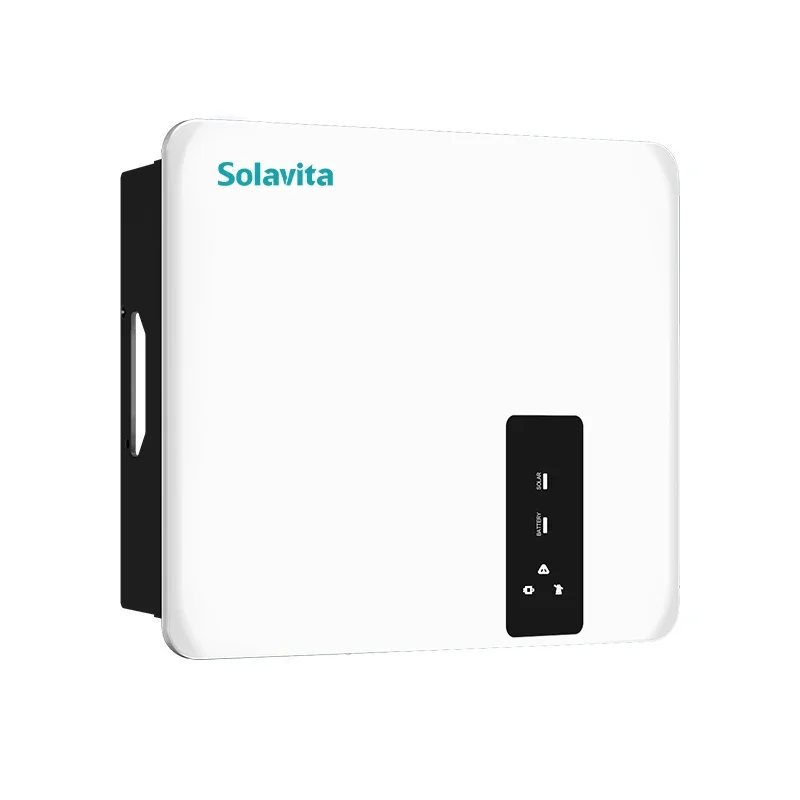

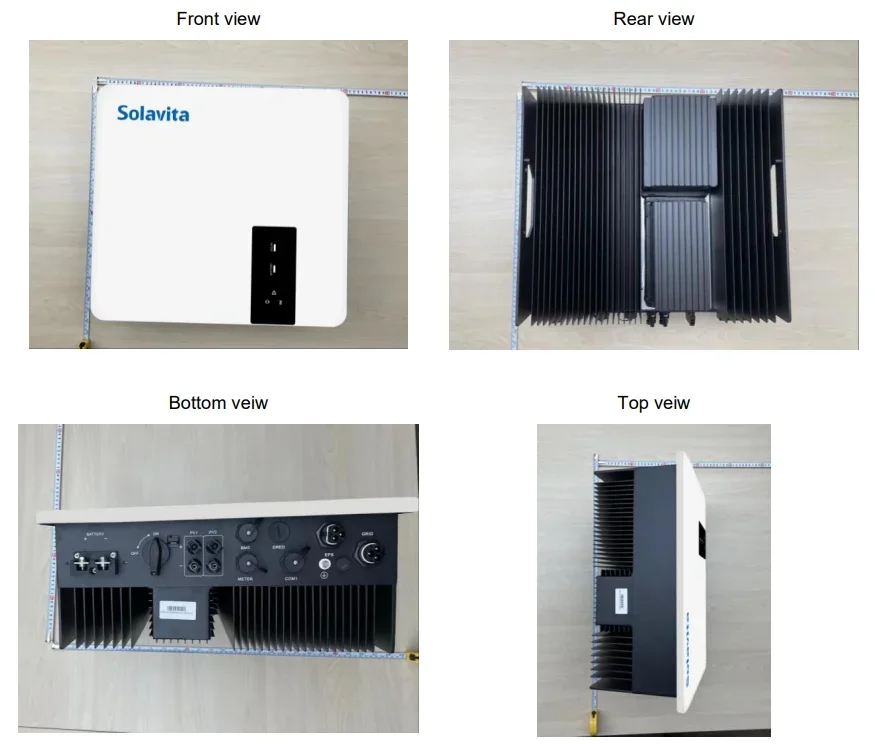

Product Description

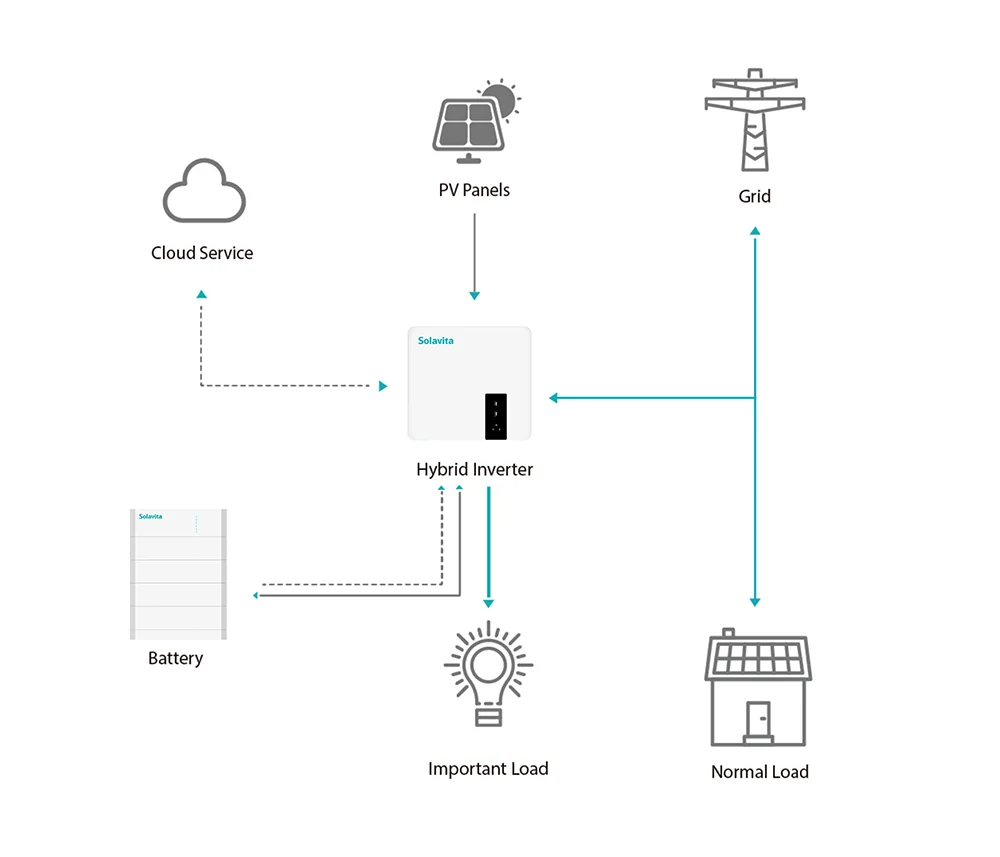

PV Topology

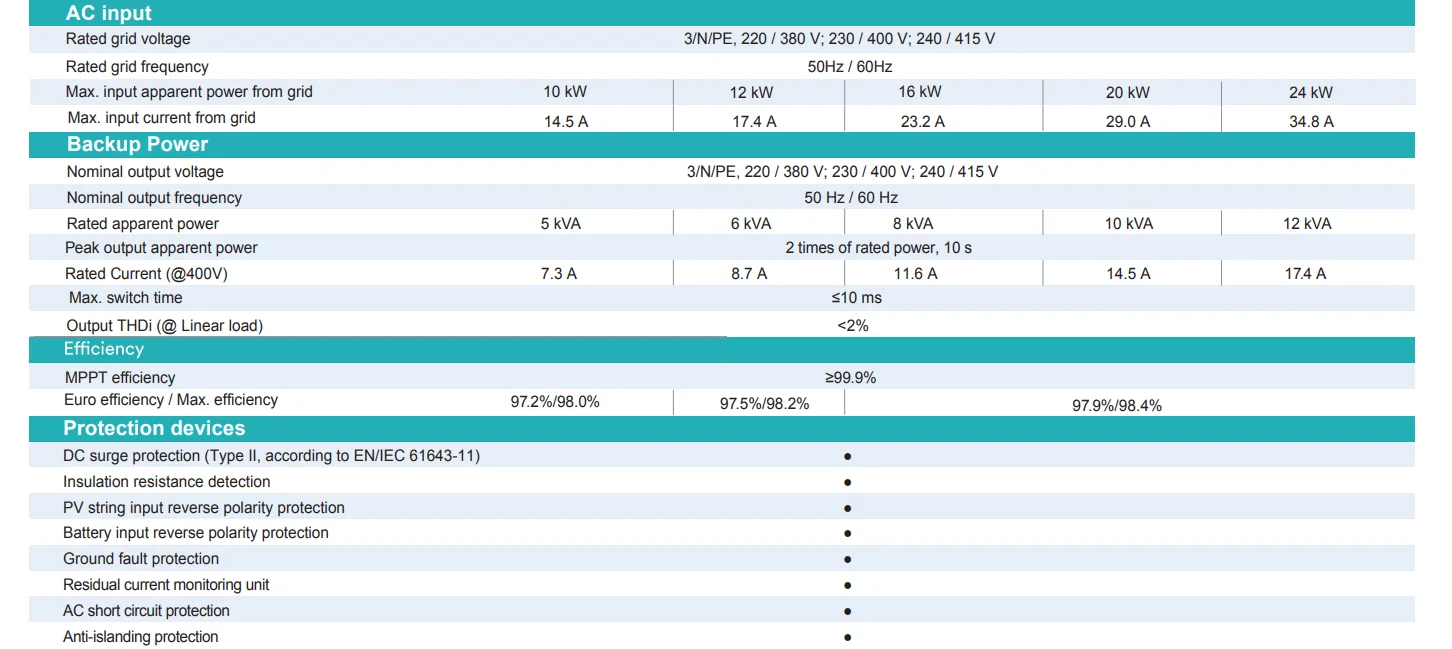

Product Specifications
Model | SV 5KHT-G2 | SV 6KHT-G2 | SV 8KHT-G2 | SV 10KHT-G2 | SV 12KHT-G2 | |||||
Input PV | ||||||||||
Max. PV array power | 7.5 kWp | 9 kWp | 12 kWp | 15 kWp | 18 kWp | |||||
Max. input voltage | 1000V | |||||||||
MPP voltage range/rated input voltage | 150 V ~ 950 V/630V | 200 V ~ 950 V/630V | ||||||||
Min. input voltage / start voltage | 60 V / 180 V | |||||||||
No. of independent MPPT trackers / strings per MPPT input | 2/1 | |||||||||
Max. input current per MPP tracker | 20A | 14/14 | 26/14 | 26/14 | 26/14 | |||||
Max. short-circuit current per MPP tracker | 30A | 16/16 | 32/16 | 32/16 | 32/16 | |||||
Battery data | ||||||||||
Battery Type | LiFePO4 | |||||||||
Battery Voltage Range(V) | 120-600 | |||||||||
Max. charging/ discharging power | 5kW | 6kW | 8kW | 10kW | 12kW | |||||
Max. charging current / Max discharging current | 36A | |||||||||
Rated. charging current / discharging current | 30A | |||||||||
AC output | ||||||||||
AC voltage range/ Nominal AC voltage | 270 V to 480 V / 3/N/PE, 220 / 380 V; 230 / 400 V; 240 / 415 V | 12000 | 16000 | 16000 | 16000 | |||||
Rated AC grid frequency | 50 Hz / 60 Hz | |||||||||
Rated apparent power | 5 kVA | 6 kVA | 8kVA | 10kVA | 12 kVA | |||||
Max. apparent power | 5 kVA | 6 kVA | 8kVA | 10kVA | 12 kVA | |||||
Rated grid output Current (@400V) | 7.3A | 8.7A | 11.6A | 14.5A | 17.4A | |||||
Max. grid output current(@400V) | 8.0A | 9.6A | 12.8A | 16.0A | 19.2A | |||||
Harmonics THDi (@Nominal power) | < 3 % (of nominal power) | |||||||||

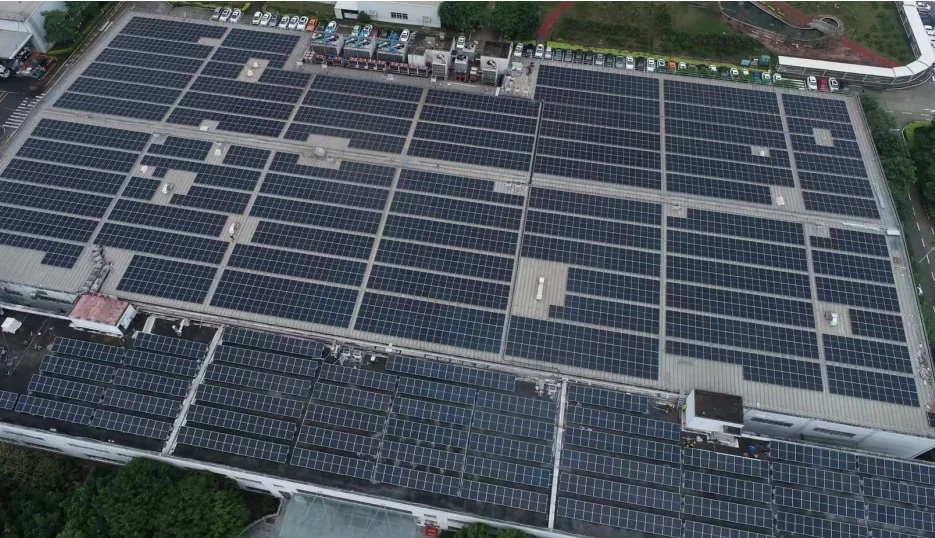

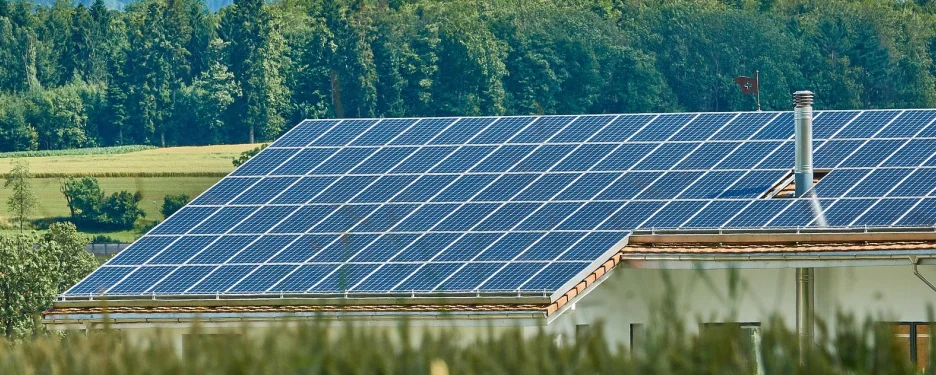

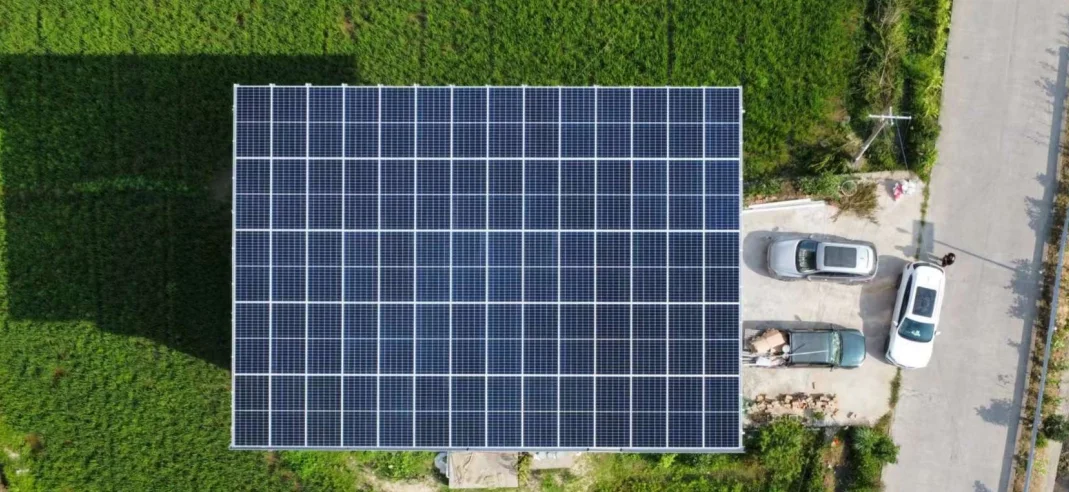

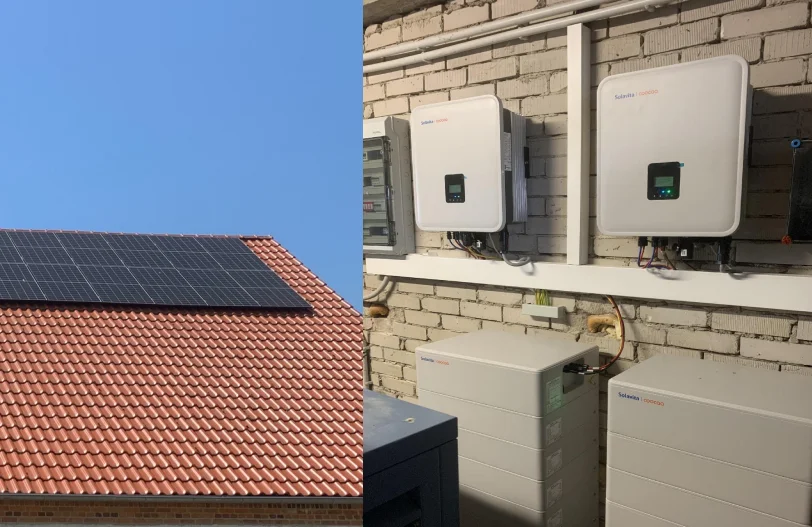

Project Cases
8KW Project in Italy
24KW Project in Germany
30KW Project in Senegal

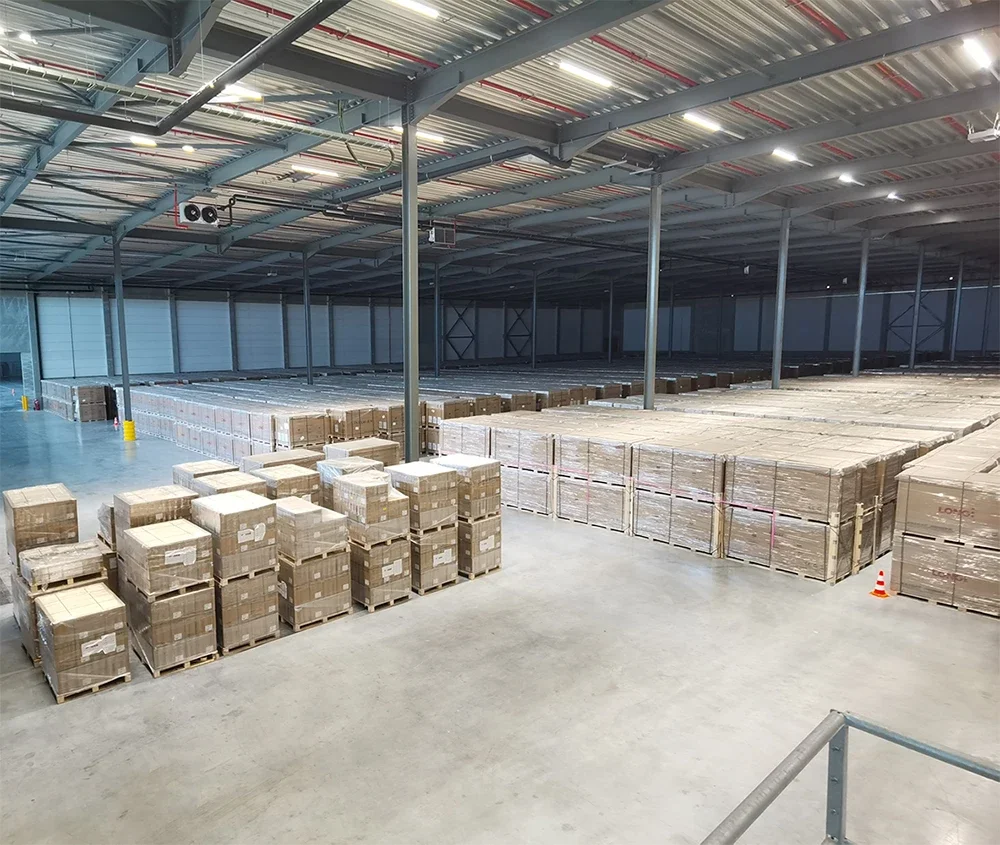

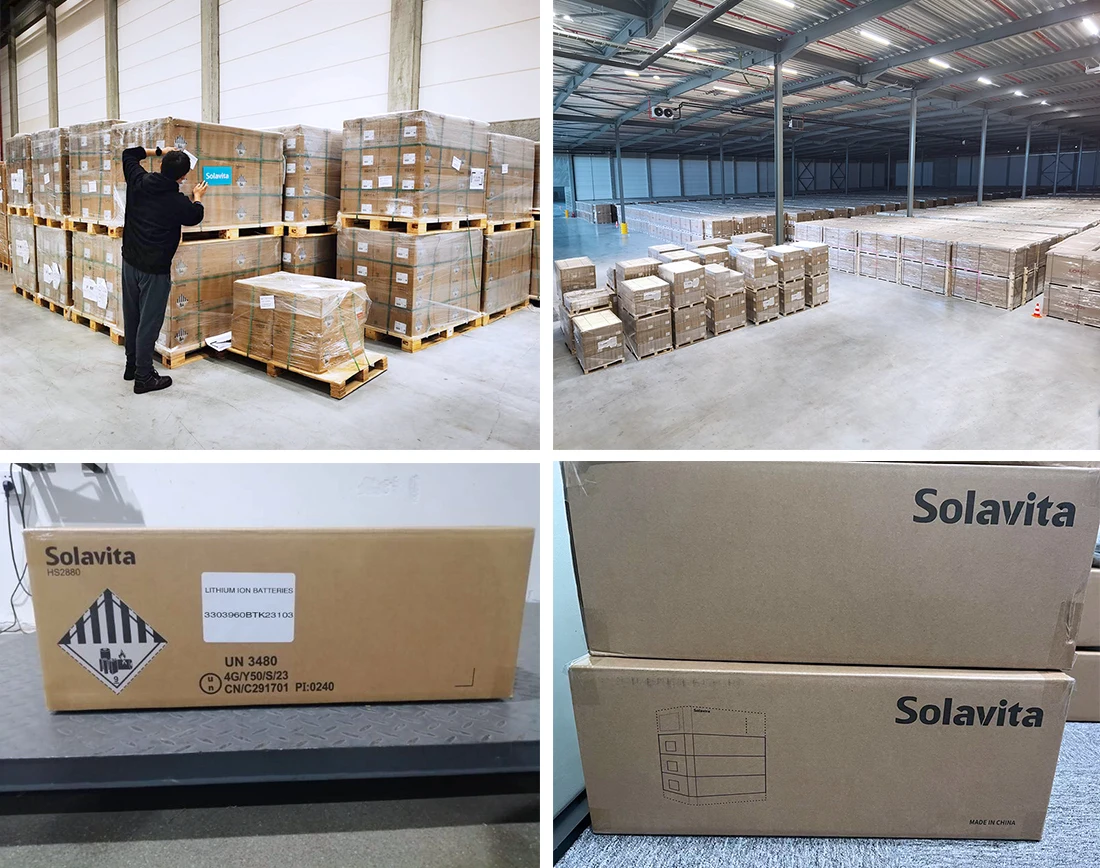

Packing & Delivery
Company Profile
Solavita is a subsidiary of the Skyworth Group. The name “Solavita” is derived from solar vitality symbolizing Solavita’s vision to respect the earth, nature and life. Solavita provides one-stop PV-storage solutions for residential rooftops as well as energy solutions for industrial and commercial power-plant projects, making solar PV energy easily accessible to our customers.
Now running three manufacturing bases that produce solar modules, inverters, energy storage batteries and other accessories.Solavita offers end-to-end services from consulting and design, to procurement and O&M (Operations and Maintenance).

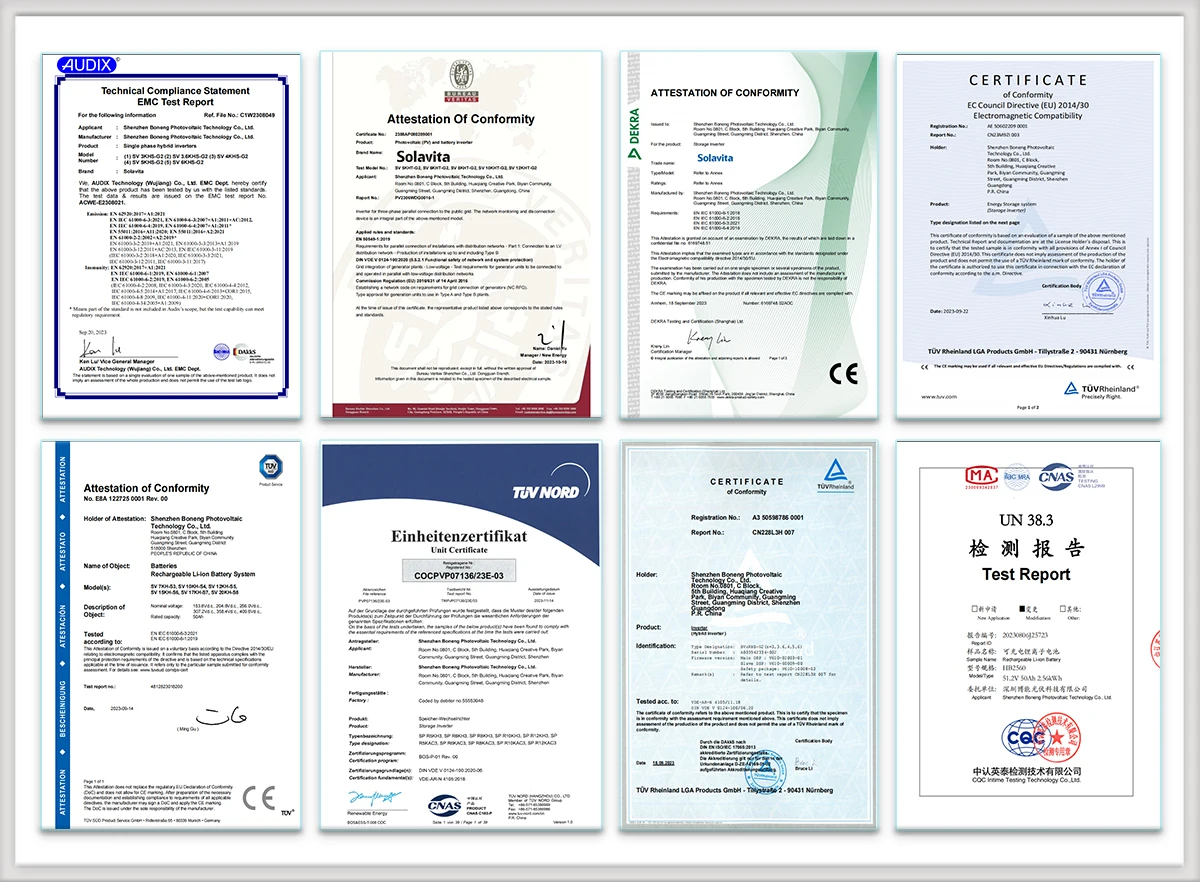

Certifications
Company Exhibitions
FAQ
Q1:Is there a guarantee on my SOLAVITA PV system?
YES. Our products can last anywhere from five to twenty years warranty, depending on the kind of goods. Kindly notify us by calling the service hotline if something goes wrong!
YES. Our products can last anywhere from five to twenty years warranty, depending on the kind of goods. Kindly notify us by calling the service hotline if something goes wrong!
Q2:Can you customize products for me?
YES. We support customization including brand name, product color, unique pattern and others you want.
YES. We support customization including brand name, product color, unique pattern and others you want.
Q3: What is the average lead time?
Depending on the various delivery ports, the timing will vary. When we receive your payment:
Depending on the various delivery ports, the timing will vary. When we receive your payment:
(1) It typically takes 35 days to ship from China;
(2) If all procedures are satisfied, delivery via a European warehouse will take 3–5 days. You can speak with our sales representative in-depth if you have particular requirements for the moment.
Q4: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union.
