Solar Panel Kit Complete With Battery 5KW 220V 110V Off Grid System For Home Farm Freezer Air Conditoner Heater Sweeper TV Light

Solar Panel Kit Complete With Battery 5KW 220V 110V Off Grid System For Home Farm Freezer Air Conditoner Heater Sweeper TV Light

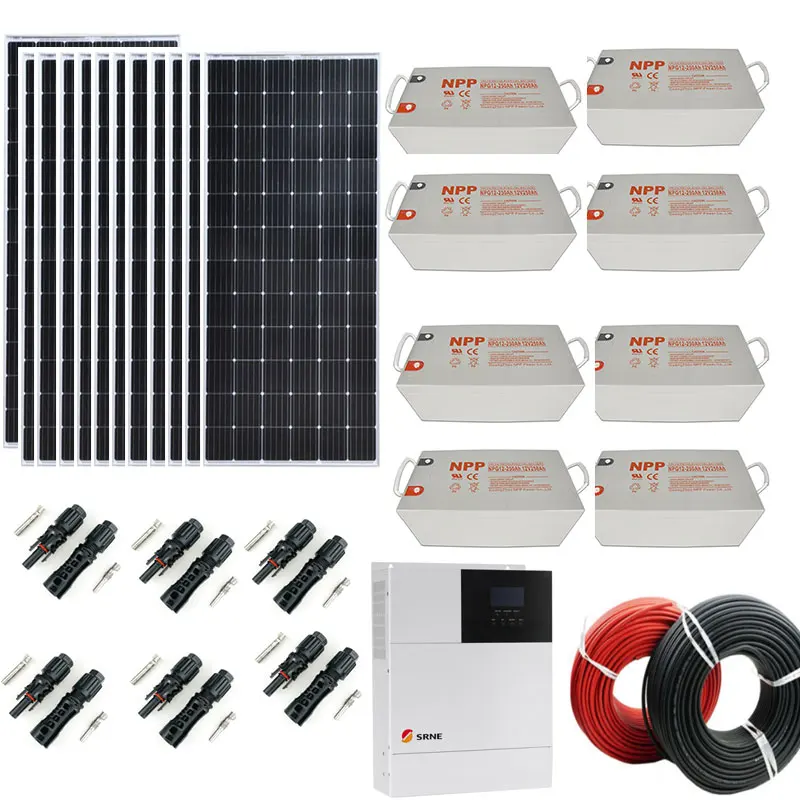

5Kw 220v /120V system includes
12Pcs Of Solar Panel 400w 24V
1PC of SNRE Hybrid Inverter 5000W 220V /110V AC 48V DC
8 Sets of Lead Acid Gel Sealed Battery 250AH 12V
25M Red PV Cable 4MM2 For Positive Pole
25M Red PV Cable 4MM2 For Negative Pole
MC4 Connector 8 Pairs

Remarks

The system can gernerate about 21KWH ,which can run the air conditioner at least 12H ,heater 8H , sweeper 4H and so on.

The 8 Battery can store about 22KWH

The Hybrid Inverter 5KW is 5kw starting capacity ,which can run large household appliance such as air conditioner

In a word,the solar panel can charge battery fully for a day .

Support Air-conditions, washer and dryer, water heater, TV lights Etc

Lighting 200 watts work 6 hours a day,
refrigerator 50 watts work 24 hours a day,
2 set 1500W air conditioners work 12 hours,
TV set 50 watts work 10 hours a day.
There are washing machines, laptop , rice cookers, electric fans and other home appliances

Warranty and certficate

Solar Panel 10 year quality warranty ,90% output in 15 year and 80% output in 20 year
Hybrid inverter 2 year quality warranty

Lead Acid Battery 3 Year quality warranty

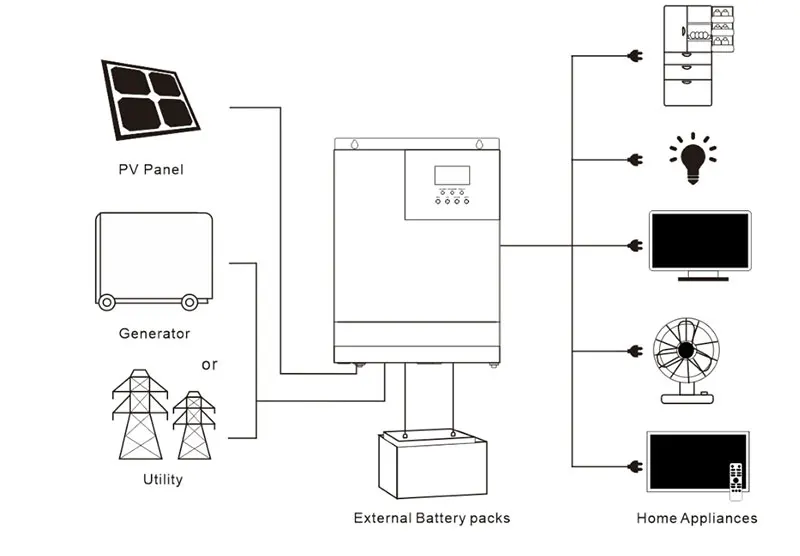

The Hybrid Inverter 220v 5000W 48V DC .UPS Inverter .It can shift home applicance from battery to Public Gird Net in 2 S

1. It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.

2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.

3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.

4. Advanced MPPT technology with 99.9% efficiency.

5. Wide MPPT voltage range: 120-450V.

6. Individually on load capacity.

7. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.

8. Comes with a LCD display and 3 LED indicators that can clearly indicate the status and data.

9. Rocker switch for AC output control.

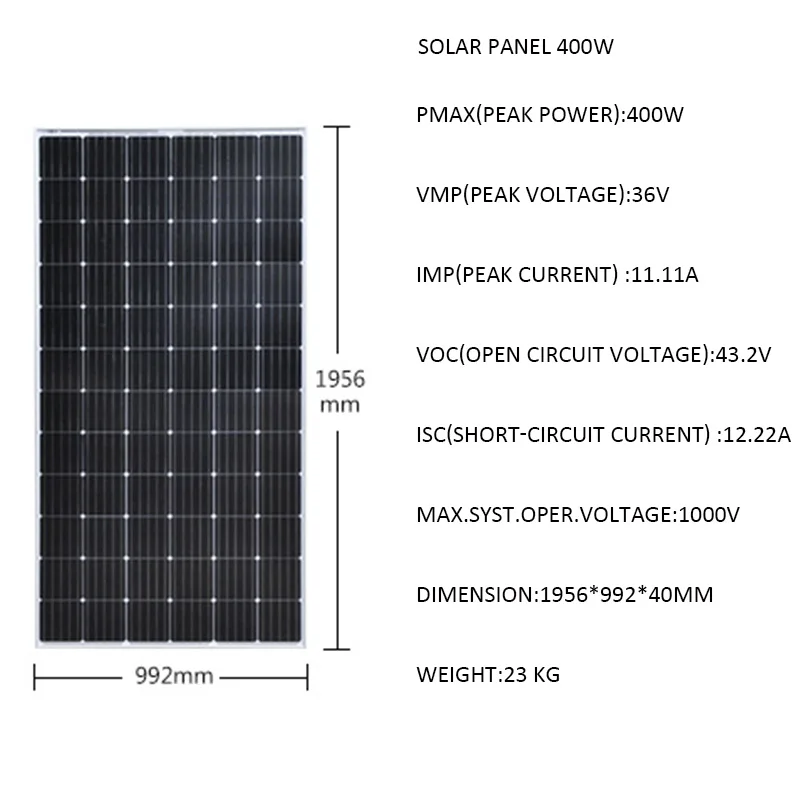

Solar Panel 400w 24v Data

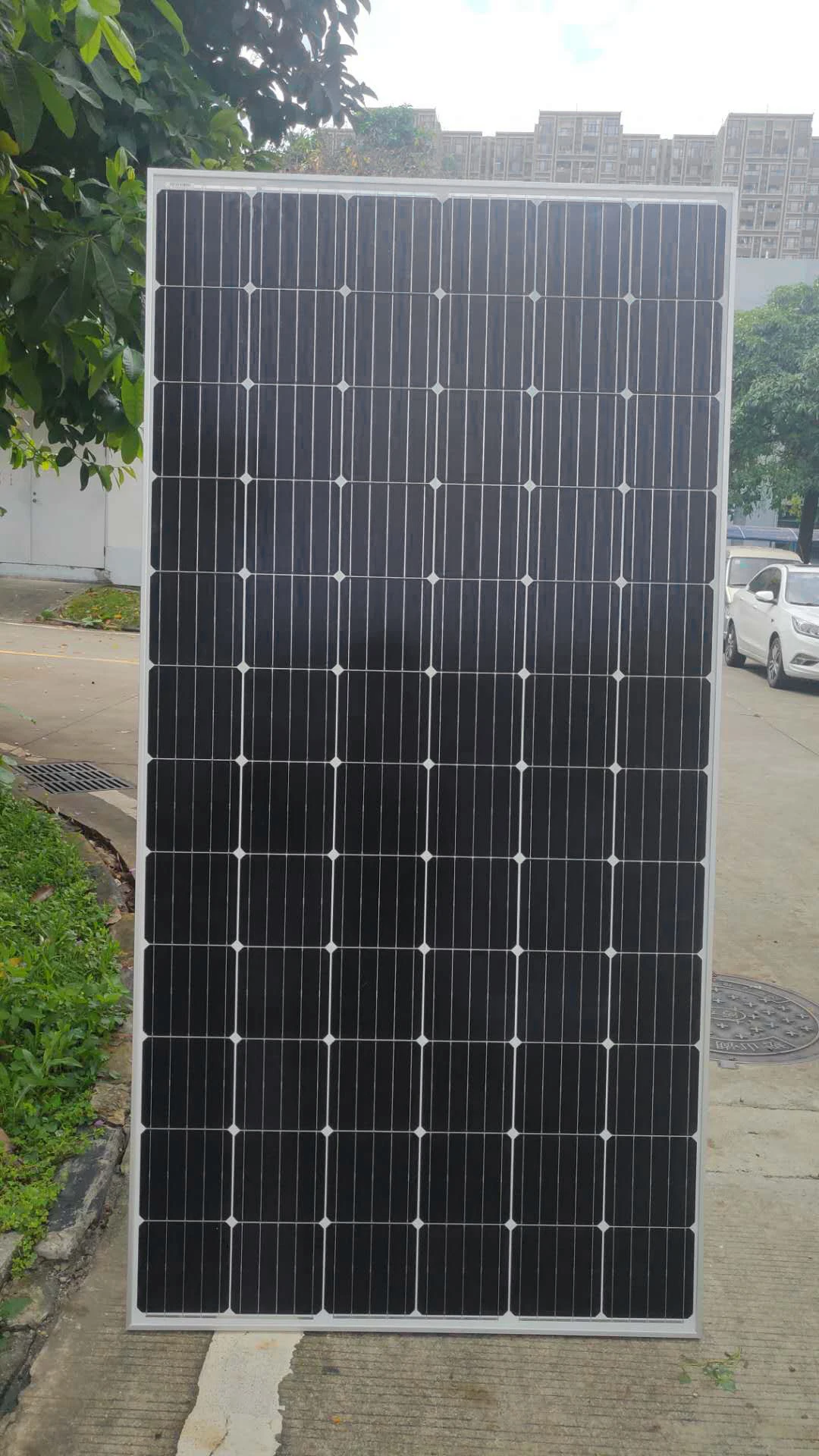

Solar Panel 400W Display

Technology :Laminated
Size and Number of Cells :158mm*158mm 72 Pcs / 6*12
Tolerance:± 3%
Pmax(Peak Power):400W
Vmp(Peak voltage):36V
Imp(Peak current) :11.11A
Voc(Open circuit voltage):48V
Isc(Short-circuit current) :12.220A
Max.Syst.Oper.Voltage:1000V
Dioders:6 by-pass
Dimension:1980*1000*35mm
Weight:24.5 Kg
Operate Temp.Scope:-40 degree t0 80 degree
Relative Humidity:0 to 100%
Resistances:227g steel ball falls down from 1m high and 60m/s wind speed
Warranty:Pm is not less than 90% in 10 years and 80% in 25 years

Lead Acid Battery Gel Battery

The Battery can store about 2.7KWH per day ,8battery is about 22KWH

Lead-acid battery, gel-sealed lead battery, efficiency 75-85%, life span 3-5 years. Suitable for small household power stations (3-10KW).

The advantages are
1. Sealed, safe and reliable;
2. Easy to place;
3. Maintenance-free and maintenance-free;
4. High discharge rate and stable characteristics

PV cable

What is delivery method ?

It is sea transportation to destination port .
When the buyer pay the order,the seller will find nearest port to buyer.and Await confirmation of buyer.
When the sola panel is on board,the seller will send loading bill,commercial invoice and packing list to buyer’s e-mail for customs clearance.

When the solar panel reaches the port ,the buyer have to go to the port ,pay the destination port fee and tariff or duty and pick up the solar panel .
