- Brand Name: XMSJ
- Battery Included: No
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Place of Origin: Anhui, China

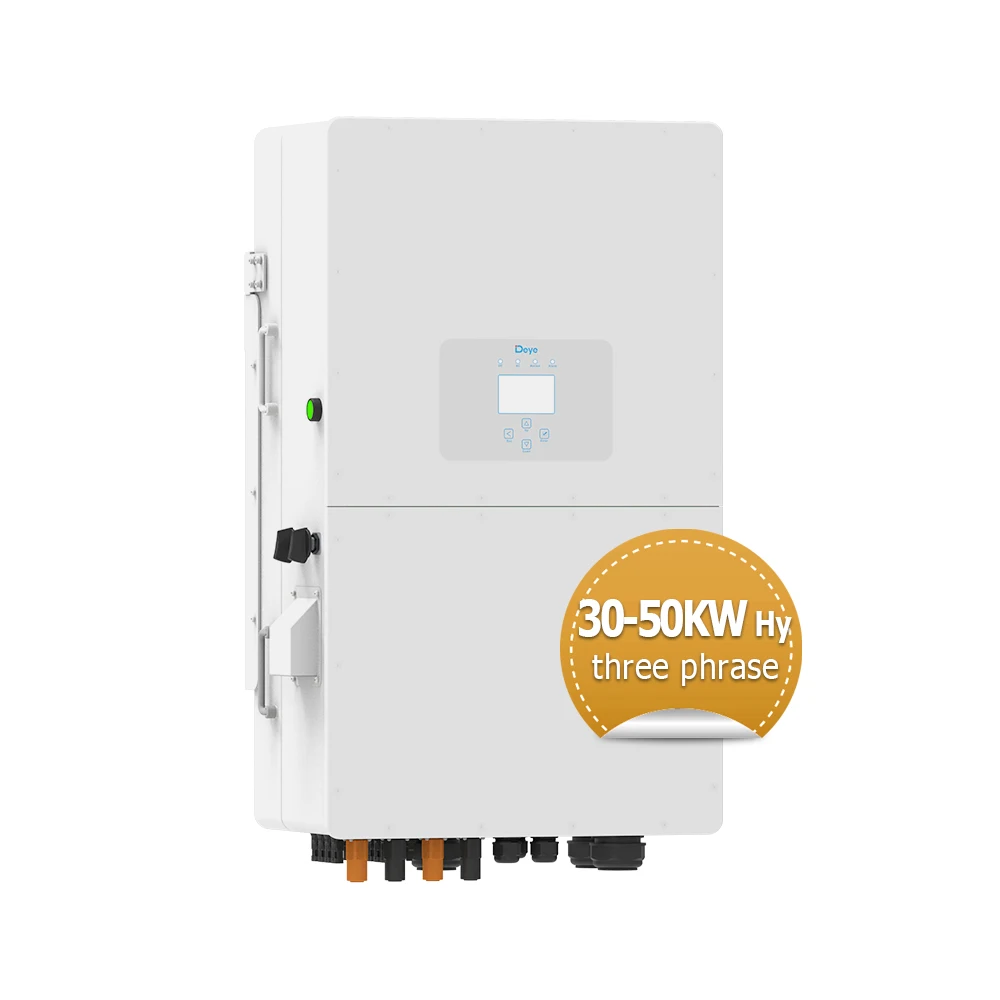

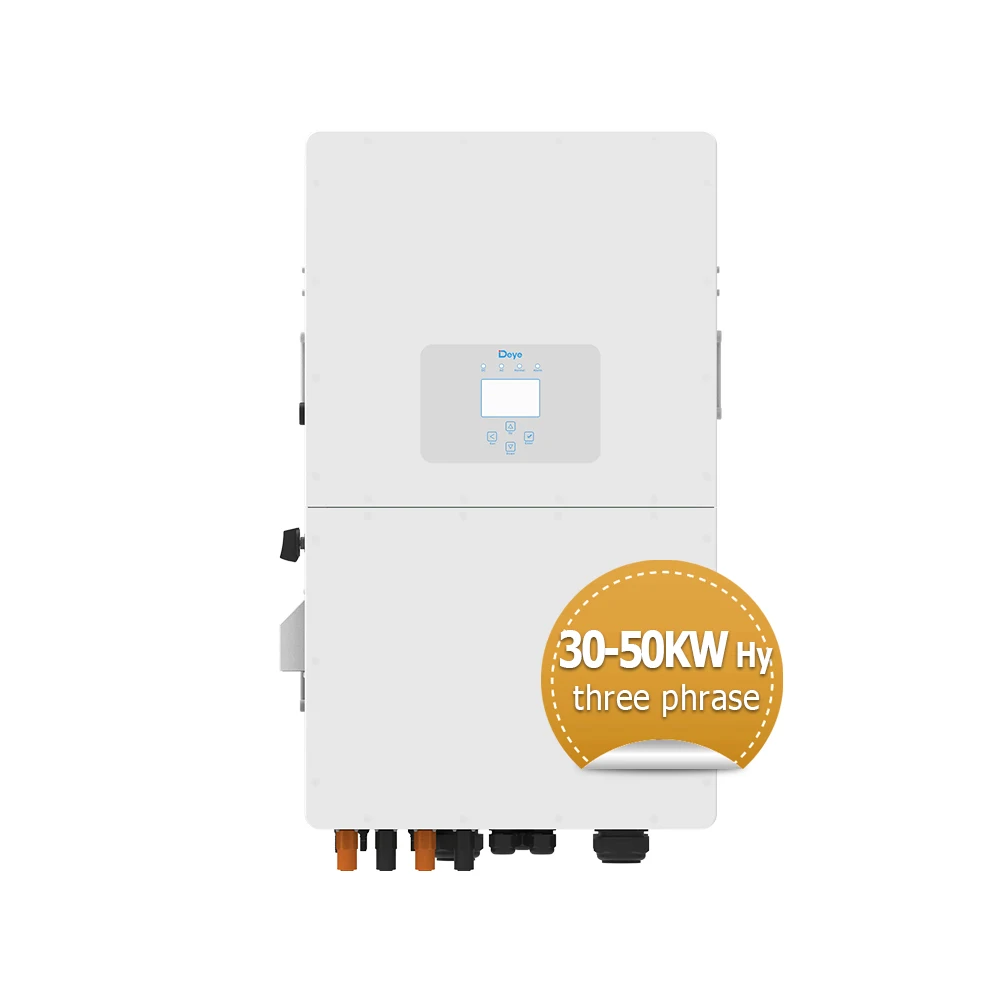

- Model Number: SUN-30-50K-SG01HP3 -EU
- Brand Name: Deye
- Input Voltage: 150-1000VDC
- Output Voltage: 220/380, 230/400Vac
- Output Current: 43.4-79.7A
- Output Frequency: 50/60HZ
- Output Type: Triple, Three Phase
- Size: 527*894*294mm
- Type: DC/AC Inverters
- Inverter Efficiency: 97.60%
- Weight: 80kg
- Product name: solar hybrid inverter
- Warranty: 5/10Years
- Protection: IP65
- Max PV Input Power: 7.8-15.6KW
- Communication: RS485; CAN
- MPPT Efficiency: 99.9%
- Cooling: Smart cooling
- Noise (dB): ≤65 dB
- Operating Temperature Range: -40-60℃, >45℃ Derating
- Certificate: VDE4105, IEC61727/62116, VDE0126, EN50549-1
If you have any questions, Please contact our customer service
whatsApp：+86 15232153826
Email：kaigui8882@163.com
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#a3aec3;font-family:Georgia;font-size:24px;color:#d3a86b;background-color:#fff;font-style:italic;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:710px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:710px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:146px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:125px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:124px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:731px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{font-size:16px}#detail_decorate_root .magic-12{display:none}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:121px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:564px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:54px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:563px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:730px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:272px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:269px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{text-align:left}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:753px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:747px;height:750px}#detail_decorate_root .magic-23{vertical-align:top}#detail_decorate_root .magic-24{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-25{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-27{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-29{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-30{margin-top:-44px;margin-left:-3px;width:371px;height:495px}#detail_decorate_root .magic-31{margin-top:-109px;margin-left:-3px;width:373px;height:663.1111111111111px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-34{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:373px;height:497.3333333333333px}#detail_decorate_root .magic-36{overflow:hidden;width:373px;height:424.57890625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:373px;height:424.57890625px}#detail_decorate_root .magic-38{overflow:hidden;width:373px;height:424px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:-1px;width:373px;height:497.33333333333337px}#detail_decorate_root .magic-40{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:440.01919385796543px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:440.01919385796543px}
Specification
Model |
SUN-30K-SG01HP3 -EU-BM3 |
SUN-35K-SG01HP3 -EU-BM3 |
SUN-40K-SG01HP3 -EU-BM4 |
SUN-50K-SG01HP3 -EU-BM4 | ||||
Battery Input Data | ||||||||
Battery Type |
Lithium Battery | |||||||
Battery Voltage Range |
160-800V | |||||||
Max.Charging Current (A) |
50+50 |
37A |
210A |
50A | ||||
Max.Discharging Current (A) |
50+50 |
37A |
210A |
50A | ||||
Number of Battery Input |
2 | |||||||
PV String Input Data | ||||||||
Max DC Input Power |
39000W |
45500W |
52000W |
65000W | ||||
Start-up Voltage (V) |
180 | |||||||
PV Input Voltage(V) |
1000 | |||||||
MPPT Range(V) |
150V-850 | |||||||
Full Load DC Voltage Range (V) |
360-850 |
360-850 |
360-850 |
450-850 | ||||
Rated DC Input Voltage |
600V | |||||||
Number of MPPT |
3 |
4 | ||||||
No.of Strings Per MPPT Tracker |
2+2+2 |
1+1 |
2+2+2+2 |
2+2 | ||||
PV Input Current (A) |
36+36+36 |
36+36+36 |
36+36+36+36 |
26+26 | ||||
Max. PV I (A) |
55+55+55 |
55+55+55 |
55+55+55+55 | |||||
AC Output Data | ||||||||
Rated AC Output Active Power (W) |
30000 |
35000 |
40000 |
50000 | ||||
Max AC Output Active Power (W) |
33000 |
38500 |
44000 |
55000 | ||||
Peak Power (off grid) |
1.5 times of rated power, 10 S | |||||||
Output Frequency and Voltage |
50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||
AC Output Rated Current (A) |
45.5/43.5 |
53.1/50.8 |
60.7/58 |
75.8/72.5 | ||||
Max. AC Output Rated Current (A) |
50/47.8 |
58.4/55.8 |
66.7/63.8 |
83.4/79.7 | ||||
Max. Three-phase Unbalanced Output Current (A) |
60 |
60 |
70 |
83.3 | ||||
Generator Input/Smart Load /AC Couple Current (A) |
45.5 / 200 / 45.5 |
53.1 / 200 / 53.1 |
60.7 / 200 / 60.7 |
75.8 / 200 / 75.8 | ||||
Grid Type |
Three Phase | |||||||
Total Harmonic Distortion (THD) |
<3% (of nominal power) | |||||||

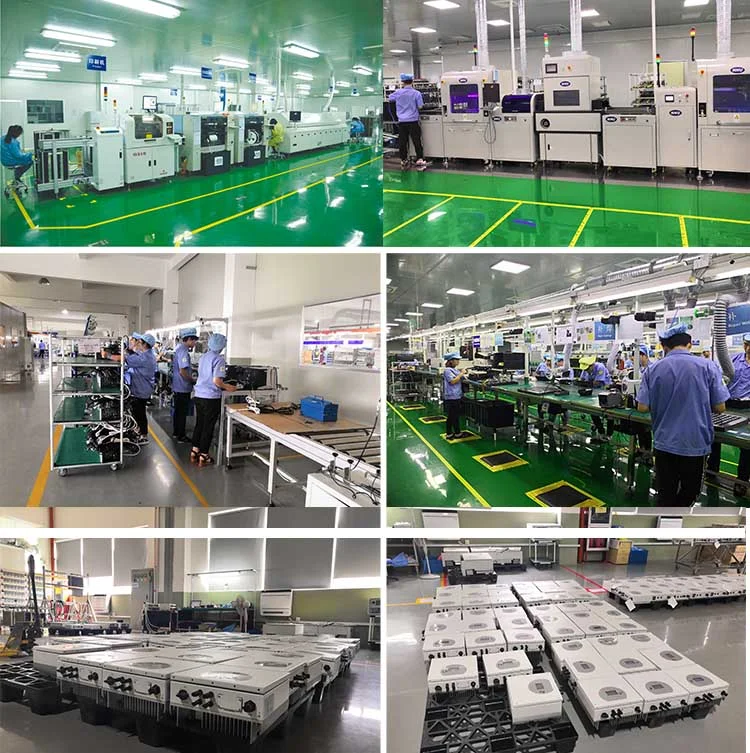

Factory and Production
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing & Delivery

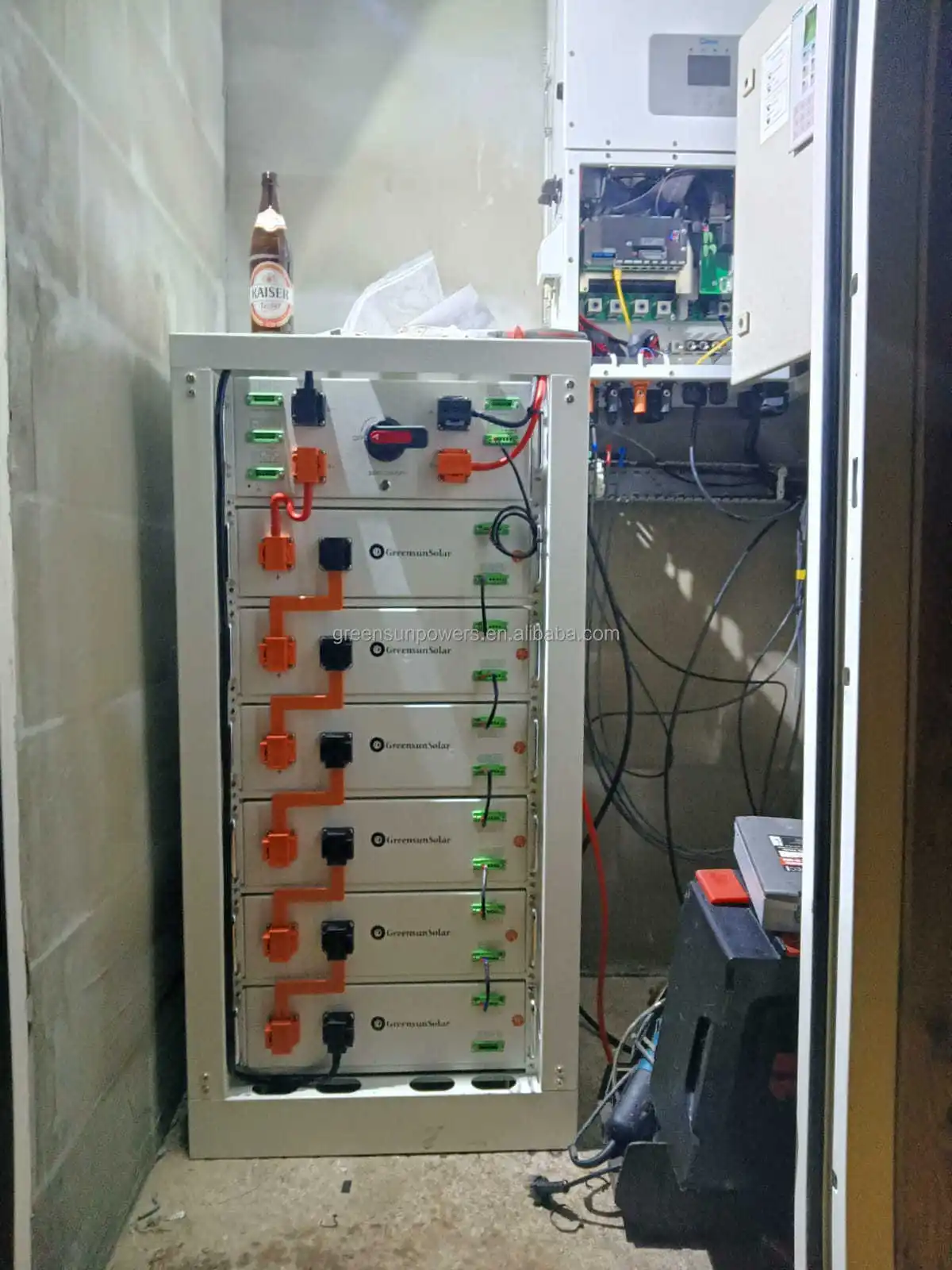

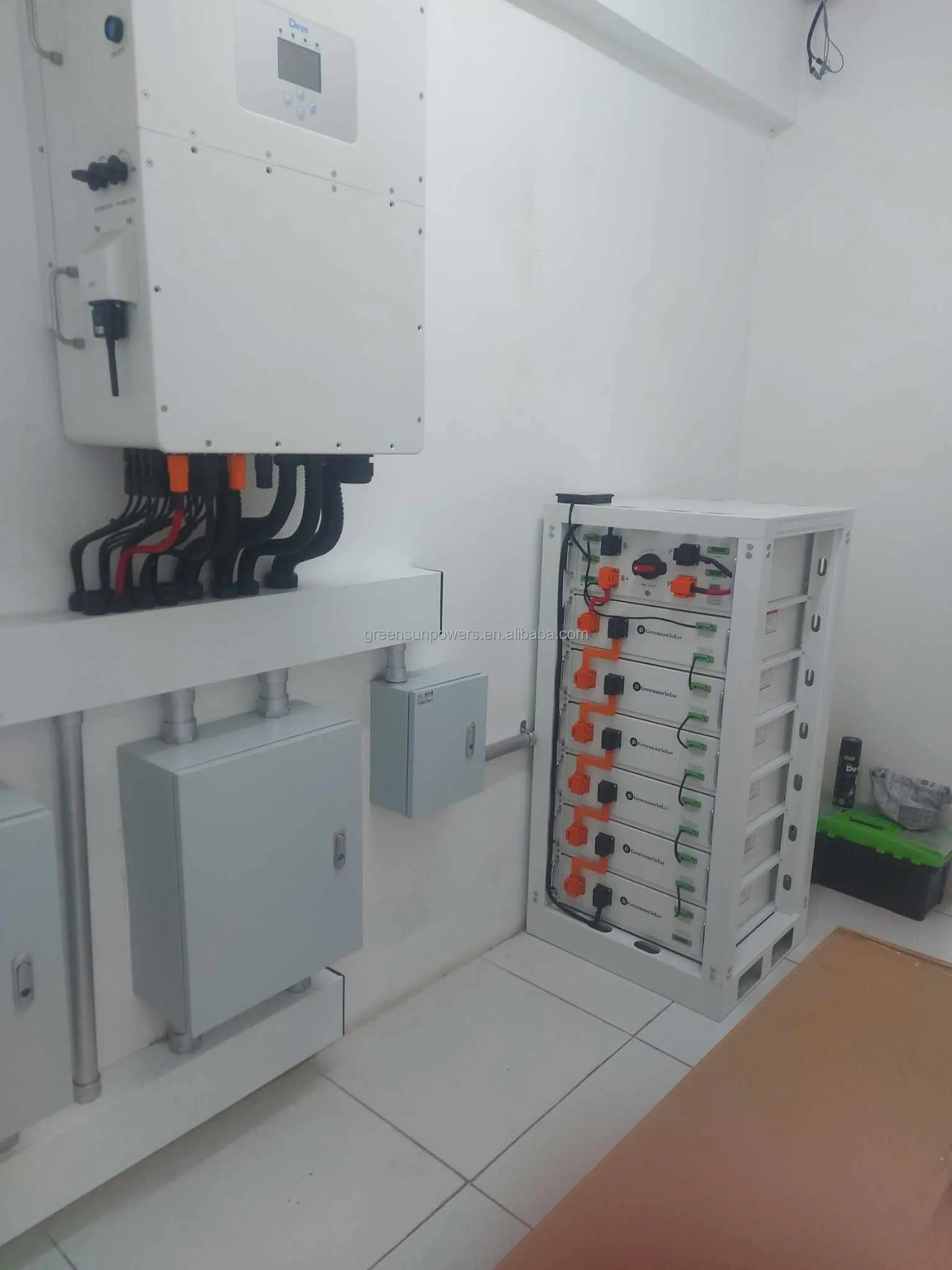

Global Project
