- Brand Name: PowMr
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: Pstar 30A 60A 80A
- Maximum Current: PWM 30A 60A 80A
- is_customized: Yes
- Certification: CE
- Application: Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station
- System Voltage: 12V/24V/36V/48V
- Max Open Voltage of PV Module: 100V
- Charge Algorithm: 3-Stages
- Self-consumption: ≤20mA
- Rated Charging Current: 30A/60A/80A
- Operating Temperature Range: -20℃~+55℃
- Application: RV
- Application: Solar Panels System
- Application: Power Station
- Battery Type: SEL, USE, FLD, GEL, LiFePO4 and ternary lithium battery
- Feature 1: 30A Solar Controller
- Feature 2: 60A Solar Controller
- Feature 3: 80A Solar Controller

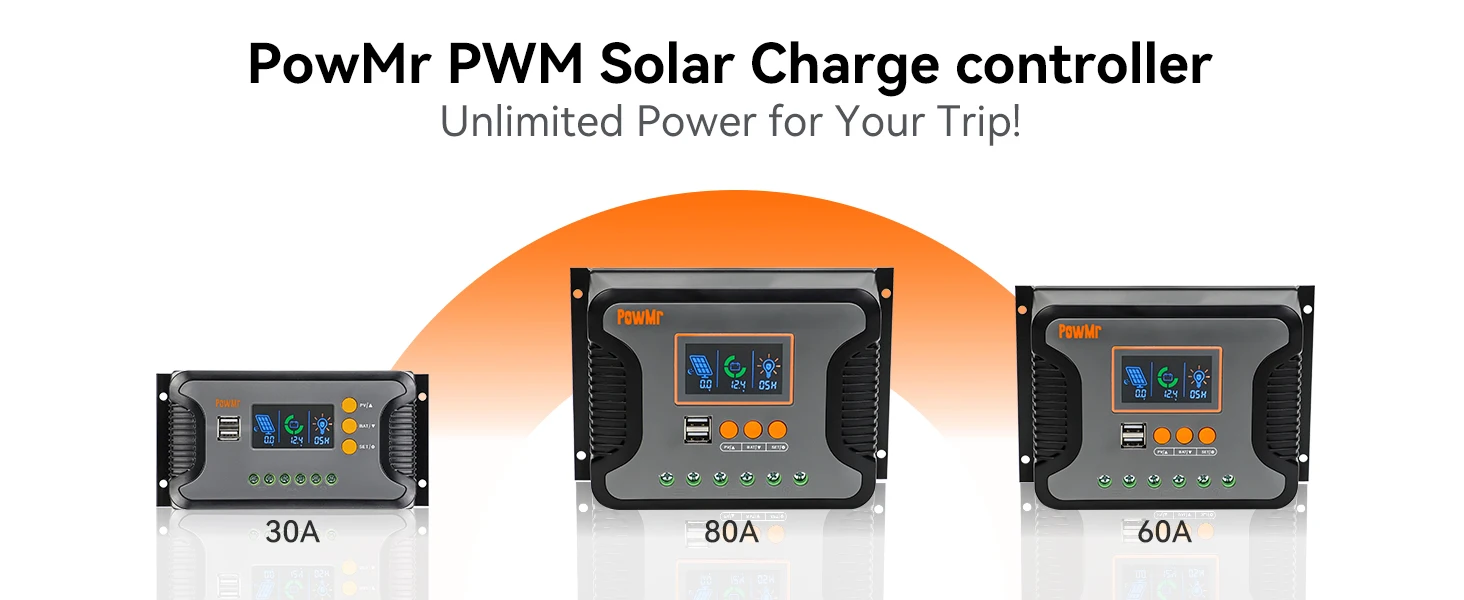

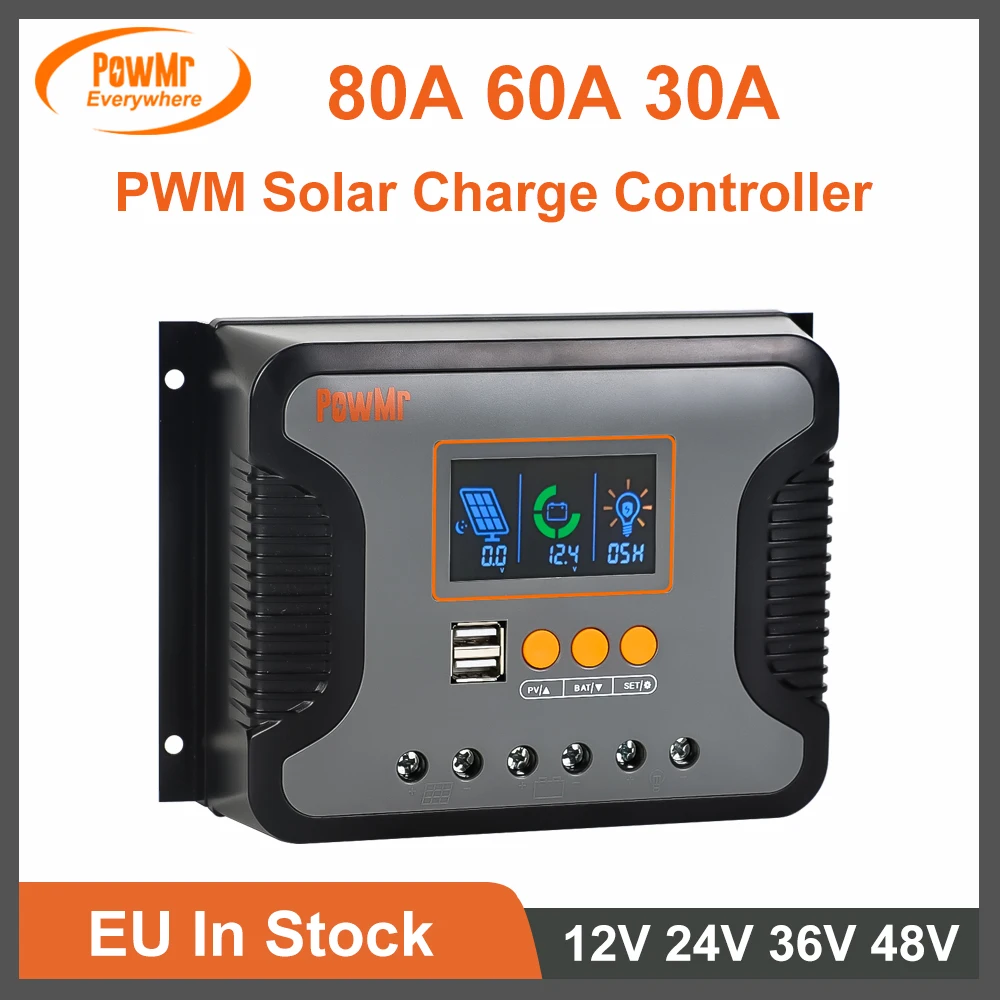

Solar Charge Controller PWM 80A 60A 30A 12V 24V 36V 48V Auto Solar Regulator LCD Display with Dual USB fit for Lithium Batteries
Features
1.Compatible with lithium-ion and lead-acid battery, support user-defined batteries.
2.Automatic identification of 12V/24V/36V/48V system voltage.
3.A variety of protection functions to ensure the normal operation of the device and extend the
battery life.
4.Natural air cooling heat dissipation, to achieve totally silent operation
5.The LCD screen enables real-time monitoring and parameter configuration.
6.Small size, light weight, easy and quick installation.
7.Built-in 2 USB ports with output of 5V and 2A.
8.User friendly setup, fast and easy commissioning via front panel LCD.

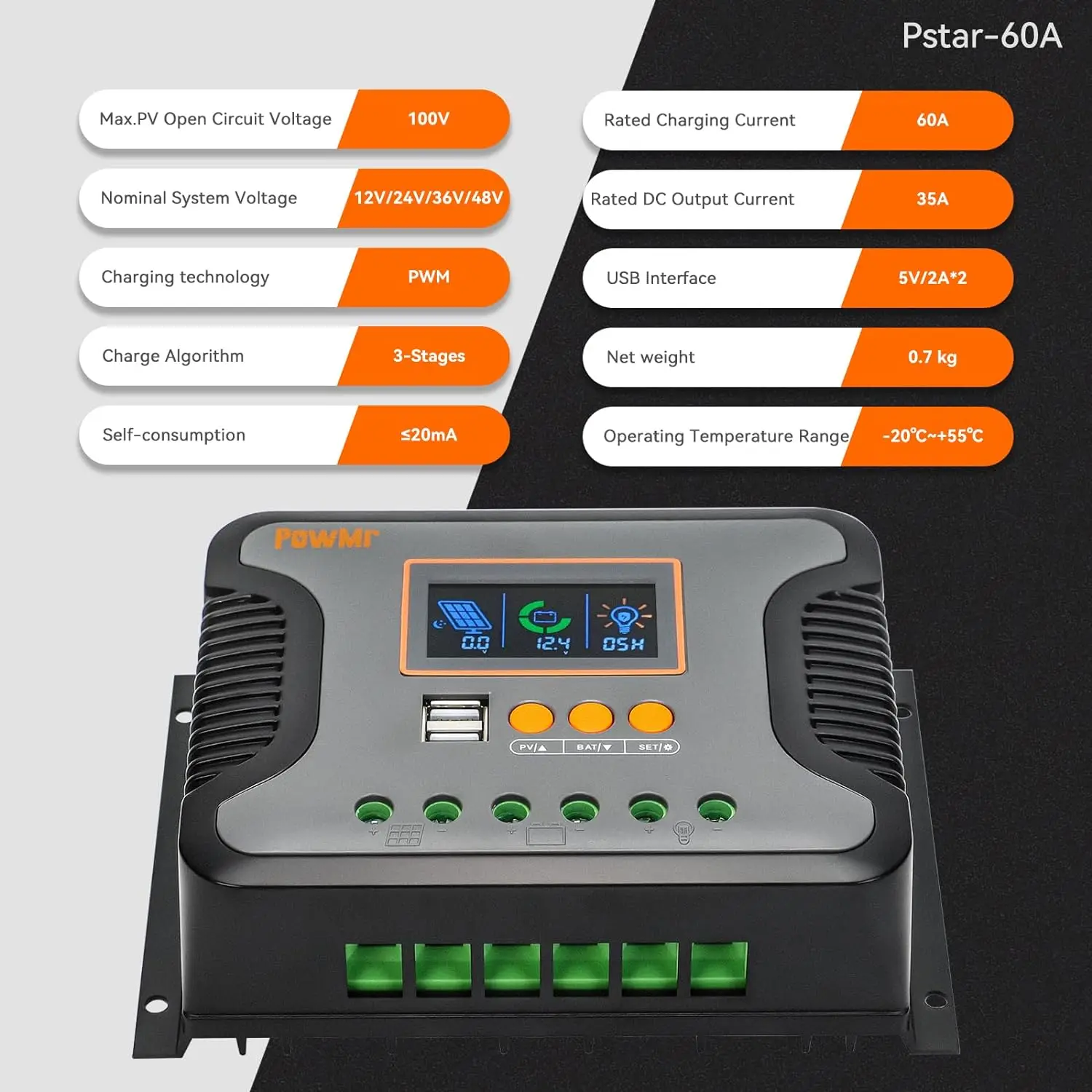

Specifications
Model | Pstar-30A | Pstar-60A | Pstar-80A |
PV Input | |||
Max Open Voltage of PV Module | 100V | ||
PV Operation Voltage Range | >System voltage and ≤100V | ||

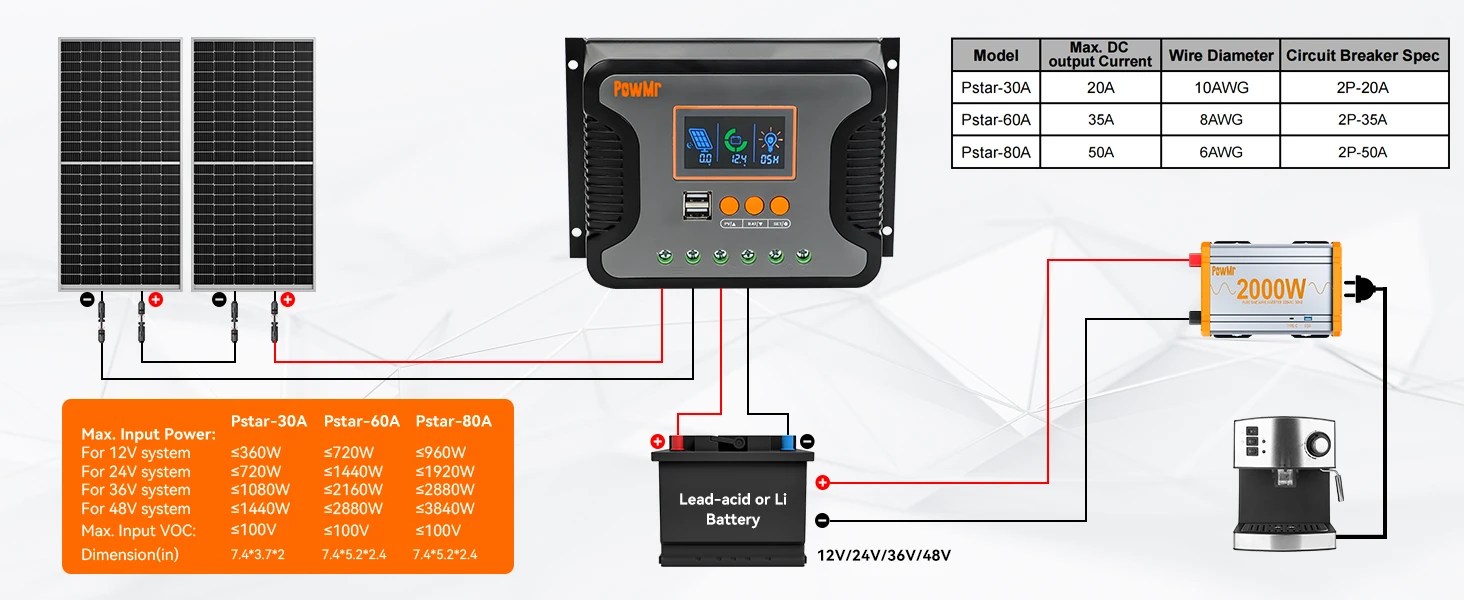

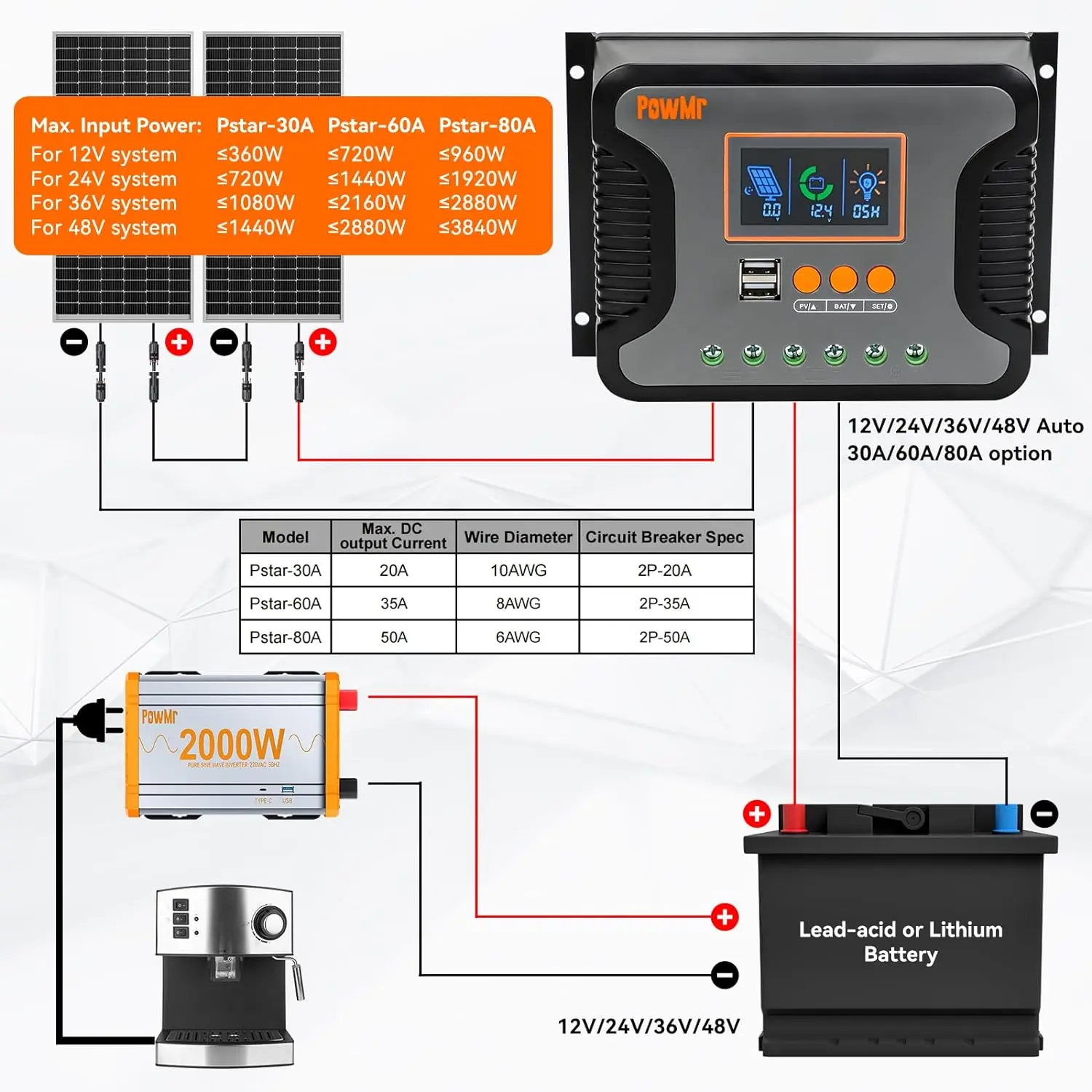

Max. Input Power: | ≤360W | ≤720W | ≤960W |
Charge Mode | |||
Charging technology | PWM | ||
Charge Algorithm | 3-Stages | ||
Self-consumption | ≤20mA | ||
Nominal System Voltage | 12V/24V/36V/48V | ||
Rated Charging Current | 30A | 60A | 80A |
DC output | |||
Rated Output Current | 20A | 35A | 50A |
USB Interface | 5V/2A*2 | ||
Environment | |||
Operating Temperature Range | -20℃~+55℃ | ||
Humidity Range | ≤90%，Non-condensing | ||
General Specification | |||
Protection Class | IP30 | ||
Dimension | 187*94*49mm | 187*132*60mm | 187*132*60mm |
Net weight | 0.49kg | 0.7kg | 0.75kg |

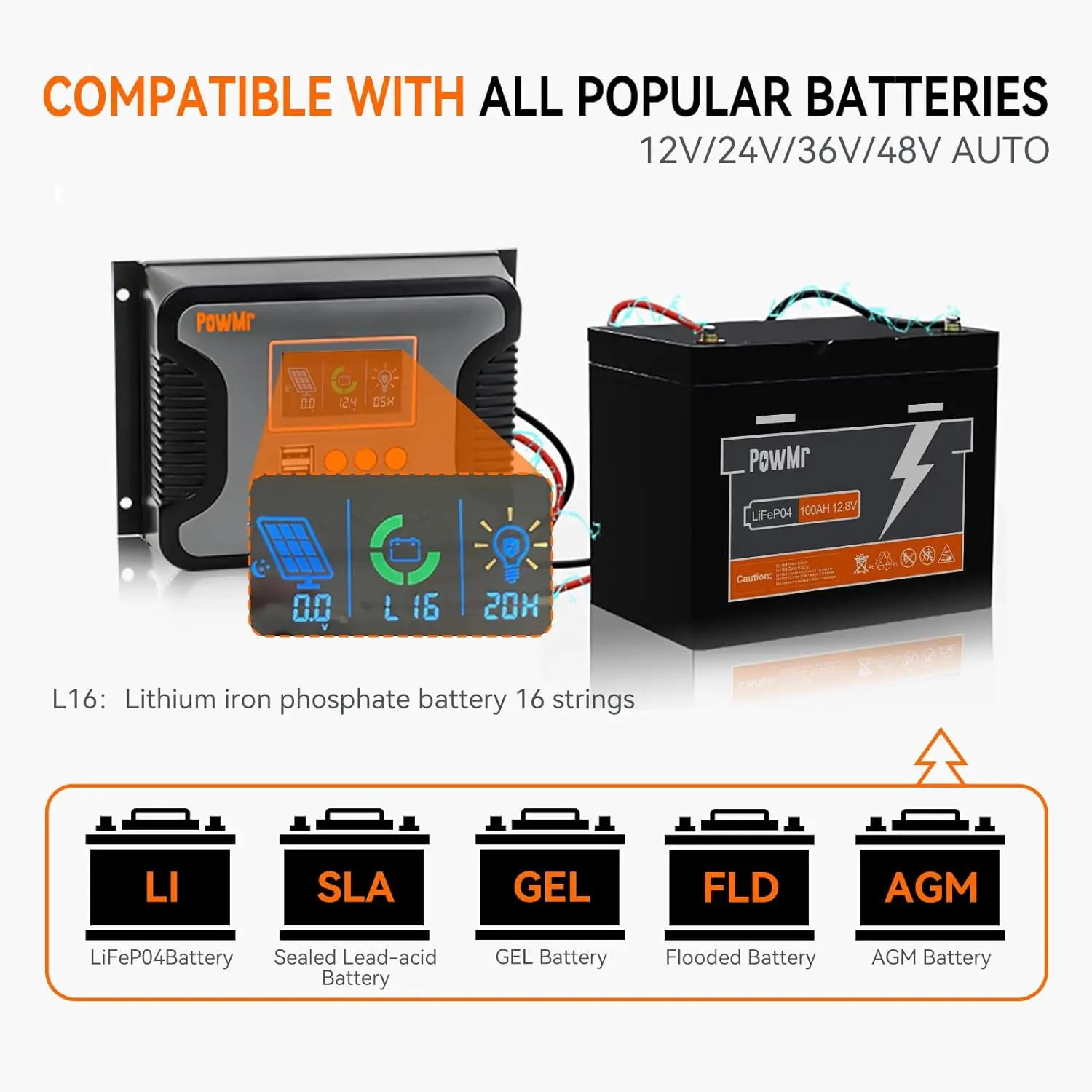

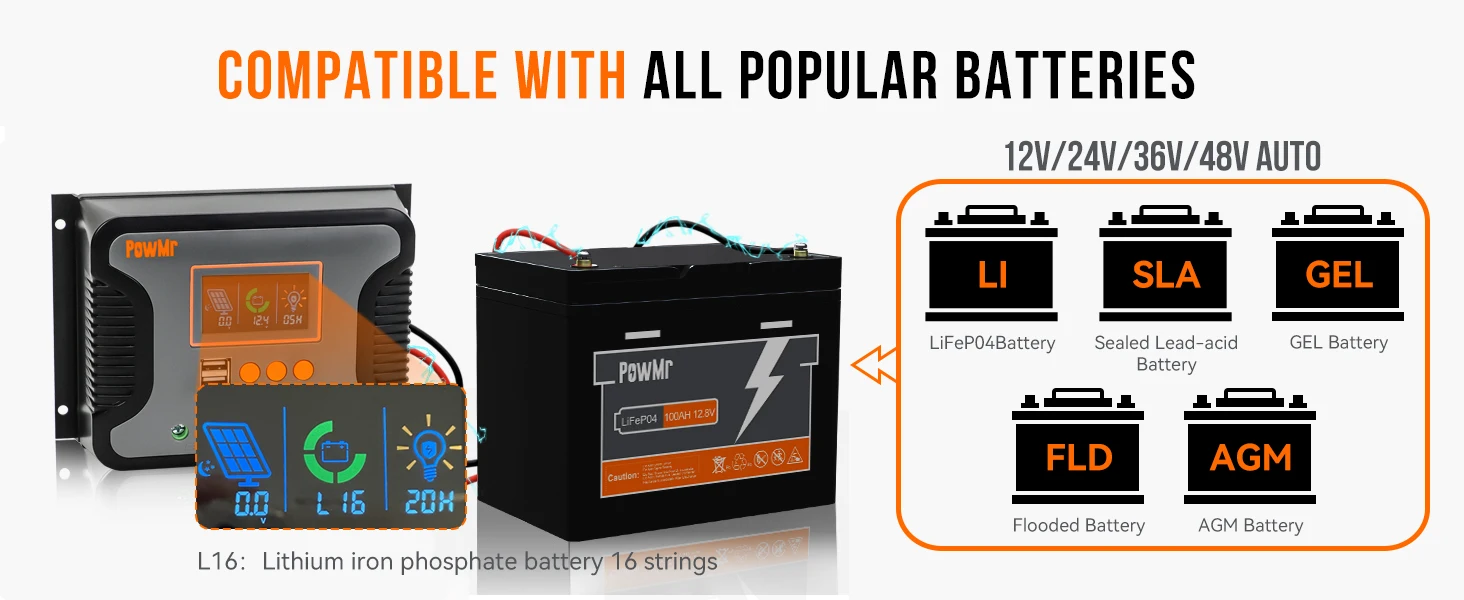

【COMPATIBLE BATTERY TYPE】solar controller 60 amp compatible with various 12V/24V/36V/48v lithium-ion and lead-acid batteries, such as SEL, USE, FLD, GEL, LiFePO4, and ternary lithium batteries; type; support user-defined batteries and easy select battery, and can calibrate battery voltage.

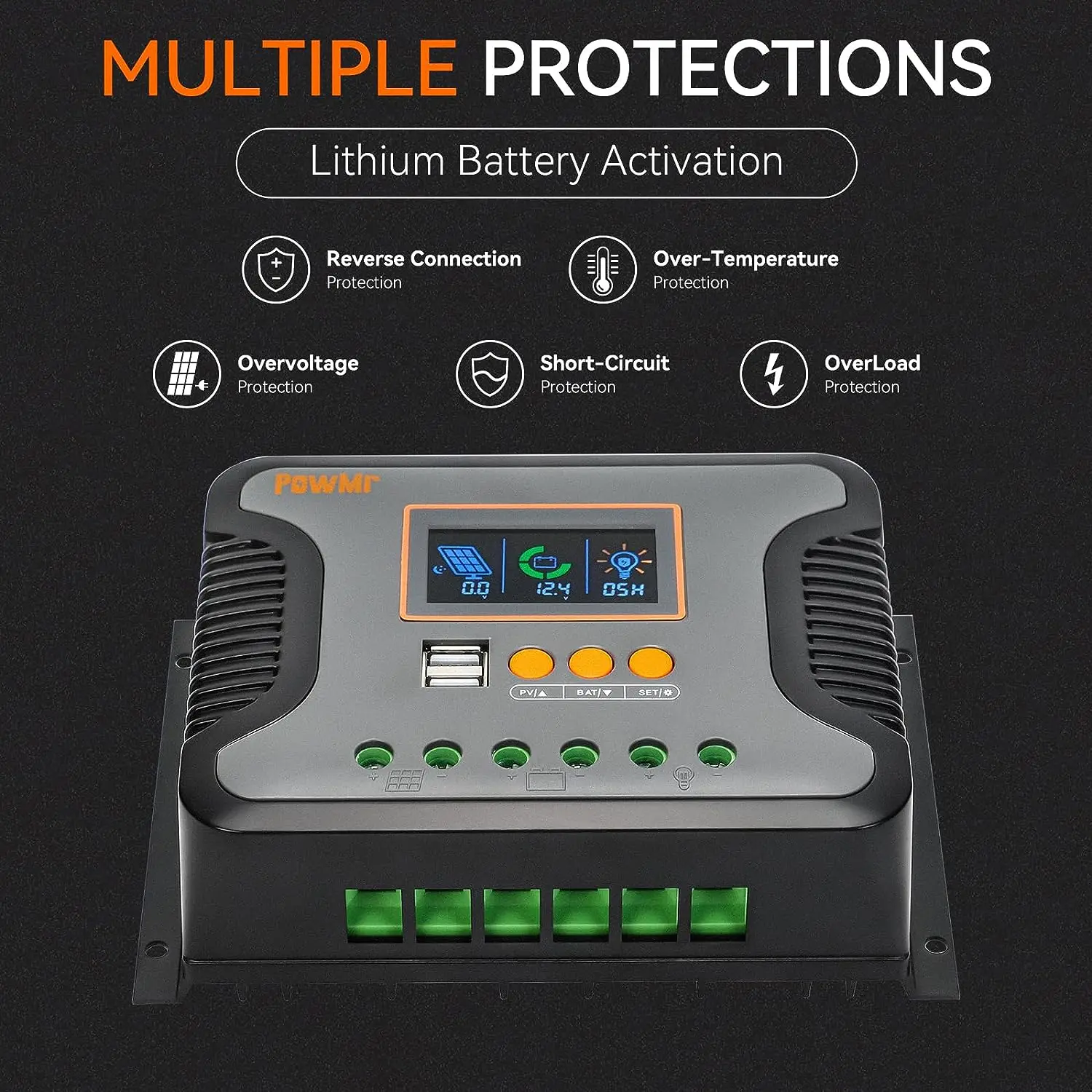

【MULTIPLE PROTECTIONS】Equipped against overheating, automatically stops charging, output short circuits. against over-discharging, reverse polarity connection, and Limit the maximum charging current protection, ensuring safety to use; natural convection, cool air heat dissipation, and complete silence
【EASY TO USE】solar regulator real-time monitor, and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easily set and commit parameters; No matter how users switch display screen, it will automatically return to default display screen after no button is pressed for 100 seconds.
【 3-STAGE INTELLIGENT PWM Technology】The solar controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages of charge modes, efficient, and safe battery charge, effectively extending the battery life; a combination of solar light control and time control, freely adjust the load enable duration. such as: Light control, Light Time control
Multiple usage scenarios Applicable to more scenarios, more convenient
