- Brand Name: PowMr
- Module Efficien: 21.8%
- Origin: Mainland China
- Model Number: POW-LTW 100W
- Max. power: 200W
- Size: 935*590*3mm
- Material: Monocrystalline Silicon
- Nominal Capacity: 1944AH
- Number of Cells: 1
- Number of Panels: 1
- Flexible Solar Panel: Yes
- Foldable Solar Panel: No
- is_customized: Yes
- Rigid Solar Panel: No
- Certification: CE
- Type: Solar Panel
PowMr 100W/200W/300W Flexible Solar Panels 12V Solar Cell MONO ETFE Solar Battery 18V Camping RV Boat Home Charge Power Supplies
Feature

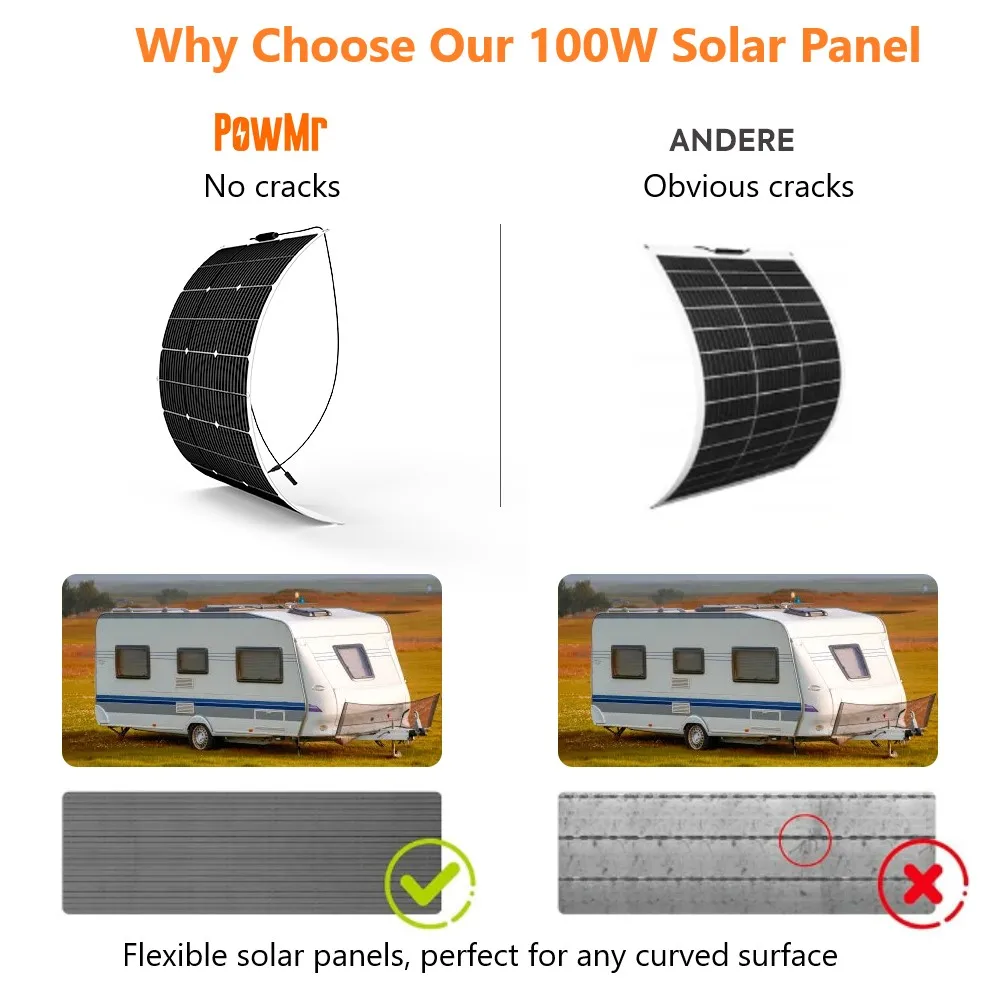

🚀[Flexible]:The solar panel measures 930 * 590 * 3mm, smaller and lighter in size and weight than its predecessor. Equipped with 6 stainless steel eyelets, it can be easily fixed on the roof of the car or anywhere you need to hang and remove it.
🚀[High Efficiency]:ETFE material is made of the latest generation of monocrystalline silicon photovoltaic technology, the unique technology makes the conversion efficiency of the solar module 60% higher than ordinary modules.
🚀 [Durable]: flexible waterproof IP67 junction box for solar panels includes a bypass diode with current input overcurrent protection and reverse polarity protection.
IP67 photovoltaic solar plug with 83 cm cable.
🚀 [Comfort]: The solar panels and the solar controller can be simply connected to protect the battery and to charge the 12-volt battery. Multiple solar panels connected in series can charge a 24/48 volt battery.
🚀[Fast Delivery]: We have warehouses in many European countries, after the order is sent from the nearest warehouse as a priority, so that you can receive the goods the fastest. And take more pieces more discount policy, if you need to buy more pieces you can contact customer service to give you more discount.
| |
MODEL | POW-LTW 100W |
Crystalline Silicon | Monocrystalline Silicon |
Maximum Power(Pm) | 100Wp |
Maximum Operating Voltage (Vm) | 19.44V |
Maximum Operating Current（(Im) | 5.14A |
Open-Circuit Voltage (Voc) | 23.33V |
Short-Circuit Current(lsc) | 5.45A |
Solar Panel Dimensions | 935*590*3mm |
Solar Panel Weight | 1.67kg |
Maximum System Voltage | 600V |
Temperature Coefficient of Short-Circuit Current | 0.065+/-0.015%C |
Temperature Coefficients of Open-Circuit Voltage | -(2.23+/-0.1)mvC |
Temperature Coefficients of Maximum Power | -(0.5+-0.05）C |
Temperature Coefficients of Maximum Current | +0.1C |
Temperature Coefficient of Maximum Voltage | -0.38/C |
Operating Temperature Range | -25C-+60°C |
Power Tolerance | +/-3% |
Hail Pressure Test | Fall from a height of one meter |
Junction Box Type | ABS |
Cell Efficiency | 21.00% |
Output Power Tolerance | +/-5% |
Standard Test Conditions | AM1.5100mW/Cm²25°℃ |
Warranty | 2-year |
Fill Factor | 75.00% |
Packaging | Carton |
