- Brand Name: NoEnName_Null
- Installation Method: Assembly
- Hign-concerned Chemical: None
- Origin: Mainland China
- Battery Type: LiFePO4
- Model Number: BM-203, MASON 280Ah
- Brand Name: changxiao/ ODM/ OEM
- Place of Origin: Guangdong, China
- Product name: seplos bms box DIY kit
- Battery type: EVE 280Ah cell
- BMS: Seplos 48V 16S 200A BMS
- communication: CANBUS/RS485/bluetooth
- Nominal Voltage: 51.2V
- Current: 200A
- OEM/ODM: Avaliable
- Apllication: Household Energy Storage
- Package: Standard Box
- Inverter Type: Pure Sine Wave
- Power Source: Solar Panel
- Controller Type: NONE
- Plug Type: /
Hello, my name is Allie. Welcome to my store. If I haven’t replied to you in a timely manner, you can contact me on WhatsApp +8619313162195.
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-size:22px}#detail_decorate_root .magic-6{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-7{font-size:26px}#detail_decorate_root .magic-8{font-size:20px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-9{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:749.9999999999999px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:749.9999999999999px;height:749.9999999999999px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:261px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:261px}#detail_decorate_root .magic-15{font-size:18px}#detail_decorate_root .magic-16{font-size:16px}#detail_decorate_root .magic-17{font-size:20px}#detail_decorate_root .magic-18{width:750px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:261px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:458px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{display:none}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-25{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-26{margin-bottom:0}#detail_decorate_root .magic-27{position:relative;width:100%}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:500.25px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:248.791px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:373px;height:248.791px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{font-size:14px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:614.6390374331551px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:614.6390374331551px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:429px}
![]()
Q:What BMS is in the 48V battery box?
A: We use the 100/150/200A BMS in the box with CAN/RS485/RJ45/Bluetooth Communications.
Q:Does the 48V kit contain batteries? A: Not included, see above for parts list.

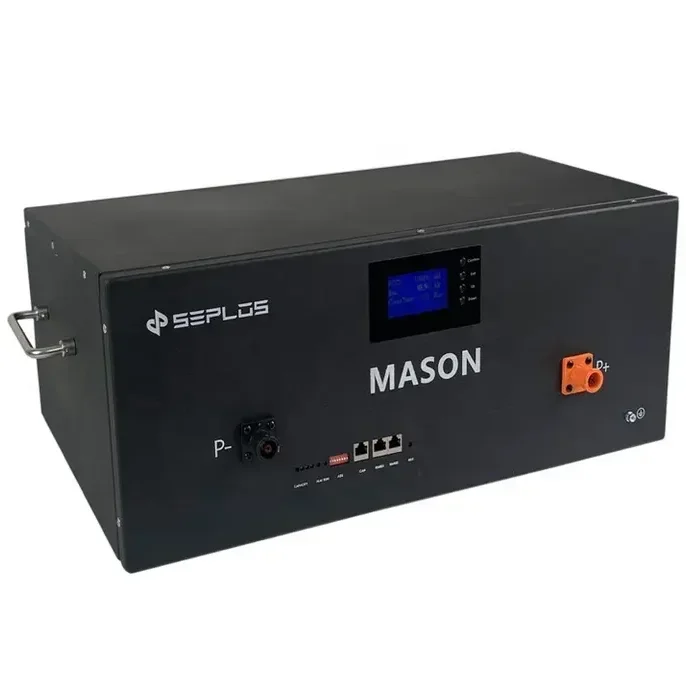

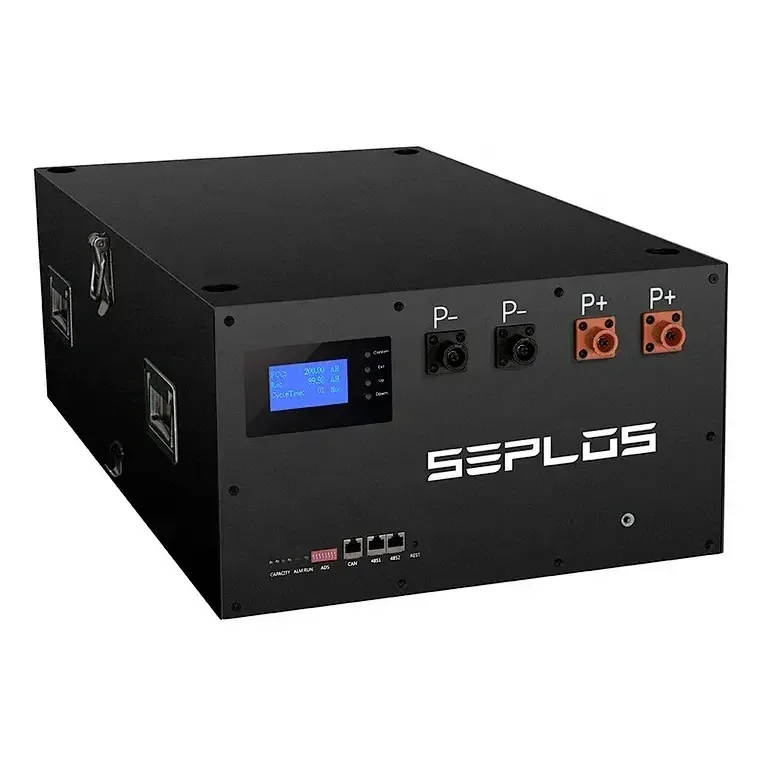

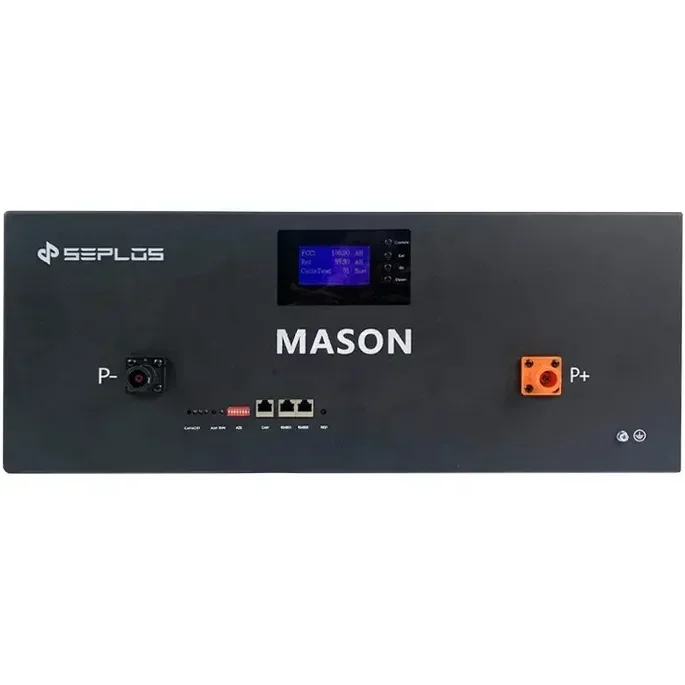

Off-grid Solar System Box Load Power 5KW 10KW 15KW 48v 200AH 300AH Lifepo4 Battery Seplos Mason 280 BMS BOX DIY Kit
Product Description

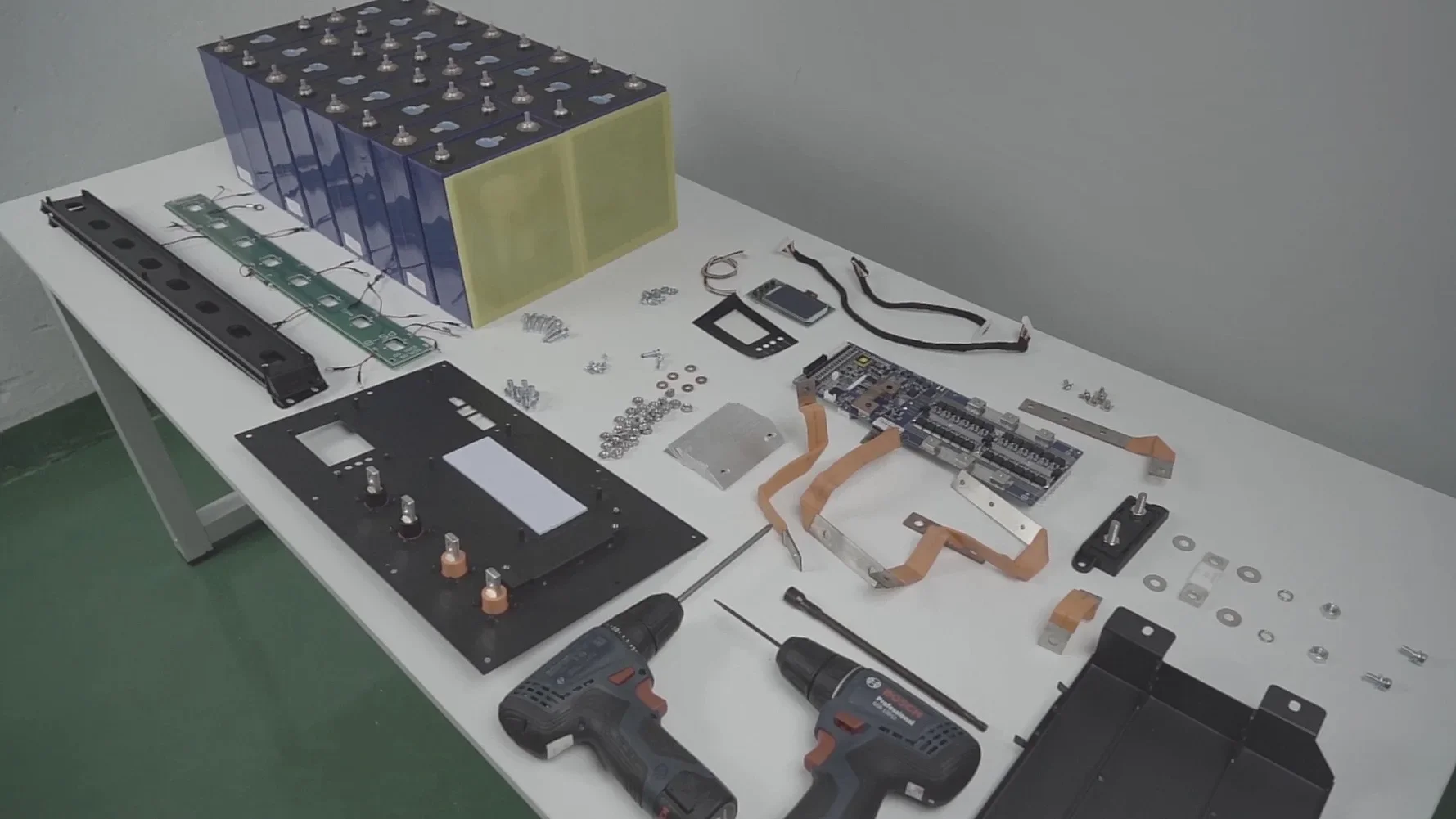

Packing List:
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle

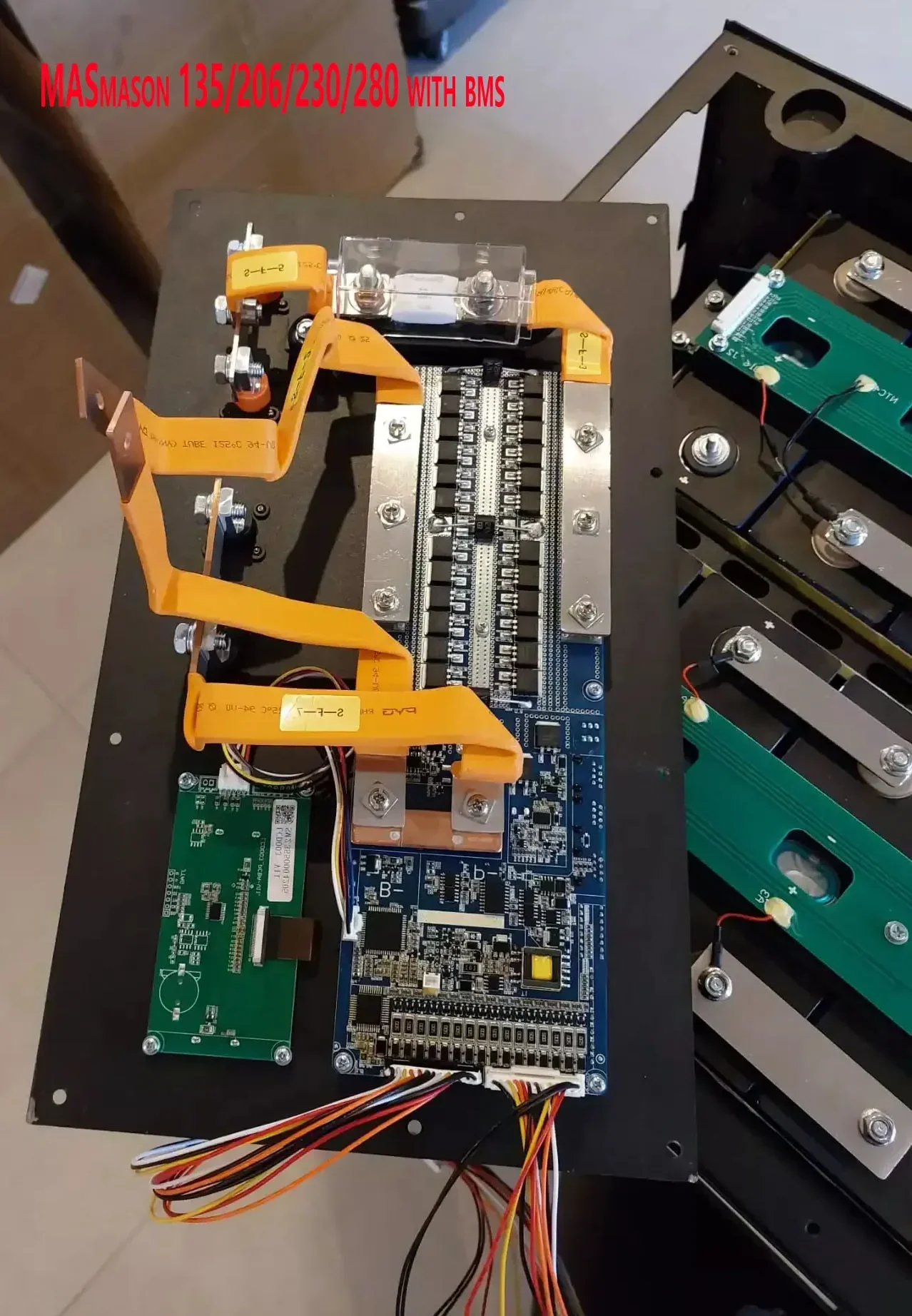

2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Specification
Brand |
SELPOS | ||||||
Model |
48V 16S LFP BOX | ||||||
Application |
Solar energy household system | ||||||
Battery type |
230Ah 280Ah 302Ah 304Ah Lifepo4 battery pack | ||||||
Communication |
CANBUS and RS485 bluetooth | ||||||
BMS |
48V 16S 200A BMS | ||||||
Nominal Voltage |
48V/51.2V | ||||||
Continuous current |
200A | ||||||
Details Images
Features:
* Suitable for EVE 3.2V 280Ah and SEPLOS 3.2V 280Ah LiFePO4 prismatic cells.
* Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.

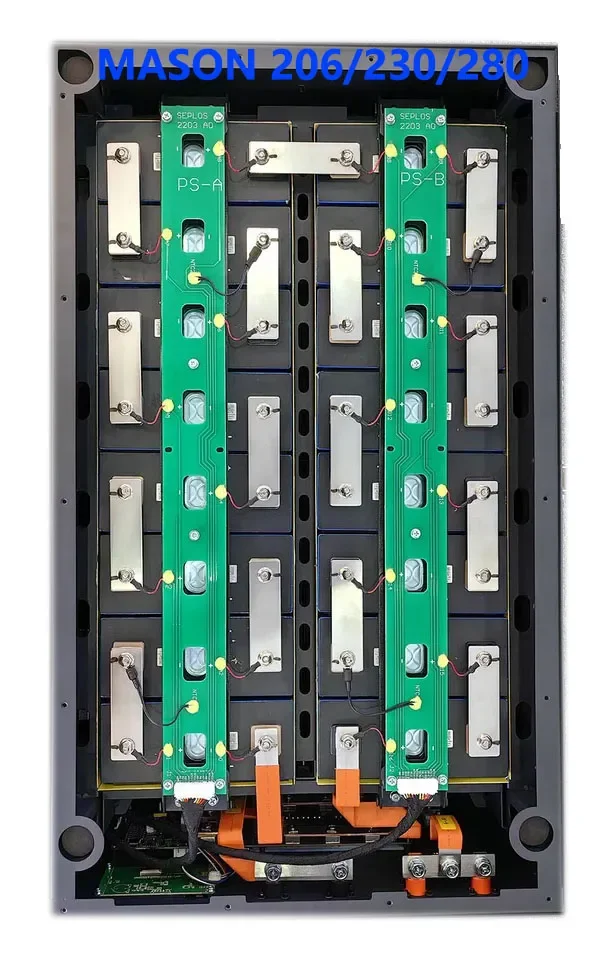

* Specially designed plastic cell holder features fire proof and insulation. 8 cells in series composes a battery module, and two modules in series, then connected with BMS, composes a SEPLOS PUSUNG battery pack.
* BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
* BMS monitors the charge and discharge state, and balance the current and voltage of each cell.
BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
* Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
* Pre-programmed with multi-protocols, SEPLOS MASON-280 51.2V 280Ah works with multi-brands of inverters. Check the communication inverter list.
* Suitable for EVE 3.2V 280Ah and SEPLOS 3.2V 280Ah LiFePO4 prismatic cells.
* Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.
* Specially designed plastic cell holder features fire proof and insulation. 8 cells in series composes a battery module, and two modules in series, then connected with BMS, composes a SEPLOS PUSUNG battery pack.
* BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
* BMS monitors the charge and discharge state, and balance the current and voltage of each cell.
BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
* Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
* Pre-programmed with multi-protocols, SEPLOS MASON-280 51.2V 280Ah works with multi-brands of inverters. Check the communication inverter list.
Company Profile

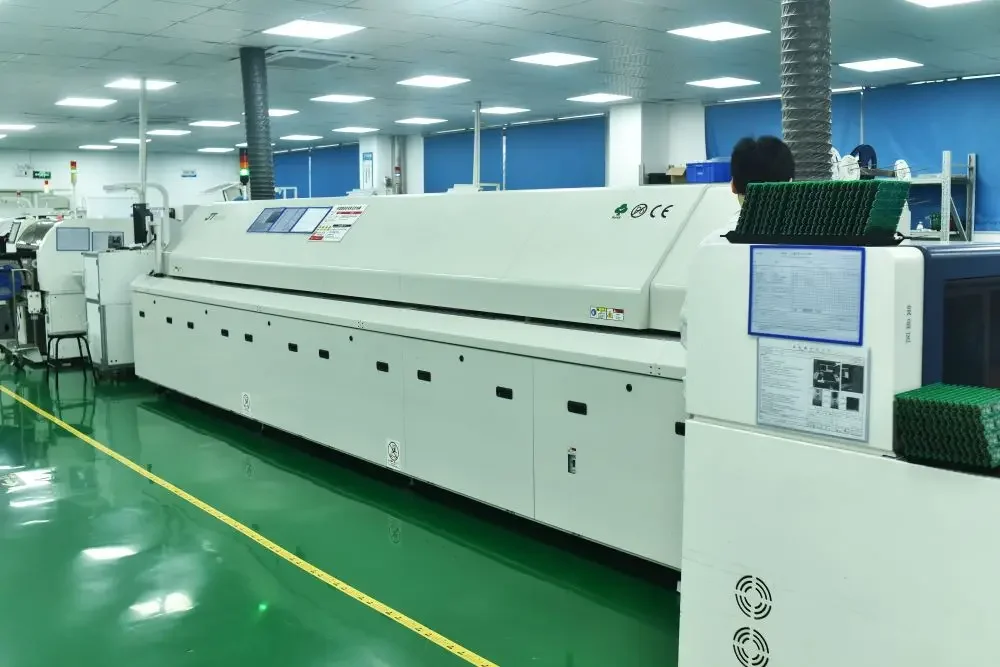

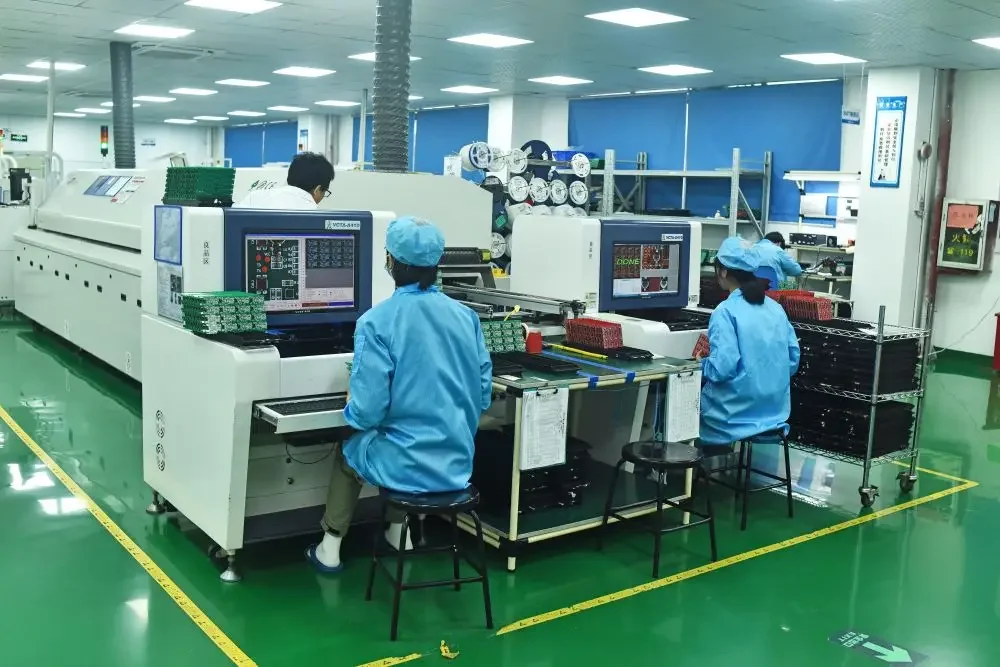

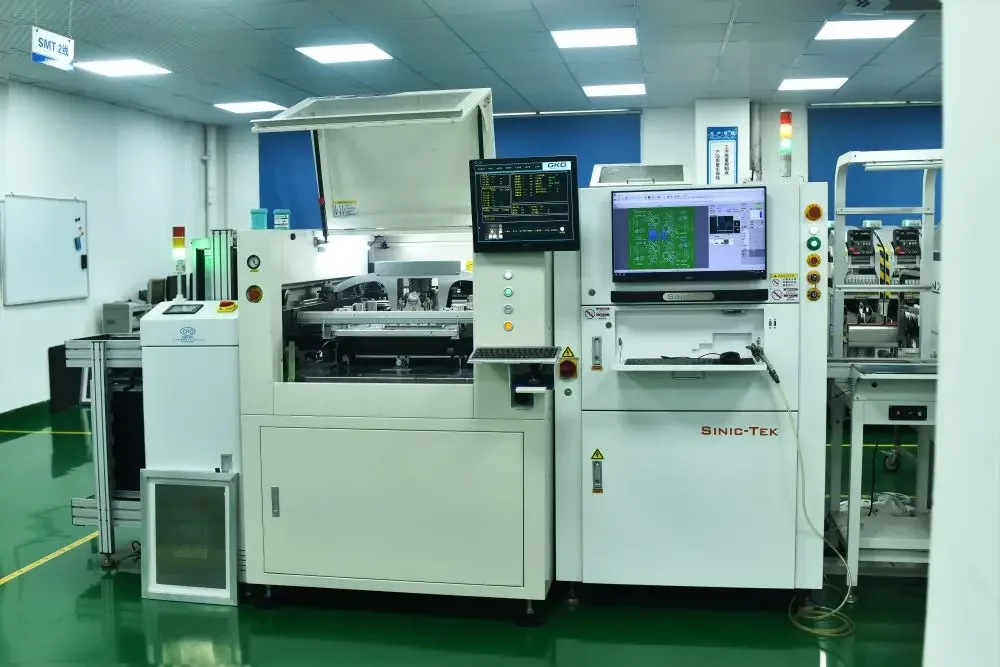

Shenzhen Changxiao Technology Co., Ltd, which is a pioneer in the solar generator industry, specializing in R&D, manufacturing and sales of power suppliers, solar power station, power panel and other related products. Our R&D director and production director have more than 20 years of industry experience in batteries and power station. Our company consists of R&D center, industrial design center, quality control center and manufacture center, and our workshop is more than 8,000 square meters.
All of our products have passed CE, PSE, FCC, RoHs, MSDS, ETL certificates.
More than 200 skilled employees, our products are exported to more than 50 countries and regions, including North America, Japan, Germany, UK.
Our company have become increasingly popular due to the reliable battery lifetime and improved recharge ability and stability.
All of our products have passed CE, PSE, FCC, RoHs, MSDS, ETL certificates.
More than 200 skilled employees, our products are exported to more than 50 countries and regions, including North America, Japan, Germany, UK.
Our company have become increasingly popular due to the reliable battery lifetime and improved recharge ability and stability.
Packing & Delivery
Certifications
FAQ
Q:What BMS is in the 48V battery box?
A: We use the 100/150/200A BMS in the box with CAN/RS485/RJ45/Bluetooth Communications.
Q:Does the 48V kit contain batteries? A: Not included, see above for parts list.
Q: What should I do if I don’t know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. we will send you video how to install.

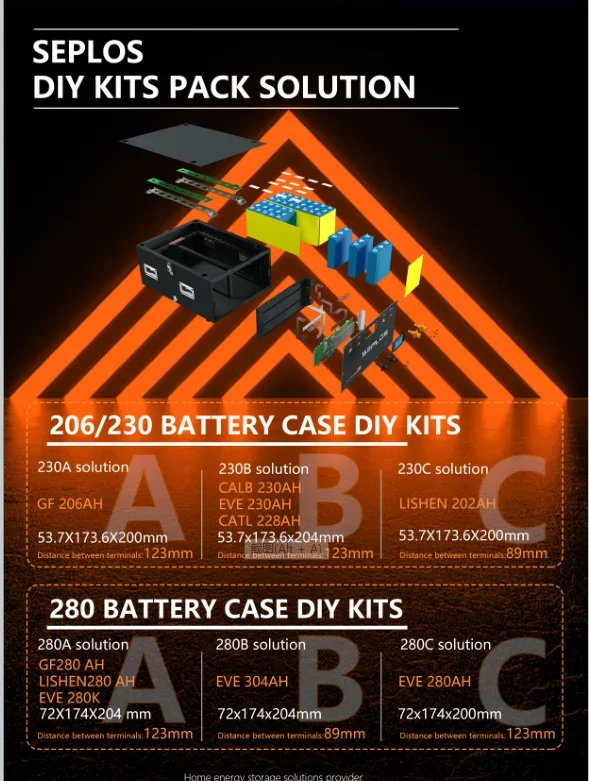

Q:What size of battery is suitable for the battery box?
230A solution:suitable GF 206Ah cell size:53.7*173.6*200mm
230B solution:suitable CALB 230Ah/EVE 230Ah/CATL 228Ah cell size:53.7*173.6*204mm
230C solution:suitable LISHEN 202Ah cell size:53.7*173.6*200mm

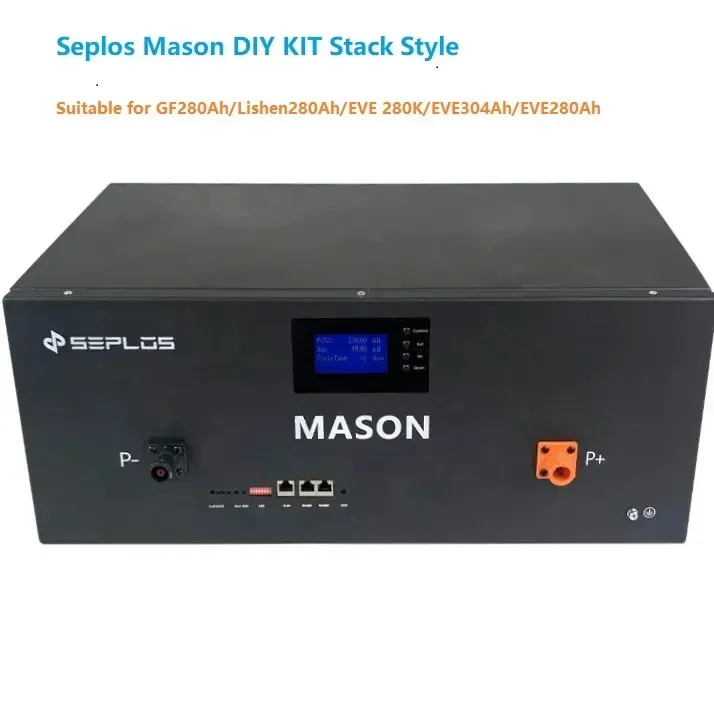

280A solution:suitable GF 280Ah/LISHEN 280Ah/EVE 280K cell size:72*174*204mm
280B solution:suitable EVE 304Ah cell size:72*174*204mm
280C solution:suitable EVE 280Ah cell size:72*174*200mm
