- Brand Name: AMZVISION
- Model Number: 48400-TX
- Hign-concerned Chemical: None
- Origin: Mainland China
- Nominal Capacity: 400Ah
- Type: LiFePO4
- Certification: CE, FCC, RoHS, weee
- Size: 678*450*285 mm
- Application: Solar, Home Energy, Solar Power Storage, Off-Grid Solar Power System
- Connection: Bluetooth-Compatible
- Weight: About 153Kg
- Rated voltage: 12V
- Voltage: 51.2V
- Warranty: 10 Years
- Power: 20.24Kwh
- Cycle life: 6000+ Cycles
- Parallel: Max 32pcs
- BMS: Smart 16S 200A
- Nominal Voltage: 51.2V
- Maximum Charging Voltage: 58.4V
- Maximum Charging Current: 0.5C
- Maximum Continuous Discharge Current: 1C
- Charging Temperature: -5~55℃
- Discharging Temperature: -20~60℃
- Case: Stainless Steel Case
💶【Coupon Code】40$ = 3V5DSDZ1BE1M
✅【PL Warehouses】7-30 days shipping time, fast shipping for European countries.
PL STOCK LiFePO4 48V : 100Ah * 100Pcs, 200Ah * 30Pcs
If you have any questions, feel free to contact us.
Max 32 Parallel 6000+ Cycles PC Monitor 51.2V 400Ah 20.24Kwh LiFePO4 Inverter Battery Pack
Specifications:
Parallel : Max 32 Parallel
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Max Charge Voltage : 58.4V
Rate Capacity : 400Ah
Energy Power : 20.24Kwh
Maximum Charging Current : 0.5C
Maximum Dicharge Current : 1C
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 678*450*285 mm
Studs : M8 Terminal
Weight : About 153Kg
1.We provide online 1-to-1 guide to connect the inverter communication.
2.Compatible with the following brands of inverters: Victron, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, etc.
OEM Custom LCD Control Buttons, CAN, RS485, Drawing Code Switch, Positive and Negative.
Intelligent display controller, constantly watch the battery cells temperature and voltage.

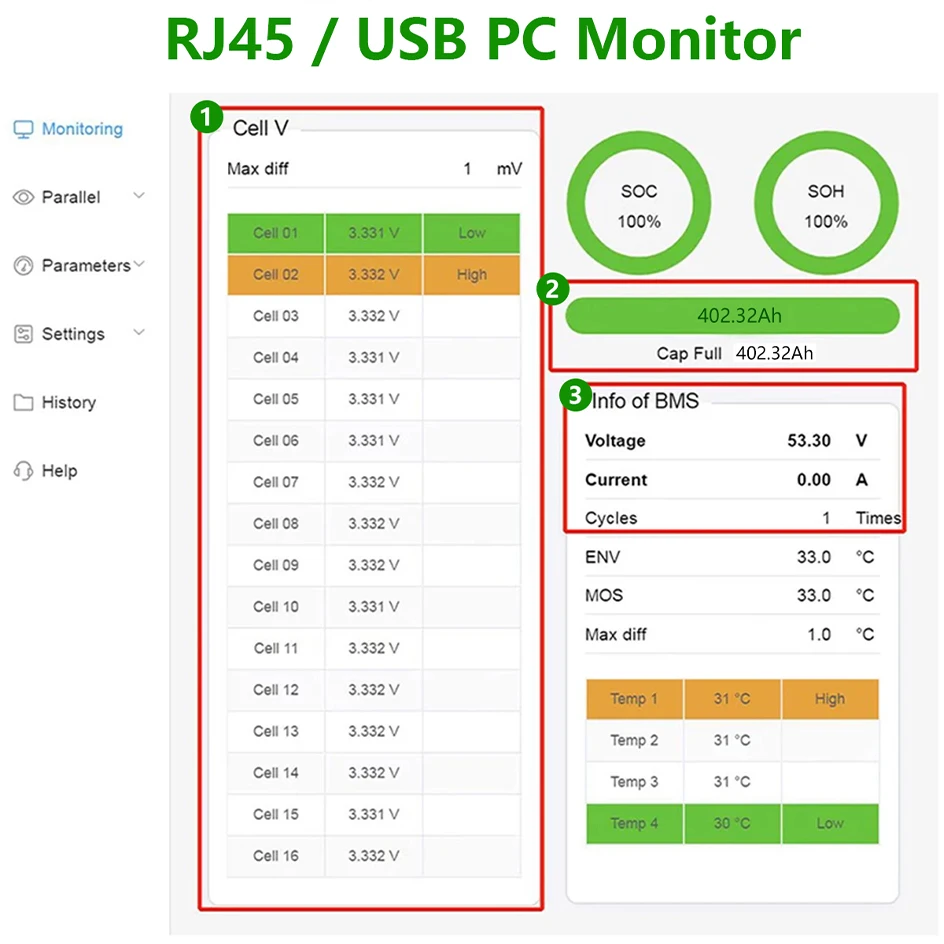

RS485 to USB, PC Monitoring : Monitor Battery Capacity, Voltage and Battery Cell Status
Support Max 32 Parallel，Support OEM Series Connection
About Compatible Inverter Brands List:
Dear customer, our 48V battery pack is compatible with the following brands of inverters: Victron, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, etc.
SGS On-Site Factory Inspection: 32 Parallel Connection Process Display
