- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Place of Origin: Anhui, China
- Model Number: LSE20250508-05
- Brand Name: Lovsun
- Input Voltage: 130-950V
- Output Voltage: 220/380V; 230/400V
- Output Current: 16.7
- Output Frequency: 50/60HZ
- Output Type: Three Phase
- Size: 492*412*212
- Type: DC/AC Inverters
- Inverter Efficiency: 99.9%
- Weight: 27kg
- Application: Solar Power System Home
- Safety Standard: IEC/EN 62109-1/-2
- EMC Standard: IEC/EN 61000-6-1/2/3/4,IEC/EN 61000-3-2/12,IEC/EN 61000-3-3/11
- Grid Connection Standard: VDE4105,PL EN50549,PL NC RfG,IRiESD: 2021,OVE/TOR, EN50549-1/-10
- Inverter type: Hybrid Grid Inverter
- Warranty: 10 Years
- Battery type: Lithium-ion
- Display: LCD+LED Display
- Protection Degree: IP66
- No.of MPPT Trackers: 2
Dear friend, I am lucky to know you through my shop and thank you for your visit.
Because different countries have different shipping methods according to different items, so the shipping cost shown on the platform is usually not so accurate, hope you can understand.
If you want to know more about the item or the shipping cost, I hope you can contact me for the real shipping cost before you place an order.
Thank you again for your visit and I wish you and your family a happy day.
Whats app: +86 166 7422 8650
E-mail: 122669691@qq.com
Because different countries have different shipping methods according to different items, so the shipping cost shown on the platform is usually not so accurate, hope you can understand.
If you want to know more about the item or the shipping cost, I hope you can contact me for the real shipping cost before you place an order.
Thank you again for your visit and I wish you and your family a happy day.
Whats app: +86 166 7422 8650
E-mail: 122669691@qq.com
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#7a90b2;font-family:Roboto;font-size:24px;color:#7a90b2;background-color:#fff;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:325px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:325px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:392.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:392.5px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:300px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:68px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:66px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:61px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:65px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:62px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{text-align:center}#detail_decorate_root .magic-17{display:none}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:63px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:406px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:854px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:854px}#detail_decorate_root .magic-22{overflow:hidden;width:247.33333333333334px;height:185.42751074638534px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-24{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:903.3333333333334px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:903.3333333333334px}#detail_decorate_root .magic-27{margin-bottom:10px;overflow:hidden}
Product Description

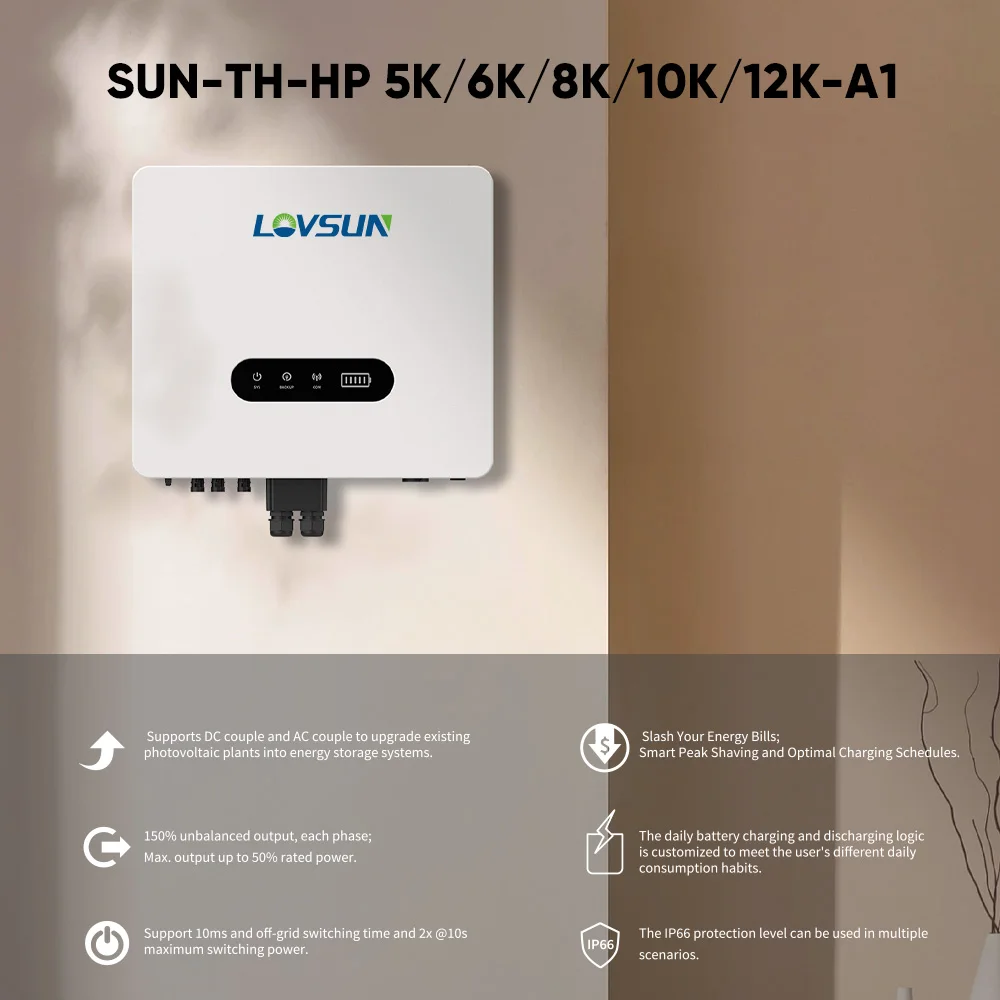

Product Overview
Specifications
Model |
SUN-TH-HP5K-A1 |
SUN-TH-HP6K-A1 |
SUN-TH-HP8K-A1 |
SUN-TH-HP10K-A1 |
SUN-TH-HP12K-A1 | |||||
PV String Input Data | ||||||||||
Max. PV Input Power (W) |
8000 |
9600 |
12800 |
16000 |
19200 | |||||
Max. PV Input Voltage (V) |
1000 | |||||||||
Rated PV Input Voltage (V) |
600 | |||||||||
Start-up Voltage (V) |
150 | |||||||||
MPPT Voltage Range (V) |
130-950 | |||||||||
Max. PV Input Current (A) |
16 | |||||||||
Max. DC Short Circuit Current (A) |
20 | |||||||||
No.of MPPT Trackers |
2 | |||||||||
Battery Input Data | ||||||||||
Battery Type |
Li-ion | |||||||||
Battery Voltage Range (V) |
130-800 | |||||||||
Max. Charge/Discharge Current (A) |
30/30 | |||||||||
Communication |
CAN | |||||||||
AC Input/output data(On-grid) | ||||||||||
Rated AC Output Power (W) |
5000 |
6000 |
8000 |
10000 |
12000 | |||||
Max. AC Output Apparent Power (VA) |
5500 |
6600 |
8800 |
11000 |
13200 | |||||
Rated AC Voltage (V) |
220 V / 380 V, 230 V / 400 V, 3 / N / PE | |||||||||
Rated AC Frequency (Hz) |
50/60 | |||||||||
Rated AC Output Current (A) |
7.6 |
9.1 |
12.1 |
15.2 |
18.2 | |||||
Max. AC Output Current (A) |
8.3 |
10 |
13.3 |
16.7 |
20 | |||||

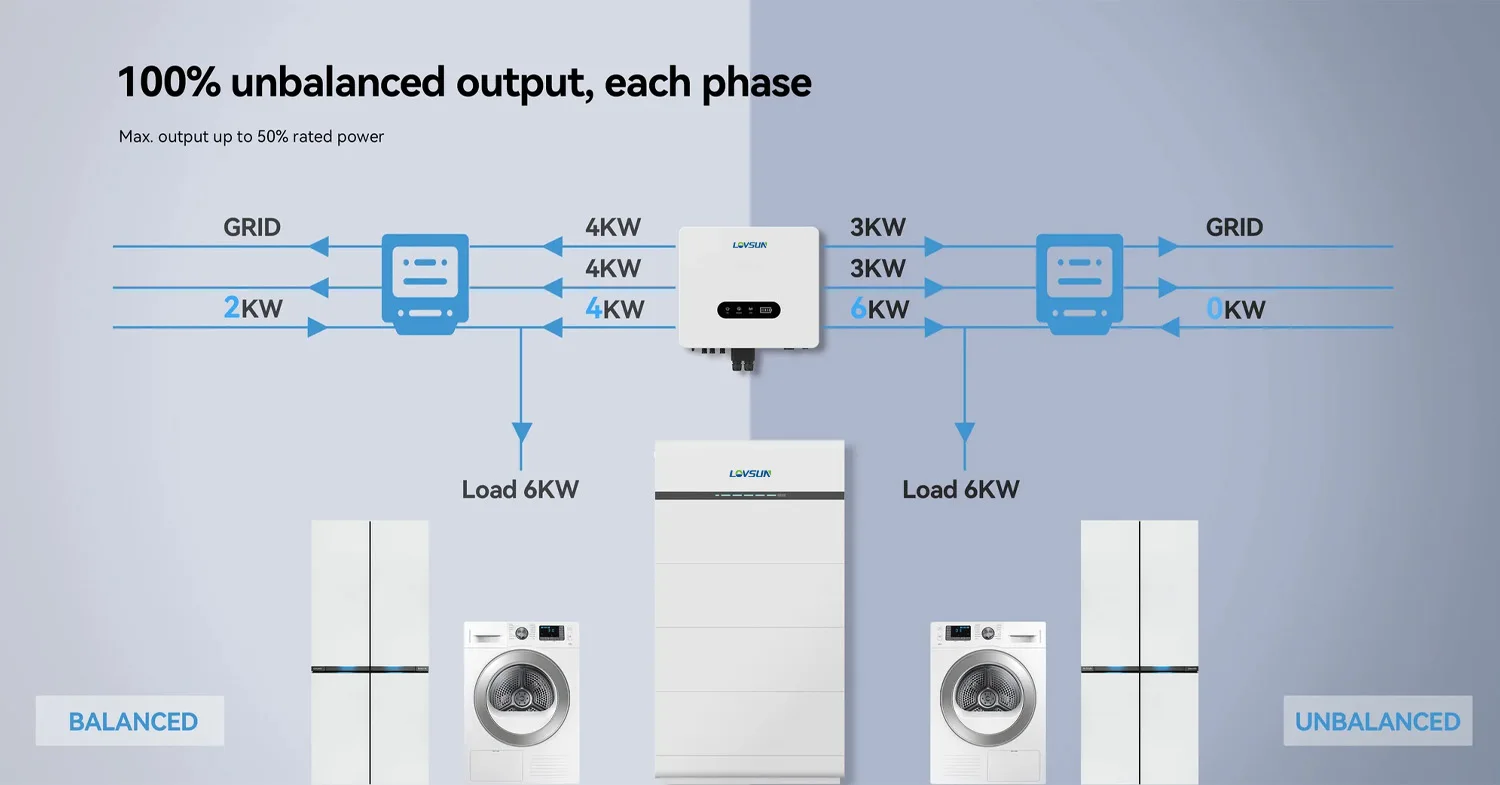

Max. Three-phase Unbalanced Output Current (A) |
13 |
13 |
18 |
22 |
25 | |||||
Max. AC Power From Grid (VA) |
10000 |
12000 |
16000 |
20000 |
24000 | |||||
Max. Current From Grid (A) |
15.2 |
18.2 |
24.2 |
30.3 |
36.4 | |||||
AC Output Data(Back-up) | ||||||||||
Rated Output Power (W) |
5000 |
6000 |
8000 |
10000 |
12000 | |||||
Max. Output Apparent Power (VA) |
5500 |
6600 |
8800 |
11000 |
13200 | |||||
Peak Output Apparent Power (VA) |
10000@60s |
12000@60s |
16000@60s |
20000@60s |
24000@60s | |||||
Rated Output Current (A) |
7.6 |
9.1 |
12.1 |
15.2 |
18.2 | |||||
Max Output Current (A) |
8.3 |
10 |
13.3 |
16.7 |
20 | |||||
Switch Time (ms) |
10ms | |||||||||
Efficiency | ||||||||||
Euro Efficiency |
97.50% |
97.50% |
97.70% |
97.70% |
97.70% | |||||
Max. Efficiency |
98% |
98% |
98.20% |
98.20% |
98.20% | |||||
MPPT Efficiency |
99.90% | |||||||||
General Data | ||||||||||
User Interface |
LED & APP | |||||||||
Communication With Portal |
BT(Integrated)+WF+LAN/4G(Optional) | |||||||||
Dimension |
492*412*212mm | |||||||||
Weight (kg) |
27kg | |||||||||
Ingress Protection |
IP66 | |||||||||
Warranty |
10 Years | |||||||||
Certifications and Standards | ||||||||||
Safety Standard |
IEC / EN 62109-1/-2 | |||||||||
EMC Standard |
IEC / EN 61000-6-1/2/3/4, IEC / EN 61000-3-2/12, IEC / EN 61000-3-3/11 | |||||||||
Grid Connection Standard |
VDE 4105, PL EN50549-1:2019, PL NC RFG,RIESD: 2021, OVE/TOR, EN50549-1/-10 | |||||||||

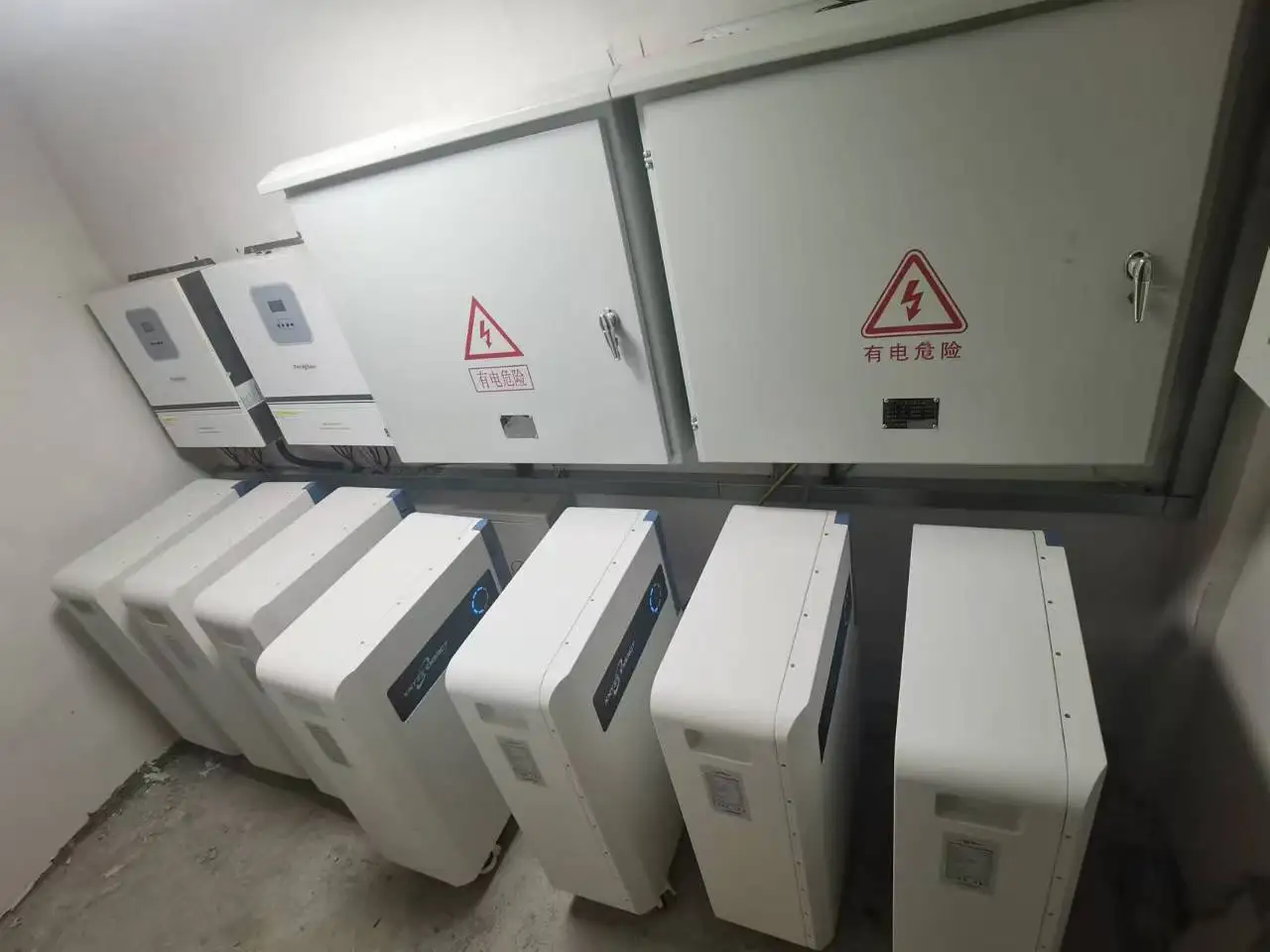

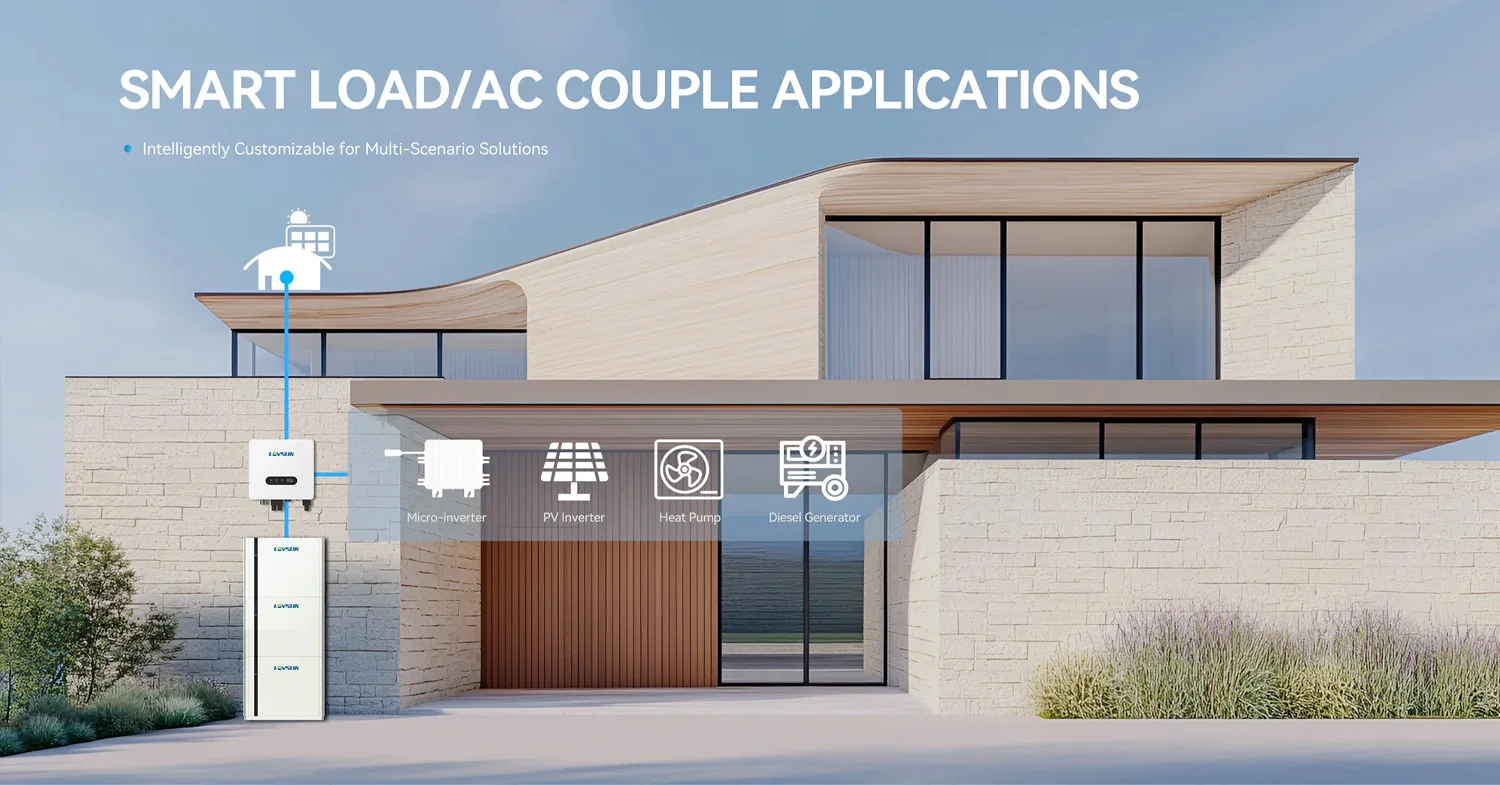

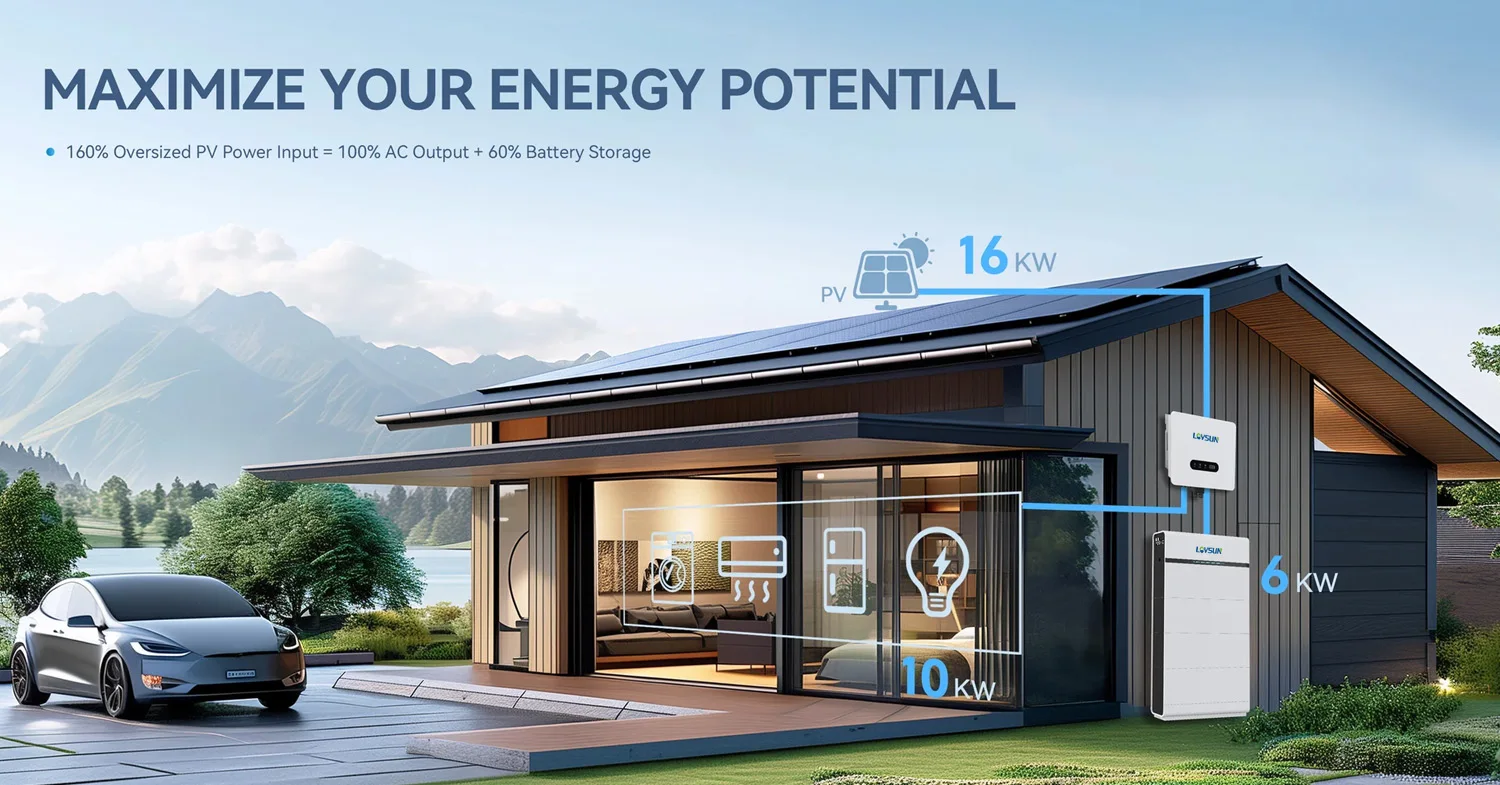

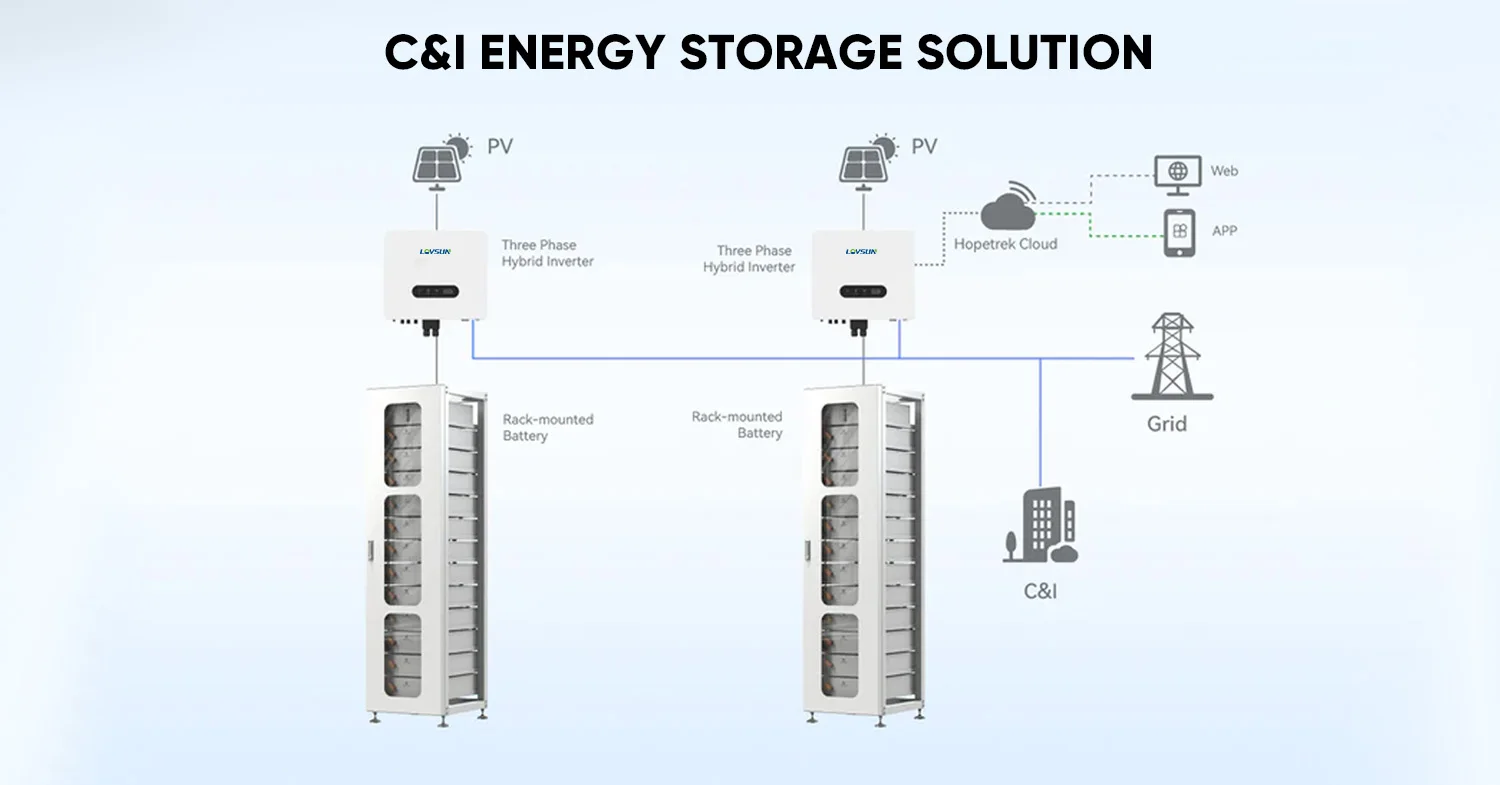

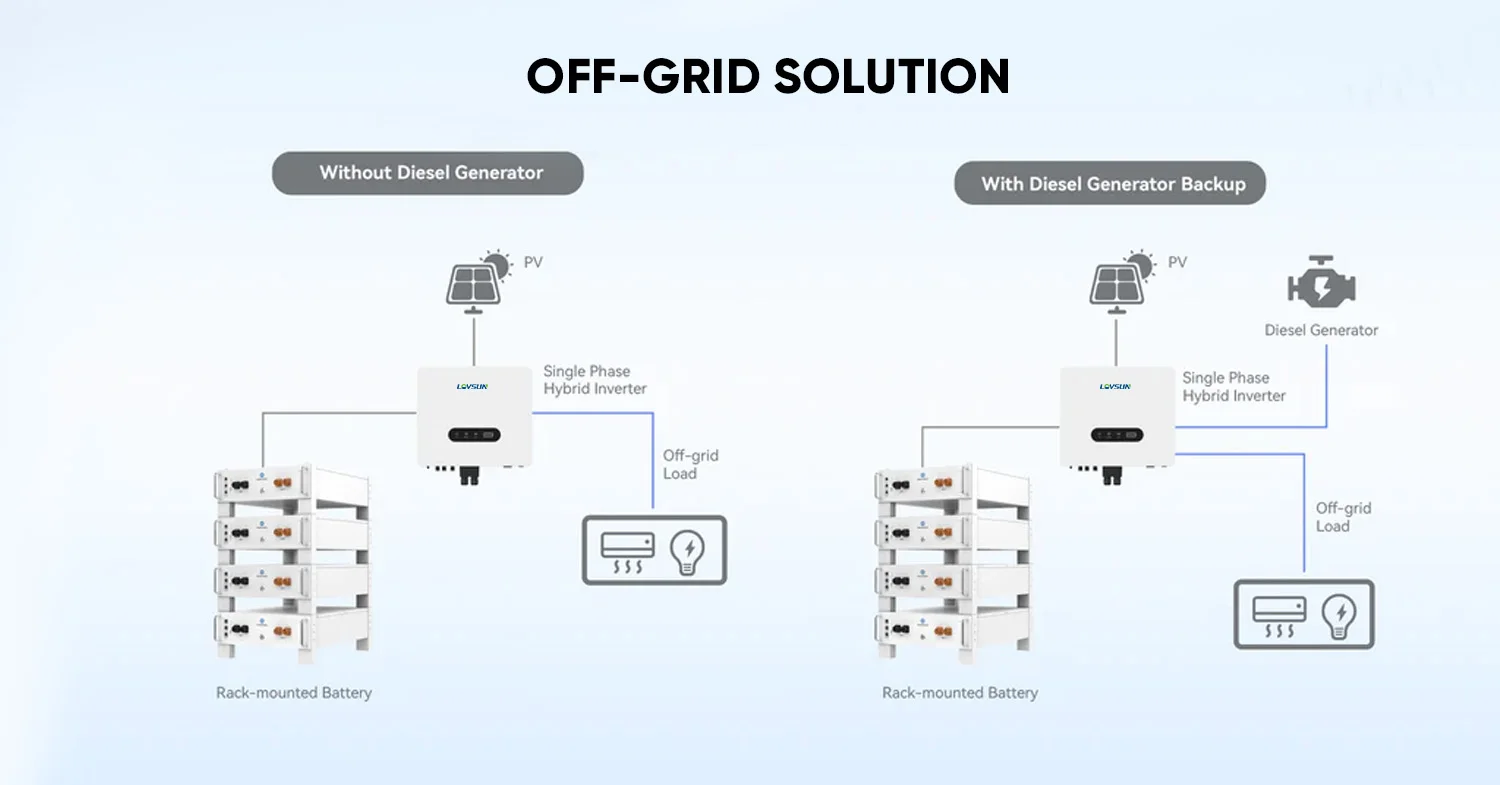

Product Applications

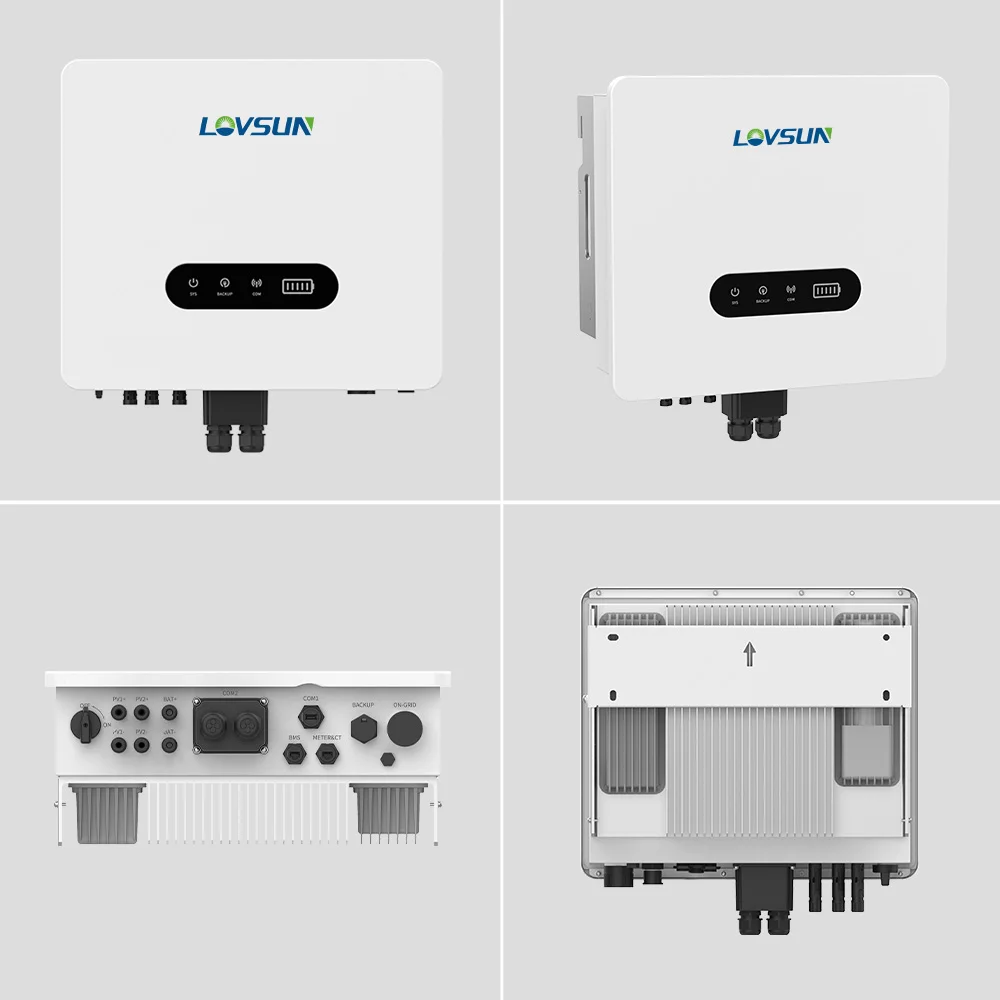

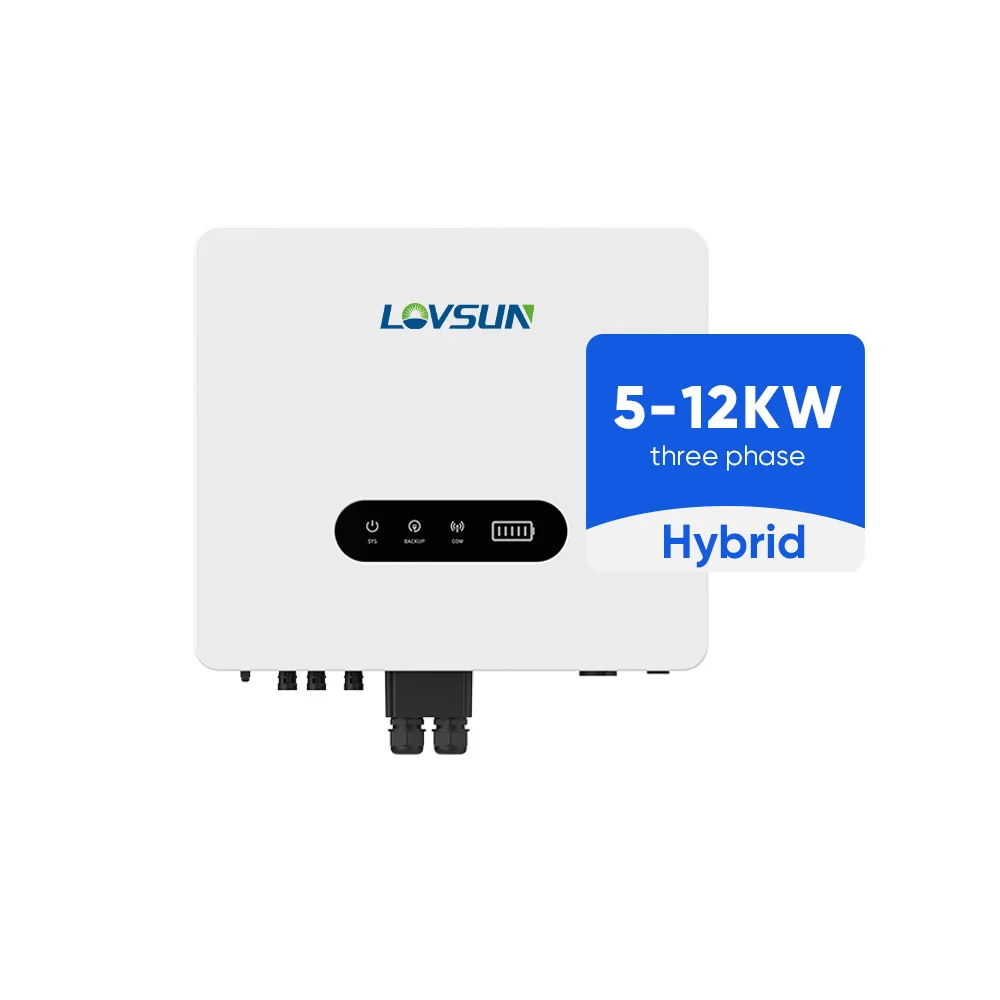

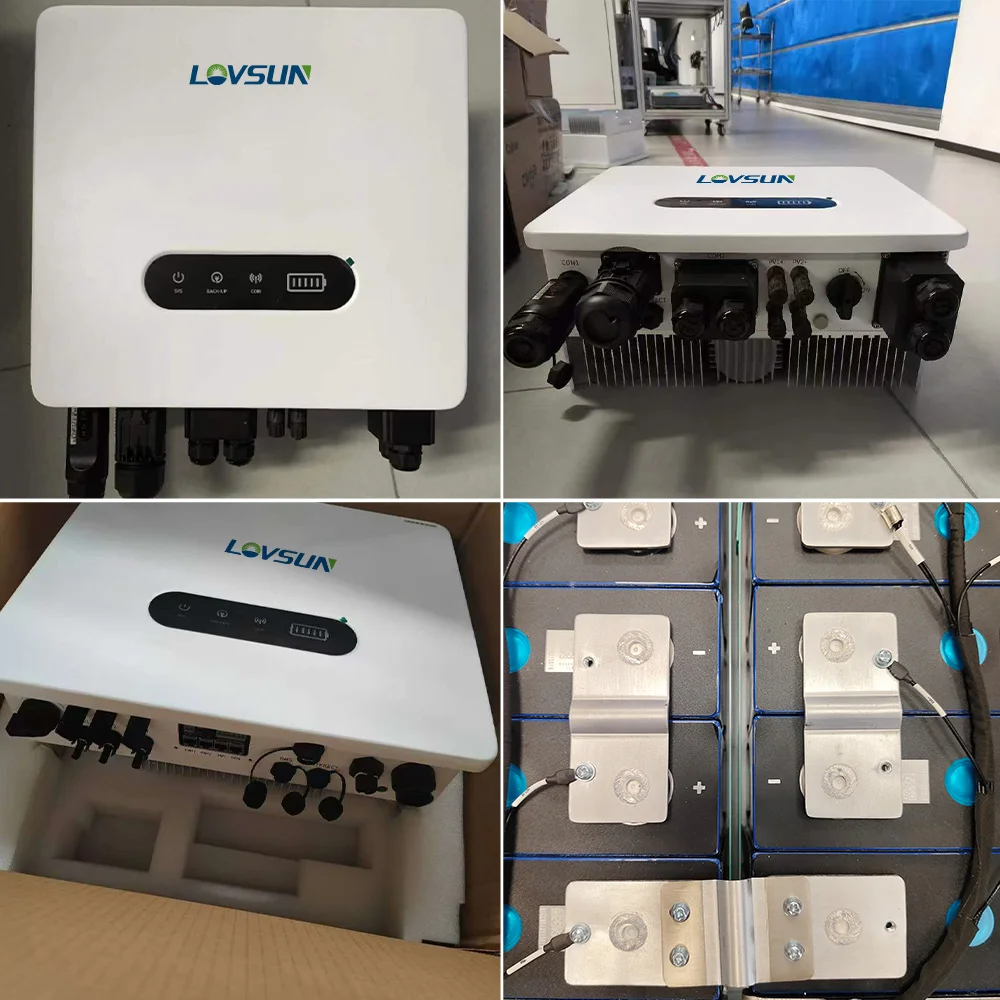

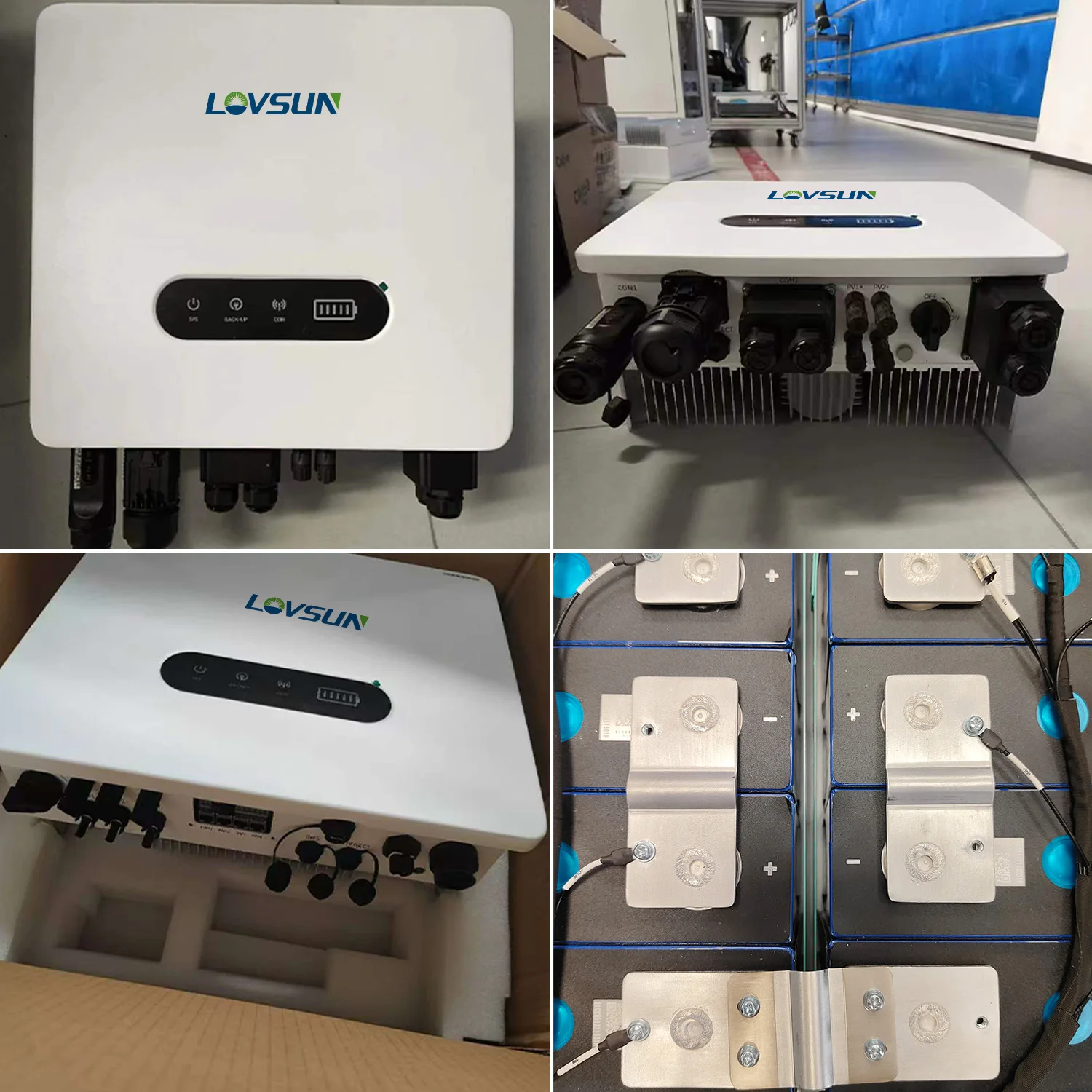

Product Pictures

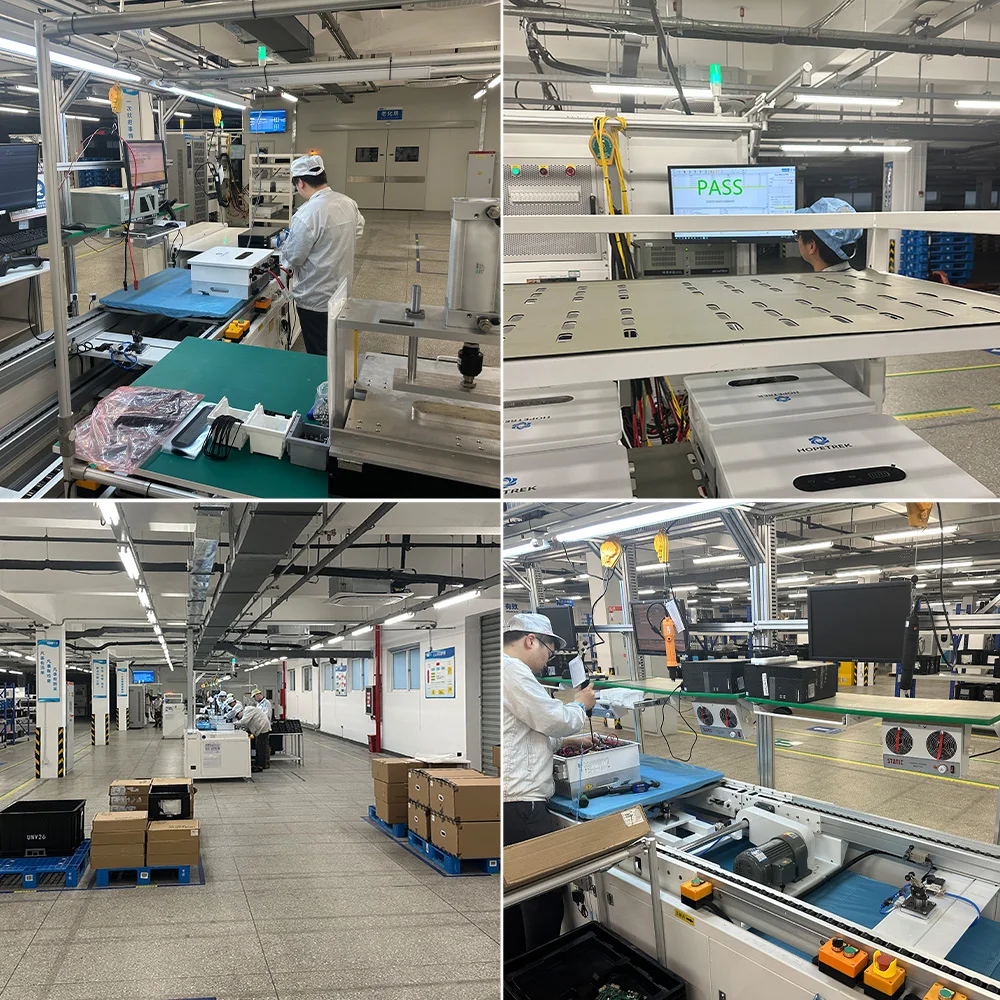

Our Factory
Fast Contact
