- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- After-sales Service Provided: Free spare parts
- Warranty: 1 Year
- Application: Hotel, Commercial, Household
- Power Source: Electric
- App-Controlled: Yes
- Type: Air Source Heat Pump
- Installation: Freestanding
- Storage / Tankless: storage
- Use: Bathroom
- Place of Origin: Guangdong, China
- Brand Name: HXEM
- Model Number: KZR18-D150/N3C1
- Heating capacity: 1800W
- Hot water production: 39L/h
- Water tank Volume: 150L
- Power supply: 220~240V/50Hz
- Rated power: 470W
- Max outlet water temperature: 70℃
- Pipe size: G1/2''
- Gross weight: 75KG
- Keyword: Air Source Heat Pump Hot Water Heater
- Function: Heat Pump Air Source
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-8{font-size:20px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-12{text-align:justify}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:173px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:234px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:278px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:916px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:916px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:849px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:849px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:640px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:640px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:1684px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:1684px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:738px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:738px}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:220px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:110px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:355px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:424px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:424px}#detail_decorate_root .magic-32{font-size:16px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:722px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:722px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:1175px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:1px;width:750px;height:1175px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:800px}#detail_decorate_root .magic-39{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}
Product Description
All in one solar heat pump monobloc air source heat pump hot water

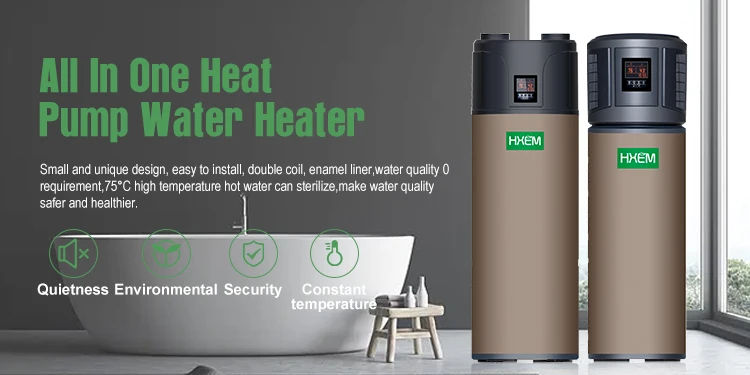

All In One Heat Pump Water Heater
The sanitary hot water heat pump is one of the most economical systems to heat the water or family domestic used.Using free energy from the air ,the unit is highly efficient with low running costs.All In One heat pump is designed for
domestic sanitary hot water .
As a lovely equipment,it could be put indoor or outdoor. It is with 3 times higher efficiency than that of gas boiler or

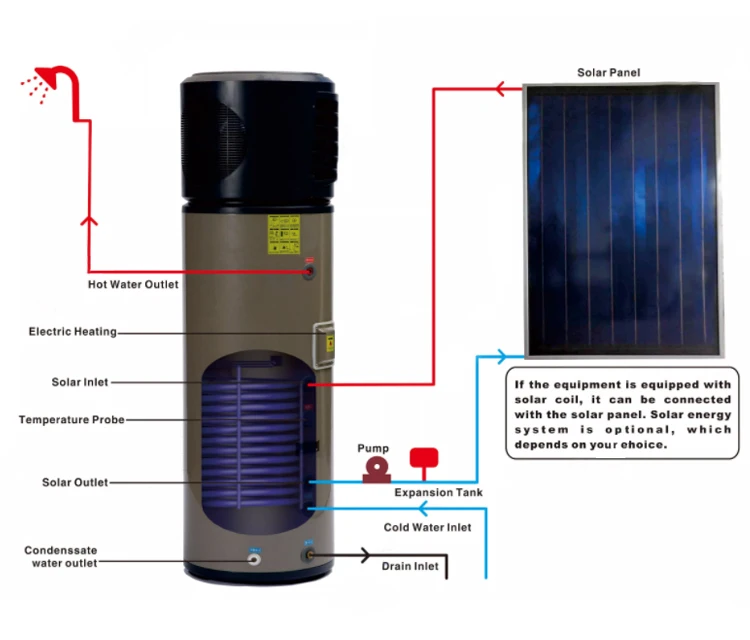

electrical heater and it can also be combined with solar heating system optionally.Therefor this could reduce costs of the users in a big way.
Hot water and dehumidification Unit can be placed in the laundry room or clothing room. When it produces hot water it lowers the temp. and dehumidifies the room as well. The advantage can be experienced particularly in the humid season.
Features
*Easy to install ,high security*24-hour hot water supply
*Not weather effects
*70℃ high temperature
*Pollution-free
*1.5~2kw electric heating
*Enamel water tank liner
*Strong corrosion resistance
electrical heater and it can also be combined with solar heating system optionally.Therefor this could reduce costs of the users in a big way.
Hot water and dehumidification Unit can be placed in the laundry room or clothing room. When it produces hot water it lowers the temp. and dehumidifies the room as well. The advantage can be experienced particularly in the humid season.
Features
*Easy to install ,high security*24-hour hot water supply
*Not weather effects
*70℃ high temperature
*Pollution-free
*1.5~2kw electric heating
*Enamel water tank liner
*Strong corrosion resistance
Specification
Model |
KZR18-D150/N3C1 |
KZR18-D200/N3C1 |
Heating capacity |
1800W |
1800W |
Hot water production |
39L/h |
39L/h |
Water tank Volume |
150L |
200L |
Power supply |
220～240V/50Hz |
220～240V/50Hz |
Rated power |
470W |
470W |
Maximum input power |
2685W |
2685 |
E-heating current |
12.2A |
12.2A |
COP |
3.82 |
3.82 |
Refrigerant |
R134a |
R134a |
Compressor |
Rotory |
Rotory |
Four-way valve |
SHF-4 |
SHF-4 |
Throttling device |
Electronic expansion valve |
Electronic expansion valve |
Evaporator |
∅7Hydrophilic aluminum foil |
∅7Hydrophilic aluminum foil |
Motor |
YDK25/32 |
YDK25/32 |
Centrifugal fan |
∅190 |
∅190 |
Wire controller |
Digital screen, touch button |
Digital screen, touch button |
High/Low pressure switch |
2.8~2.4 MPa /0.05-0.15MPa |
2.8~2.4 MPa /0.05-0.15MPa |
Power cord specification |
（YZW）3*1.5mm²(16A European standard plug) |
（YZW）3*1.5mm²(16A European standard plug) |
Max outlet water temperature |
70℃ |
70℃ |
Ambient temperature |
﹣7～45℃ |
﹣7～45℃ |
Waterproof protection level |
IPX4 |
IPX4 |
Product cabnit |
Galvanized powder costed steel |
Galvanized powder costed steel |
Material of water tank |
Enamel tank |
Enamel tank |
Pipe size |
G1/2” |
G1/2” |
Heat exchanger type |
Φ7 double-coil （Copper tube） |
Φ7 double-coil （Copper tube 50m） |
Built-in pressure protection |
0.8MPa |
0.8MPa |
Auxiliary electric heating |
2000W |
2000W |
Product Dimensions |
φ570*1521 |
φ570*1803 |
Packing Dimensions |
645*645*1680 |
645*645*1970 |
Gross weight |
75kg |
96kg |
Noise |
≤52dB(A) |
≤52dB(A) |

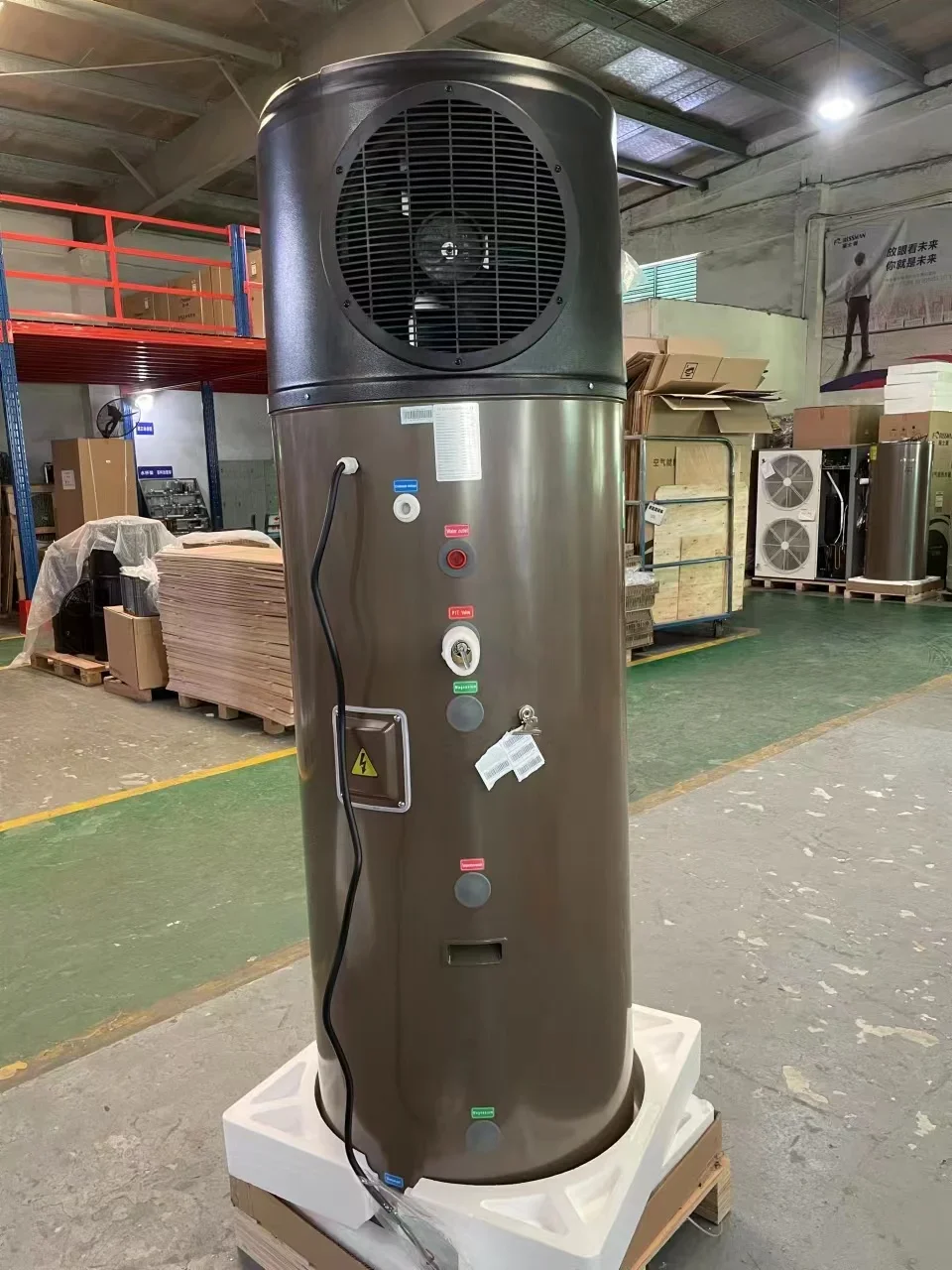

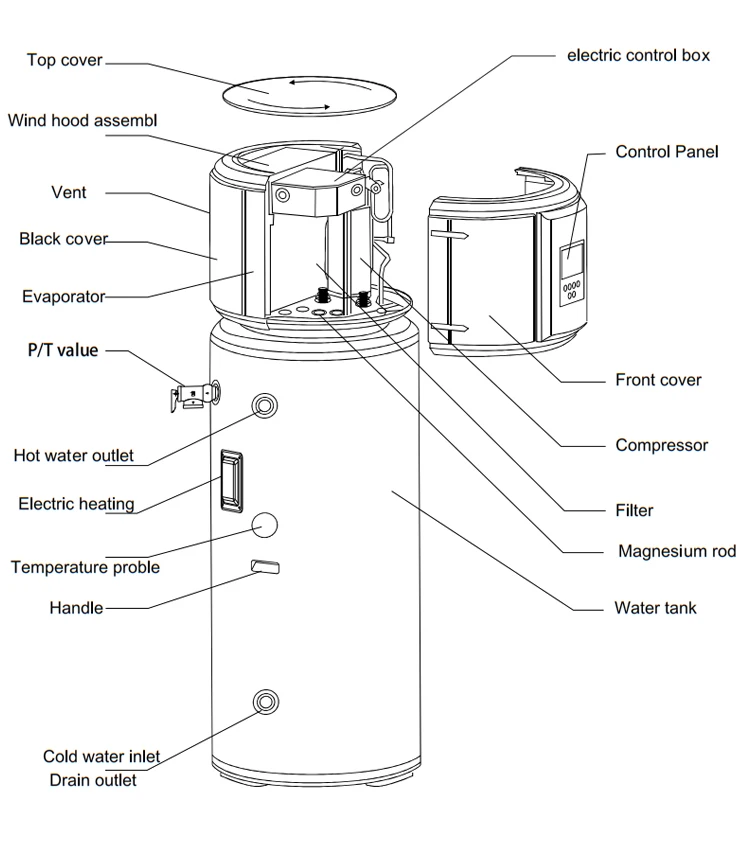

Details Images

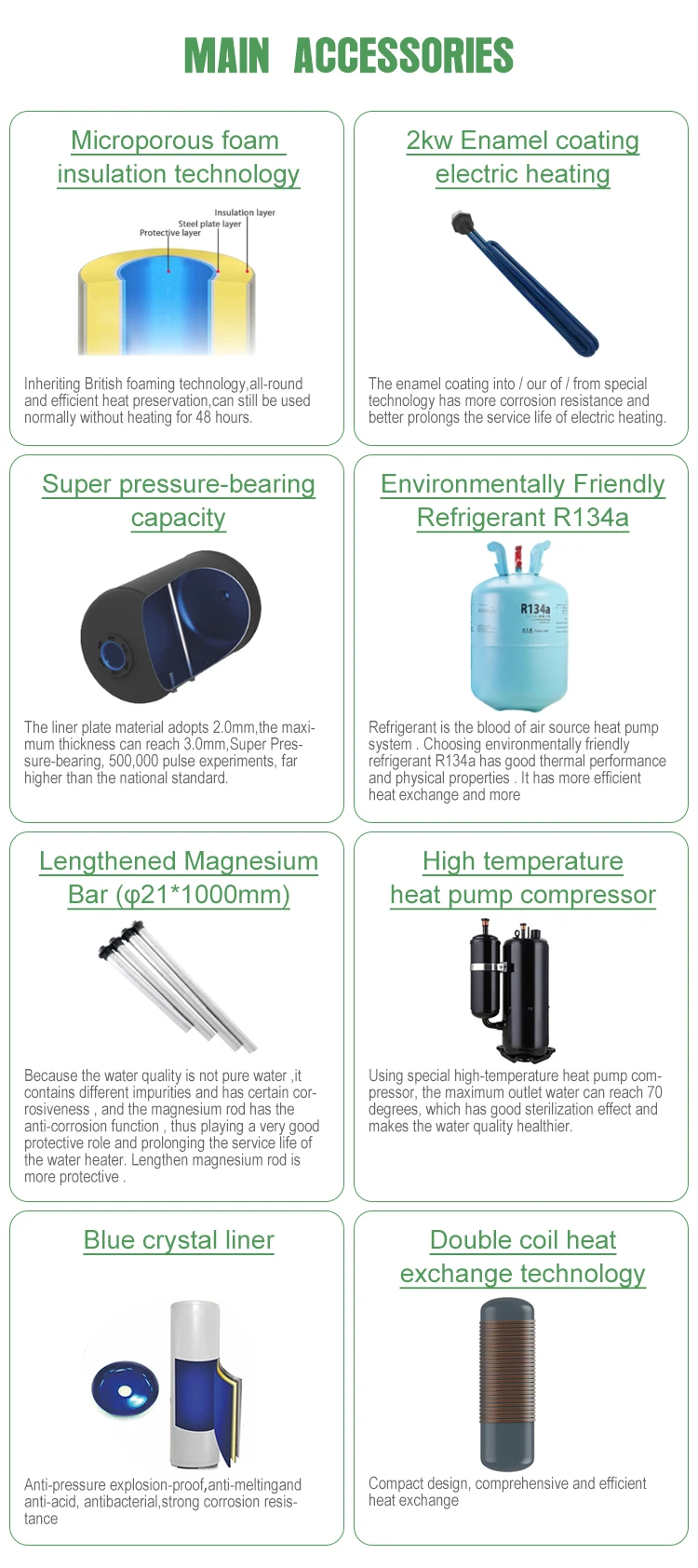

Our Advantages
Enamel water tank |
VS |
Stainless steel water tank |
The inner tank use professional enamel material, CO₂ welding process and special adhesion. It will not leak easily |
Weilding |
Direct contact with water will be easy to leak. |
After 480 hours of salt resistance test, the tank has a good anti-corrosion effect |
Anti-corrosion |
After acid resistance test，prone to corrosion and leak |
The internal water tank is easy to clean, and there is almost no water scale. |
water scale |
easy to have water scale and difficult to clean, which will affect the heat transfer effect. |
It’s still intact after reaching 70°C |
High temperature resistance |
High temperature will accelerate the corrosion of the tank weld and reduce the service life |
Usually more than 15 years |
Service life |
It will happen corrosion and leakage after 2 years |

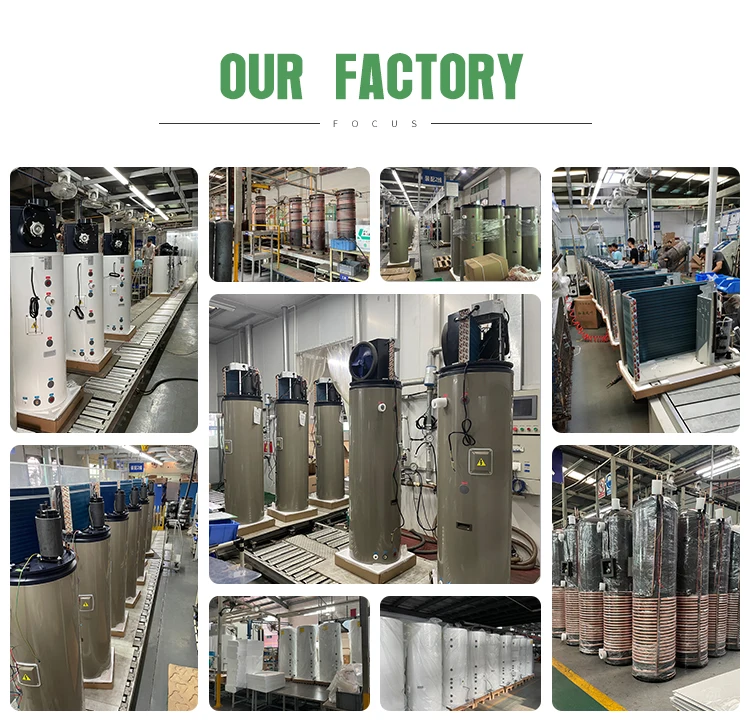

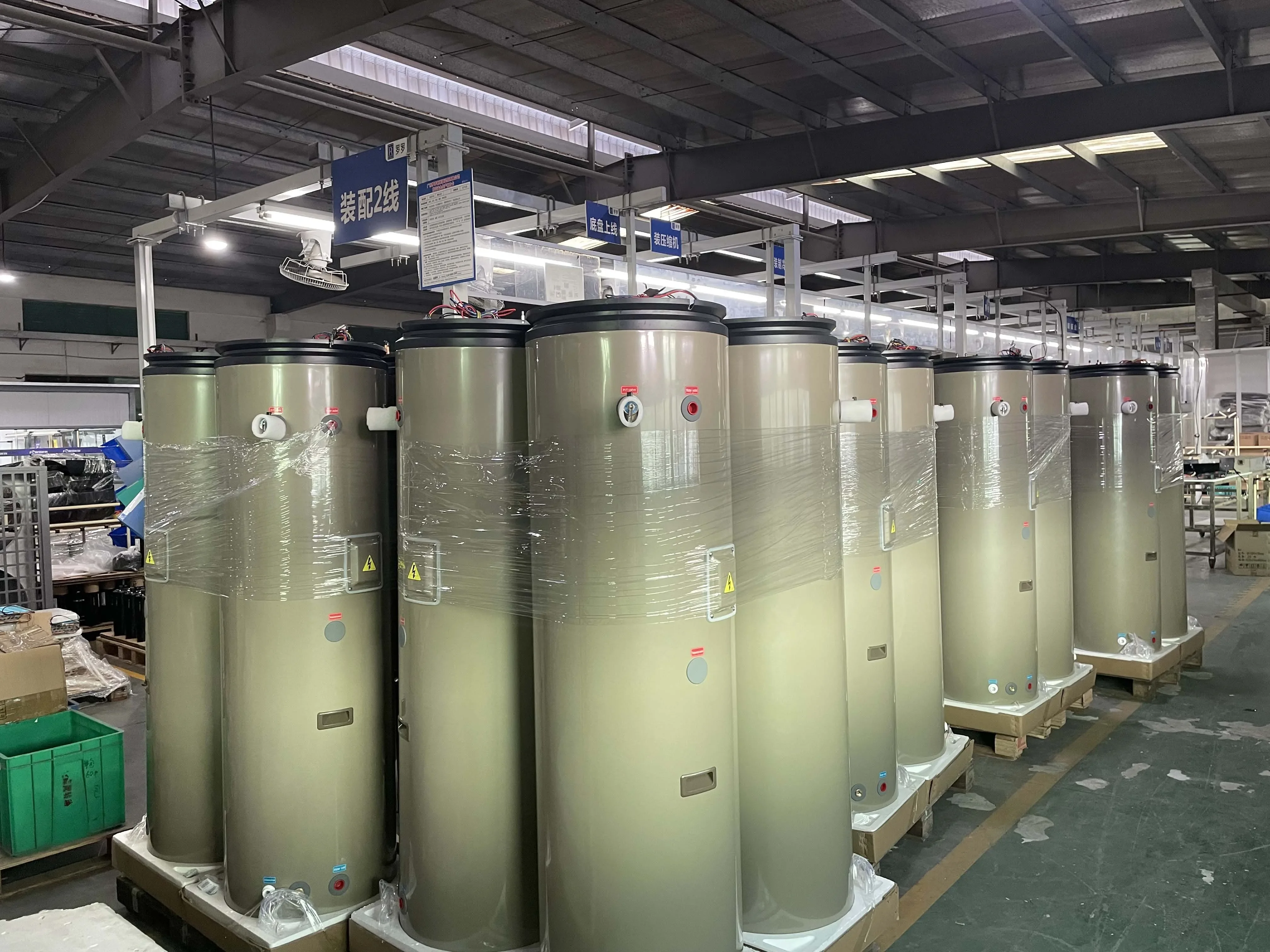

Company Profile
Guangdong Hongxing Ermei New Energy Technology Co., Ltd., headquartered in Zhuhai, Guangdong Province, is a national high-tech enterprise specializing in R & D, design, manufacturing and sales of new energy equipment such as air energy heat pump hot water, heat pump heating, heat pump drying units, etc. Through the rapid development in recent years, it has become the main manufacturer and supplier of heat pump water heater, heating and drying equipment in China.
At present, the company has more than 50 engineering and technical personnel, including space hot water design, air heating design, air cooling and heating design, air drying design, HVAC engineering, etc., 100 outstanding project leaders, more than 200 professional construction workers, and more than 30 after-sales maintenance technicians. It is a well-known advanced enterprise in China that has made great progress in the field of heat utilization in space energy.
The company always adheres to the service tenet of “quality first, customer first”, takes “mutual aid and win-win” as the company’s business philosophy, adheres to the service standard of “sincerity forever”, and provides customers with the most reasonable and energy-saving solutions.
Packing & Delivery

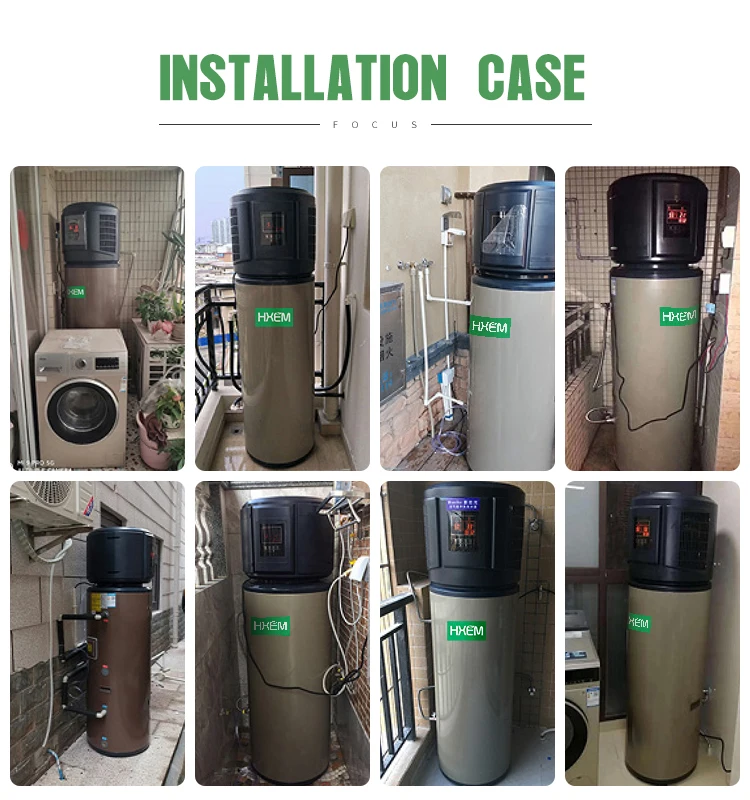

Installation Case
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ? A: We are R&D and manufacturer factory. With 400,000 sq meters modern factory in Guangzhou City . with OEM service provided, MOQ> 10 Units. Q: How long is your Heat Pump delivery time? A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity. Q: Do you also provide other kind of heat pump? A: SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc… Q: What is your terms of payment for heat pump ? A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
CONTACT US RIGHT NOW!
For the most suitable Heating Cooling, Hot Water Solution!
Name:Ms.Lucy Whatsapp:008615294608089 Email:export@hxemgroup.com
Hello friend, welcome to my store. We are the China headquarters factory. If you have any questions, please feel free to add us to our email: 79998621@qq.com Or contact me promptly on WhatsApp at+8618684521998 to solve your problem. If you have any product issues, please feel free to contact us and we will provide you with the lowest price!
