- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Other
- Origin: Mainland China
- After-sales services system: Free spare parts
- Quality assurance service: 2 years
- Applicable type: Hotel, Commercial, Household
- Power type: photovoltaic
- Mobile APP control: Not supported
- private model: Yes
- kind: Vacuum tube type
- Cycle type: indirect cycle
- Type of collector: in-line
- Installation method: freestanding
- Shell material: Galvanized steel/stainless steel
- country of origin: Zhejiang, China
- Model: ENSUN-FPS
- application: bath
- Product name: Solar water heater
- inner tank: Food Grade Stainless Steel SUS304-2B:
- outer tank: Stainless steel SUS201/galvanized steel
- Warranty: 2 years
- framework: Stainless Steel SUS201-1.2mm/Galvanized Steel-1.5mm
- insulation: High density polyurethane foam 50mm
- Tank capacity: 100L/150L/200L/250L/300L
- Popular market: European countries, South Africa
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:748.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:748.125px}#detail_decorate_root .magic-3{width:750px;border-collapse:collapse}#detail_decorate_root .magic-4{min-height:28px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{display:none}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:153px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:127px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:124px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:130px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:50px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:356px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:150px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:435px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:606px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:1000px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:1000px}#detail_decorate_root .magic-22{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-24{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{vertical-align:top}#detail_decorate_root .magic-26{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-27{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-28{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-29{font-size:20px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:997px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:997px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:392px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:392px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:684.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:684.375px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:497.8125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:497.8125px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:1047.1875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:1047.1875px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:824.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:824.0625px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:814.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:814.6875px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:744px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:744px}#detail_decorate_root .magic-46{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-47{font-size:16px}

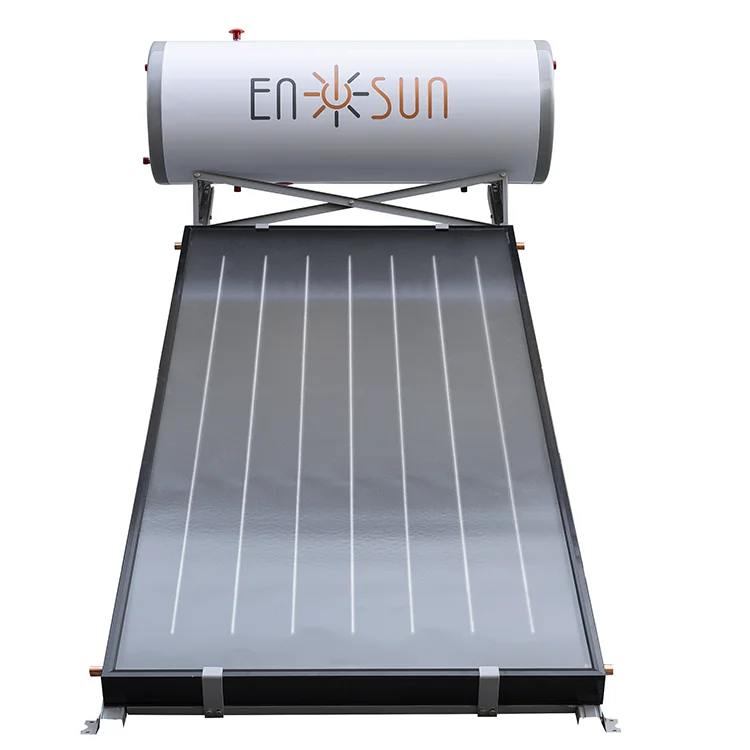

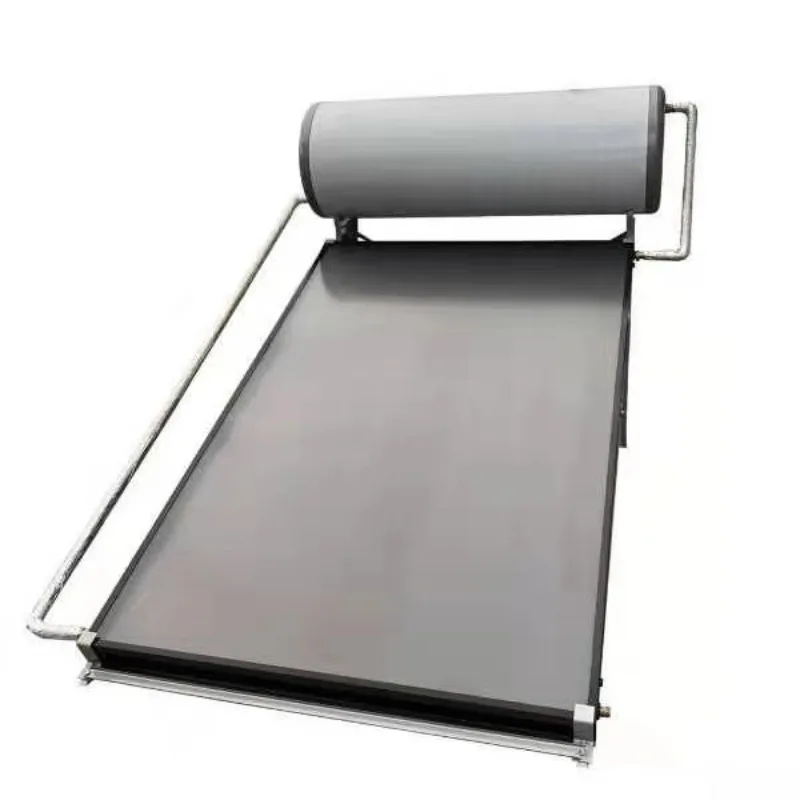

Flat Plate pressure solar water heater | ||||||||||||||||||
Water Tank | Material of Inner Tank | 1.2mm thickness SUS304-2B food grade type Diameter: 360mm | ||||||||||||||||
Material of outer Tank | 0.41mm thickness Stainless steel Diameter: 460mm | |||||||||||||||||
Thick insulation | Polyurethane foam(Bayer,Germany), 50mm thickness, density: 35kg/m3 | |||||||||||||||||
Heat Preservation Period | 72 Hours | |||||||||||||||||
Welding Method | Argon Arc Welding | |||||||||||||||||
Flat Plate | Model NO. | ENSUN-FPC | ||||||||||||||||
Dimension L*W*T (mm) | 2000*1000*100 | |||||||||||||||||
Cross Area (M2) | 2 | |||||||||||||||||
Efficiency Area (M2) | 1.82 | |||||||||||||||||
Gross Weight of Collector(KG) | 55±3 | |||||||||||||||||
Transparent Cover | ||||||||||||||||||
Number of Cover (pc) | 1 | |||||||||||||||||
Dimension L*W (mm) | 1975*975 | |||||||||||||||||
Cover Material | Float Glass/Low-iron Glass | |||||||||||||||||
Cover Thickness (mm) | 4 | |||||||||||||||||
Cover Transmission | 89%-91.4% | |||||||||||||||||
Absorber | ||||||||||||||||||
Dimension L*W (mm) | 1840*956 | |||||||||||||||||
Material | Red copper | |||||||||||||||||
Surface Treatment | Blue Titanium | |||||||||||||||||
Construction Type | Fin and Tube (Ultrasonic Welding) | |||||||||||||||||
Header Material | Copper TP2 | |||||||||||||||||
Header Tube Size (mm) | Φ25*1060*0.8 2 pcs | |||||||||||||||||
Riser Tube Material | Copper TP2 | |||||||||||||||||
Riser Tube Size | Φ10*1886*0.6 8 pcs | |||||||||||||||||
Fill Capacity | 1.8L Including Header Pipe | |||||||||||||||||
Thermal Insulation | ||||||||||||||||||
Insulation Material | 60K * 50mm Rock Wool | |||||||||||||||||
Insulation Thickness | Polyurethane (side) | |||||||||||||||||
Conductivity (W/mK) | 0.032 under 75 | |||||||||||||||||
Casing | ||||||||||||||||||
Frame Material | Aluminum Alloy | |||||||||||||||||
Frame Color | Silver Color | |||||||||||||||||
Back Plate | 0.5 mm Galvanized Steel | |||||||||||||||||
Max Operation Temperature | 200 bucks. | |||||||||||||||||
Maximum Pressure (Mpa) | 1.4 | |||||||||||||||||
Sealing Material | EPDM | |||||||||||||||||
Limitation of Operation | ||||||||||||||||||
Max. Working Temperature | 120. | |||||||||||||||||
Max. Working Pressure | 1.2 Mpa | |||||||||||||||||
Recommended Circulation Flow | Propylene Glycol&water mixture | |||||||||||||||||
Resistance to freezing | This is 40. | |||||||||||||||||

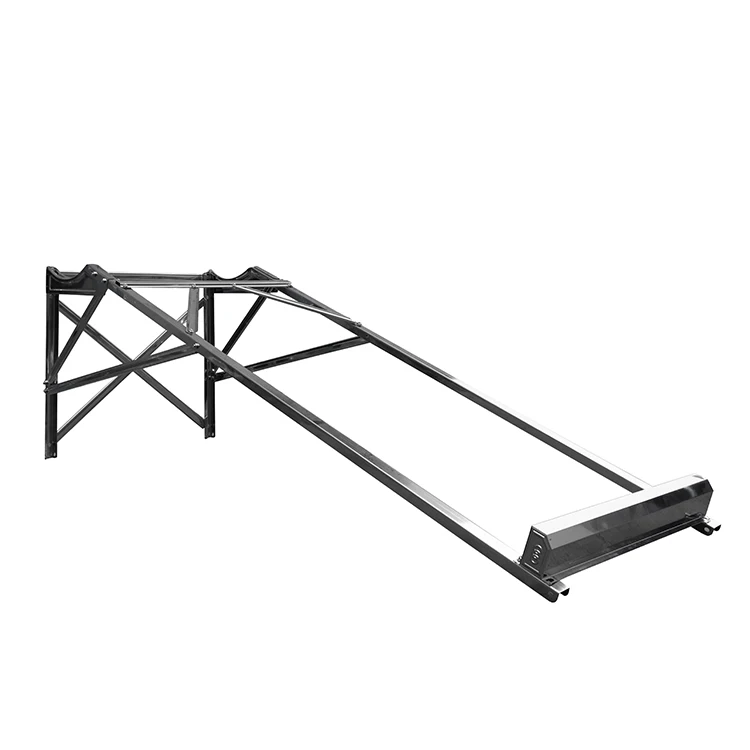

Frame | Material | Stainless Steel Thickness: 1.2mm | ||||||||||||||||
Angle | 38° | |||||||||||||||||
Bolts & Nuts | Stainless Steel | |||||||||||||||||
Others | Optional Parts | MG Rod (include), T/P Valve (include) | ||||||||||||||||
Hot water outlet: | 3/4″ external thread down position, material with SS304 | |||||||||||||||||
Cold water inlet: | 3/4″ upper side position, material with SS304 | |||||||||||||||||
Products Description

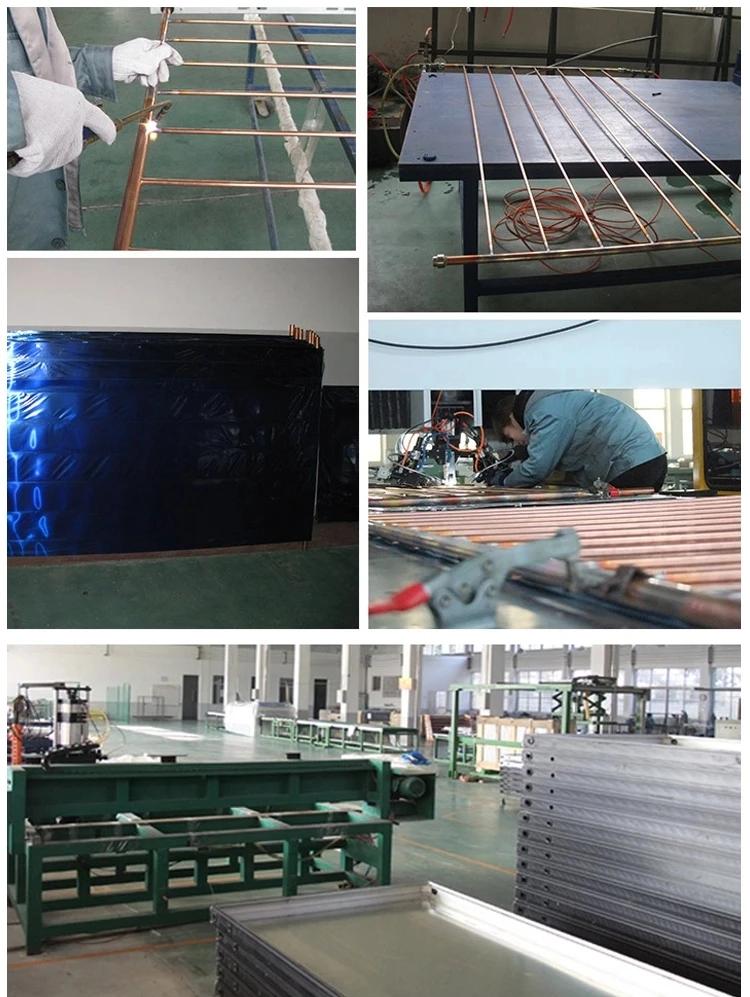

Flat Plate Solar Water Heater Production Line
