- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- After-sales services system: Free spare parts, returns and exchanges, overseas call center
- Quality assurance service: 2 years
- energy efficiency class: A +++ level
- Applicable type: Outdoor, Hotel, Garage, Commercial, Household
- Power type: Electricity
- Mobile APP control: Yes
- private model: Yes
- kind: air source heat pump
- Installation method: freestanding
- Thermal storage/instant: storage
- Shell material: stainless steel
- country of origin: GUA
- brand: Micoe/OEM
- Model: Heaing, cooling&hot water
- function: Hot water * space heating * space cooling
- Heating capacity: 6 ~ 28kw
- Working environment temperature: Negative 30C-45C
- refrigerant: R290
- compressor: DC inverter compressor
- heat exchanger: Danfoss plate heat exchanger
- water pump: Shimge inverter circulating pump
- expansion valve: EEV
- certification: CE ERP A +++
- OEM service: accept
- use: family
Friends, welcome to our store! If you need other models of this product, customized products or inquire about shipping costs, please contact me and I will send you the product link to purchase!
Please contact me for more details and discounts:
Sales Director: lunaï¼›
Whatsapp: +86 13677461310ï¼›
Email: 615749913@qq.comï¼›
(For models with heavier weight, please contact the sales manager for shipping details and discounts before payment)
If you have any questions, please feel free to contact us!
#detail_decorate_root .magic-0{border-bottom-style:solid; border-bottom-color:#53647a; font-family:Roboto; font-size:24px; color:#53647a; font-style:normal; border-bottom-width:2px; padding-top:8px; padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden; width:750px; height:529.6961325966851px; margin-top:0; margin-bottom:0; margin-left:0; margin-right:0}#detail_decorate_root .magic-3{margin-top:0; margin-left:0; width:750px; height:529.6961325966851px}#detail_decorate_root .magic-4{margin-bottom:10px; line-height:0}#detail_decorate_root .magic-5{margin-bottom:10px}#detail_decorate_root .magic-6{position:relative; width:100%}#detail_decorate_root .magic-7{overflow:hidden; width:247.33333333333334px; height:247.33333333333337px; margin-top:0; margin-bottom:0; margin-left:0; margin-right:0}#detail_decorate_root .magic-8{margin-top:0; margin-left:0; width:247px; height:247px}#detail_decorate_root .magic-9{overflow:hidden; width:247.33333333333334px; height:247.33333333333337px; margin-top:0; margin-bottom:0; margin-left:4px; margin-right:0}#detail_decorate_root .magic-10{margin-top:0; margin-left:0; width:329px; height:247px}#detail_decorate_root .magic-11{width:750px; border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px; padding:5px 10px; width:233px; min-height:18px; box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px; padding:5px 10px; width:468px; min-height:18px; box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px; padding:5px 10px; width:124px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-15{text-align:center}#detail_decorate_root .magic-16{font-size:14px}#detail_decorate_root .magic-17{min-height:28px; padding:5px 10px; width:33px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px; padding:5px 10px; width:60px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px; padding:5px 10px; width:70px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px; padding:5px 10px; width:68px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px; padding:5px 10px; width:74px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px; padding:5px 10px; width:239px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-24{font-size:13px}#detail_decorate_root .magic-25{display:none}#detail_decorate_root .magic-26{min-height:28px; padding:5px 10px; width:263px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px; padding:5px 10px; width:75px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px; padding:5px 10px; width:723px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px; padding:5px 10px; width:12px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px; padding:5px 10px; width:59.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px; padding:5px 10px; width:67.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px; padding:5px 10px; width:73.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px; padding:5px 10px; width:74.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px; padding:5px 10px; width:123.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-35{font-size:13px; font-family:”Times New Roman”}#detail_decorate_root .magic-36{font-family:”Times New Roman”}#detail_decorate_root .magic-37{min-height:28px; padding:5px 10px; width:524px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px; padding:5px 10px; width:150px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px; padding:5px 10px; width:351px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px; padding:5px 10px; width:523px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px; padding:5px 10px; width:69.6667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-42{min-height:28px; padding:5px 10px; width:67.6667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-43{min-height:28px; padding:5px 10px; width:73.6667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-44{min-height:28px; padding:5px 10px; width:69px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px; padding:5px 10px; width:67px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px; padding:5px 10px; width:103px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px; padding:5px 10px; width:53px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px; padding:5px 10px; width:88px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px; padding:5px 10px; width:89px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px; padding:5px 10px; width:87px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-51{font-size:13px; font-family:榛戜綋}#detail_decorate_root .magic-52{min-height:28px;} padding:5px 10px; width:87.6667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-53{min-height:28px; padding:5px 10px; width:68.667px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-54{min-height:28px; padding:5px 10px; width:177px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-55{font-size:12px}#detail_decorate_root .magic-56{min-height:28px; padding:5px 10px; width:88.3333px; min-height:28px; box-sizing:content-box}#detail_decorate_root .magic-57{margin-bottom:10px; overflow:hidden}#detail_decorate_root .magic-58{overflow:hidden; width:750px; height:750px; margin-top:0; margin-bottom:0; margin-left:0; margin-right:0}#detail_decorate_root .magic-59{margin-top:-3px; margin-left:0; width:750px; height:424.7720364741641px}#detail_decorate_root .magic-60{overflow:hidden; width:750px; height:400px; margin-top:0; margin-bottom:0; margin-left:0; margin-right:0}#detail_decorate_root .magic-61{margin-top:0; margin-left:0; width:750px; height:400px}#detail_decorate_root .magic-62{vertical-align:top}#detail_decorate_root .magic-63{vertical-align:top; display:block; padding-right:4px; box-sizing:border-box; padding-left:4px}#detail_decorate_root .magic-64{vertical-align:top; padding-bottom:4px; box-sizing:border-box; padding-top:4px}#detail_decorate_root .magic-65{padding:0; margin:0; white-space:pre-wrap; font-size:14px}#detail_decorate_root .magic-66{overflow:hidden; width:373px; height:233.26934984520122px; margin-top:0; margin-bottom:0; margin-left:0; margin-right:0}#detail_decorate_root .magic-67{margin-top:0; margin-left:0; width:373px; height:233.26934984520122px}#detail_decorate_root .magic-68{overflow:hidden; width:373px; height:233.26934984520122px; margin-top:0; margin-bottom:0; margin-left:4px; margin-right:0}#detail_decorate_root .magic-69{margin-top:0; margin-left:0; width:377.3333333333333px; height:283px}#detail_decorate_root .magic-70{overflow:hidden; width:750px; height:400px; margin-top:4px; margin-bottom:0; margin-left:0; margin-right:0}
Product Description
Specification
item | value |
After-sales Service Provided | Free spare parts |
Warranty | 2 years |
Application | Outdoor, Hotel, Garage, Commercial, Household |
Power Source | Electric |
App-Controlled | Yes |
Private Mold | Yes |
Type | Air Source Heat Pump |
Installation | Freestanding |
Storage / Tankless | Storage |
Housing Material | Stainless Steel |
Use | Household |
Place of Origin | GUA |
Brand Name | Micoe/OEM |
Model Number | Heaing, cooling&hot water |
Function | Hot Water *Space Heating*Space Cooling |
Heating capacity | 6~28kw |
Working Ambient Temperature | Minus 30C-45C |
Refrigerant | R32/R290 |
Compressor | Panasonic DC Inverter Comp |
Heat exchanger | Danfoss Plate Exchanger |
Water pump | Grundfos Inverter Circulation Pump |
Expansion Valve | EEV |
Certification | CE ERP A+++ |
OEM Service | Accept |

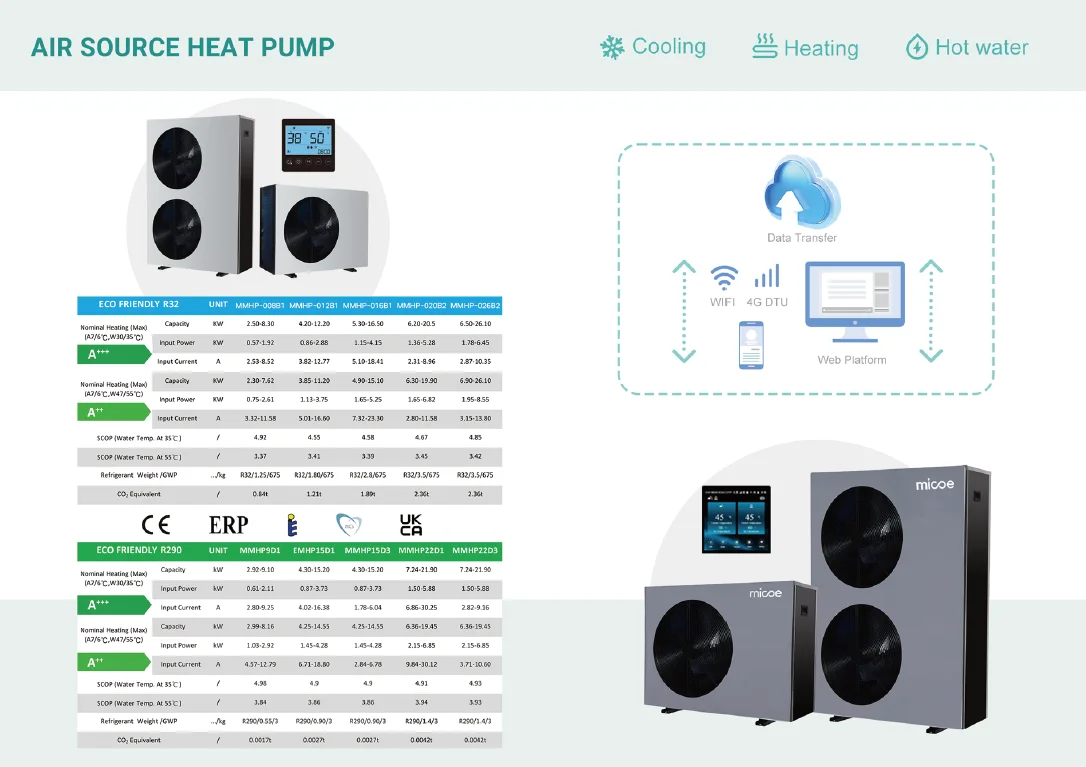

Product Paramenters
Model 32 degrees centigrade. | R32-6kw | R32-10KW | R32-15KW | R32-15KW-S | R32-18KW-S | R32-24KW-S | ||||||||
Power Supply | 220~240V/1/50Hz | 380V/3/50Hz | ||||||||||||
Heating (A7/6, W30/35) | ||||||||||||||
Heating Capacity | kW | 2.50~8.3 | 4.20~12.2 | 5.30~16.50 | 5.30~16.50 | 6.20~20.5 | 6.50~26.1 | |||||||
Power Input | kW | 0.57~1.92 | 0.86~2.88 | 1.15~4.15 | 1.15~4.15 | 1.36~5.28 | 1.78~6.45 | |||||||
COP | W/W | 4.68 | 4.55 | 4.60 | 4.60 | 4.58 | 4.55 | |||||||
Heating (A7/6, W47/55) | ||||||||||||||
Heating Capacity | kW | 2.30~7.62 | 3.85~11.2 | 4.90~15.10 | 4.90~15.10 | 6.30~19.90 | 6.9~26.1 | |||||||
Power Input | kW | 0.75~2.61 | 1.13~3.75 | 1.65~5.25 | 1.65~5.25 | 1.65~6.82 | 1.95~8.55 | |||||||
COP | W/W | 3.13 | 3.06 | 3.15 | 3.15 | 3.10 | 3.05 | |||||||
Cooling (A35/24, W12/7) | ||||||||||||||
Cooling Capacity | kW | 1.80~7.10 | 2.6~10.3 | 4.50~13.50 | 4.50~13.50 | 5.50~17.50 | 5.2~21.3 | |||||||
Power Input | kW | 0.61~2.43 | 0.91~3.65 | 1.45~4.85 | 1.45~4.85 | 1.65~6.25 | 1.95~8.20 | |||||||
EER | W/W | 3.16 | 3.14 | 3.19 | 3.19 | 3.15 | 3.10 | |||||||
ERP Level 35 | / | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |||||||
ERP Level 55 | / | A++ | A++ | A++ | A++ | A++ | A++ | |||||||
Rated water flow | m3/h | 1.10 | 1.75 | 2.52 | 2.52 | 3.20 | 4.12 | |||||||
Rated input power | kW | 2.71 | 3.83 | 6.20 | 6.20 | 7.50 | 10.00 | |||||||
Rated input current | A | 12.00 | 17.00 | 27.51 | 10.50 | 13.00 | 17.00 | |||||||
Compressor | / | Panasonic/Rotary | ||||||||||||
Water Pump | / | Grundfos | SHIMGE | |||||||||||

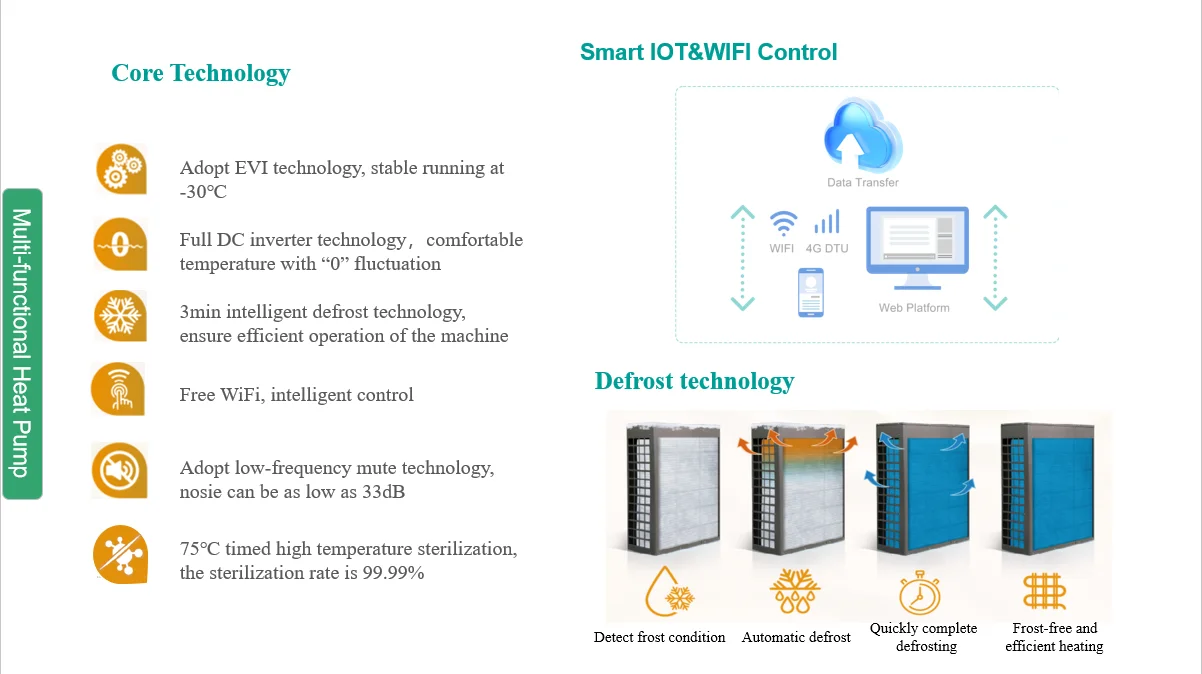

Defrost | / | Auto defrost with 4 way valve | ||||||||||||
Waterproof grade | / | IPX4 | ||||||||||||
Noise pressure | dBA | 50.00 | 52.00 | 55.00 | 55.00 | 56.00 | 58.00 | |||||||
Max water outlet temperature | °C | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |||||||
Diameter of water connection | / | DN 25 (1″) | DN 25 (1″) | DN32(1-1/4”) | DN32(1-1/4”) | DN40(1-1/2″) | DN40(1-1/2″) | |||||||

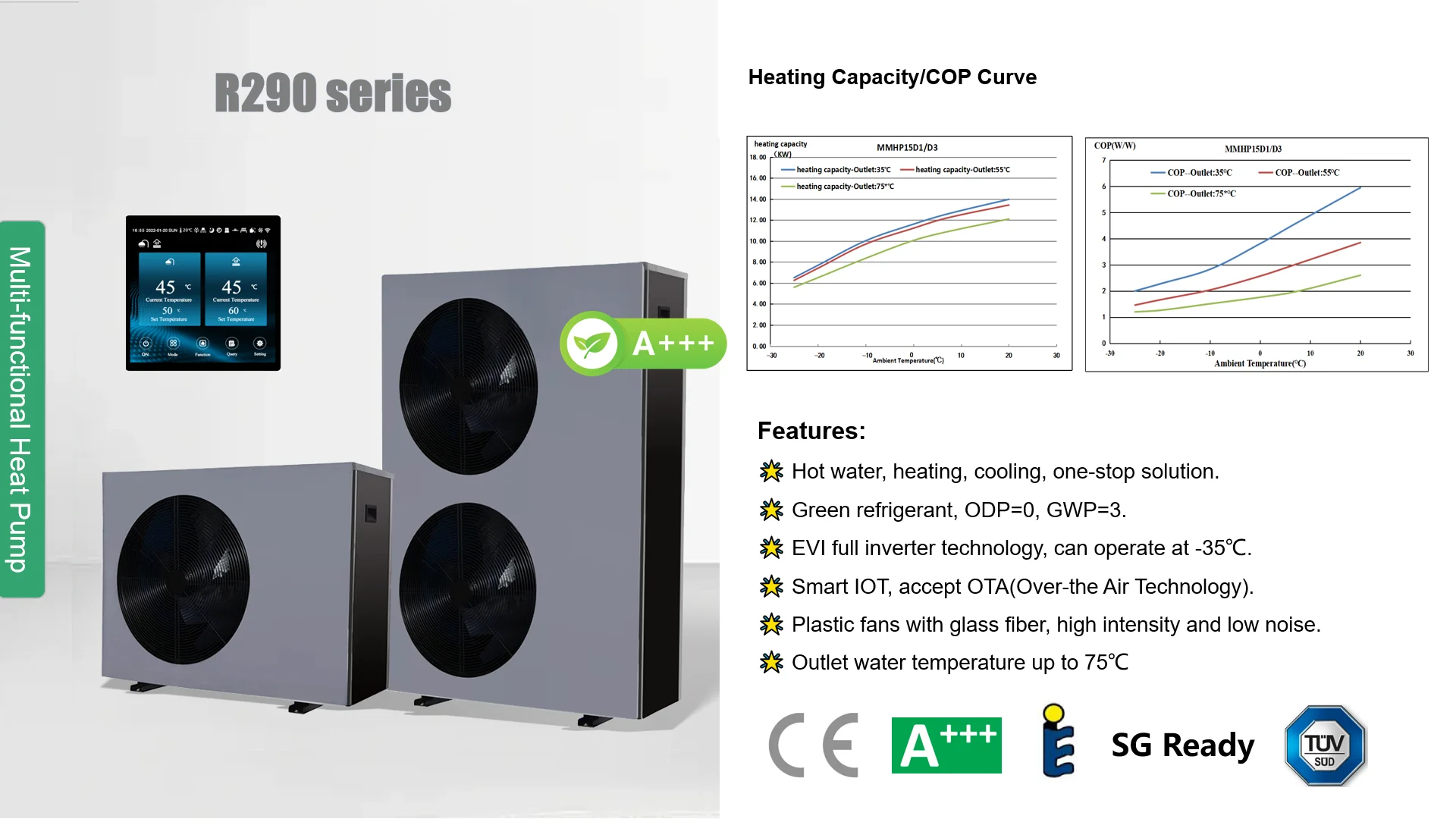

Model The pressure is 290. | unit | R290-7KW | R290-12KW | R290-12KW-S | R290-18KW | R290-18KW-S | ||||||
Power Supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | ||||||
Nominal Heating (Max) (A7/6, W30/35) | ||||||||||||
Heating Capacity | kW | 3.00~9.05 | 4.30-15.20 | 4.30-15.20 | 7.24-21.9 | 7.24-21.9 | ||||||
Power Input | kW | 0.65~2.29 | 1.08~3.9 | 1.08~3.9 | 1.5~6.8 | 1.5~6.8 | ||||||
COP | W/W | 3.95~5.15 | 3.85~5.10 | 3.85~5.10 | 3.24~5.05 | 3.24~5.05 | ||||||
Nominal Heating (Max) (A7/6, W47/55) | ||||||||||||
Heating Capacity | kW | 2.85~8.50 | 5.0~13 | 5.0~13 | 7.0~18.9 | 7.0~18.9 | ||||||
Power Input | kW | 0.95~2.85 | 1.75~4.96 | 1.75~4.96 | 2.15~7.35 | 2.15~7.35 | ||||||
COP | W/W | 2.68~3.35 | 2.62~3.25 | 2.62~3.25 | 2.56~3.18 | 2.56~3.18 | ||||||
Nominal Cooling (Max) (A35/24, W12/7) | ||||||||||||
Cooling Capacity | kW | 1.25~5.8 | 3.65~10.2 | 3.65~10.2 | 4.5~17.7 | 4.5~17.7 | ||||||
Power Input | kW | 0.65~2.35 | 1.12~4.16 | 1.12~4.16 | 1.80~7.30 | 1.80~7.30 | ||||||
EER | W/W | 2.47~3.35 | 2.45~3.30 | 2.45~3.30 | 2.42~3.27 | 2.42~3.27 | ||||||
ERP Level 35 | A+++ | A+++ | A+++ | A+++ | A+++ | |||||||
ERP Level 55 | A++ | A++ | A++ | A++ | A++ | |||||||
SCOP, this is 35. | 4.83 | 4.85 | 4.85 | 4.90 | 4.90 | |||||||
SCOP. 55. | 3.86 | 3.84 | 3.84 | 3.85 | 3.85 | |||||||
MAX. input power | kW | 3.00 | 5.50 | 5.50 | 7.50 | 9.00 | ||||||
MAX. input current | A | 13.50 | 24.50 | 10.50 | 35.00 | 16.00 | ||||||
Rated water flow | m3/h | 1.00 | 1.80 | 1.80 | 3.00 | 3.00 | ||||||
Max outlet water temperature | °C | 75 | 75 | 75 | 75 | 75 | ||||||
Water piping connections | / | DN 25 (1″) | DN 25 (1″) | DN 25 (1″) | DN 32 (1-1/4″) | DN 32 (1-1/4″) | ||||||
Pressure drop at rating water flow | kPa | 20 | 25 | 25 | 60 | 60 | ||||||
Operating temp range | °C | -25~45 | ||||||||||
Company Profile
Jiangsu Micoe Solar Energy Co., Ltd.
As an international company, is specialized in researching and providing solar thermal systems for families, factories and industries around the world. Founded in 2000, Micoe has developed into the most professional company in China solar thermal industry with main business of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP.
Today, with the climate and environment quality deterioration and the fuel cost increasing due to the fewer and fewer regular energy, the world calls for a new, clean and sustainable energy. The application of Micoe system not only helps reduce the overall electricity and fuel expenditure but also gives you the opportunity to participate in activities of the environmental protection.
As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot water and space heating solutions. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP in the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the sustainable developing strategy of micoe.
Founded in 2000, MICOE has become a leading brand in the solar thermal industry with main business of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP. As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot water and space heating. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and AIR SOURCE HEAT PUMP in the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the sustainable developing strategy of MICOE.
R&D Capabilities

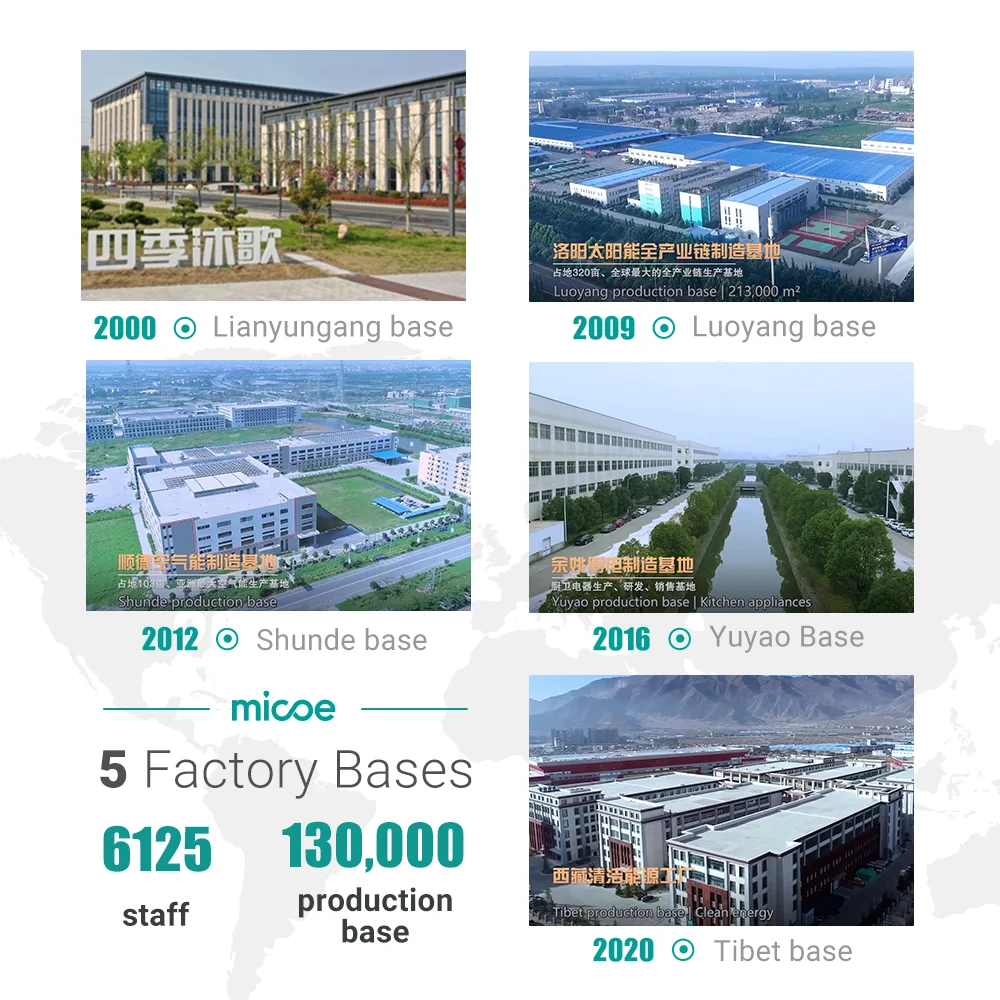

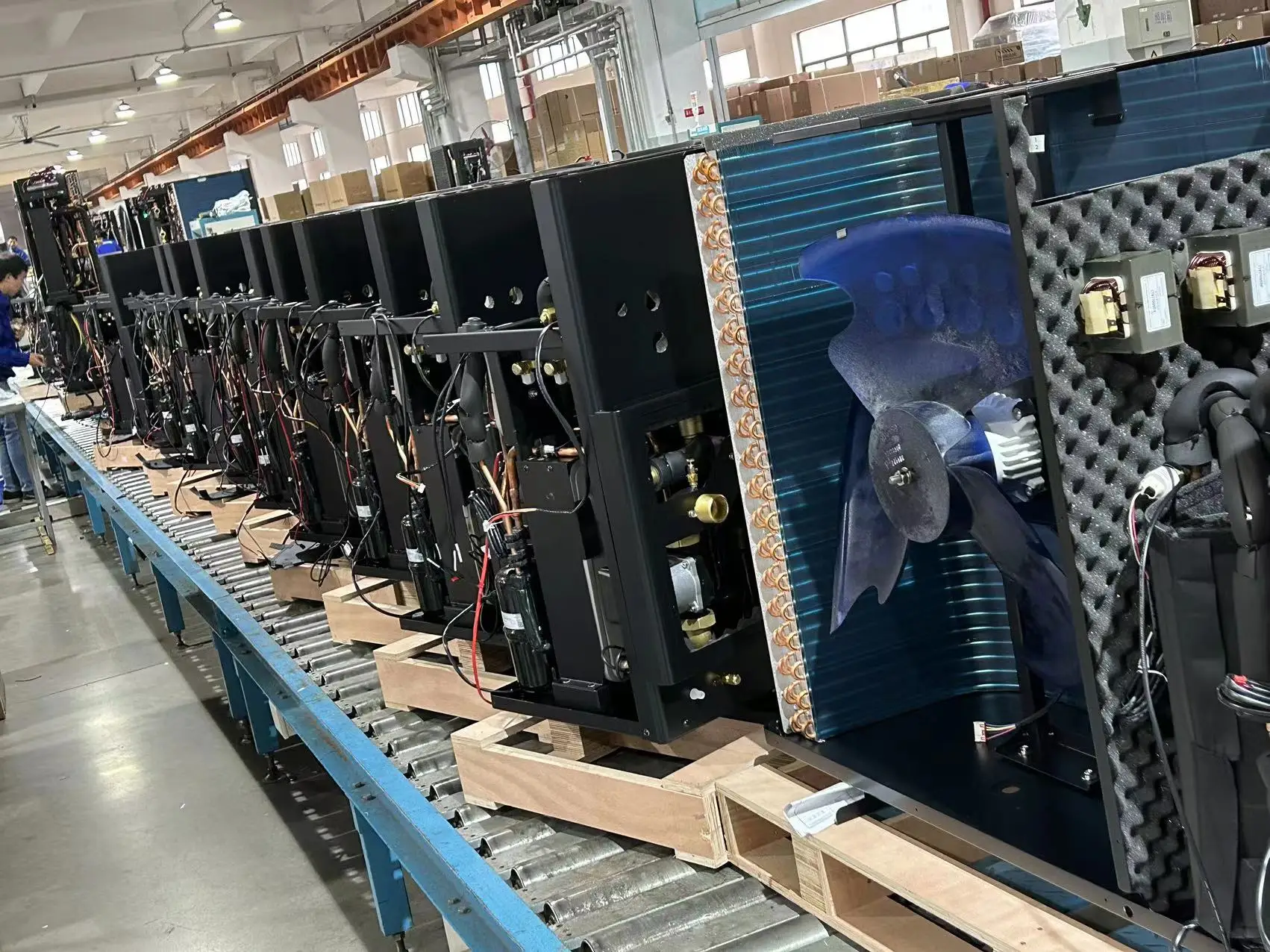

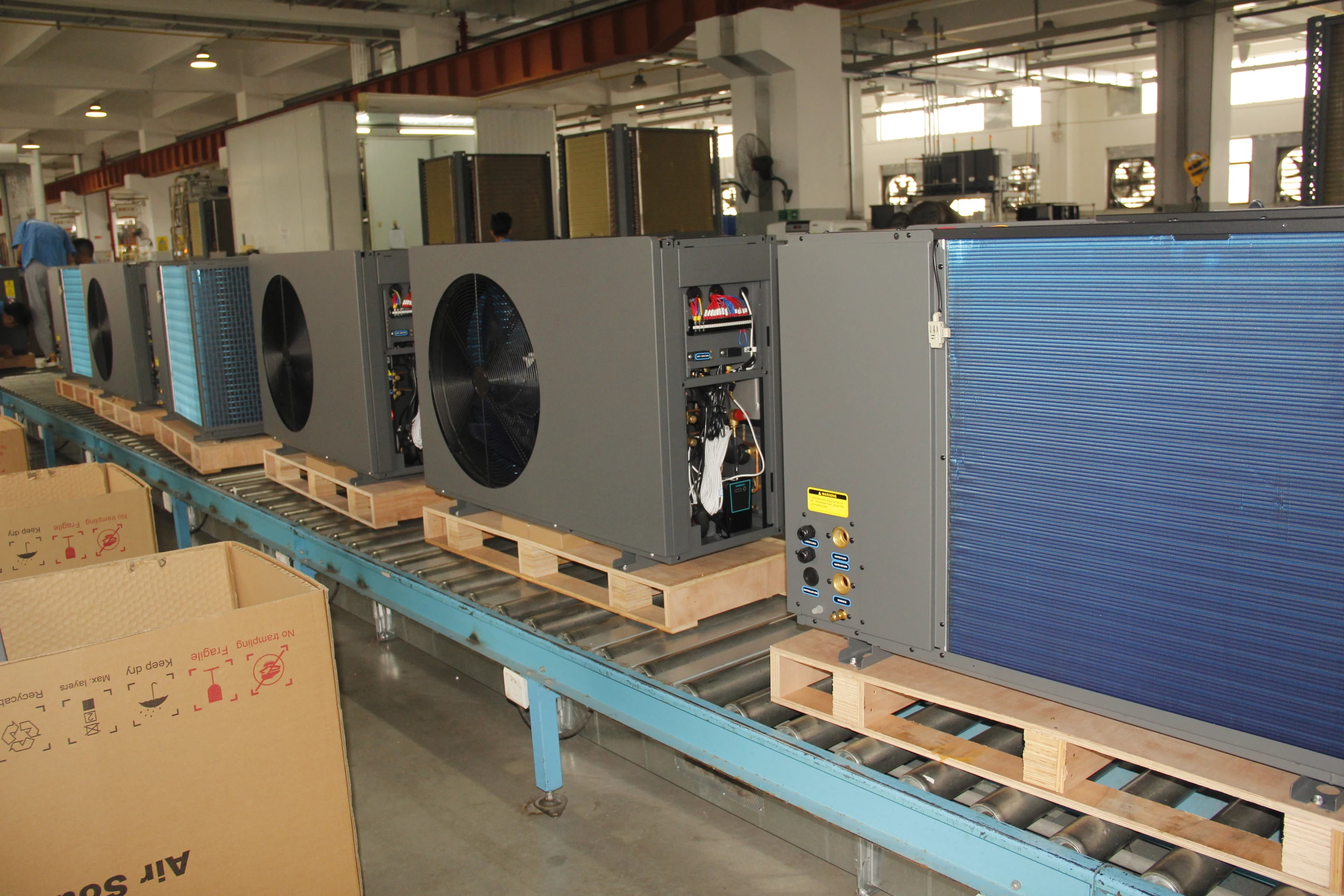

Micoe production base is over 100,000 with a production capacity of 80,000 sets of heat pumps per month, and we have invested USD2 millions to build the most advanced testing labs which can test up to 300KW machines under extremely cold climates – 45.
Micoe has the one and only solar simulator in China, which is only 3 set in the whole world.
Micoe has the one and only solar simulator in China, which is only 3 set in the whole world.
Certifications
Micoe has multiple certifications of our products such as CE, EMC, ERP, KEYMARK, SG READY, RoHos and so on. Our customers can have it conveniently to save money and time.
Please feel free to contact us for more information about certifications.
Please feel free to contact us for more information about certifications.

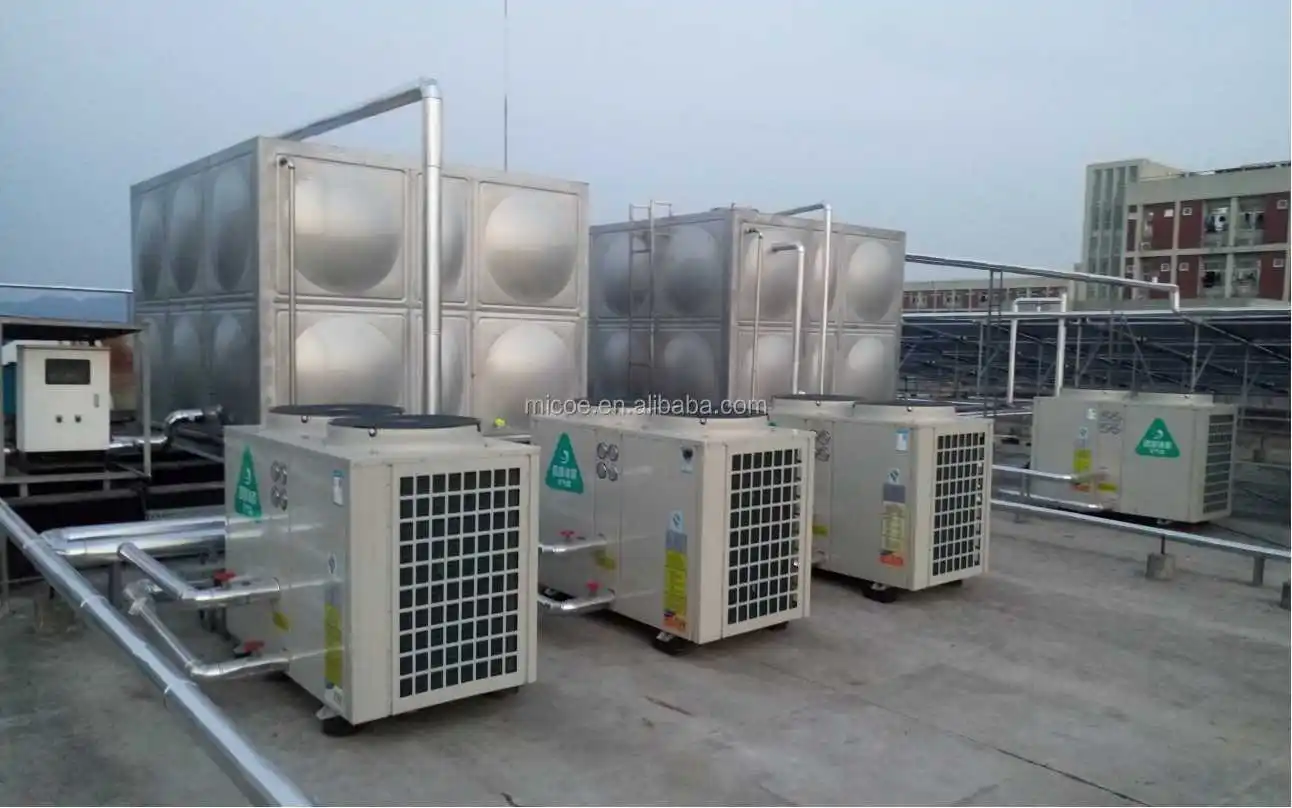

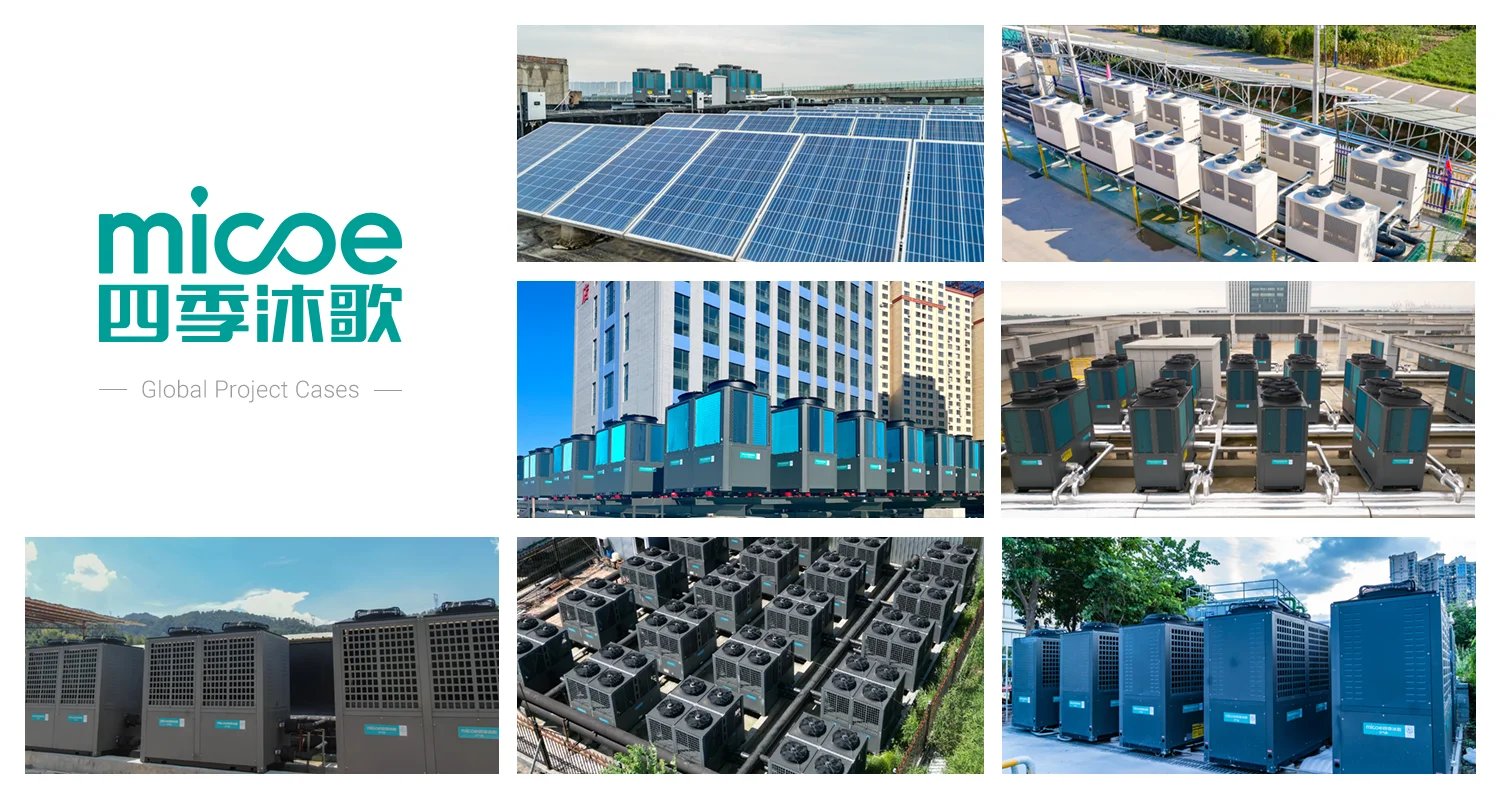

Successful Projects
By the end of 2022, Micoe and parent firm had installed 89.34 Million square meters of solar collectors for global customers and sold 907,000 air source heat pumps of various specifications, and has been ranking the Top 1 global brand in solar water heating industry and TOP 5 in domestic air source heat pump industry for years in a row.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2006,sell to Eastern Europe(12.55%),Southern Europe(10.74%),South America(10.69%),Eastern Asia(10.25%),Africa(10.17%),South Asia(9.25%),Central America(8.07%),Oceania(5.79%),North America(5.31%),Mid East(3.57%),Northern Europe(3.45%),Western Europe(3.45%),Southeast Asia(3.45%),Domestic Market(3.26%). There are total about 501-1000 people in our office.
We are based in Jiangsu, China, start from 2006,sell to Eastern Europe(12.55%),Southern Europe(10.74%),South America(10.69%),Eastern Asia(10.25%),Africa(10.17%),South Asia(9.25%),Central America(8.07%),Oceania(5.79%),North America(5.31%),Mid East(3.57%),Northern Europe(3.45%),Western Europe(3.45%),Southeast Asia(3.45%),Domestic Market(3.26%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Water Heater,Heat Pump,Water Purifier,pool heat pump,water heater
4. why should you buy from us not from other suppliers?
We have seven production lines and five national labs in China. We can guarantee quality on the basis of timely delivery
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Korean
6. how to contact us?
E-mail: samcao@micoe.com
Tel/whatsapp: +86-15150959951
E-mail: samcao@micoe.com
Tel/whatsapp: +86-15150959951
