- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Origin: Mainland China
- Free installation service: Yes
- Place of Origin: Zhejiang, China
- Brand Name: eZsolar

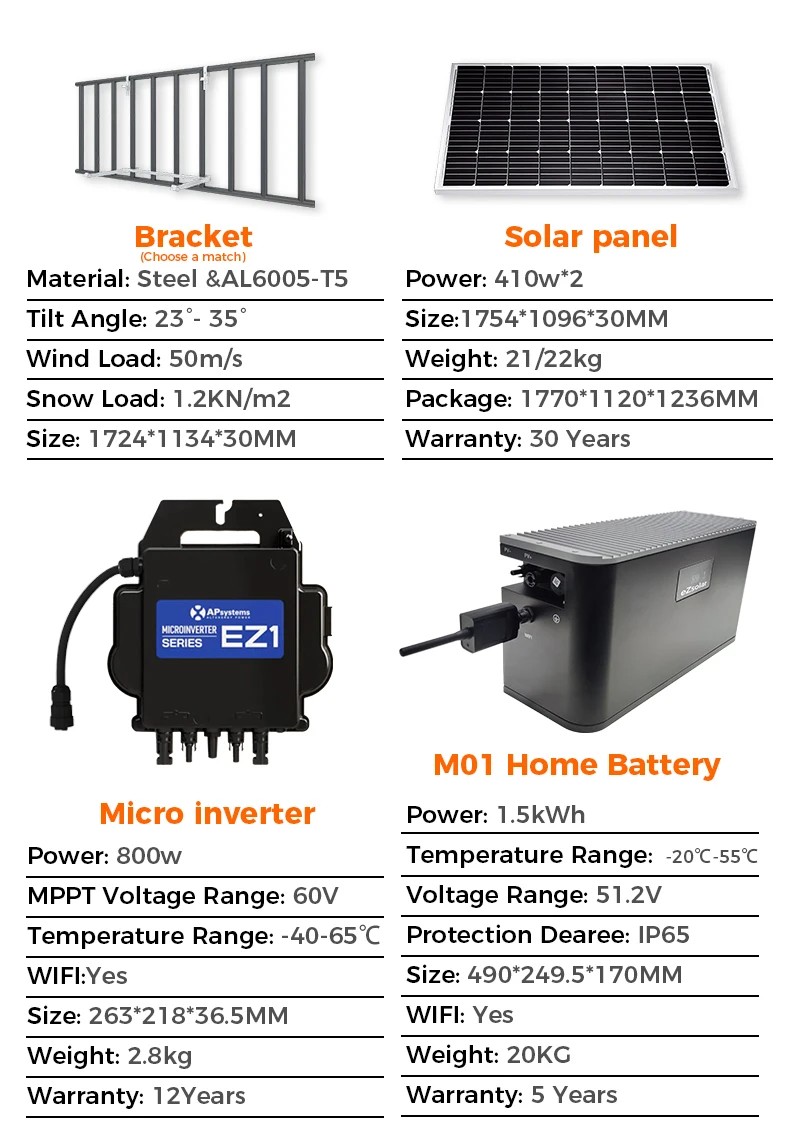

- Model Number: 800W Balcony energy storage system
- Application: Home
- Solar Panel Type: Monocrystalline Silicon
- Battery Type: Lithium Ion
- Controller Type: MPPT
- Mounting Type: Balcony Mounting
- Load Power (W): 800W
- Output Voltage (V): 230V
- Output Frequency: 50Hz
- Pre-sales project design: N
- Installation Site: Balcony
- Wifi: Yes
- Micro inverter: 800W
- Solar panels: 410W*2
- LiFePO4 batery: 1.5kWh
- Solar panel type: Monocrystalline
- Applicable Solar Size: 1724*1134*30mm
- Micro inverter weight: 2.8kg
- Battery weight: 20kg
- Solar panel weight: 21kg
- Warranty: 12YEARS
- Certificate: CE/IEC/VDE/TUV/UN38.3
Hello, friend, welcome to our store, I am Ceci from China, if you need other models of this product, please contact me, I will send the product link for you to buy! For more details and discounts, please contact me: Whatsapp (+86 18817769642) Email: 836661924@qq.com,(For oversized or overweight machines, please contact the sales manager for shipping and payment options).
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:824.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:824.0625px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-5{overflow:hidden;width:750px;height:1063.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:750px;height:1063.125px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:358.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:358.125px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:725px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{font-size:20px}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:80px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:90px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:186px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:42px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:51px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:173px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:191px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:112px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:190px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:113px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:273.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:273.75px}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:293px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:195px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:197px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:198px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:412px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{text-align:center}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:413px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{text-align:left}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:229.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:229.6875px}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:298px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:404px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:296.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:296.25px}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:723px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:154px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:147px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:212px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:149px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:211px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:515.625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:515.625px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:483.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:483.75px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:389.1509433962264px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:389.1509433962264px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:1500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:1500px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-60{vertical-align:top}#detail_decorate_root .magic-61{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-62{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-63{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-64{font-size:22px}#detail_decorate_root .magic-65{font-size:16px}
Solar Panel | ||||||||||
Rated Power in Watts-Pmax(Wp) | 410 | 415 | Maximum Power-Pmax(Wp) | 310.7 | 314.5 | |||||
Open Circuit Voltage-Voc(V) | 41.9 | 42.2 | Open Circuit Voltage-Voc(V) | 38.97 | 39.25 | |||||
Short Circuit Current-lsc(A) | 12.47 | 12.53 | Short Circuit Current-lsc(A) | 10.22 | 10.27 | |||||
Maximum Power Voltage-Vmpp(V) | 34.89 | 35.14 | Maximum Power Voltage-Vmpp(V) | 32.38 | 32.61 | |||||
Maximum Power Current-lmpp(A) | 11.76 | 11.82 | Maximum Power Current-lmpp(A) | 9.6 | 9.65 | |||||
Module Efficiency(%) | 21.3 | 21.6 | ||||||||
Cell configuration | 120 cells(5*12+5*12) | Nominal Module Operating Temperature (NMOT) | 44°C+2°C | |||||||
Dimensions | 1754*1096*30mm | Temperature Coefficient of Voc | -0.25%/鈩� | |||||||
Cables | 4.0mm2(12AWG),Positive(+)350mm, Negative(-)230mm (Connector Included) | Temperature Coefficient of Isc | 0.04%/°C | |||||||
Superstrate | • High Transmission, Low Iron, Tempered ARC Glass | Temperature Coefficient of Pmax | -0.34%/°C | |||||||
Substrate | • White Back-sheet | Operational Temperature | -40°C~+85°C | |||||||
Connector | Twinsel PV-SY02, IP68 | Maximum System Voltage | 1500VDC | |||||||
J-Box | •Potted, IP68, 1500VDC, 3 Schottky bypass diodes | Maximum System Voltage | 20A | |||||||
Weight | 22kg | Limiting Reverse Current | 20A | |||||||
Frame | High strength alloy steel | |||||||||
Micro solar inverter | ||||
Input Data (DC) | ||||
Recommended PV Module Power (STC) Range | 300Wp-730Wp+ | |||
Peak Power Tracking Voltage | 28V-45V | |||
Operating Voltage Range | 16V-60V | |||
Maximum Input Voltage | 60V | |||
Maximum Input Current | 20A x 2 | |||
Isc PV | 25A x 2 | |||
Output Data (AC) | ||||
Maximum Continuous Output Power | 600VA(3)/799VA | |||
Nominal Output Voltage/Range(1) | 230V/184V-253V | |||
Nominal Output Current | 2.6A(3)/3.5A | |||
Nominal Output Frequency/ Range(1) | 50Hz/48Hz-51Hz | |||
Default Power Factor | 0.99 | |||
Efficiency | ||||
Peak Efficiency | 97.3% | |||
Nominal MPPT Efficiency | 99.5% | |||
Night Power Consumption | 20mW | |||
Mechanical Dat | ||||
Operating Ambient Temperature Range(2) | – 40 °C to + 65 °C | |||
Storage Temperature Range | – 40 °C to + 85 °C | |||
Dimensions (W x H x D) | 263mm x 218mm x 36.5mm | |||
Weight | 2.8kg | |||
DC Connector Type | Stäubli MC-4 PV-ADBP4-S2&ADSP4-S2 | |||
Cooling | Natural Convection – No Fans | |||
Enclosure Environmental Rating | IP67 | |||
Power Cord (Optional) | ||||
Wire Size | 1.5mm² | |||
Cable Length | 5M as default | |||
Plug Type | Schuko | |||
Features | ||||
Communication | Built-in Wi-Fi and Bluetooth | |||
Maximum Units Can Be Connected(4) | 2 | |||
Isolation Design | High Frequency Transformers, Galvanically Isolated | |||
Energy Management | AP EasyPower APP | |||
Warranty | 12 Years Standard | |||
Compliances | ||||
Safety, EMC & Grid Compliances | EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1; DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21; UNE 217002; NTS; RD647; VDE-AR-N 4105 | |||
LiFePO4 Battery | |
Battery Type | Li-ion(LFP) |
Nominal Voltage | 51.2V |
Nominal Capacity | 30Ah |
Total Energy | 1.536kWh |
Operating Voltage | 48-57.6V |
DC Input Voltage range[Udc min-Udc max] | 10-90V |
MPPT Voltage | 40-90V |
Standard Charge/Discharge Current | 15/15A |
Input Current/Power[PV-BAT] | ≤20A/50W-1000W |
Output Current/Power[BAT-Inverter] | ≤30A/0W-1200W |
Cycle Life*1 | 6000,25°C |
Depth of Discharge*2 | 100% |
Product Warranty | 3 years |
Perfomance Warranty | 5 years |
Opreating Temperature | -20~55°C |
Ingress Protection | IP65 |
Humidity | 5% to 90%[no condensing] |
Altitude | Below 2000m |
SOC | LED*4 |
State | LED*1 |
Wifi | LED*1 |
Certification & Safety standard | TUV/CE/IEC/UN38.3 |
Unit Dimesions[W*H*D] | 490*249.5*170mm |
Unit Weight | 20kg |
Bracket | ||||||
Installation Site | Balcony | Panel Layout | Horizontal | |||
Balcony type | Circular Metal Guard | Design Standard | European standard | |||
Tilt Angle | 23°-35° | Bracket Material | Steel &AL6005-T5 | |||
Wind Load | 50m/s | Fastener Material | SUS304 | |||
Snow Load | 1.2KN/m2 | Color | Silver or Black | |||
Applicable Solar Module | Framed | Warranty | 10-Year Warranty | |||
Applicable Solar Size | 1724*1134*30mm | |||||
