EZsolar Balcony Solar System Tuv Wifi Controller Used For Solar Energy Systems On Apartment Balconies With Battery

Name: EZsolar Balcony Solar System Tuv Wifi Controller Used For Solar Energy Systems On Apartment Balconies With Battery
SKU: 1005009558755927
Price: 1148.03 EUR
Availability: InStock

1148,03 €

34 people are viewing this product right now

🔥 11 items sold in last 3 hours

Add to compare

SKU: 1005009558755927

Category: Solar Batteries

Tag: Battery

Description
Reviews (0)

Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Free installation service: Yes
Place of Origin: Zhejiang, China
Brand Name: eZsolar
Model Number: 800W Balcony energy storage system
Application: Home
Solar Panel Type: Monocrystalline Silicon
Battery Type: Lithium Ion
Controller Type: MPPT
Mounting Type: Balcony Mounting
Load Power (W): 800W
Output Voltage (V): 230V
Output Frequency: 50Hz
Pre-sales project design: N
Installation Site: Balcony
Wifi: Yes
Micro inverter: 800W
Solar panels: 410W*2
LiFePO4 batery: 1.5kWh
Solar panel type: Monocrystalline
Applicable Solar Size: 1724*1134*30mm
Micro inverter weight: 2.8kg
Battery weight: 20kg
Solar panel weight: 21kg
Warranty: 12YEARS
Certificate: CE/IEC/VDE/TUV/UN38.3

Hello, friend, welcome to our store, I am Ceci from China, if you need other models of this product, please contact me, I will send the product link for you to buy! For more details and discounts, please contact me: Whatsapp (+86 18817769642) Email: 836661924@qq.com,(For oversized or overweight machines, please contact the sales manager for shipping and payment options).

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:824.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:824.0625px}#detail_decorate_root .magic-3{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-5{overflow:hidden;width:750px;height:1063.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:750px;height:1063.125px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:750px;height:375px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:358.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:358.125px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:725px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{font-size:20px}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:80px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:90px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:186px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:42px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:51px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:173px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:191px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:112px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:190px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:113px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:273.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:273.75px}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:293px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:195px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:197px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:198px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:412px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{text-align:center}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:413px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{text-align:left}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:229.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:229.6875px}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:298px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:404px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:296.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:296.25px}#detail_decorate_root .magic-43{min-height:28px;padding:5px 10px;width:723px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:154px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:147px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:212px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{min-height:28px;padding:5px 10px;width:149px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:211px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:515.625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:515.625px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:483.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:483.75px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:389.1509433962264px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:389.1509433962264px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:1500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:1500px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-60{vertical-align:top}#detail_decorate_root .magic-61{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-62{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-63{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-64{font-size:22px}#detail_decorate_root .magic-65{font-size:16px}

Solar Panel
Rated Power in Watts-Pmax(Wp)	410	415	Maximum Power-Pmax(Wp)	310.7	314.5
Open Circuit Voltage-Voc(V)	41.9	42.2	Open Circuit Voltage-Voc(V)	38.97	39.25
Short Circuit Current-lsc(A)	12.47	12.53	Short Circuit Current-lsc(A)	10.22	10.27
Maximum Power Voltage-Vmpp(V)	34.89	35.14	Maximum Power Voltage-Vmpp(V)	32.38	32.61
Maximum Power Current-lmpp(A)	11.76	11.82	Maximum Power Current-lmpp(A)	9.6	9.65
Module Efficiency(%)	21.3	21.6

Cell configuration	120 cells(512+512)			Nominal Module Operating Temperature (NMOT)	44°C+2°C
Dimensions	1754109630mm			Temperature Coefficient of Voc	-0.25%/鈩�
Cables	4.0mm2(12AWG),Positive(+)350mm, Negative(-)230mm (Connector Included)			Temperature Coefficient of Isc	0.04%/°C
Superstrate	• High Transmission, Low Iron, Tempered ARC Glass			Temperature Coefficient of Pmax	-0.34%/°C
Substrate	• White Back-sheet			Operational Temperature	-40°C~+85°C
Connector	Twinsel PV-SY02, IP68			Maximum System Voltage	1500VDC
J-Box	•Potted, IP68, 1500VDC, 3 Schottky bypass diodes			Maximum System Voltage	20A
Weight	22kg			Limiting Reverse Current	20A
Frame	High strength alloy steel

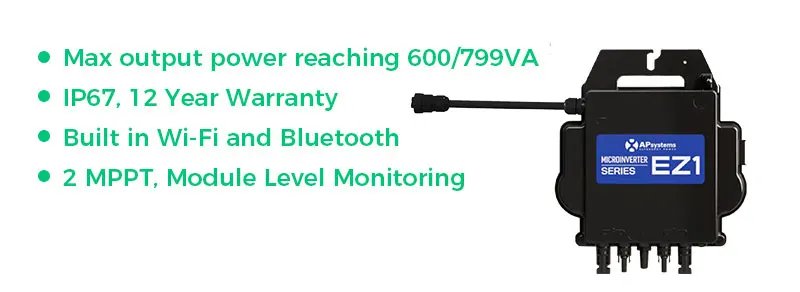

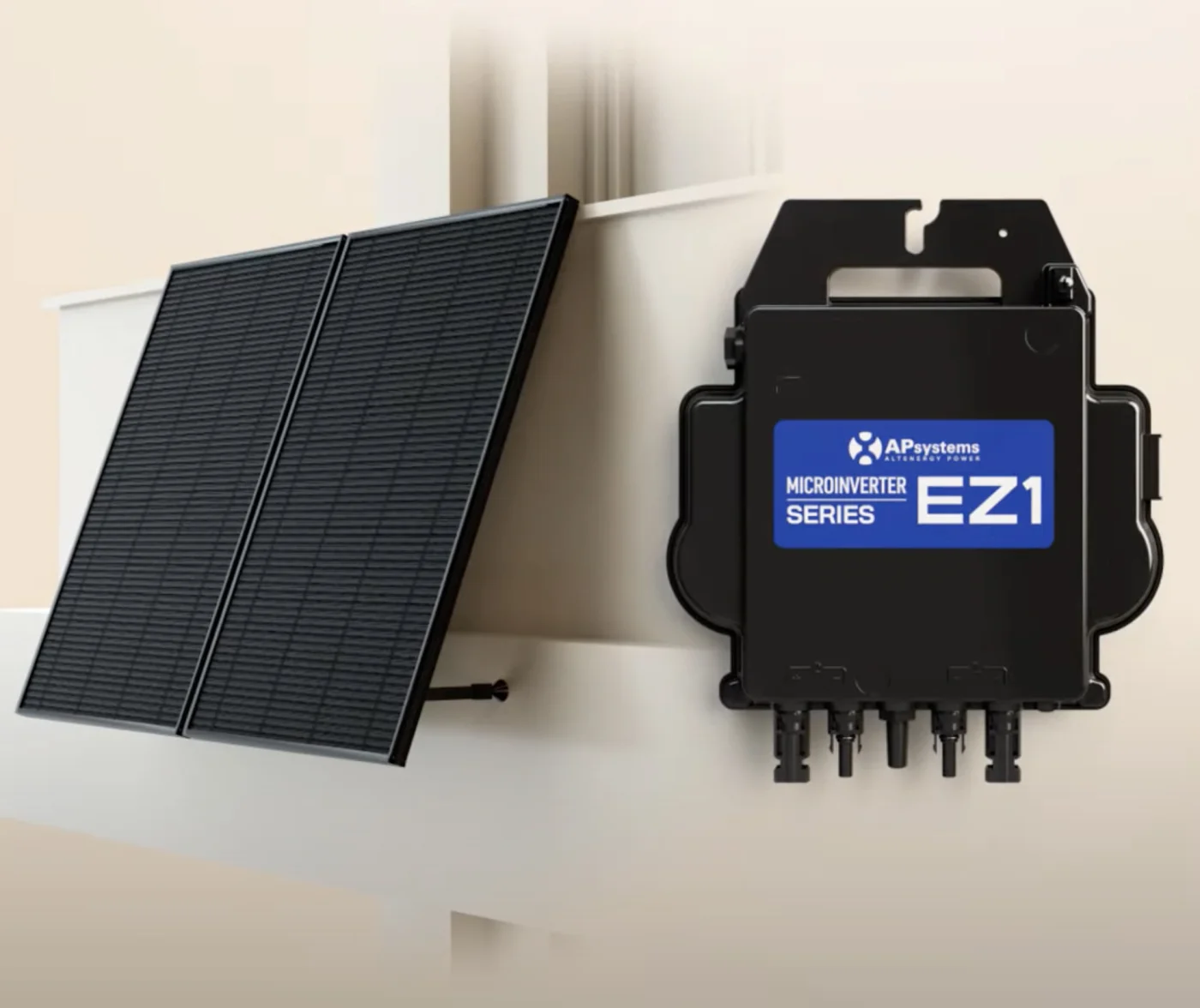

Micro solar inverter
Input Data (DC)
Recommended PV Module Power (STC) Range	300Wp-730Wp+
Peak Power Tracking Voltage	28V-45V
Operating Voltage Range	16V-60V
Maximum Input Voltage	60V
Maximum Input Current	20A x 2
Isc PV	25A x 2
Output Data (AC)
Maximum Continuous Output Power	600VA(3)/799VA
Nominal Output Voltage/Range(1)	230V/184V-253V
Nominal Output Current	2.6A(3)/3.5A
Nominal Output Frequency/ Range(1)	50Hz/48Hz-51Hz
Default Power Factor	0.99
Efficiency
Peak Efficiency	97.3%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	20mW
Mechanical Dat
Operating Ambient Temperature Range(2)	– 40 °C to + 65 °C
Storage Temperature Range	– 40 °C to + 85 °C
Dimensions (W x H x D)	263mm x 218mm x 36.5mm
Weight	2.8kg
DC Connector Type	Stäubli MC-4 PV-ADBP4-S2&ADSP4-S2
Cooling	Natural Convection – No Fans
Enclosure Environmental Rating	IP67
Power Cord (Optional)
Wire Size	1.5mm²
Cable Length	5M as default
Plug Type	Schuko
Features
Communication	Built-in Wi-Fi and Bluetooth
Maximum Units Can Be Connected(4)	2
Isolation Design	High Frequency Transformers, Galvanically Isolated
Energy Management	AP EasyPower APP
Warranty	12 Years Standard
Compliances
Safety, EMC & Grid Compliances	EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1; DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21; UNE 217002; NTS; RD647; VDE-AR-N 4105

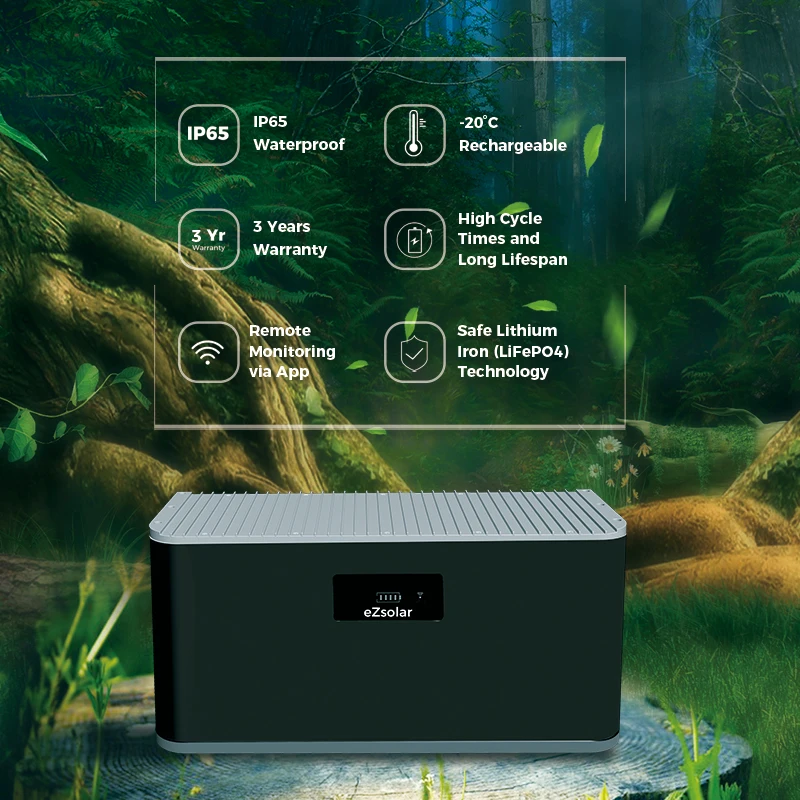

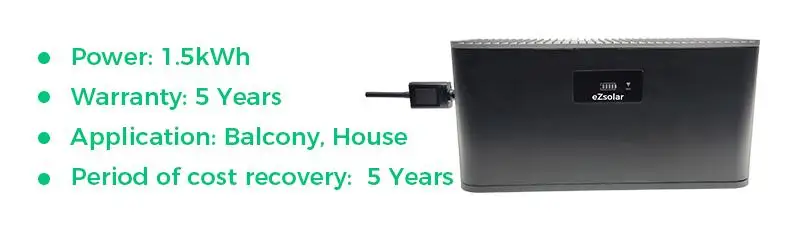

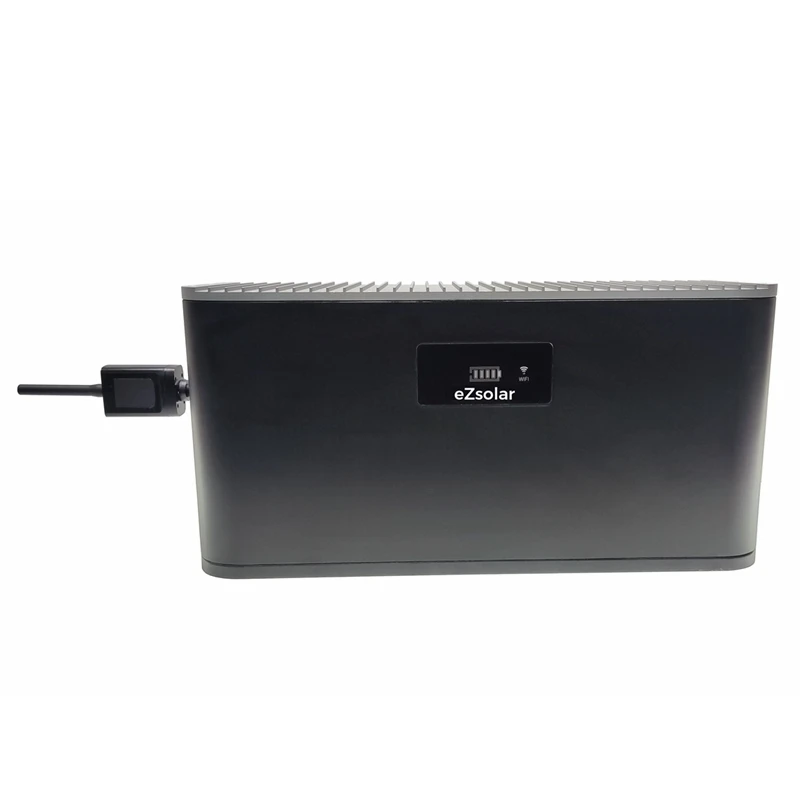

LiFePO4 Battery
Battery Type	Li-ion(LFP)
Nominal Voltage	51.2V
Nominal Capacity	30Ah
Total Energy	1.536kWh
Operating Voltage	48-57.6V
DC Input Voltage range[Udc min-Udc max]	10-90V
MPPT Voltage	40-90V
Standard Charge/Discharge Current	15/15A
Input Current/Power[PV-BAT]	≤20A/50W-1000W
Output Current/Power[BAT-Inverter]	≤30A/0W-1200W
Cycle Life*1	6000,25°C
Depth of Discharge*2	100%
Product Warranty	3 years
Perfomance Warranty	5 years
Opreating Temperature	-20~55°C
Ingress Protection	IP65
Humidity	5% to 90%[no condensing]
Altitude	Below 2000m
SOC	LED*4
State	LED*1
Wifi	LED*1
Certification & Safety standard	TUV/CE/IEC/UN38.3
Unit Dimesions[WHD]	490249.5170mm
Unit Weight	20kg

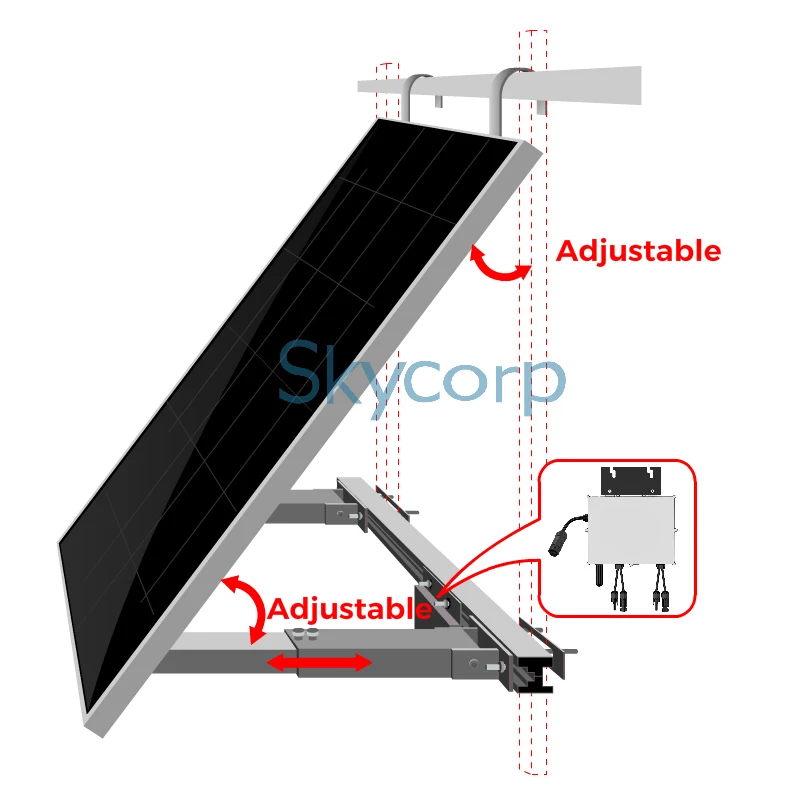

Bracket
Installation Site	Balcony	Panel Layout	Horizontal
Balcony type	Circular Metal Guard	Design Standard	European standard
Tilt Angle	23°-35°	Bracket Material	Steel &AL6005-T5
Wind Load	50m/s	Fastener Material	SUS304
Snow Load	1.2KN/m2	Color	Silver or Black
Applicable Solar Module	Framed	Warranty	10-Year Warranty
Applicable Solar Size	1724113430mm
