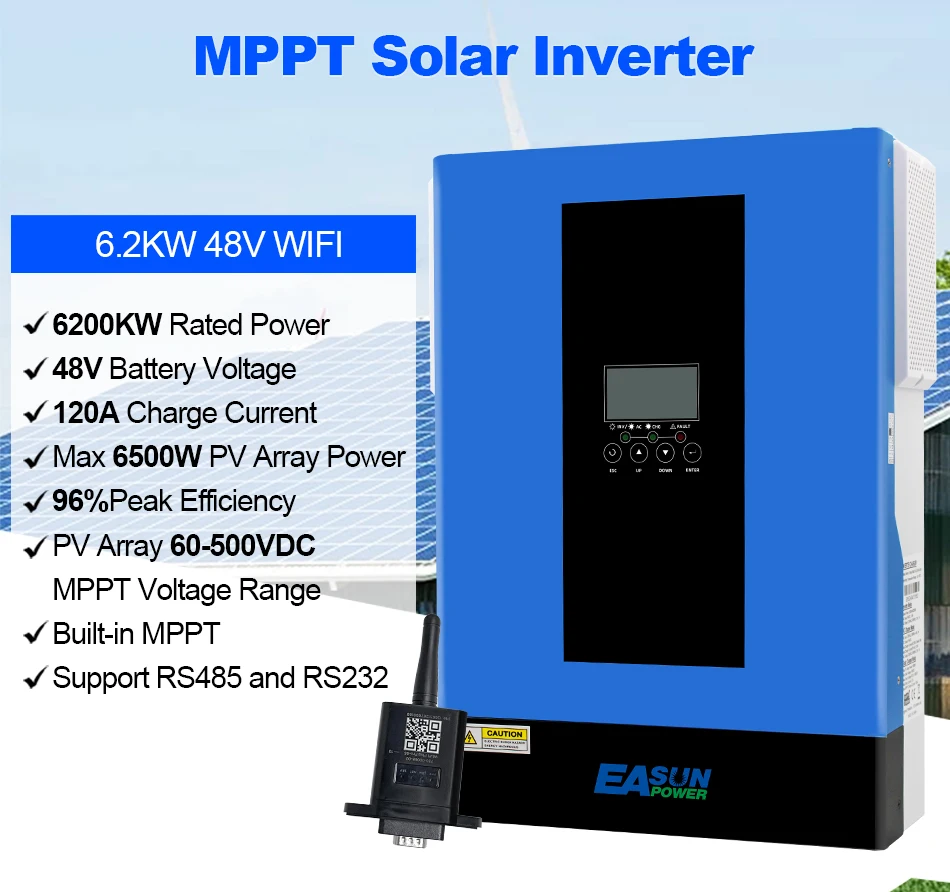

EASUN POWER Hybrid Solar Inverter 6200W 48V Pure Sine Wave Inverter 80A MPPT Solar Charge Controller for PV Solar Panel Dropship

Name: EASUN POWER Hybrid Solar Inverter 6200W 48V Pure Sine Wave Inverter 80A MPPT Solar Charge Controller for PV Solar Panel Dropship
SKU: 1005007951062644
Price: 75.67 EUR
Availability: InStock

Price range: 75,67 € through 77,40 €

33 people are viewing this product right now

🔥 11 items sold in last 3 hours

Color

SMG-III-6.2KW-Wifi

Ships From

GERMANY

Italy

Poland

Clear

Add to compare

SKU: 1005007951062644

Category: Solar Inverters

Tag: Inverters

Description
Reviews (0)

Brand Name: EASUN POWER
Hign-concerned Chemical: None
Type: DC/AC Inverters
Origin: Mainland China
Size: 482x290x113mm
Output Type: SINGLE
is_customized: Yes
Output Current: 11A
Output Power: 1 – 200KW
Weight: 9KG
Model Number: ISolar-SMG-III-6.2KW-Wifi
Certification: CE, FCC, RoHS
Type: Pure sine wave inverter
Grid Type: off grid inverter
PV Array MPPT Voltage Range: 60VDC~ 500VDC
Solar Charger Type: MPPT
RS485/RS232/Dry-contact/Wifi: Yes,Support
PV Array Power: 6500W
Max. Solar Charge Current: 120A
Input Voltage: 48Vdc
Rated Power: 6200VA/6200W
Surge Power: 12400VA,12400VA

Models	ISolar-SMG-III-6.2KW-Wifi
RatedPower	6.2KVA/6.2KW
INPUT
Voltage	230Vac
SelectableVoltageRange	(170Vac~280Vac)±2%；(90Vac-280Vac)±2%
FrequencyRange	50Hz/60Hz (Autodetection)
OUTPUT
ACVoltageRegulation (Batt.Mode)	230VAC±5%
Surgepower	12400VA
TransferTime	10ms(forpersonalcomputers)/20ms(forhomeappliances)
Waveform	PureSineWave
BATTERY&ACCHARGER
BatteryVoltage	48VDC
FloatingChargeVoltage	54VDC
OverchargeProtection	63VDC
Maximumcharge current	80A
SOLARCHARGER
MAX.PVArrayPower	6500W
MPPTRange@OperatingVoltage	60~500VDC
MaximumPVArrayOpenCircuit Voltage	500VDC
MaximumChargingCurrent	110A
MaximumEfficiency	98%
PHYSICAL
Dimension.DWH(mm)	438X295X105mm
NetWeight(kgs)	9.0kg

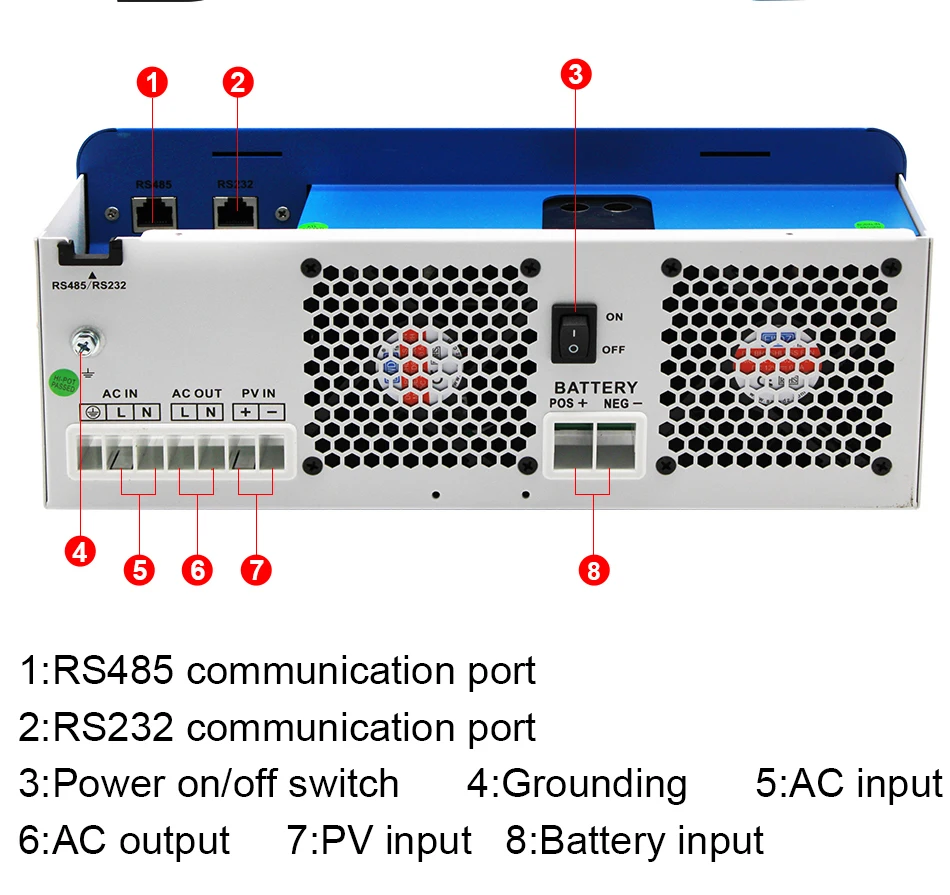

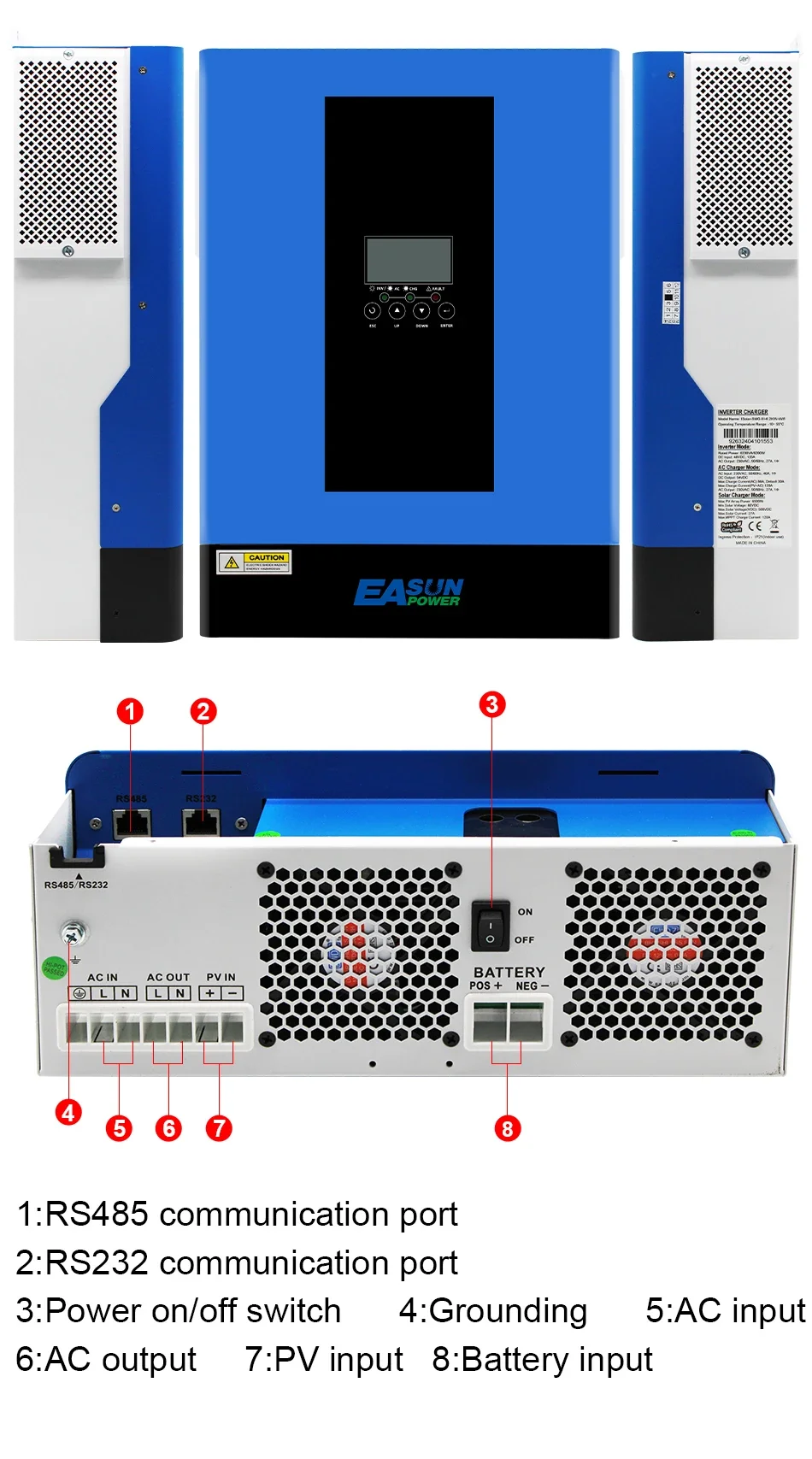

CommunicationInterface	RS232/RS485/WIFI
OPERATINGENVIRONMENT
Humidity	5%to95%RelativeHumidity(Non-condensing)
OperatingTemperature	-10°Cto55°C
StorageTemperature	-15°Cto60°C

Features

●Lithium battery activation function by PV or Utility

●Compatible work with lifepo4 battery via Rs485

●Pure sine wave

●Power factor 1.0

●PV input Voltage 60Vdc-500Vdc

●Built-in MPPT 60A/ 100A/120A

●Capable to work without battery

●Detachable dust cover for harsh environment

●WiFi remote monitoring

●Support multiple output priority: UTL,SOL, SBU, SUB

●EQ function to optimize battery performance and extend lifecycle
