- Brand Name: EASUN POWER
- Origin: Mainland China
- Model Number: MPPT Solar Charge Controller-20A 30A 40A
- is_customized: Yes
- Certification: CE
- Is Smart Device: Yes
- Application: Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station
- System rated voltage: 12/24V /48V Auto recognized
- Rated Discharge Current: 20A/30A
- Battery type: User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
- Light control voltage: 5V/10V
- Protection class: IP30
- mppt solar charge controller: solar charge controller
- mppt solar charge controller 12v: regolatore di carica mppt
- easun mppt controller: solar charge controller mppt
- easun charge controller: solar charge controller 12v

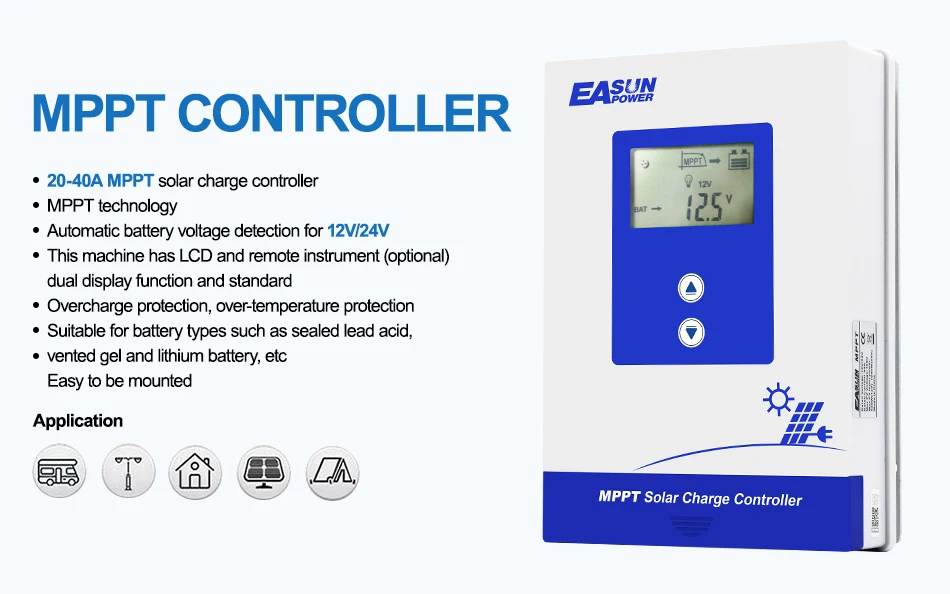

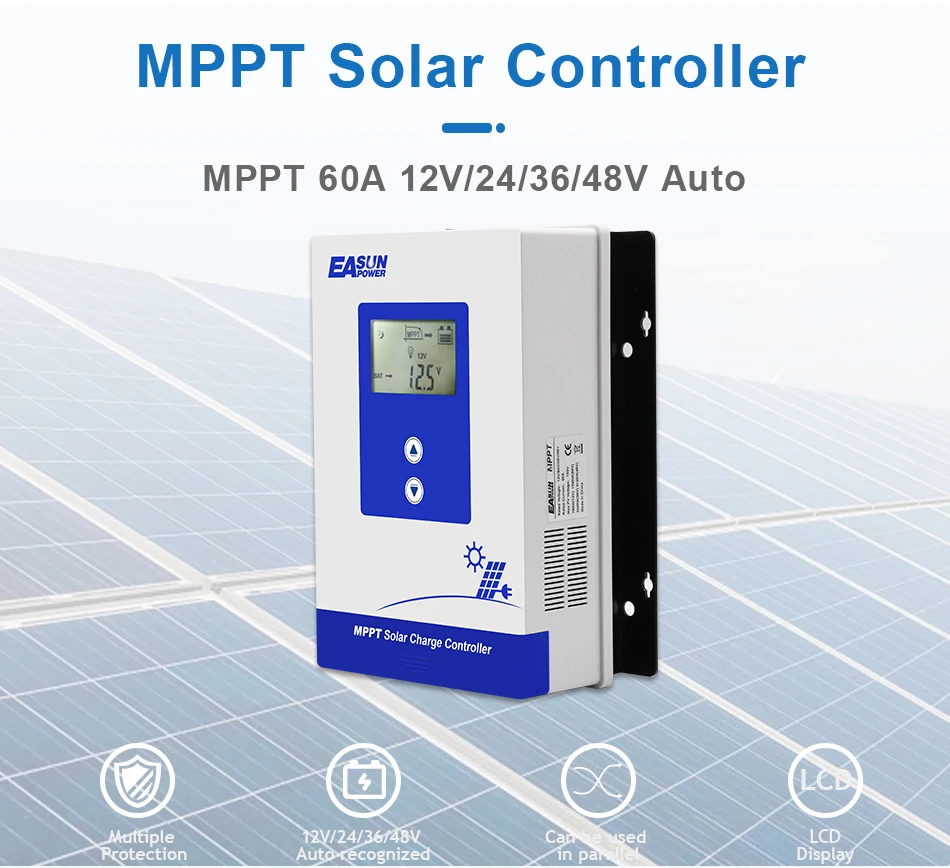

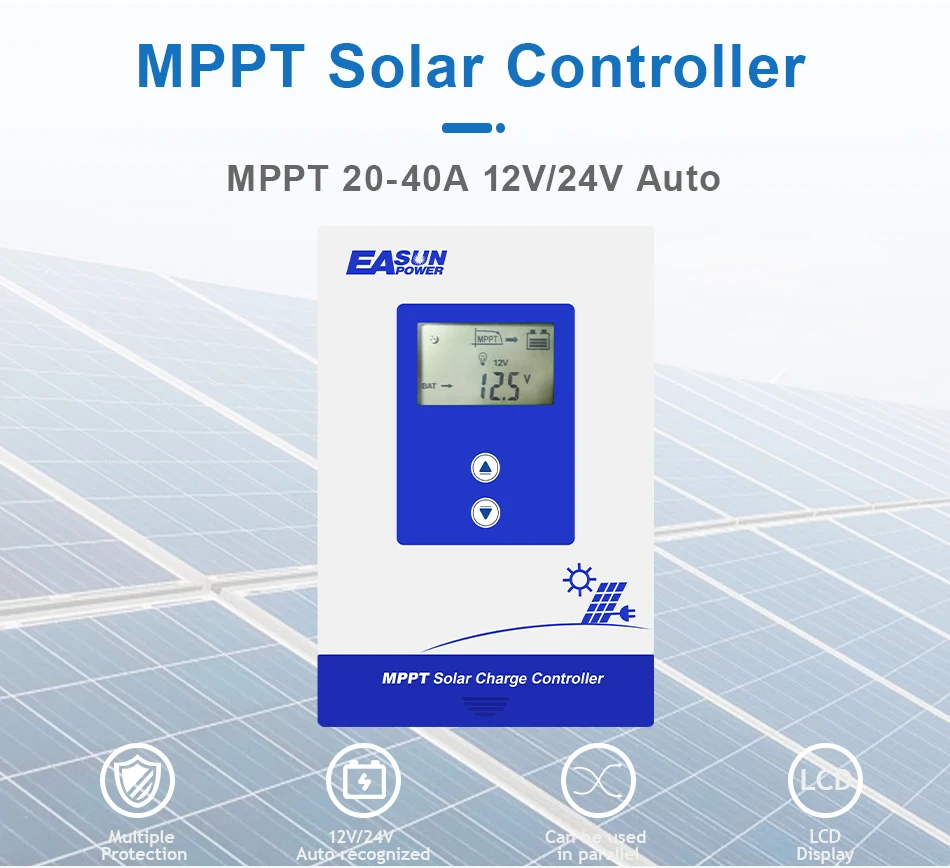

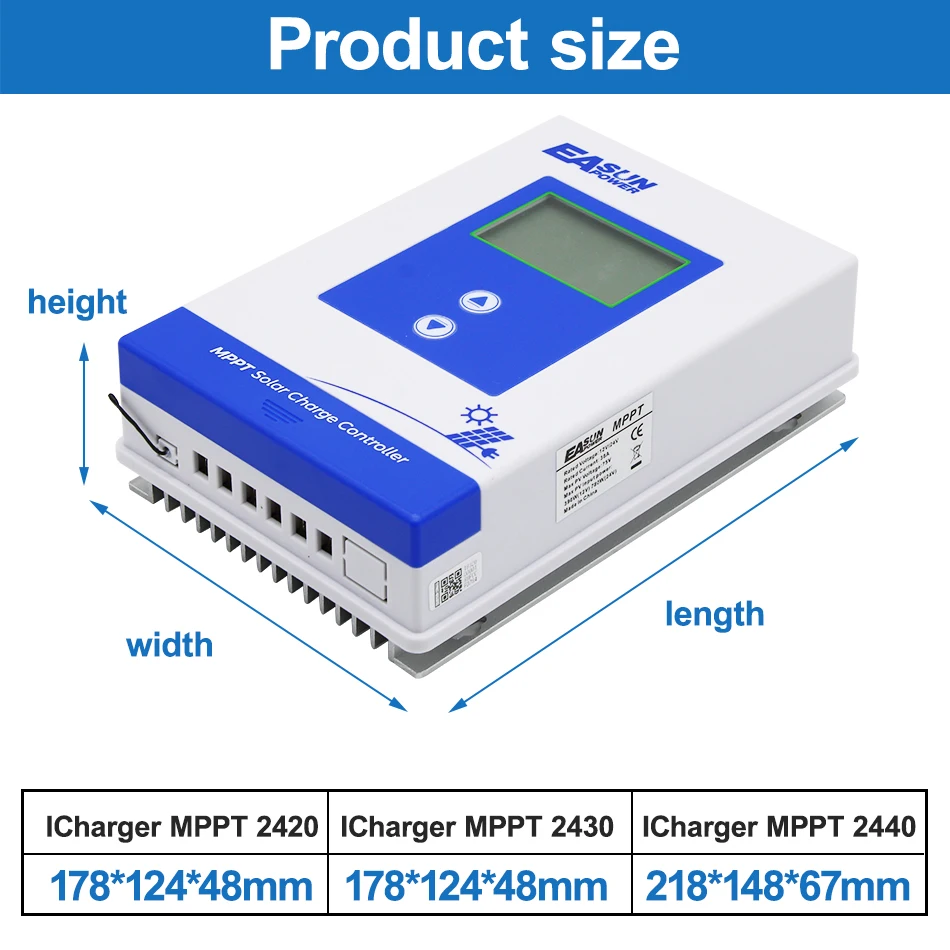

EASUN 20A 30A 40A 60A MPPT Solar Charge Controller Lead Acid Lithium Battery Regulador 12V 24V Solar Controller LCD Displays
Feature:
1.20A 30A 40A 60A MPPT solar charge controller(Fan cooling)
2.12V/24V/48V (auto detection);
3.Multi-stage charging mode.
4.Protection: PV array short circuit ,PV reverse polarity , Battery reverse polarity ,Over charging , Output short circuit
5.Ship directly from Europe, you can receive the package within 1-7 days within the EU, no need to pay VAT.
Models | 20A | 30A | 40A | 60A |
Charging Mode | 3-stage:ConstantCurrent(MPPT),ConstantVoltage,Floating | |||
System Voltage | 12/24V Auto recognized | 12/24/36/48/Auto | ||
Max PV Input Power | 260W(12V) | 390W(12V) | 520W(12V) | 780W/12V;1560W/24V |
Max PV Input Voltage | 16.8V-60V(12V);33.6V-60V(24V) | 150Voc | ||
Battery voltage | 8V-32V | 12V System(8.7V-15.5V); 24V System(16V-31V); | ||
Limited Current Protection | 20A | 30A | 40A | 61A |

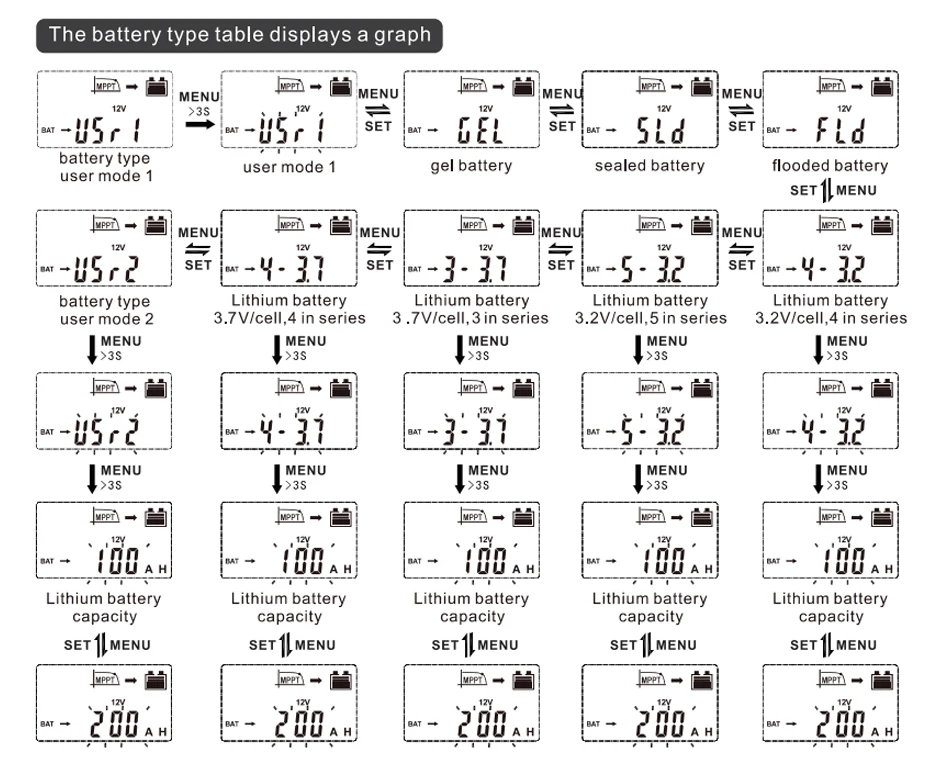

Battery type | User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2. | |||
Properties | ||||
Enclosure | IP30 | |||
Environmental Temperature | -20°C~＋55°C | |||
Storage Temperature | -30~ +80 °C | |||
