- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Other
- Origin: Mainland China
- Energy Efficiency Rating: Class A+++
- Operating Language: English, German, French, Dutch, Spanish
- Application: Outdoor, Hotel, Garage, Commercial, Household
- Power Source: Electric
- App-Controlled: Yes
- Private Mold: NO
- Type: Air Source Heat Pump
- Installation: Freestanding
- Storage / Tankless: Storage
- Housing Material: Metal
- Use: garage
- Place of Origin: Guangdong, China
- Model Number: YT-200
- Product Name: High Efficiency R290 All In One Heat Pump Water Heater
- Volume: 200L 250L 300L
- Color: Classic Black or customized
- Certification: CE ERP
- Refrigerant: R290/R134a
- Working temperature: -7 to 43 degree centigrade
- Max Water Outlet Temperature: 75℃
- Air Flow Type: Top air duct
- Certificate: CE ERP
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:446px}#detail_decorate_root .magic-3{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-5{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-6{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-7{width:750px;height:999px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-8{position:relative;left:-31px;top:-42px;width:750px;height:1060.459492140266px}#detail_decorate_root .magic-9{width:750px;border-collapse:collapse}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:724px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{display:none}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:138px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:63px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:120px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:91px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:108px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{text-align:justify}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:259px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:107px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:360px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:444px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-26{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-27{vertical-align:top}#detail_decorate_root .magic-28{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-29{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-30{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-31{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-32{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-34{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:444px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:444px}#detail_decorate_root .magic-37{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}
Product Description

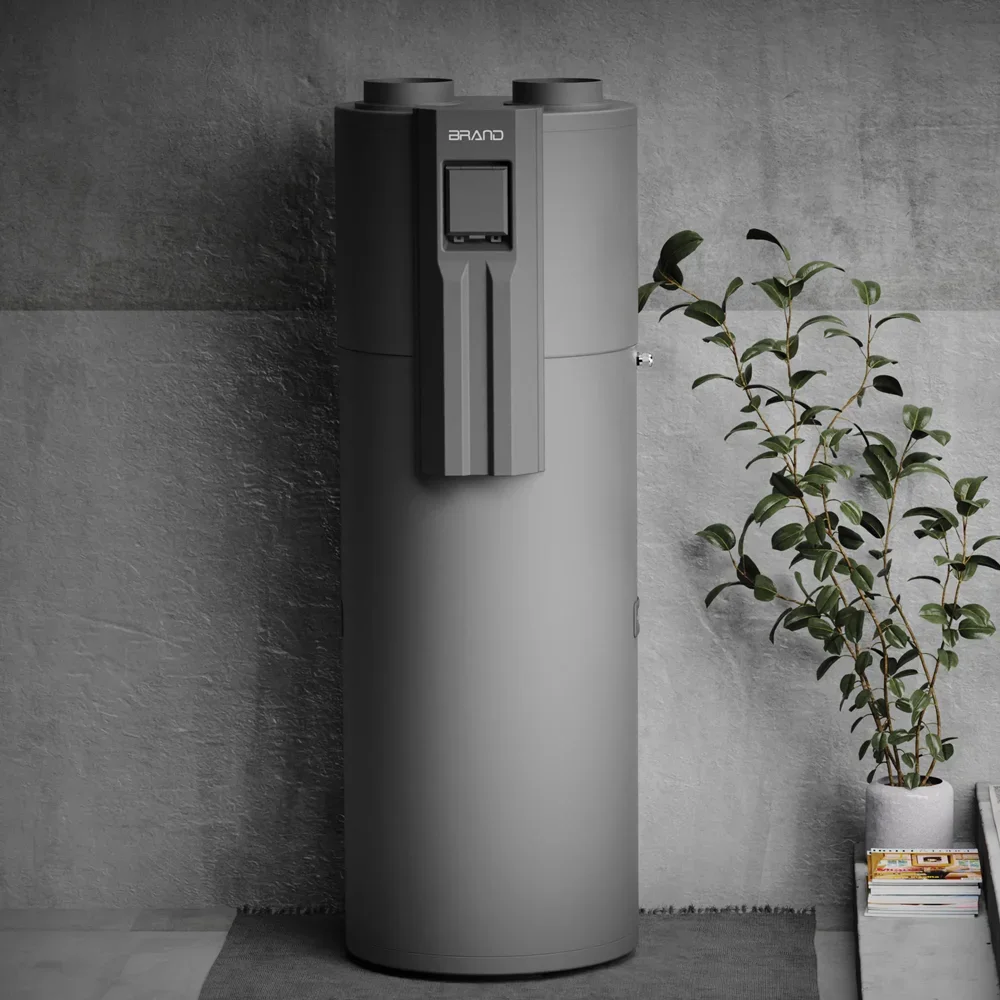

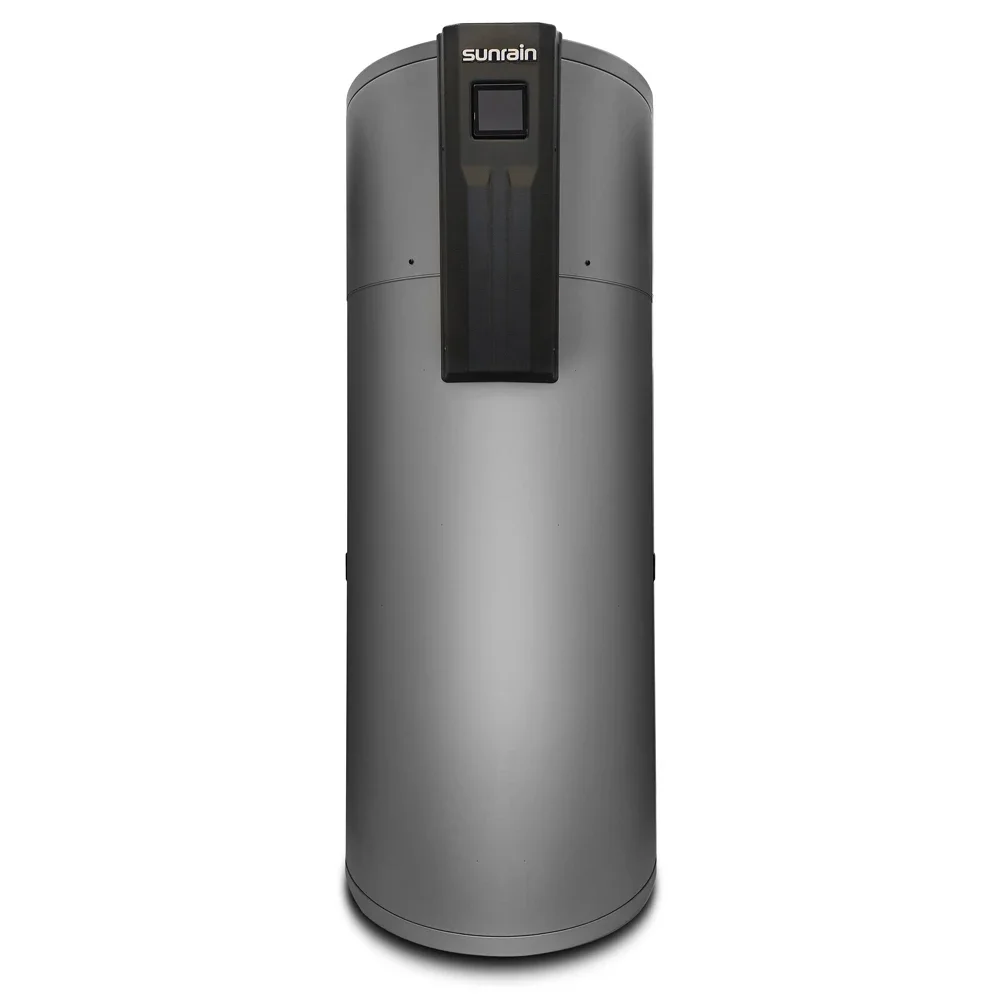

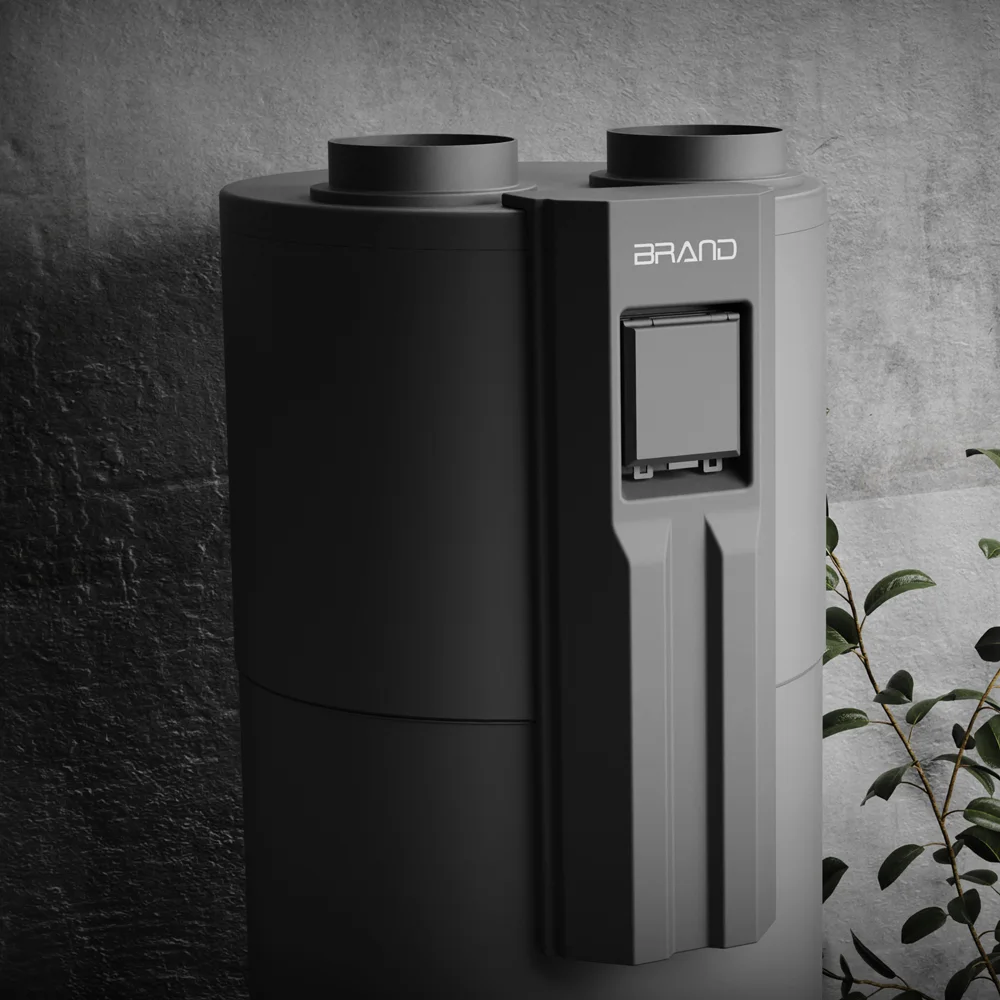

Sunrain R290 All In One Heat Pump Water Heater
› Sunrain hybrid heat pump water heater is designed for European conditions
› Max hot water temperature of this air to water heat pump is 75ºC due to backup electric heater
› 3 different sizes available, 200L 250Land 300L to satisfy different families’ demand for sanitary hot water, like hand basin, wash
basin, shower, bath tub and kitchen sink.
› Compatible with Energy Management System for optimal use of grid and solar energy
› Quiet operation of 45 db
› Max hot water temperature of this air to water heat pump is 75ºC due to backup electric heater
› 3 different sizes available, 200L 250Land 300L to satisfy different families’ demand for sanitary hot water, like hand basin, wash
basin, shower, bath tub and kitchen sink.
› Compatible with Energy Management System for optimal use of grid and solar energy
› Quiet operation of 45 db
Specification
Sunrain R290 All In One Heat Pump Water Heater | ||||||||||
Email: liz@sunrain.com Mob NO.: +86-18762721775 | ||||||||||
Model | YT-200 | YT-250 | YT-300 | |||||||
Volume | 200L | 250L | 300L | |||||||
Product Technical data | ||||||||||
Power Supply | 220~240V~/1/50Hz | |||||||||
Heating Capacity | W | 2800 | 2800 | 2800 | ||||||
Rated Hot Water Production | L/h | 60 | 60 | 60 | ||||||
Rated Power Input | W | 629 | 629 | 629 | ||||||
Rated Current Input | A | 2.8 | 2.8 | 2.8 | ||||||
COP | W/W | 4.45 | 4.45 | 4.45 | ||||||
COP(EN16147)20/15℃ | W/W | / | / | 3.691 | ||||||
η(EN16147)20/15℃ | W/W | / | / | 147.6 | ||||||
V40(EN16147)20/15℃ | L | / | / | 371 | ||||||
Electric Heater | Rated Power Input | W | 2000 | 2000 | 2000 | |||||
Rated Current Input | A | 8.9 | 8.9 | 8.9 | ||||||
Power Input Max. | W | 3000 | 3000 | 3000 | ||||||
Current Input Max. | A | 13.3 | 13.3 | 13.3 | ||||||
Refrigerant Type／Charge／GWP | R290/0.45kg/3 | R290/0.45kg/3 | R290/0.45kg/3 | |||||||
CO₂ Equivalent | 0.00135t | 0.00135t | 0.00135t | |||||||
Working Ambient temperature | ℃ | -7~46 | -7~46 | -7~46 | ||||||
Operation Pressure(Low Side) | MPa | 0.8 | 0.8 | 0.8 | ||||||
Operation Pressure(High Side) | MPa | 3 | 3 | 3 | ||||||
Maximum Allowable Pressure | MPa | 3 | 3 | 3 | ||||||
Electrical Shockproof | I | I | I | |||||||
IP Class | IP1 | IP1 | IP1 | |||||||
Water Tank Capacity | L | 200 | 250 | 278 | ||||||
Water Piping Connections | In | 3/4 | 3/4 | 3/4 | ||||||
Rated Working Pressure Of Tank | MPa | 0.8 | 0.8 | 0.8 | ||||||
Air flow Rated | m³/h | 450 | 450 | 450 | ||||||
Unit Dimensions (W/H/D) | mm | 1650*φ620 | 1880*φ620 | 2050*φ620 | ||||||
Shipping Dimensions (W/H/D) | mm | 1755*700*700 | 1985*700*700 | 2155*700*700 | ||||||
Noise | dB(A) | 48 | 48 | 48 | ||||||
Net Weight | kg | 95 | 105 | 115 | ||||||
Table of configuration parameters | ||||||||||
Compressor | Brand | Lamda | Lamda | Lamda | ||||||
Type | Rotary | Rotary | Rotary | |||||||
Condenser | Brand | Zhejiang New Jinchen Mcahinery Co.,Ltd | ||||||||
Type | Parallel flow heat exchanger | |||||||||
Fan Motor | Brand | Foshan Nanhai Nanyang Electric Appliance&Motor Co.,Ltd | ||||||||
Type | Centrifugal | Centrifugal | Centrifugal | |||||||
Water Pump | Brand | / | / | / | ||||||
Type | / | / | / | |||||||
Fin Evaporator | Number of rows | 3 | 3 | 3 | ||||||
Tube Diameter | Φ7 | Φ7 | Φ7 | |||||||
Electronic Expansion Valve | DunAn | DunAn | DunAn | |||||||
Electrical heater | Foshan Shunde District Dongnike Electric Appliance Co.,Ltd. | |||||||||
Internet Service Gateway | R485 | R485 | R485 | |||||||

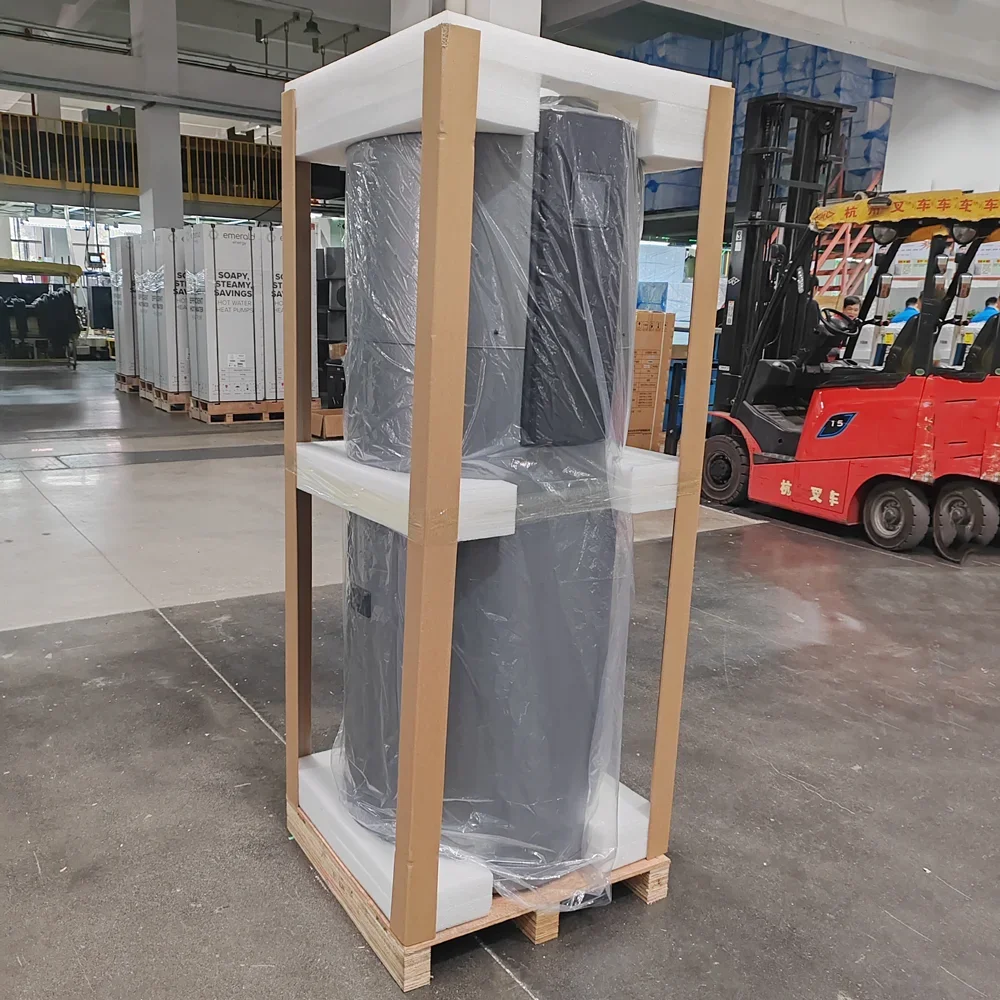

Packing & Delivery
