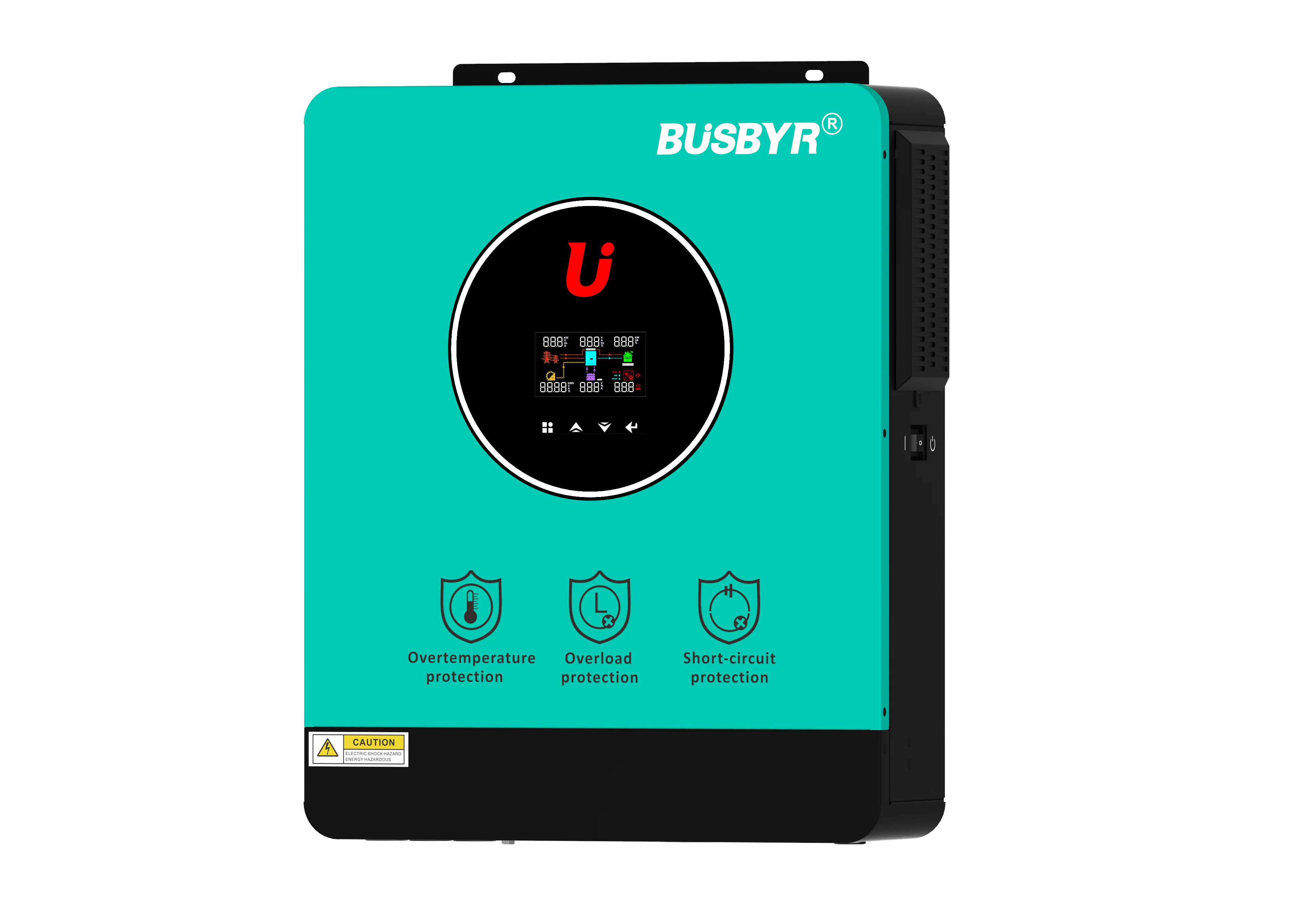

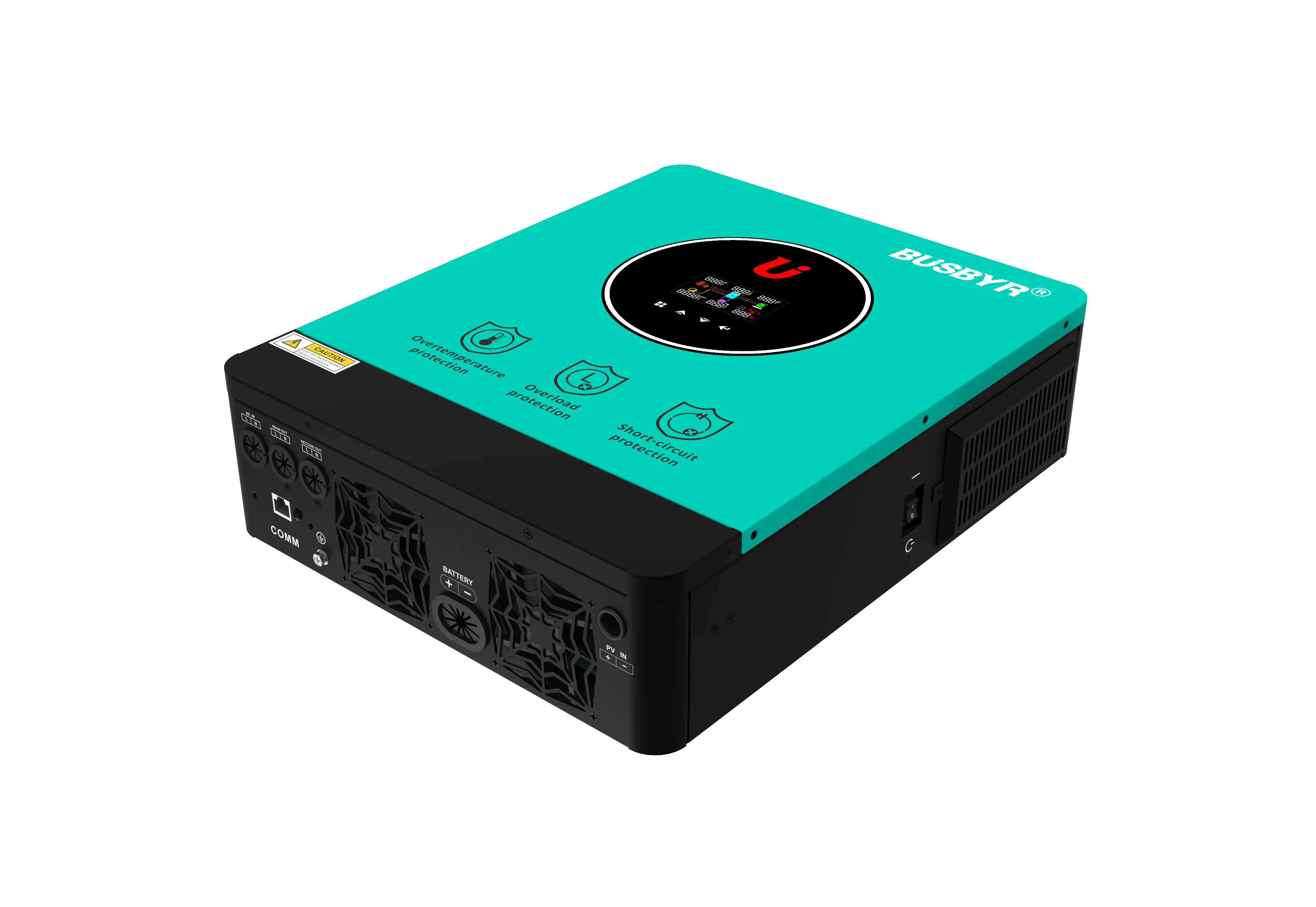

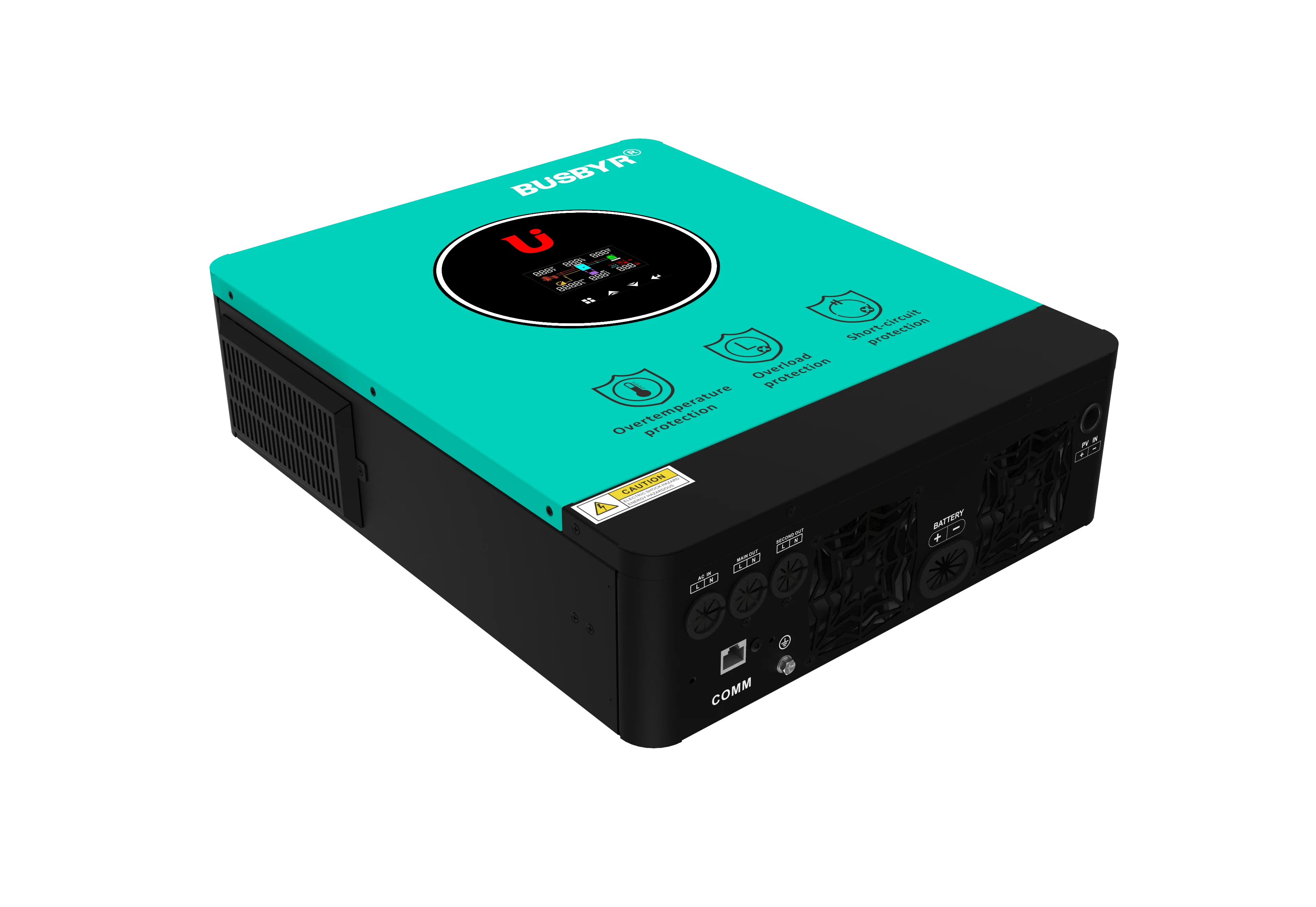

Busbyr New Arrival 220v 230v 4.2kw 4kw Hybrid Solar Inverter

Name: Busbyr New Arrival 220v 230v 4.2kw 4kw Hybrid Solar Inverter
SKU: 1005008919130946
Price: 429.91 EUR
Availability: InStock

429,91 €

14 people are viewing this product right now

🔥 9 items sold in last 3 hours

Add to compare

SKU: 1005008919130946

Category: Solar Inverters

Tag: Inverters

Description
Reviews (0)

Brand Name: XMSJ
Battery Included: No
Origin: Mainland China
Hign-concerned Chemical: None
Certification: CE
Place of Origin: Guangdong, China
Model Number: BSSI-V-GN
Brand Name: Busbyr
Input Voltage: 90-280 VAC 90VDC-450VDC
Output Voltage: 220/230/240VAC
Output Current: 31.3A – 43.3A
Output Frequency: 50Hz/ 60Hz
Output Type: DUAL Camera
Size: 500*415*180
Type: DC/AC Inverters
Inverter Efficiency: 98%
Weight: 16.5
Maximum Solar Charging Current: 120A-160A
MPPT Voltage Range: 60VDC-450VDC
Nominal Output Current: 27-44.3A
Power Factor: >0.99
Output Waveform: Pure sine wave
Nominal operating frequency: 50/60Hz
Nominal DC Voltage: 24VDC
Operating Temperature: -10-50℃
Color: Green blue
Product name: 4.2kw solar inverter

If you have any questions, Please contact our customer service
whatsApp：+86 15232159137
Email：kaigui8883@163.com

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:787px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:787px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;background-color:#ffc36d;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:374px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:332px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{display:none}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:333px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-11{margin-bottom:0}#detail_decorate_root .magic-12{position:relative;width:100%}#detail_decorate_root .magic-13{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-14{vertical-align:top}#detail_decorate_root .magic-15{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-16{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-17{padding:0;margin:0;white-space:pre-wrap;font-size:14px}

Specification

MODEL	BSSI-V-GN4200
Phase	1-phase
Rated Output Power	4200W/4200VA
Maximum Solar Charging Current	160A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current	2/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VAC
Nominal Output Current	44.3A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	4200W
Maximum Main Load	4200W
Maximum Load Cut Off Voltage	52VDC
Maximum Load Return Voltage	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280 VAC or 170-280VAC
Maximum AC Input Current	50A
Nominal operating frequency	50/60Hz
PV INPUT(DC)
Maximum DC Voltage	360/500VDC
MPPT Voltage Range	90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	24VDC
Maximum Solar Charging Current	160A
Maximum AC Charging Current	140A
GENERAL
Dimension,D X W X H(mm)	530420160
Cartoon Dimension,D X W XH(mm)	618463205
Net Weight(kgs)	14.7
Gross Weight(kgs)	16.2
INTERFACE
Communication Port	RS485/RS232/WIFI//GPRS/Lithium Battery
ENVIRONMENT
Operating Temperature	-10-50鈩�
Certification standards	EN IEC 61000 6-3; EN IE C 61000-6-1; EN62109-1; EN62109-2; IEC61683
Warranty Time	2 years

FAQ

Q: Are you a factory? A: Yes, our factory and sales department are located in Shenzhen, China. Sincerely welcome you to have a tour of our factory at any time. Q: What is the warranty for this inverter? A: All products are at least 12 months’ warranty. Q: What is the shipping way? A: DHL, UPS, TNT, EMS and FedEx. Ship by sea. Q: What is the payment method? A: We normally require T/T advance payment of 30% deposit and 70% before shipping. Q: Can we design packaging for solar inverters? A: Yes. We can customize the packaging. Q: Can we customize the product? A: Yes. OEM and ODM are available. Please send us your design files.
