- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Jiangsu, China
- Model Number: N3H-X5.0-US
- Brand Name: Amensolar
- Input Voltage: 350V/85V – 500V
- Output Voltage: 120/240,208,230
- Output Current: 38.3A
- Output Frequency: 50Hz/ 60Hz
- Output Type: DUAL Camera, Quad
- Size: 530x660x200mm
- Type: DC/AC Inverters
- Inverter Efficiency: 98.2%
- Weight: 32kg
- Product name: Grid Solar Inverter
- Application: Solar Power System Home
- Inverter type: Hybrid Power Inverter
- MPPT number: 4
- MPPT voltage range: 120V-500V
- Single MPPT input current: 12A
- PV voltage range: 350V/85V – 500V
- Battery Type: Lead Acid Lithium Gel
- Battery Voltage range: 48V
- Certificate: UL1741
Hello, my friend, nice to meet you, I’m Arwin from China！ In order to better answer your questions, please tell me your specific product requirements, I will reply you in time after I see the information, thank you very much！ If you need me to reply you now, you can add my WHATSAPP (+86 17352870921)Email:w17770950324@gmail.com， thanks again! wish you a happy life！Hello, my friend, nice to meet you, I’m Arwin from China！ In order to better answer your questions, please tell me your specific product requirements, I will reply you in time after I see the information, thank you very much！ If you need me to reply you now, you can add my WHATSAPP (+86 17352870921)Email:w17770950324@gmail.com， thanks again! wish you a happy life！
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-2{font-size:20px}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{font-size:18px}#detail_decorate_root .magic-8{border-bottom-style:none;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#fff;background-color:#59c7f9;text-align:center;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:440px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:440px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:488px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:488px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:116.15487316421896px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:116.15487316421896px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:368px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:368px}#detail_decorate_root .magic-18{width:750px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:243px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{text-align:left}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:139px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{text-align:center}#detail_decorate_root .magic-23{display:none}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:256px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:137px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:343px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:145px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:439px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:0;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:6px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:463px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:1053px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:1053px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:552px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:552px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:1404px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:1404px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:502px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:502px}#detail_decorate_root .magic-42{font-size:16px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:95px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:95px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:173px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:173px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:532px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:532px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:302px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:302px}
鈼� UL Certification

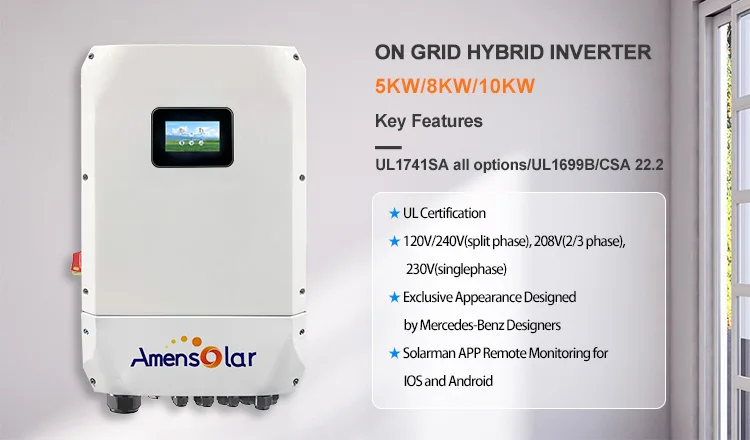

Amensolar HYBRID ON/OFF GRID INVERTER
鈼� UL Certification
鈼� 48V low-voltage batteries
鈼� 120V/240V(split phase), 208V(2/3 phase), 230V(singlephase)
鈼� Exclusive Appearance Designed by Mercedes-Benz Designers
鈼� Solarman APP Remote Monitoring for IOS and Android
鈼� High-Quality Touch Color Screen, Easy to Operate
鈼� IP65 Rated
鈼� 5 Years Warranty
鈼� 7 * 24 Hours Engineer Online Support
鈼� Solarman APP Remote Monitoring for IOS and Android
鈼� High-Quality Touch Color Screen, Easy to Operate
鈼� IP65 Rated
鈼� 5 Years Warranty
鈼� 7 * 24 Hours Engineer Online Support
Products Description
Choose Amensolar a Pure Sine Wave Reason 锛�
Amensolar Pure sine wave power inverters produce extremely clean,reliable,power like you would typically receive from your utility company.Some items must be run off of a pure sine inverter,otherwise it may not run the way the manufac-turer intended that device to run.
Examples of these machines should be driven by pure sine wave inverters: microwave ovens, key fobs, ventilators, laser printers, digital clocks and sensitive electronics.
Product Paramenters
Model |
N3H-X5.0-US |
N3H-X8.0-US |
N3H-X10.0-US | |||||||||
INPUT(PV) | ||||||||||||
Max power(kw) |
7.5 |
12 |
13 | |||||||||
Max. DC voltage (V) |
500 | |||||||||||
MPPT voltage range (V) |
120~500 | |||||||||||
Max. Input current of single MPPT (A) |
12 | |||||||||||
MPPT tracker/strings |
4 | |||||||||||
AC Output | ||||||||||||
Rated output power (kVA) |
5 |
8 |
10 | |||||||||
Max, output current (A) |
24 |
38.3 |
47.8 | |||||||||
Ac output voltage(V) |
120/240(split phase), 208(2/3 phase),230 (single phase) | |||||||||||
Frequency (Hz) |
50/60 | |||||||||||
PF |
0.8lagging-0.8leading | |||||||||||
THDi |
锛�3% | |||||||||||
AC output topology |
Split phase, 2/3 phase, single phase | |||||||||||
Battery | ||||||||||||
Battery voltage range (V) |
40~58 | |||||||||||
Max. charging voltage (V) |
58 | |||||||||||
Max. charge/discharge current (A) |
120/120 |
190/190 |
210/210 | |||||||||
Battery type |
lithium /Lead-acid | |||||||||||
Communication interface |
CAN/RS485 | |||||||||||
EPS Output | ||||||||||||
Rated power (kVA) |
5 |
8 |
10 | |||||||||
Rated output voltage (V) |
120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||||||||||
Rated output current (A) |
24 |
38.3 |
47.8 | |||||||||
Rated frequency (Hz) |
50/60 | |||||||||||
Automatic switching time (ms) |
锛�20 | |||||||||||
THDu |
锛�2% | |||||||||||
Overload capacity |
125%,60S/150%,15 | |||||||||||
General Data | ||||||||||||
Ingress protection |
IP65/NEMA 3R | |||||||||||
Noise emission (dB) |
锛�25 |
锛�29 |
锛�29 | |||||||||
Operation temperature |
—25鈩儈60鈩� | |||||||||||
Cooling |
Natural | |||||||||||
Dimensions W*D *H (mm) |
500×810 x350 | |||||||||||
Weight (kg) |
44kg | |||||||||||
Display and Communication | ||||||||||||
Display |
LCD, Color Touch Screen | |||||||||||
Interface:RS485/Wifi/4G/CAN/DRM |
Yes | |||||||||||
Safety standard |
UL1741SA all options, UL1699B, CSA 22.2 | |||||||||||
EMC |
FCC Part 15, Class B | |||||||||||

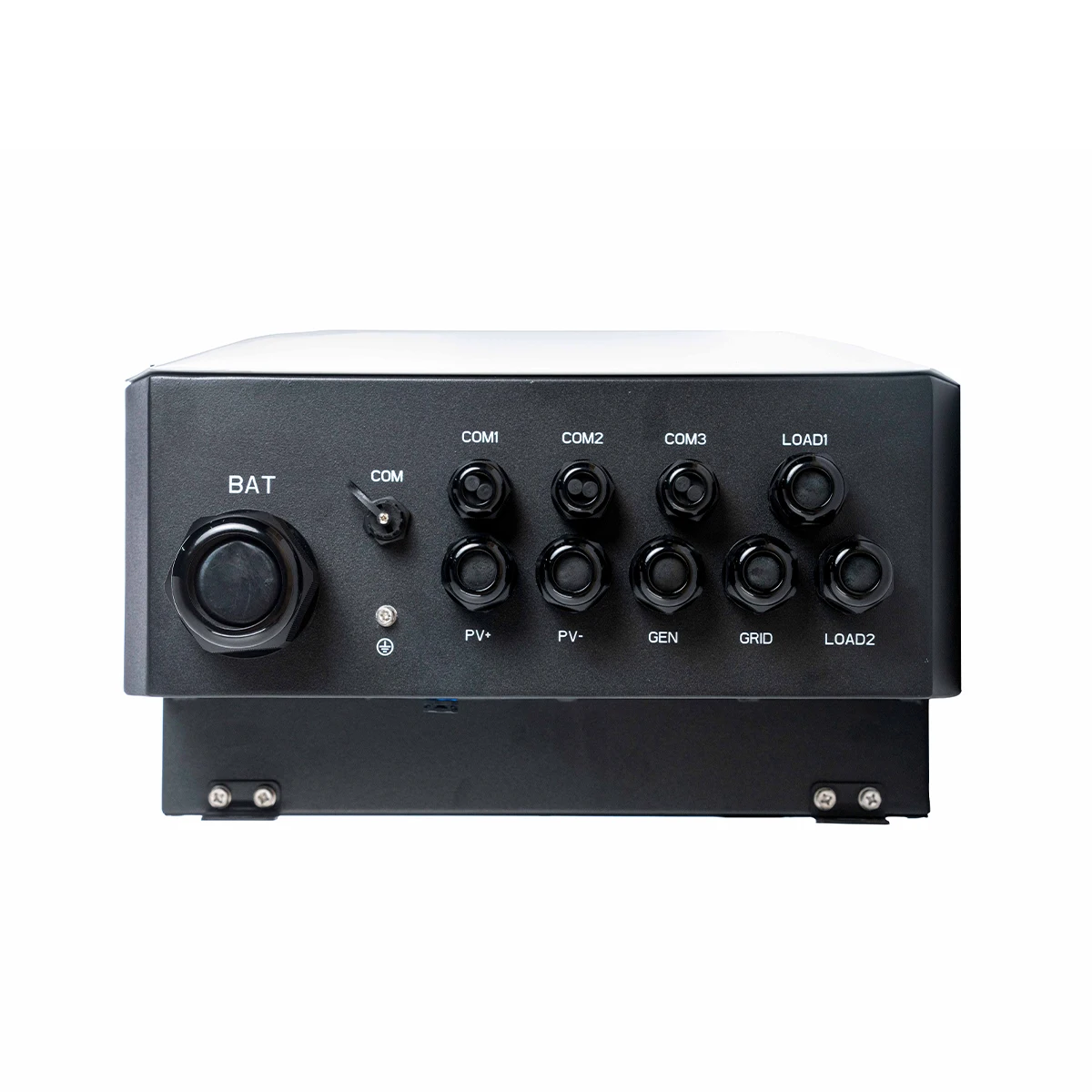

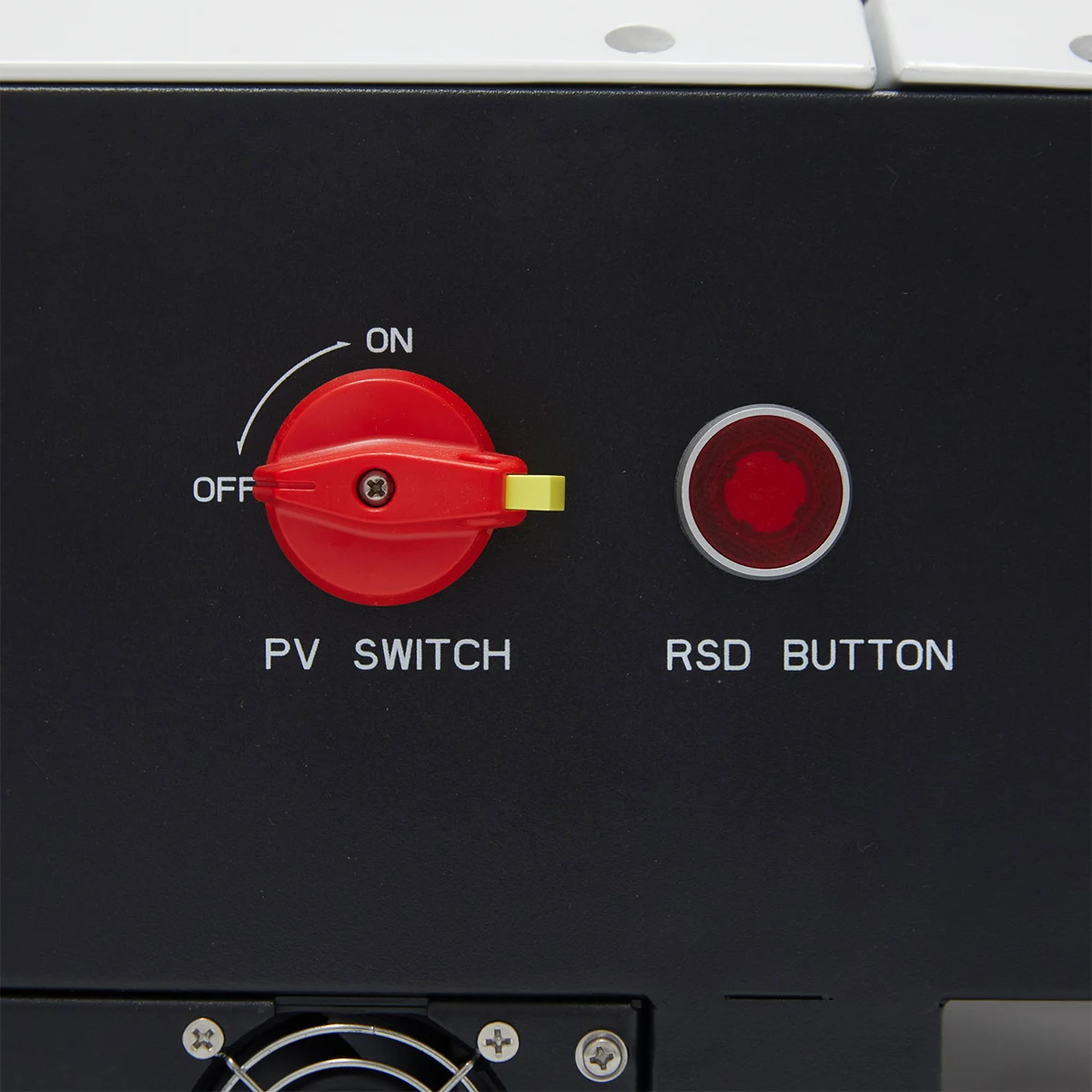

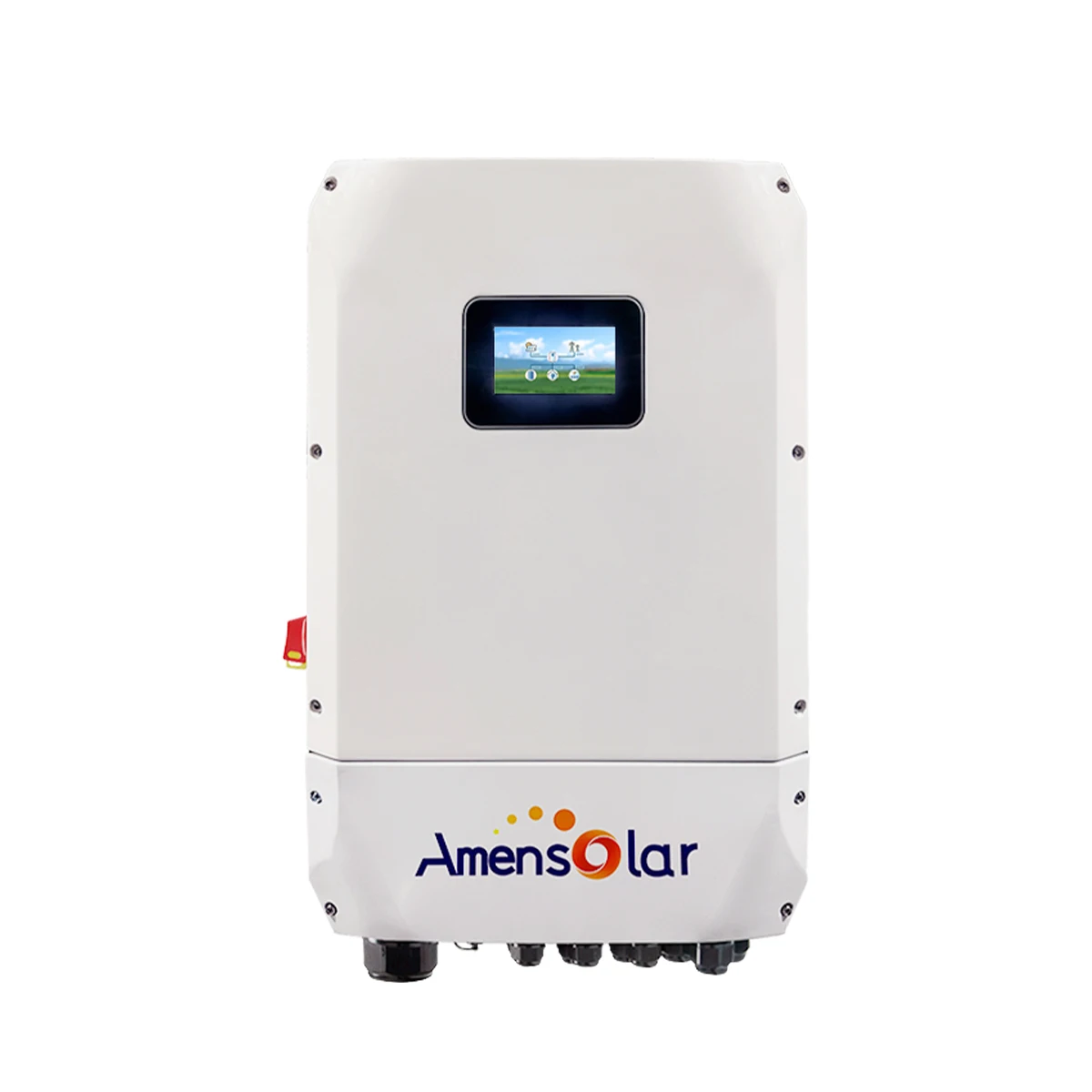

Inverter Details

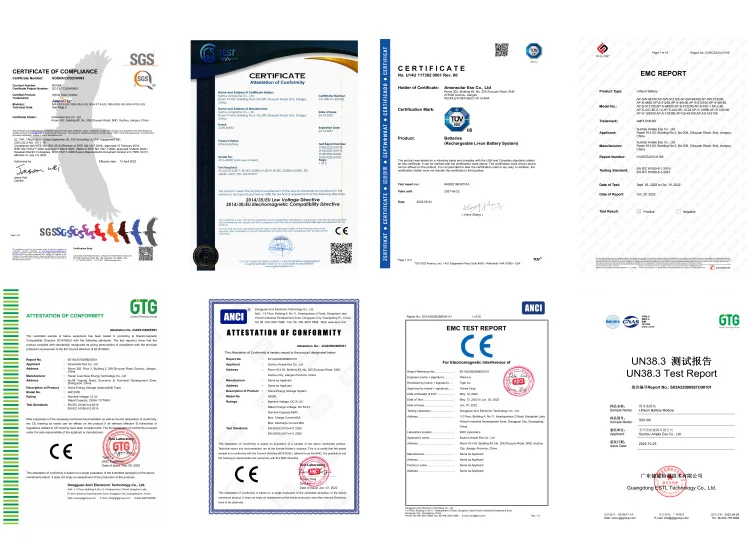

Certificate

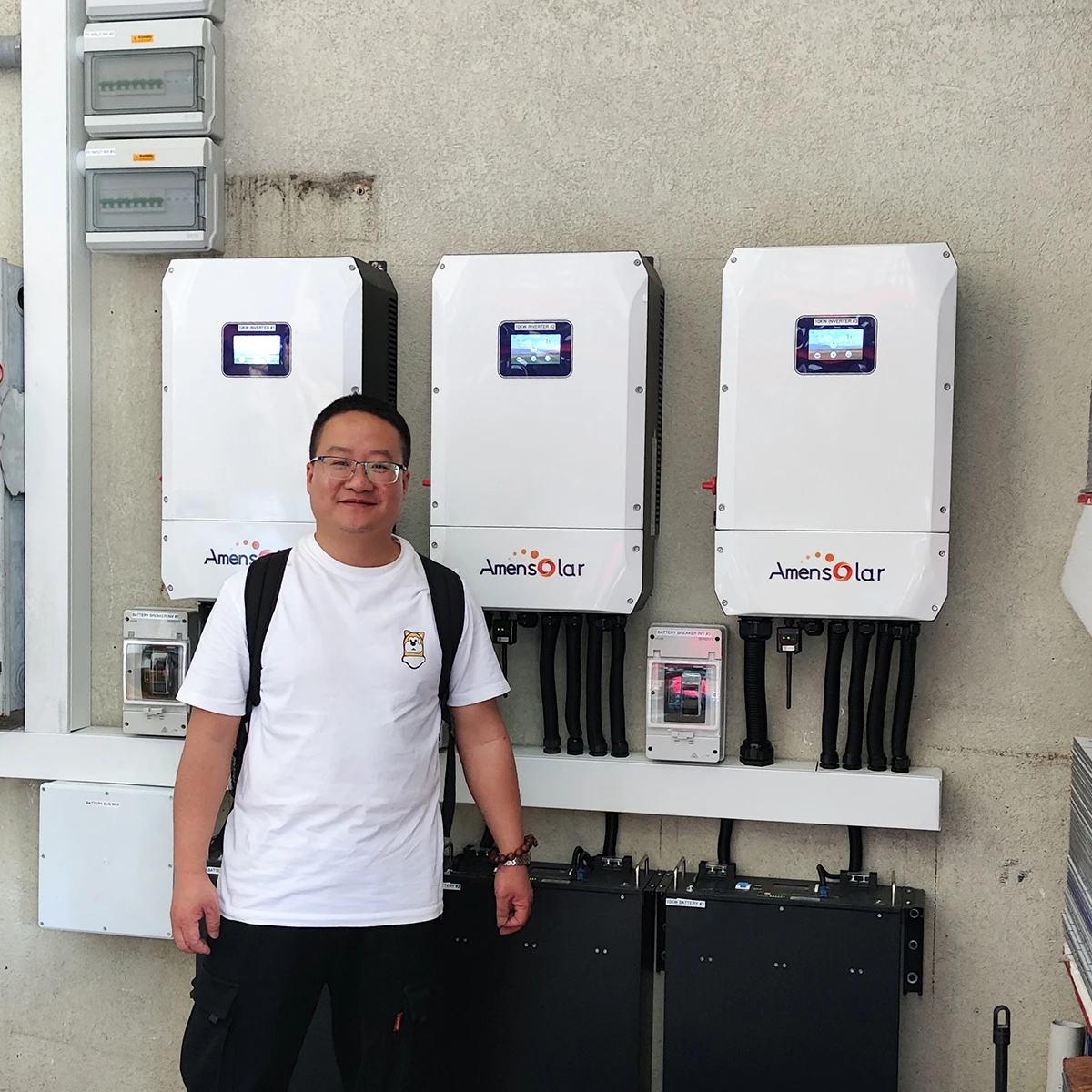

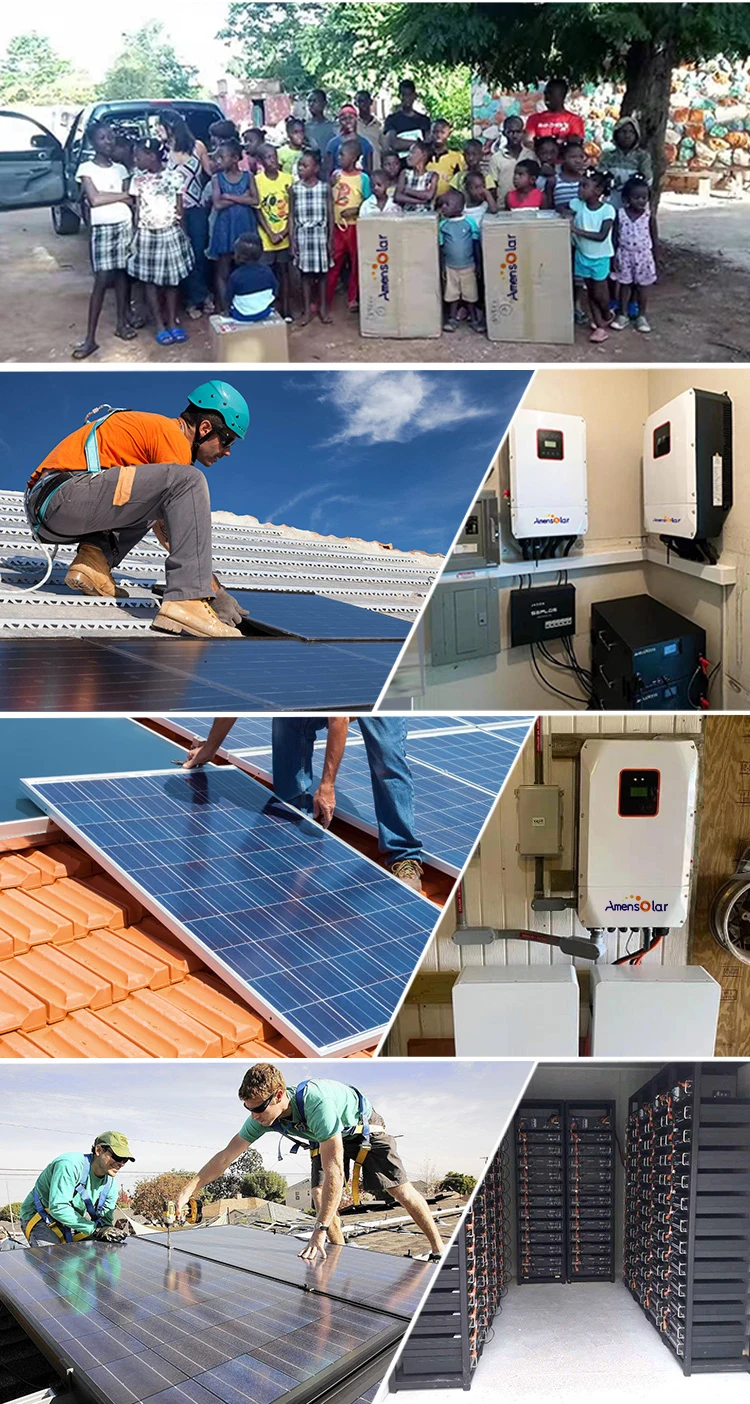

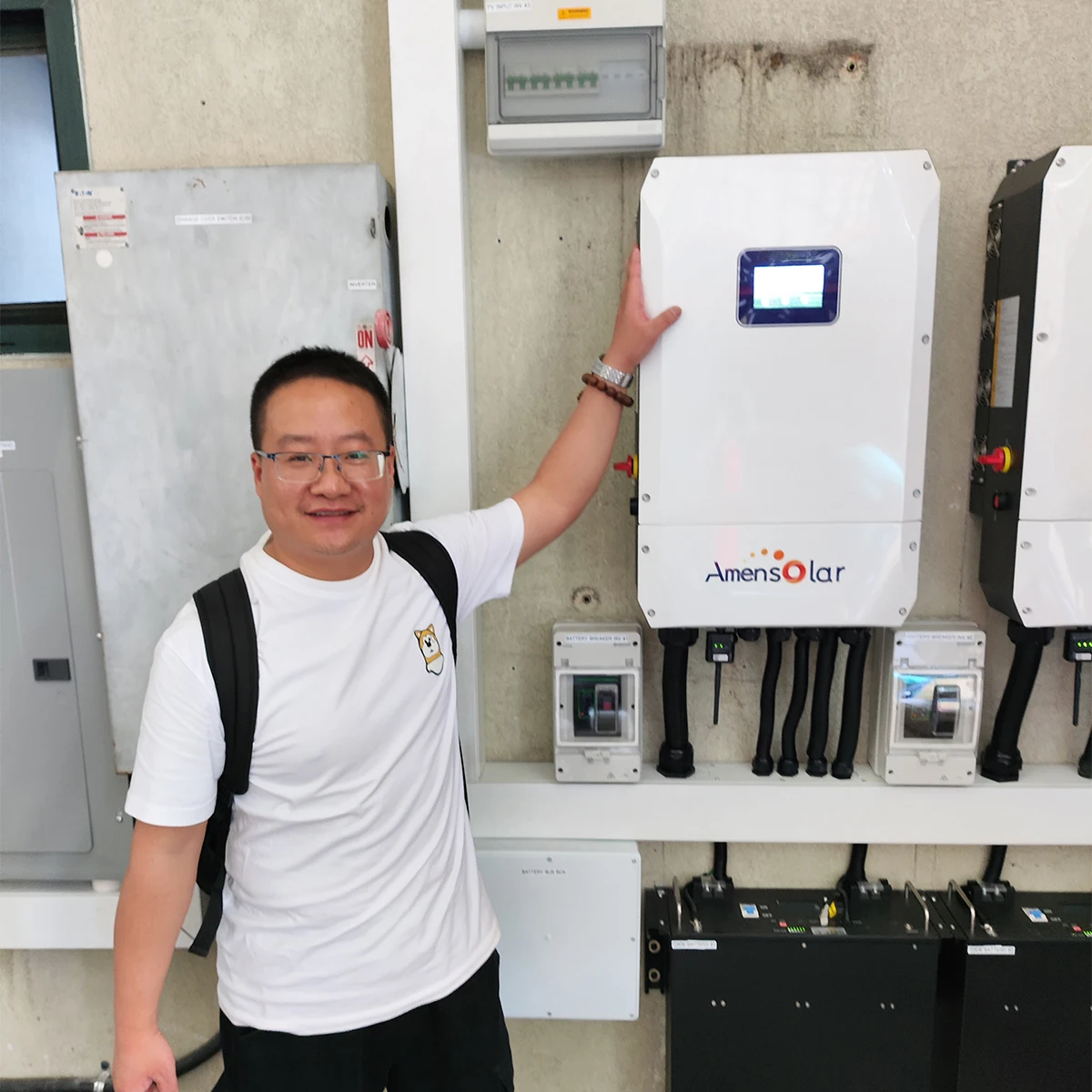

Customer Cases
About us

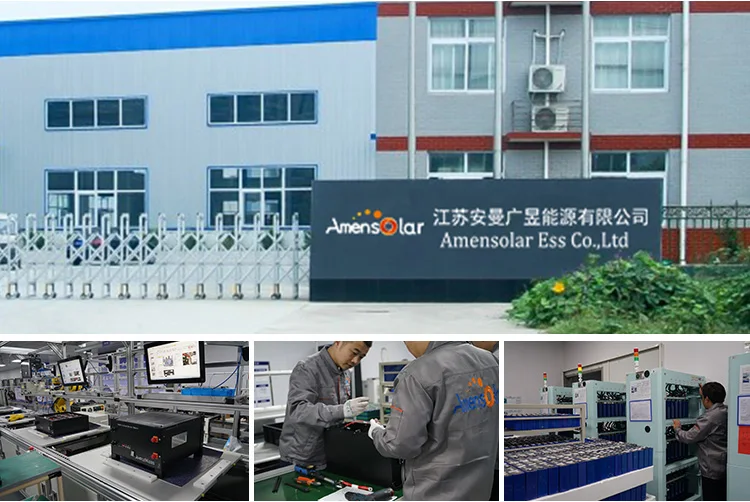

About Amensolar
Amensolar ESS Co, Ltd., located in Suzhou, an international manufacturing city in the center of the Yangtze River Delta, is a high-tech photovoltaic enterprise integrating R & D, production and sales. Holding the concept of “Focusing on quality, technology upgrading, customers’ demand and professional service” Amensolar has become the strategic partner with many famous solar energy
companies in the world.
Amensolar’s main products include solar photovoltaic energy storage inverters, energy storage battery systems, etc, and Amensolar provides the services of system design, project construction and maintenance, and third-party operation and maintenance.
companies in the world.
Amensolar’s main products include solar photovoltaic energy storage inverters, energy storage battery systems, etc, and Amensolar provides the services of system design, project construction and maintenance, and third-party operation and maintenance.
