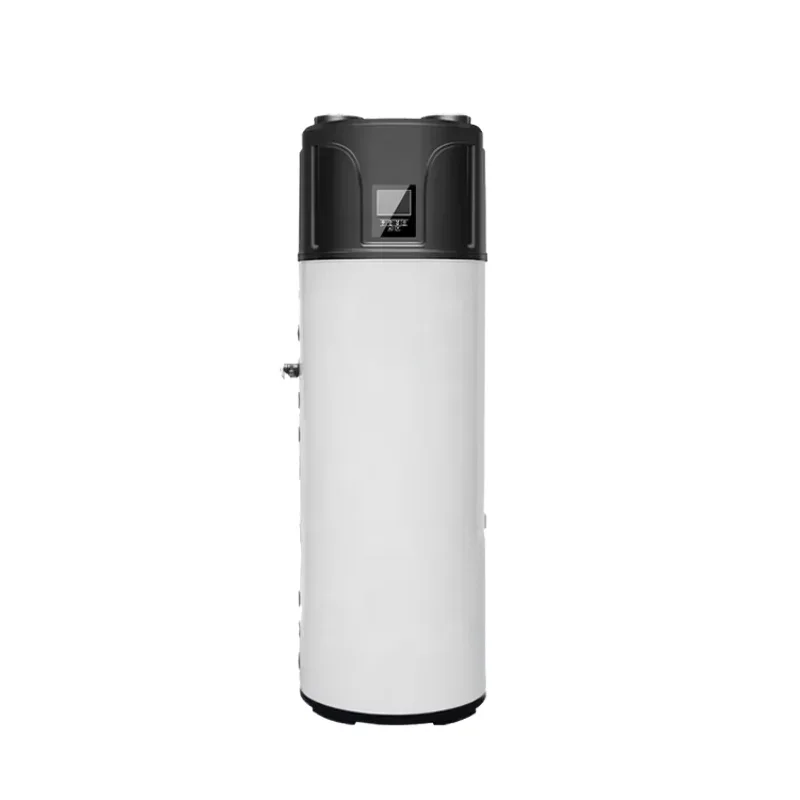

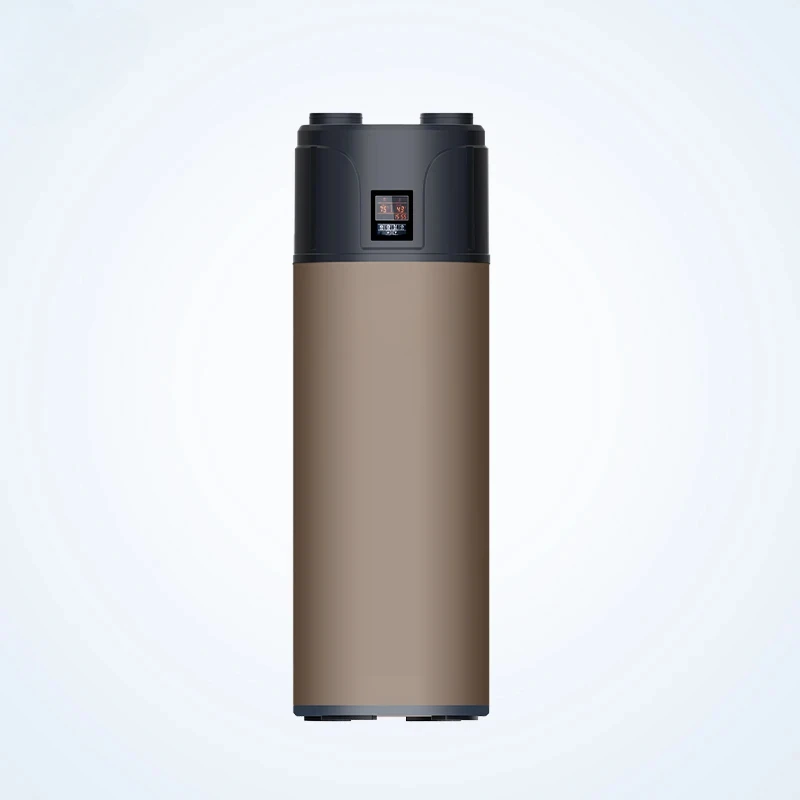

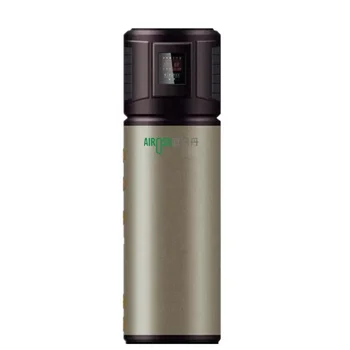

Air Source Heat Pump Water Heater R134A R290 Heat Pump All in One 150l 200l 300l Heat Pump Air Water

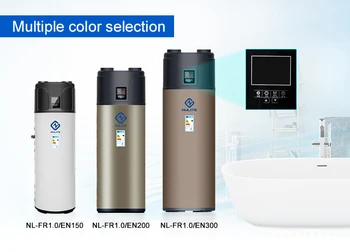

Model	Unit	NL-FR1.0/EN200	NL-FR1.0/EN300
Heating capacity	kw	1.8	3.0
Water tank volume	L	200	300
Hot water production	L/h	39	64
Power supply	V/Hz/Ph	220~240V/50/1	220~240V/50/1
Rated outlet water temp	鈩�	55	55
Max outlet water temp	鈩�	75	75
Rated input power	W	407	508
Current	A	1.85	2.3
Auxiliary electric heating	W	2000	2000
E-heating	A	9.1	9.1
Refrigerant	/	R134a/R290	R134a/R290
Compressor	/	Rotary	Rotary
Four-way value	/	SHF-4	SHF-4
Motor	/	YDK25/32	YDK25/32
Centrifugal fan	/	Φ190	Φ190
High pressure switch	MPa	3.0~2.4	3.0~2.4
Low pressure awitch	MPa	0.05~0.15	0.05~0.15
Ambient Temperature	/	-7~45	-7~45
Waterproof protection level	/	IPX4	IPX4
Product cabient	/	Galvanized powder coated steel
Material of water tank	/	Enamel water tank
Heat exchanger type	/	External coil
Evaporator	/	Hydrophilic aluminum foil
Throttling device	/	Electrical expansion value
Wire controller	/	Digital screen touch screen controller
Pipe diameter	inch	G1/2”	G1/2”
Built-in pressure prtection	MPa	0.8MPa	0.8MPa
Product dimensions	mm	Φ570*1750	Φ640*2000
Packing dimemsion	mm	710*680*1842	720*720*2135
Net weight	kg	112	142
Noise	dB(A)	≤48	≤51

Initial heating time:

the air-energy hot water machine heats a box of cold water at 15°C to set the temperature at 55°C for the time锛�

150L heating time: about 3 hours and 48 minutes
200L heating time: about 5 hours and 3 minutes
250L heating time: about 6 hours and 15 minutes

Daily heating time:

In daily use, use hot water while heating. The heating time is determined by the amount of hot water used. If you use more hot water, the heating time will be longer; if you use less hot water, the heating time will be shorter.
