My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy!

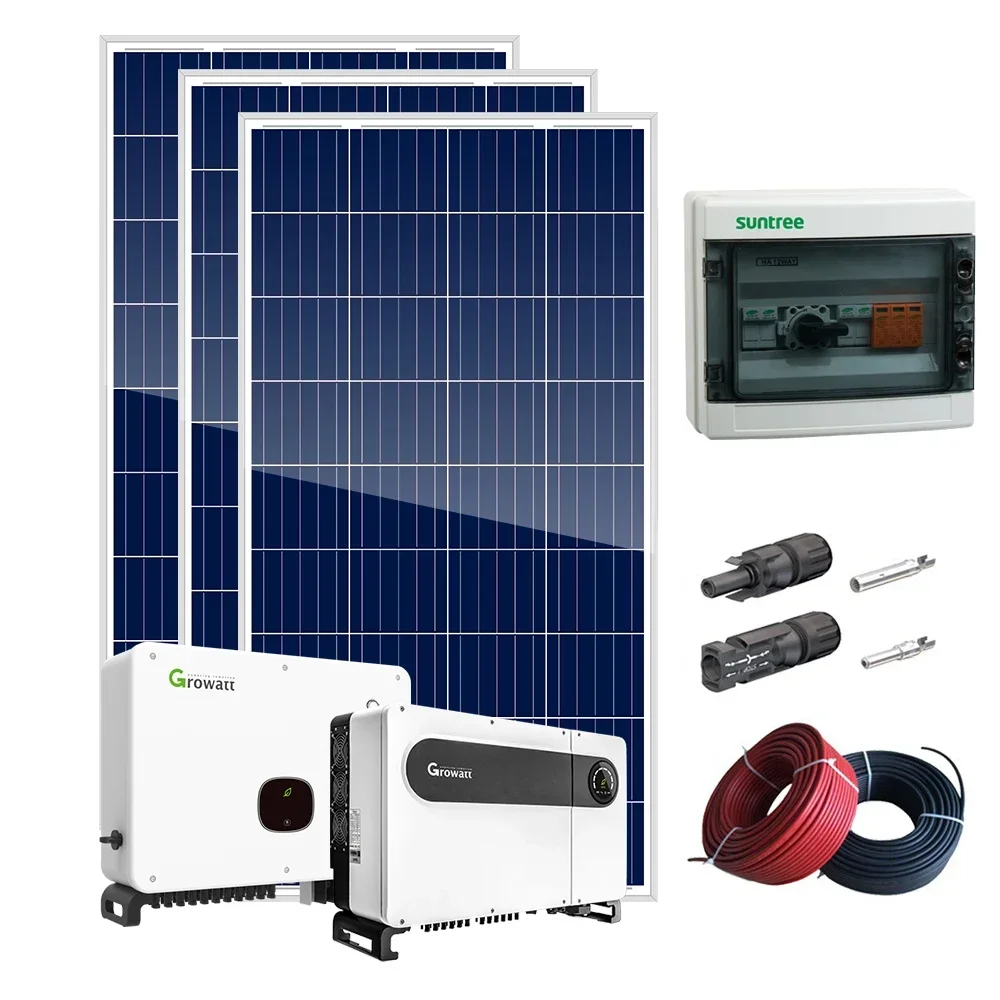

3KW 5KW 6KW 7KW whole set solar panel price inverter solar power home system 8KW 9KW 10KW 12KW
Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept – a solar system that is connected to the utility power grid.
Product Description
Advantages of On Grid Solar Systems
1. Save more money
Batteries, and other stand-alone equipment, are required for a fully functional off-grid solar system and add to costs as well as maintenance. Grid-tied solar systems are therefore generally cheaper and simpler to install.
2. No energy waste
Your solar panels will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.
Detailed Images
What’s Included:
Components | Description | Quantity | Unit |
Solar Panels | 270W | 46 | pcs |
String PV Inverter | 12KW | 1 | set |
Mounting racks | 12.42KW | 1 | set |
DC Cables | 4mm2 | 280 | meters |
AC Cables | 3×6+2×4 mm2 | 20 | meters |
PV Connectors | F&M | 12 | set |
Solar panels’ grounding wire | 4mm2,L=200mm | 50 | pieces |
Inverter’s grounding wire | 6mm2 | 50 | meters |
Earth electrode | L50x5,L=500mm | 1 | pcs |
Distribution box | 12KW | 1 | unit |

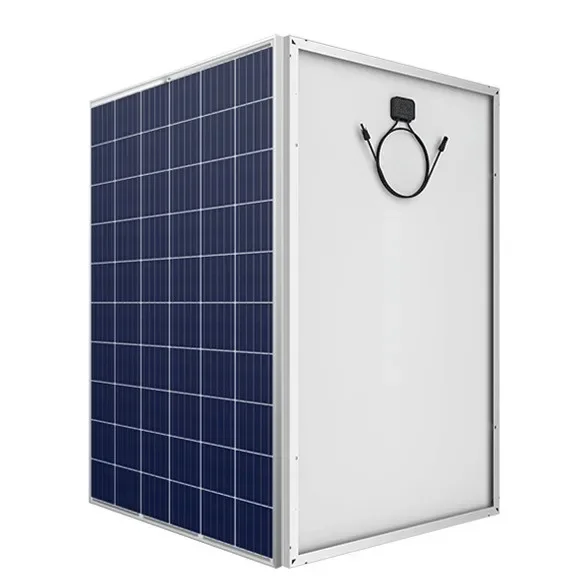

Solar panels
1. Brand:Sunket
2. Power(Pmax): 270 Wp
3. Dimension: 1640x992x40 mm
4. Working Voltage(Voc): 38.1V
5. Working Current(Imp):9.32A
6. Weight: 20 kg

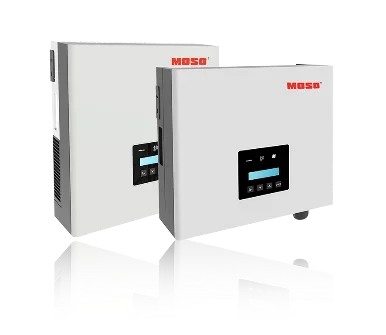

PV Grid Inverter
1. Brand:MOSO
2. Power: 12KW
3. String PV Inverter
4. Efficiency: >98%
5. Waterproof and dustproof grade:IP65
6. AC 220output
7.Working Temp: -25℃~60℃

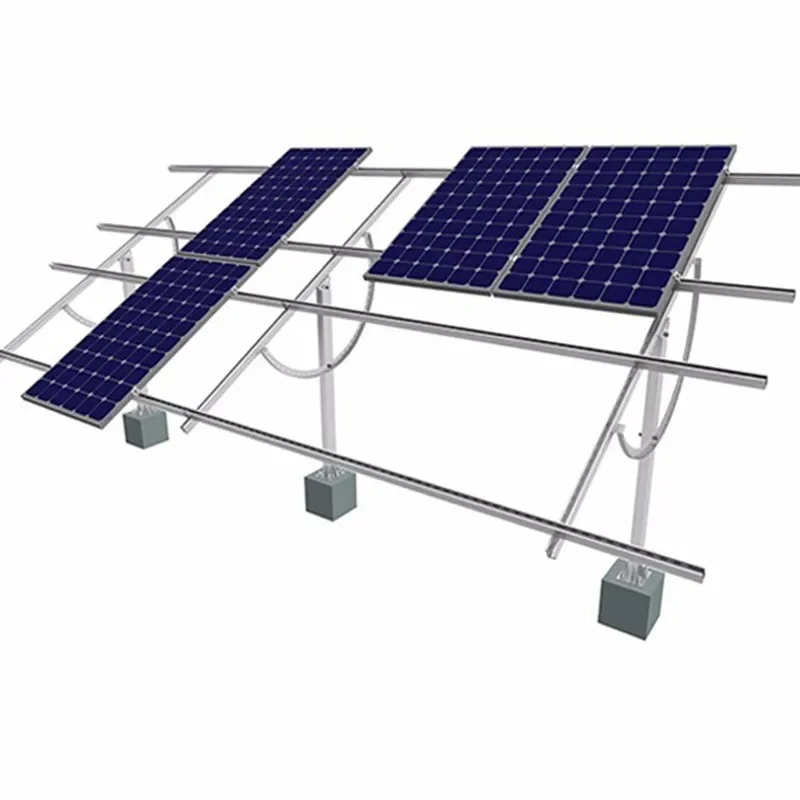

Mounting Bracket
Flat roof or Ground: Galvanized steel type;
Tile roof: Aluminium type
Wind Load Resistanc: 45m/s
Snow Load: 2kN/m2
DC Cable & PV Connector
PV1-F
TUV/UL certificates

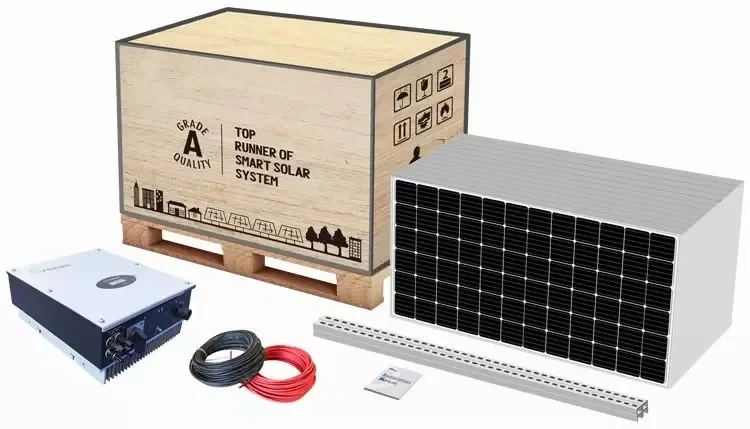

Packing & Delivery

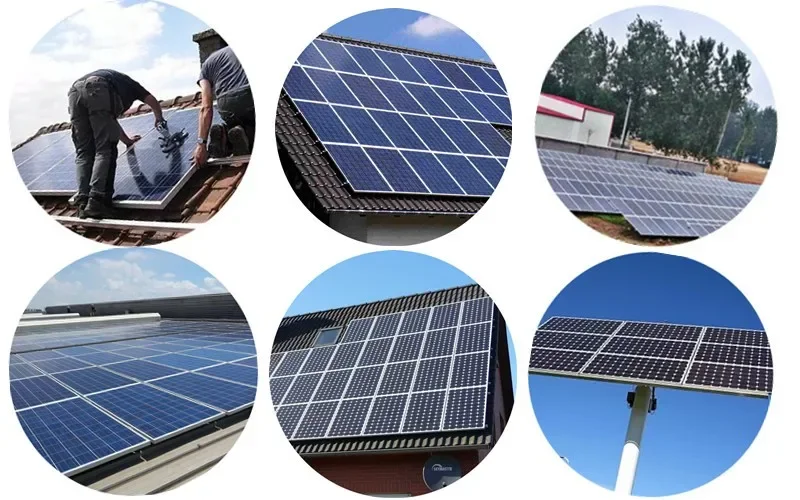

Application
Our Company
