Return To Shop- Please choose product options by visiting 48v 200ah battery lifepo4 Portable On-Grid Off-Grid Hybrid Solar Panel System All in One Complete Kit for Home Lighting.
- Brand Name: xinpuguang
- Origin: Mainland China
- Number of Panels: 1
- Flexible Solar Panel: No
- Foldable Solar Panel: No
- Hign-concerned Chemical: None
- Type: Solar Panel
- Module Efficien: 24%
- Model Number: Solar panel
- Max. power: 200W
- Size: 1160*700*25mm /1235*680*25mm
- Material: Monocrystalline Silicon
- Nominal Capacity: 200W
- Number of Cells: 32 cells
- is_customized: Yes
- Certification: CE, FCC, RoHS, weee

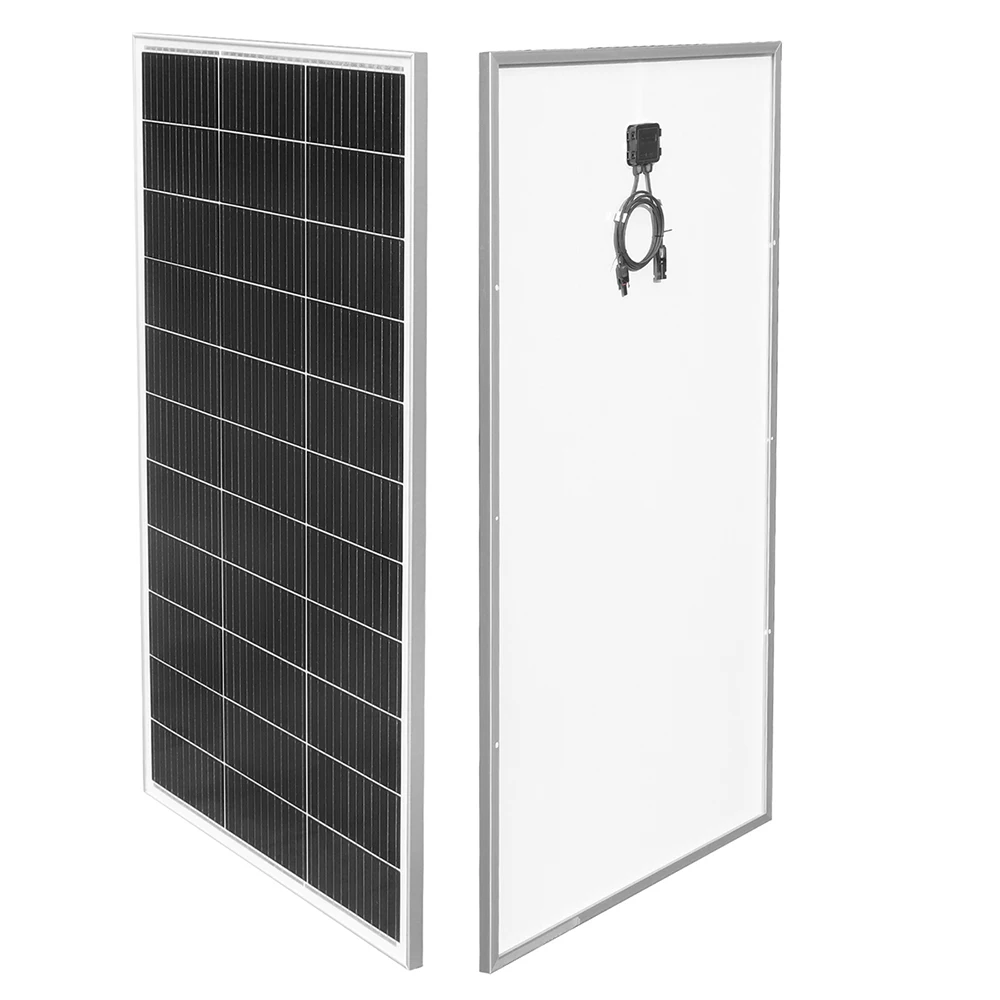

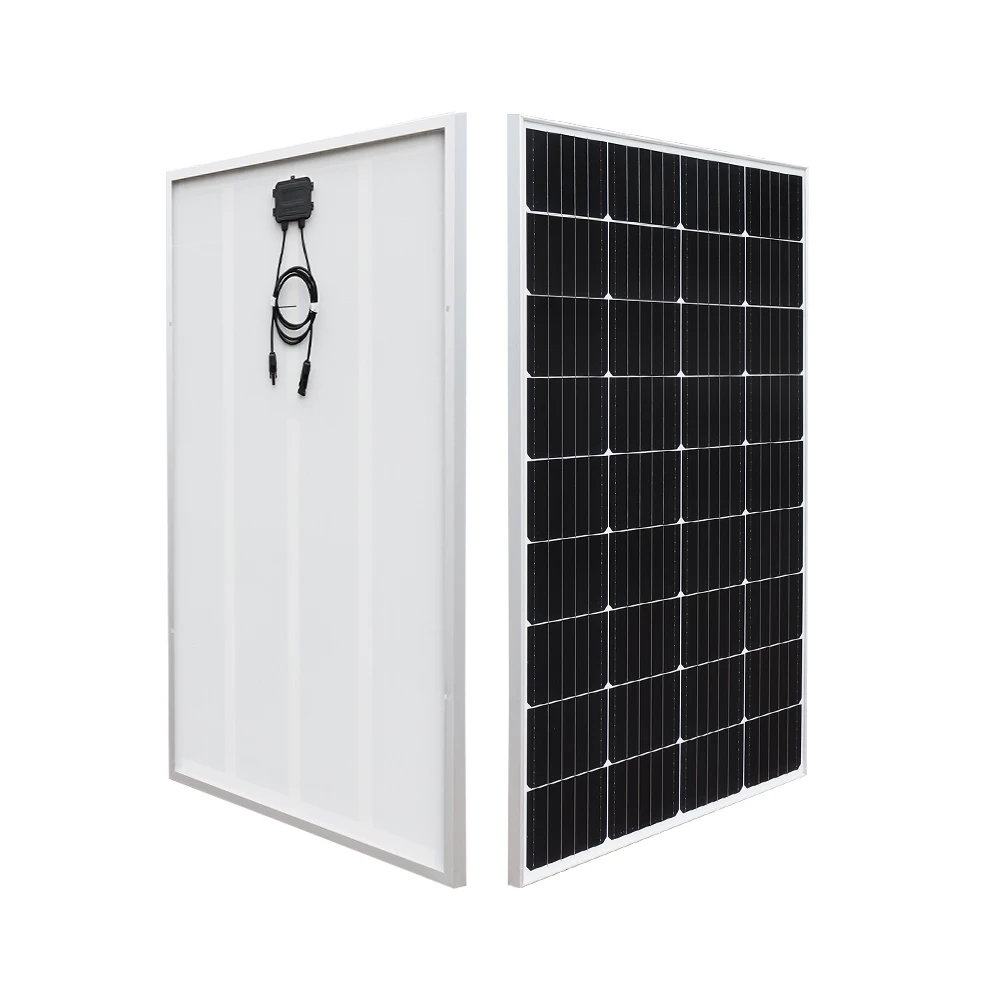

200W Glass Solar Panel 18.15V /19.8V/ Solar Panels Mounting Bracket House Balcony Car Solar modulel for charging many types battery
This link has three options.
There are solar panel mounts/two different voltage 200W power solar panels, same power, different voltage.
18.15V 200W Solar Panel Specification:
Maximum power(Pmax) 200W
Output tolerance ± 5%
Maximum system voltage 1000V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 11A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 11.55A
Cell efficiency 23%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Cell Monocrystalline silicon
Number of cells 33pcs
Weight 8.62kg
Size 1235*680*25*20mm
Surface material Toughened glass
Back film Color White
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades

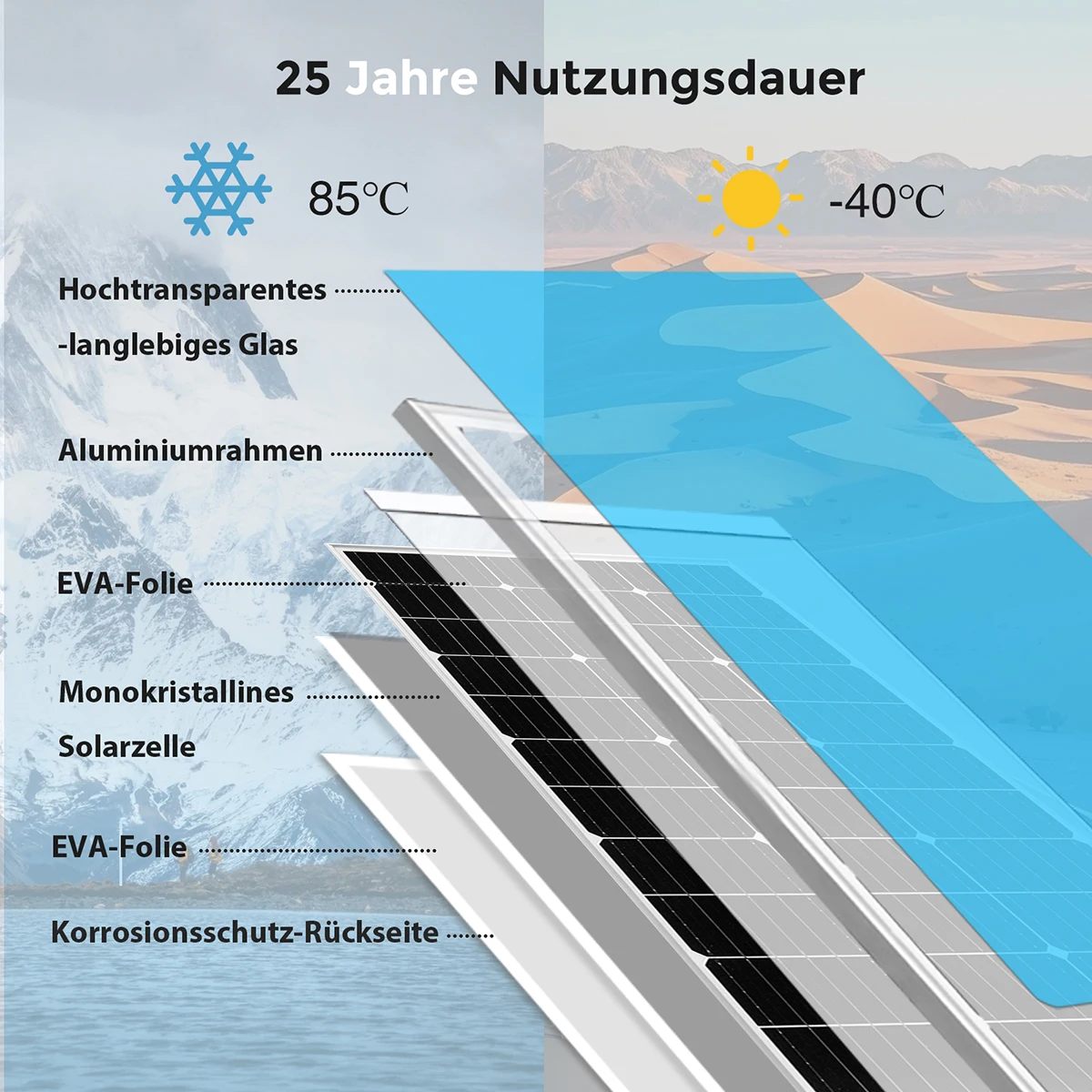

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

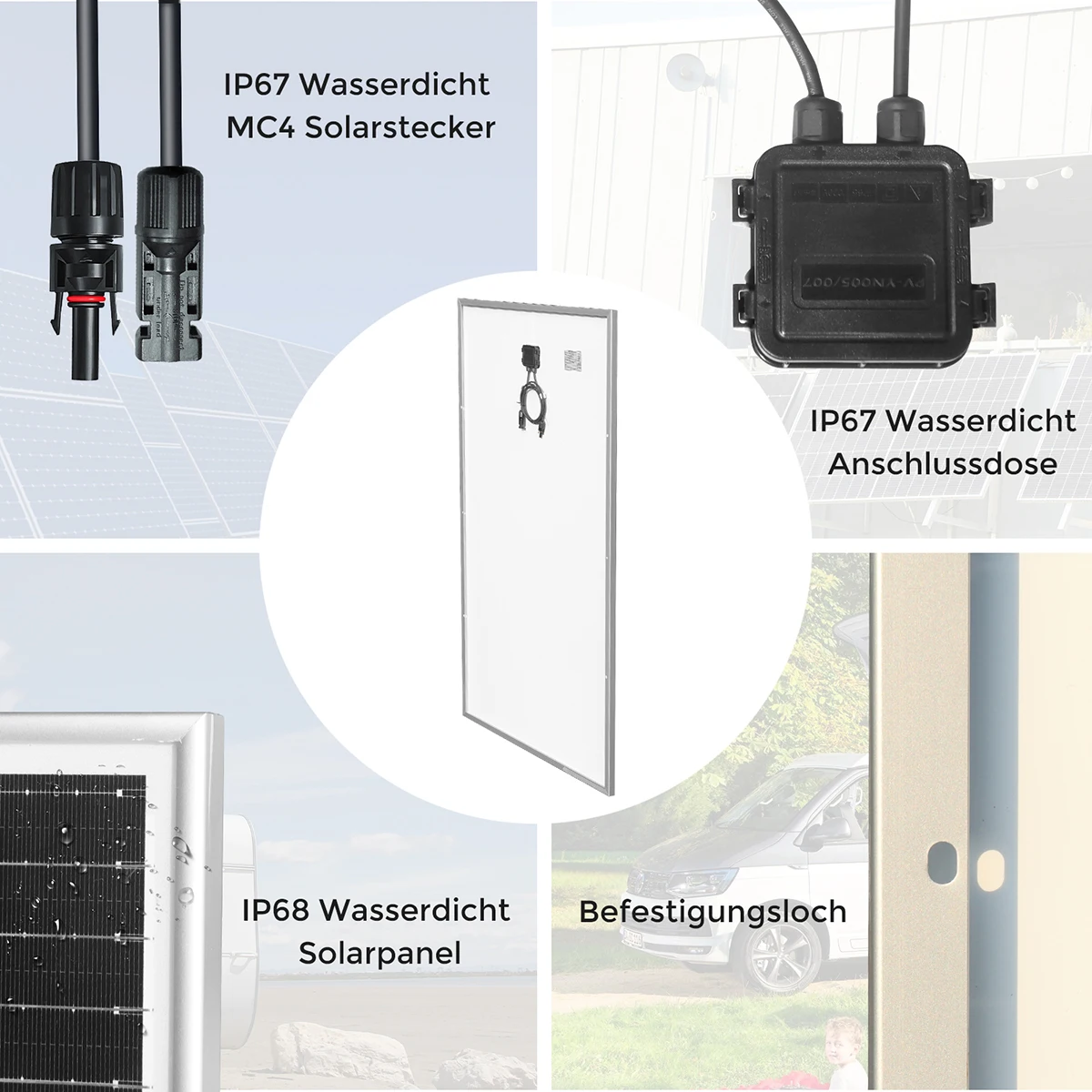

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
19.8V 200W Solar Panel
Vmp(Voltage at Max Power, V)： 19.8V
Voc(Voltage at Open Circuit, V)： 23.76 V
Output Tolerance: ±3%
Diode: 2 By Pass
Junction Box: IP67 Rated
Temperature range: -20℃-+80℃
Frame: Heavy & Solid Aluminum Alloy
Kind of Glass: 3.2mm Tempered glass
Output Cable: 2.5mm²/14AWG 90mm/3.54＂
Dimensions: 1140*700*25mm
Weight: 7.96kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5
(The above data is based on the laboratory standard test environment)
Glass solar panels have a service life of about 25 years
2 years warranty
STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5
Glass solar panels have a service life of about 25 years

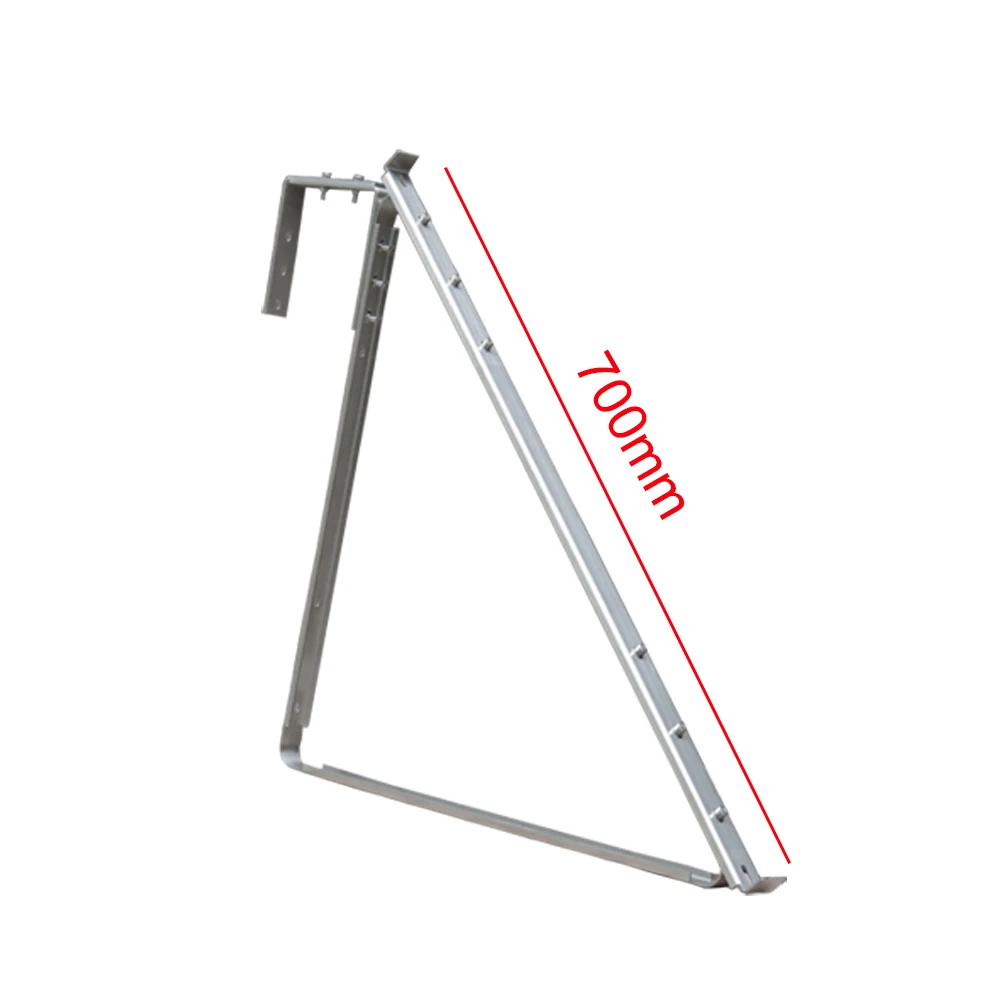

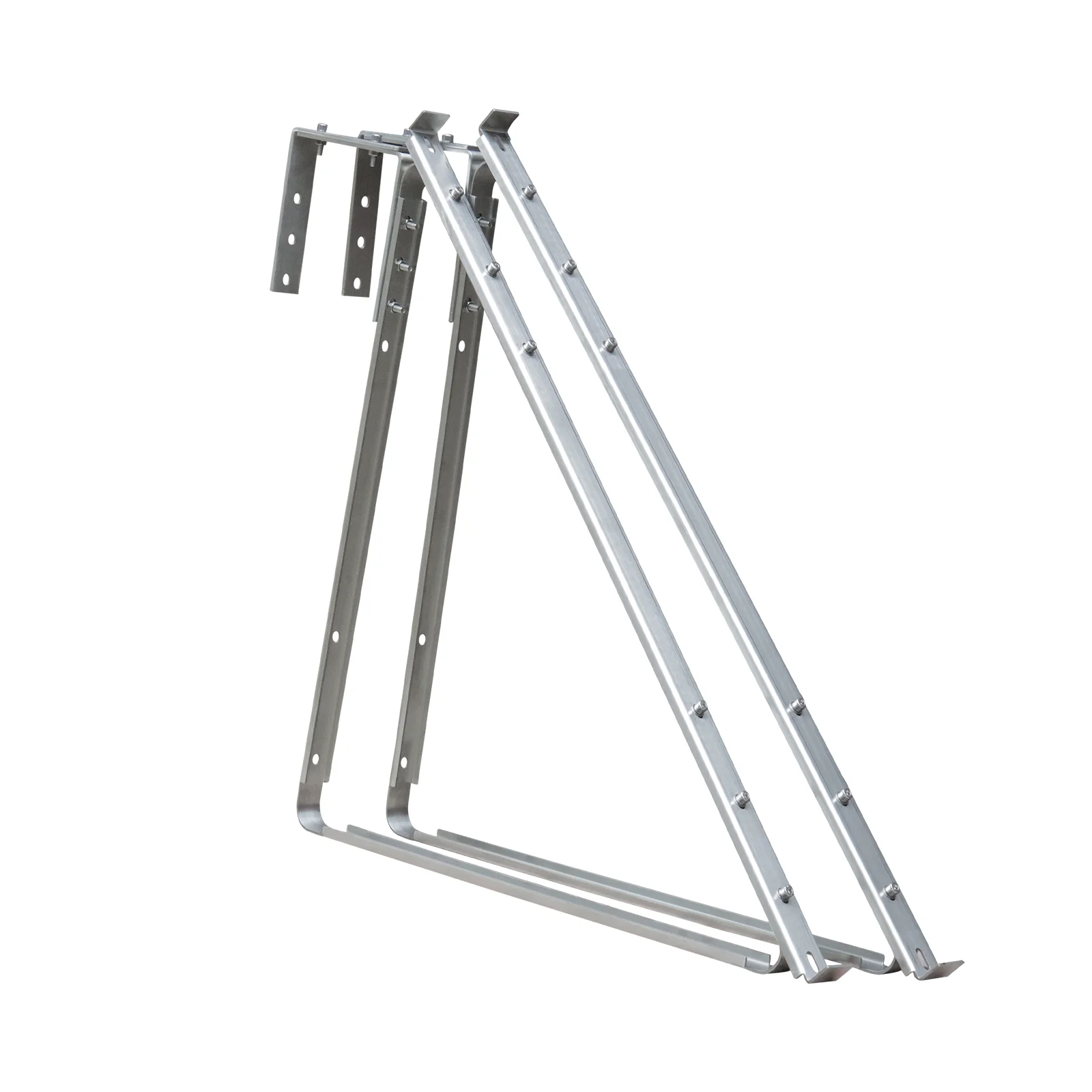

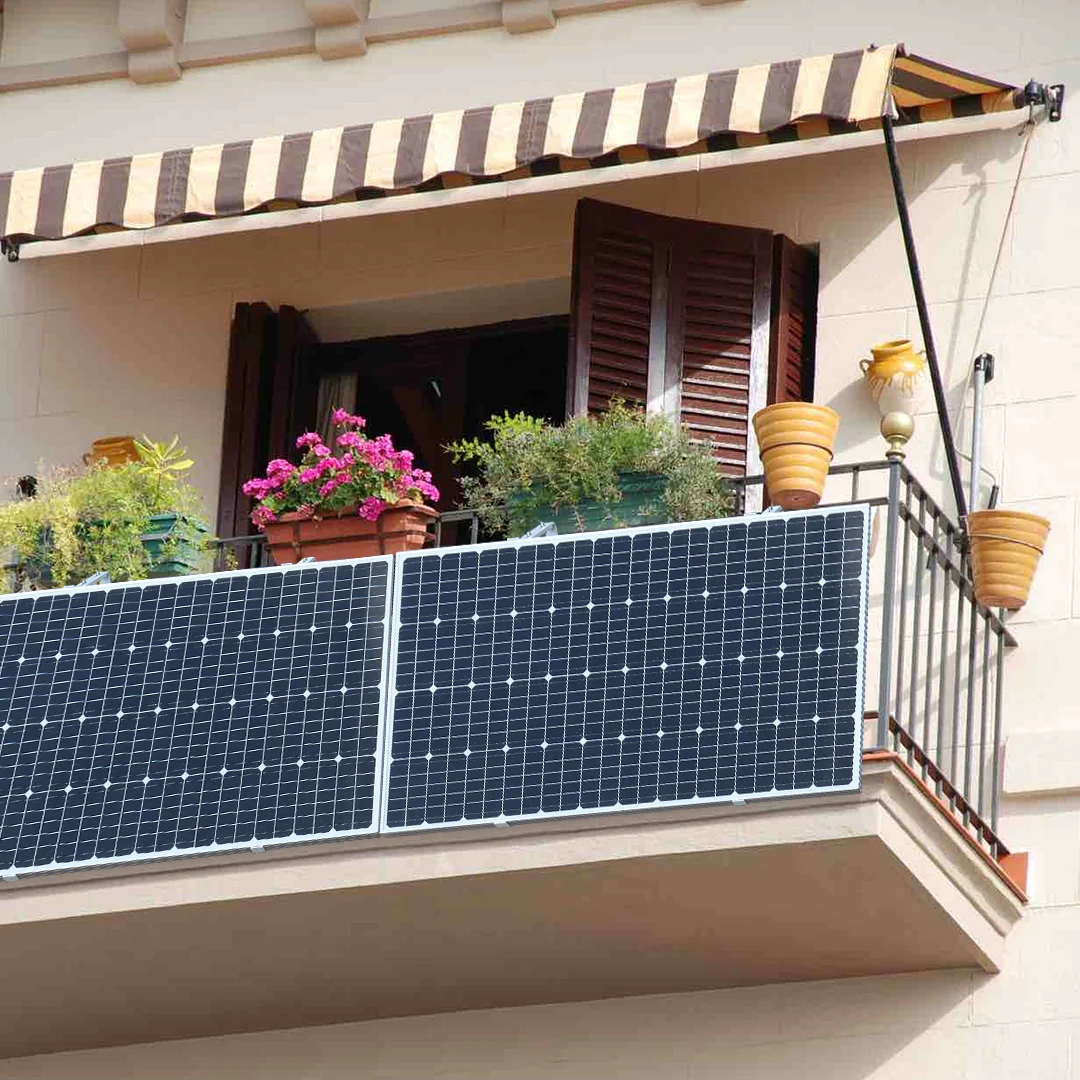

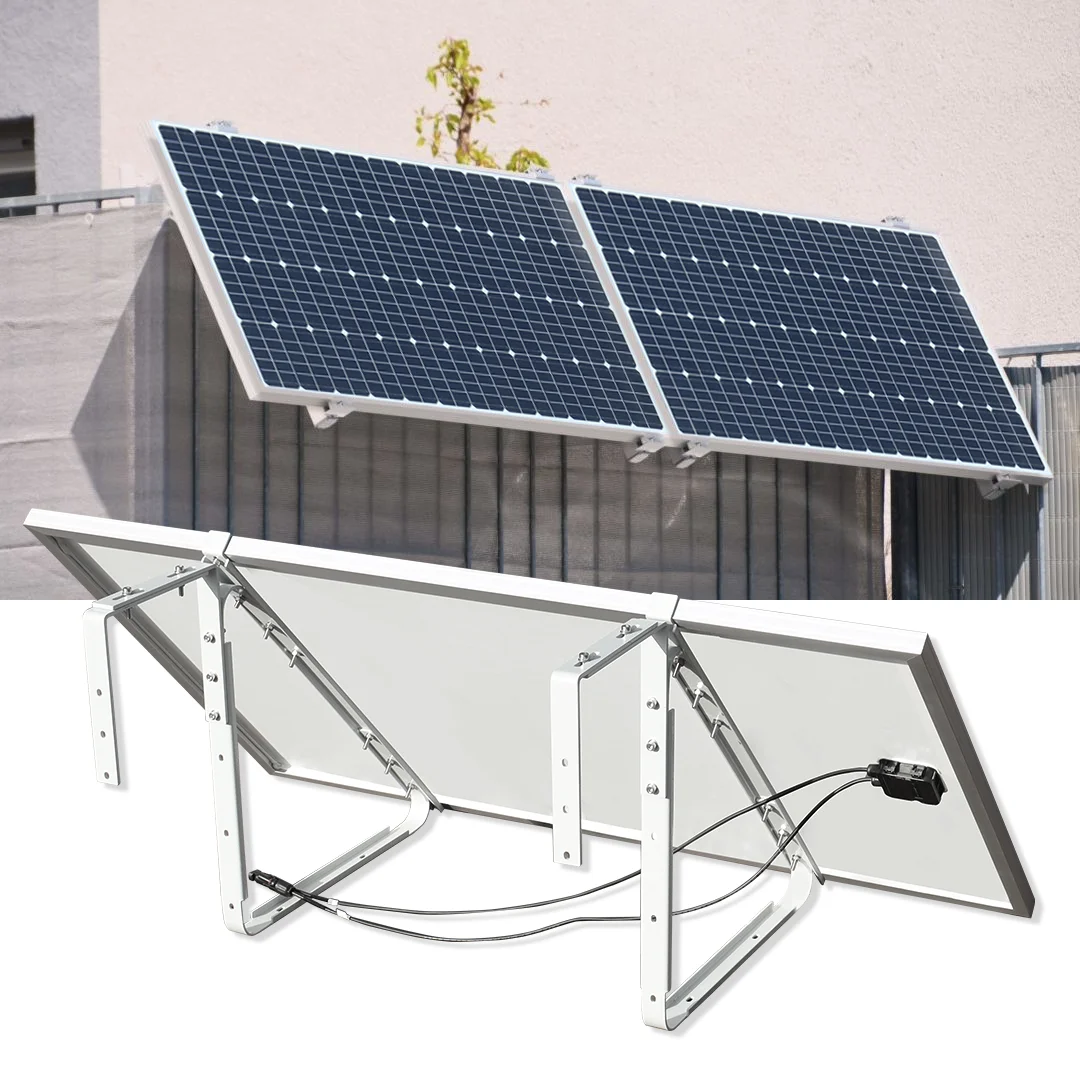

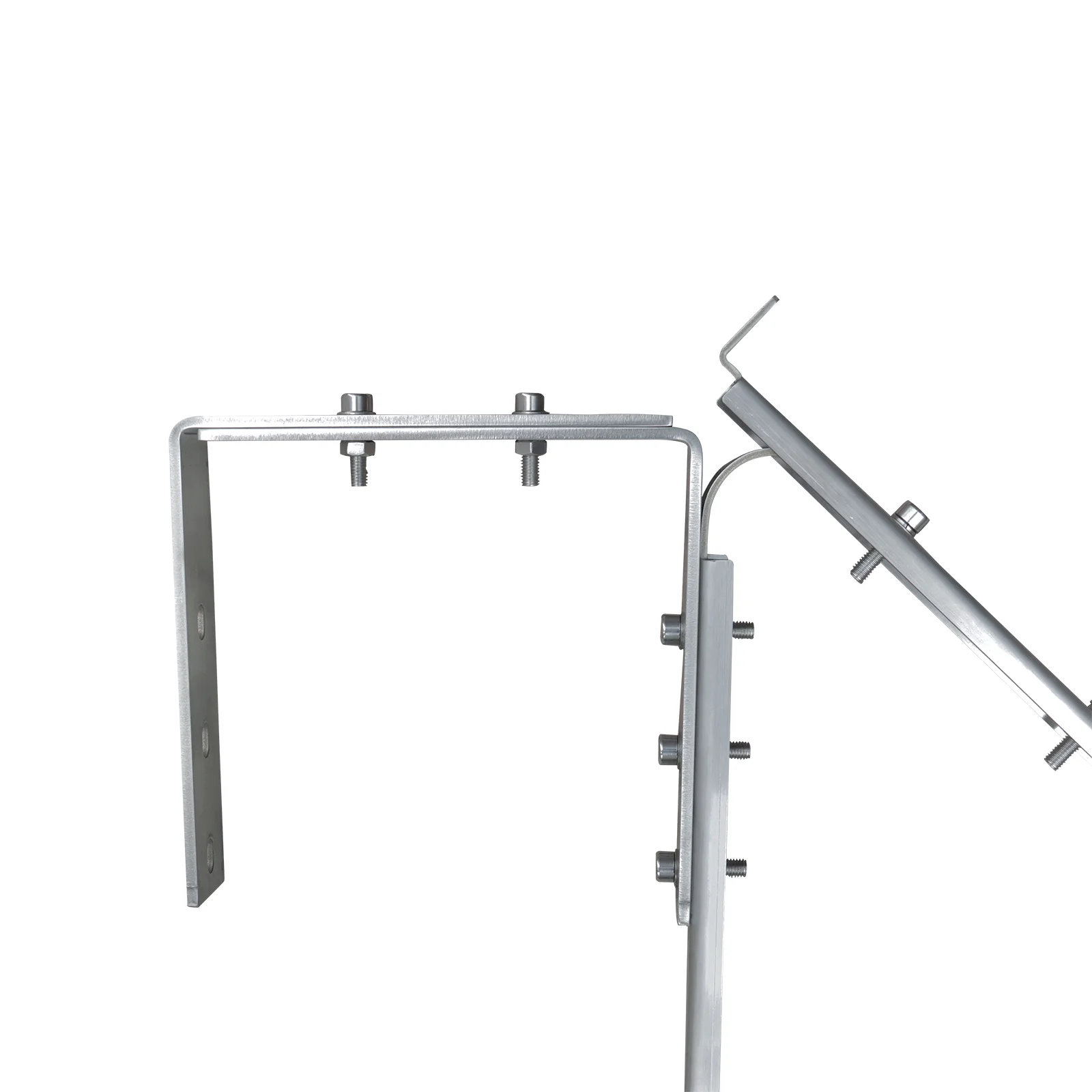

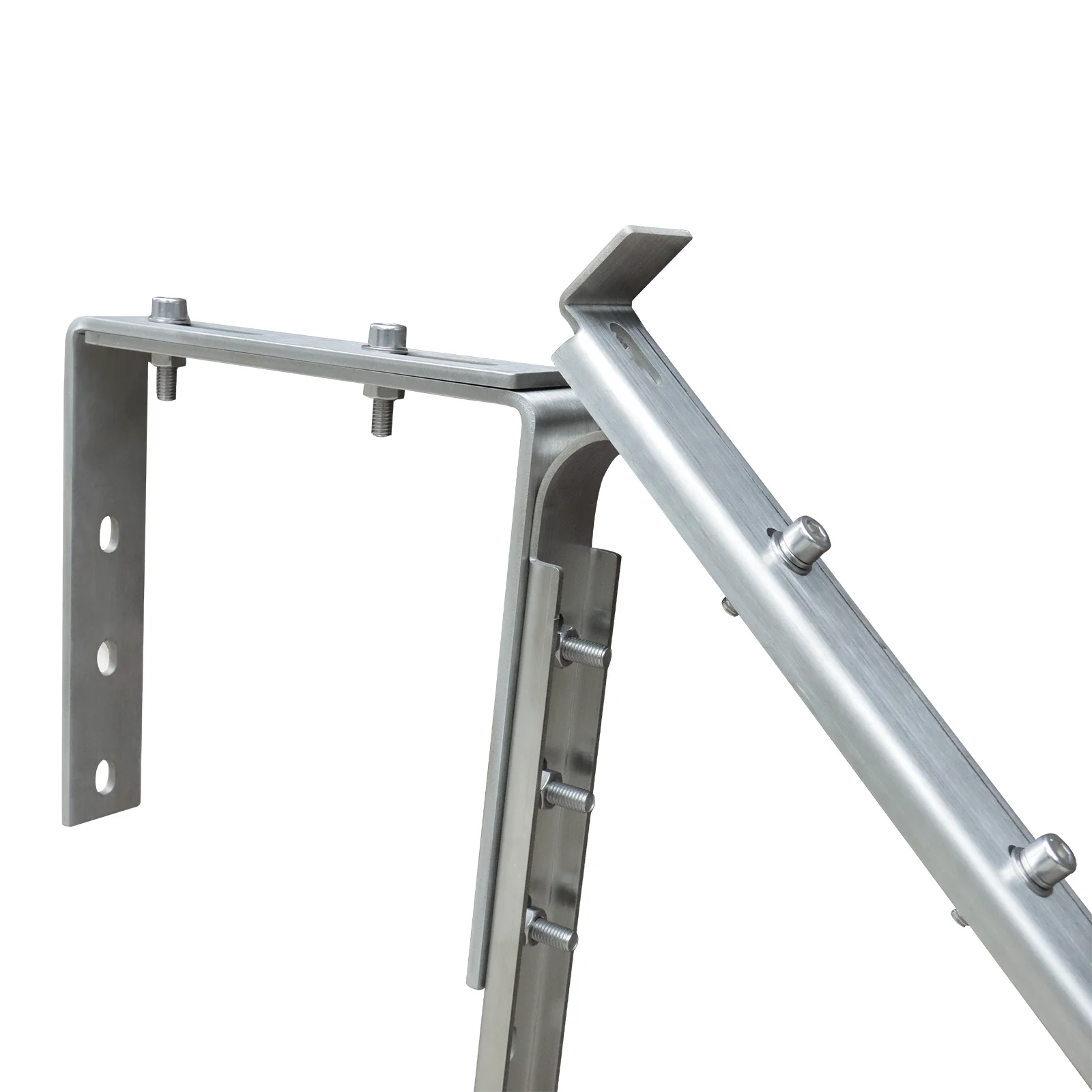

Solar Panel Mounting Bracket for Balcony/Fence

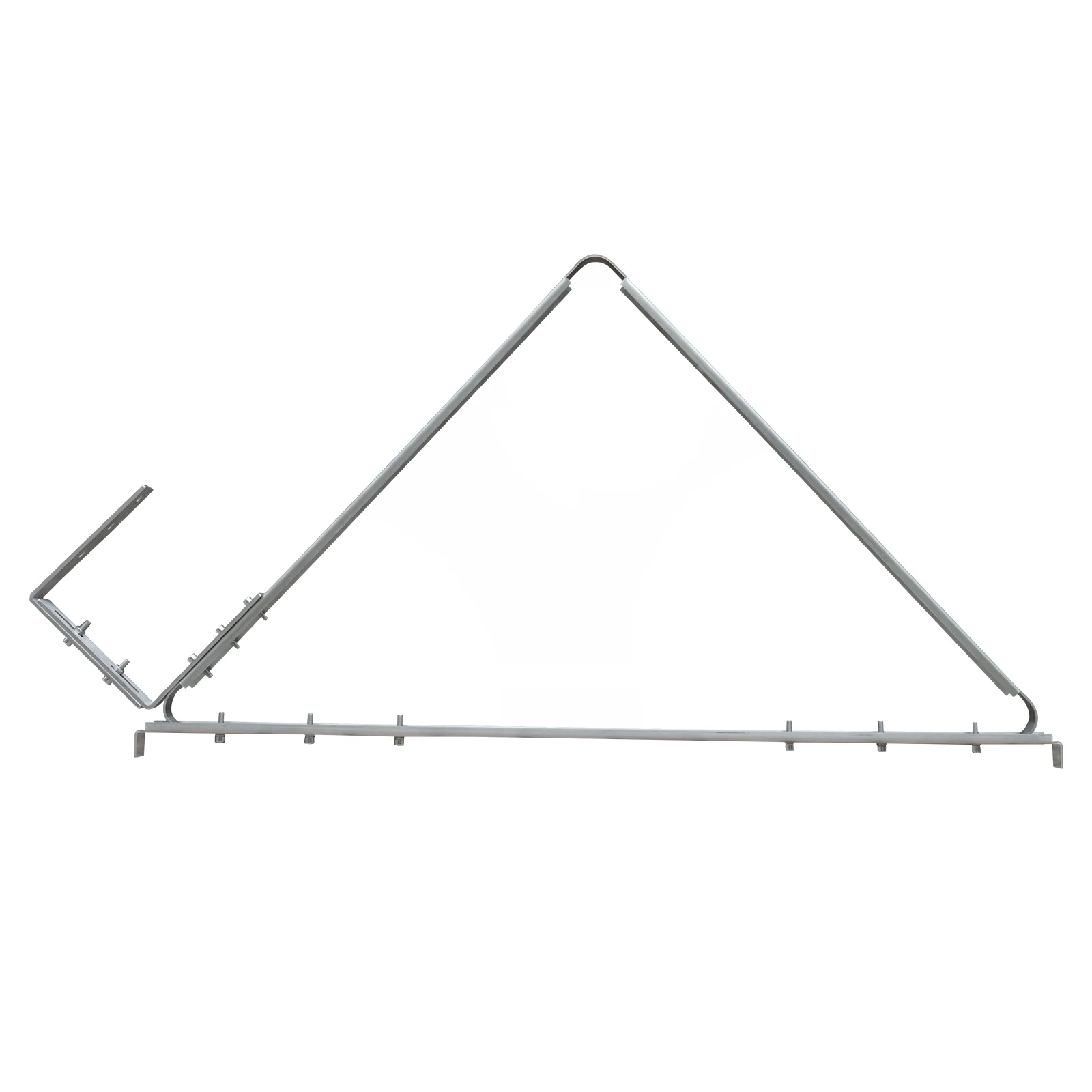

Solar panel and bracket mounting diagram

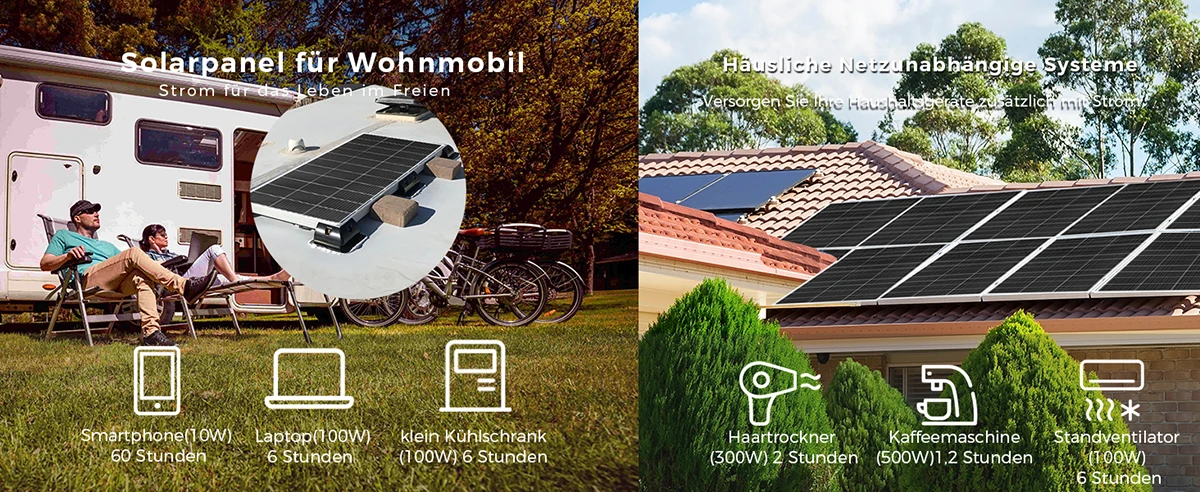

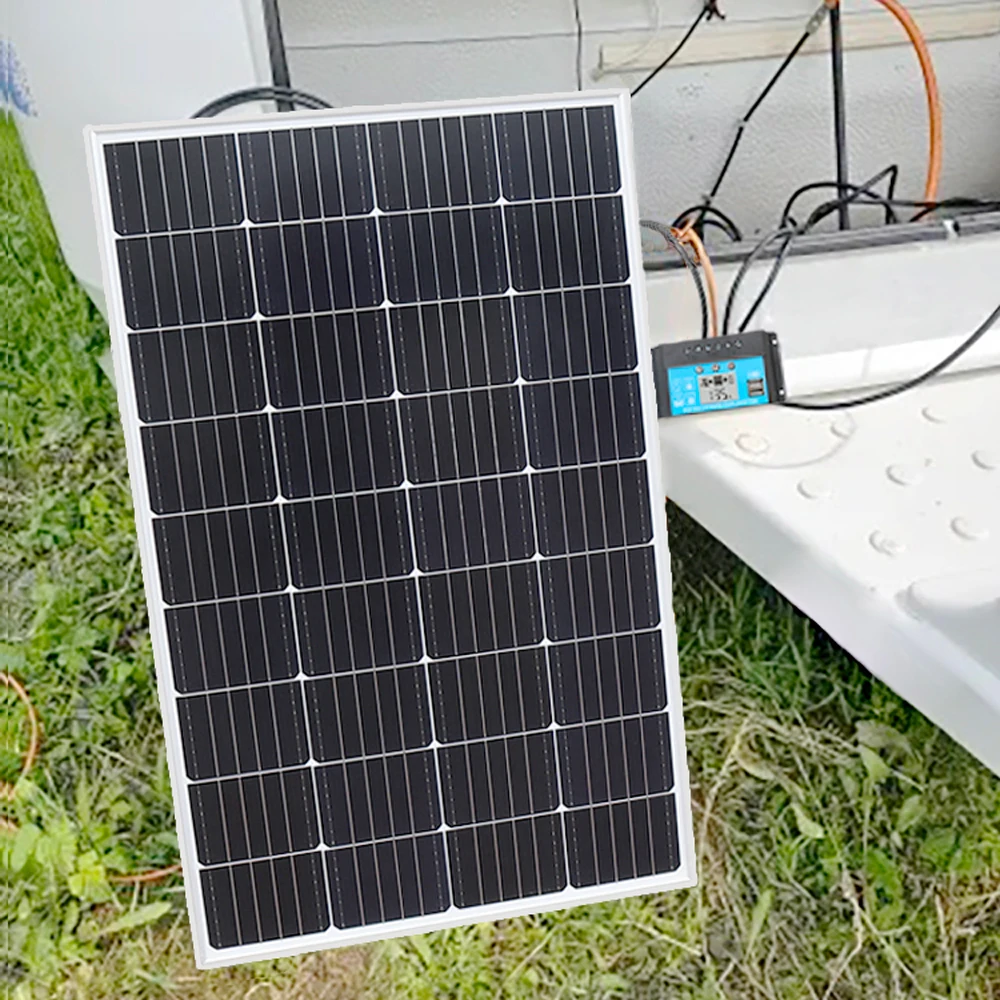

Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.
Solar panels can be used for grid-tied solar panel systems
Solar panels can be connected to a DC water pump for power
