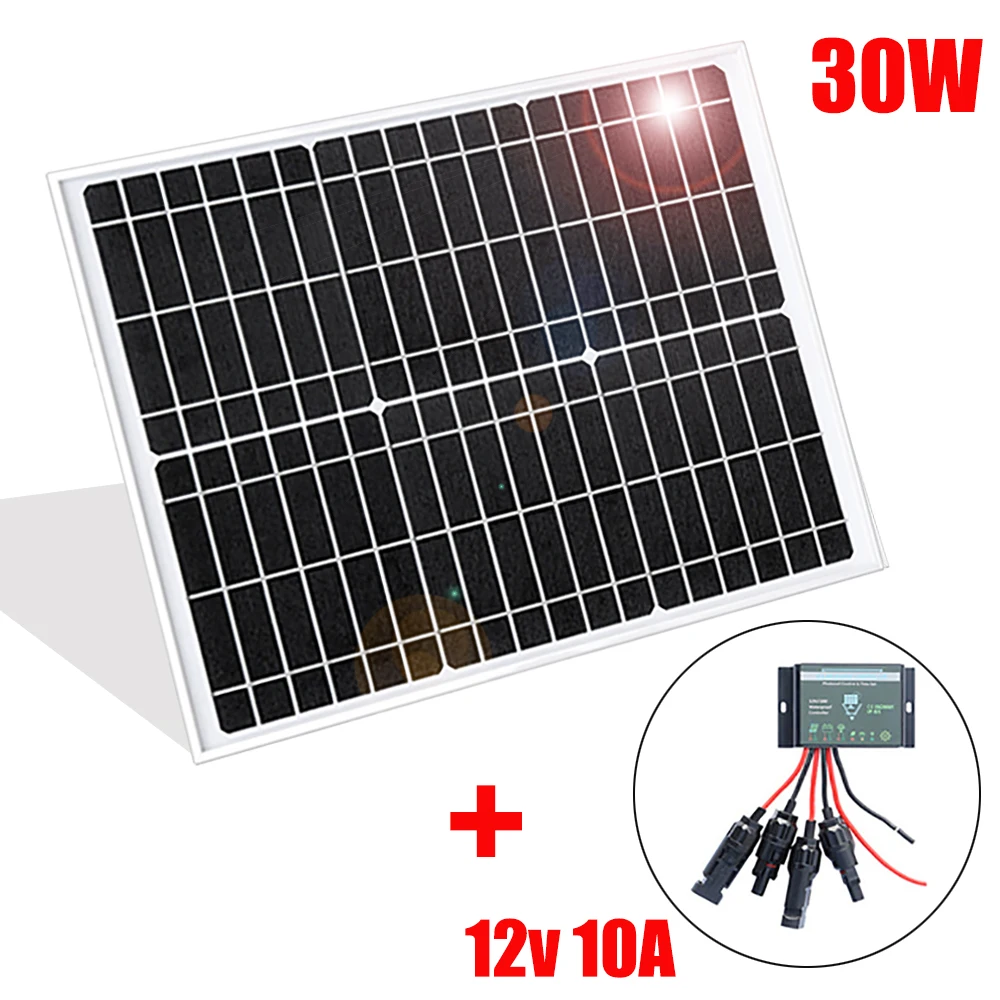

200w 150w 80w 30w 12v rigid solar panel tempered glass aluminum frame home system camper yacht 12v battery charger DHL Freeship

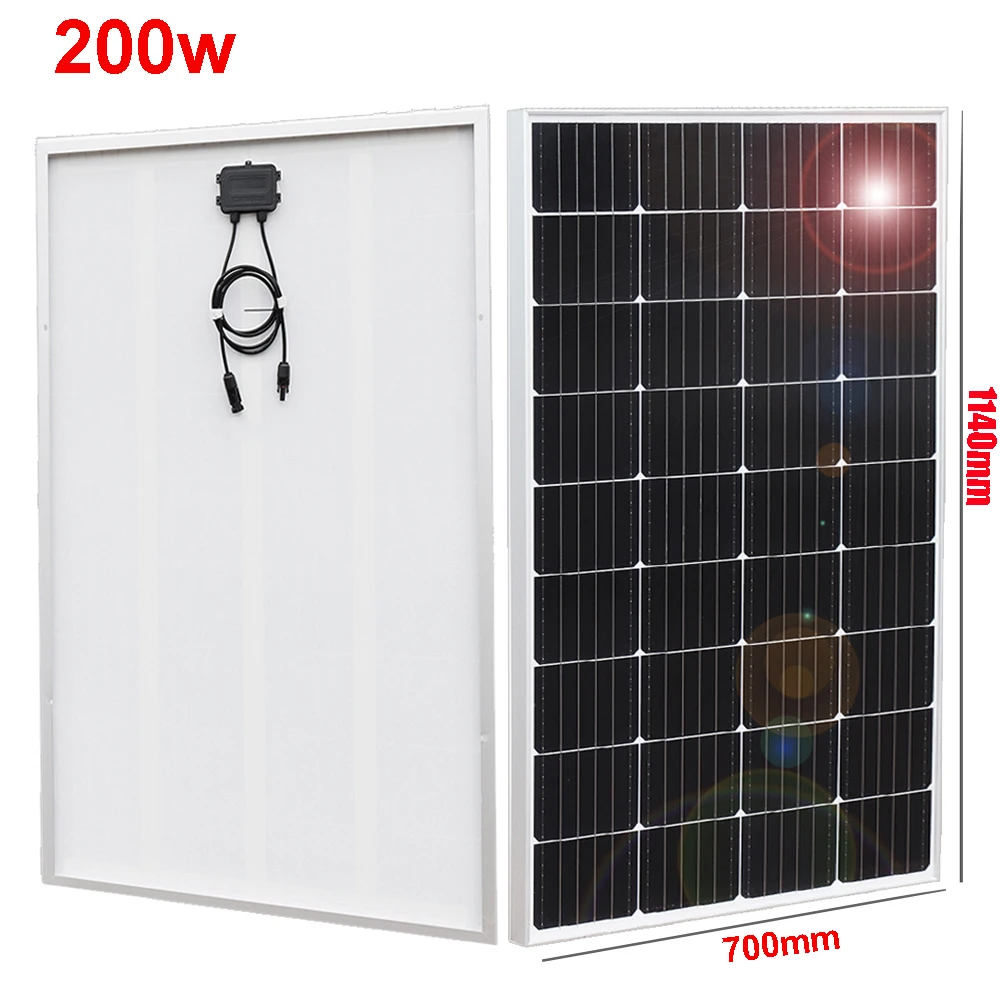

200W Solar Panel Rigid

Maximum power(Pmax) 200W

Vmp(Voltage at Max Power, V)： 19.8V

Voc(Voltage at Open Circuit, V)： 23.76 V

Output Tolerance: 3%

Diode: 2 By Pass

Junction Box: IP67 Rated

Temperature range: -20℃-+80℃

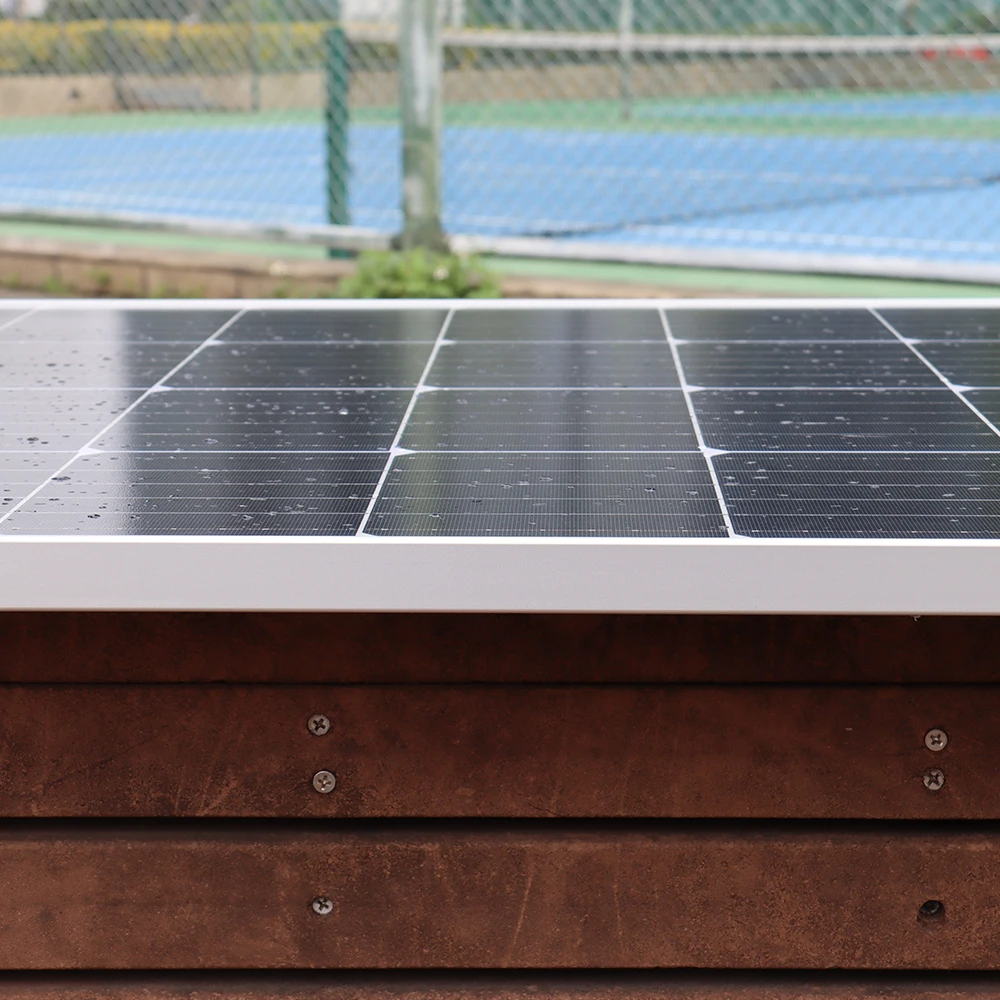

Frame: Heavy & Solid Aluminum Alloy

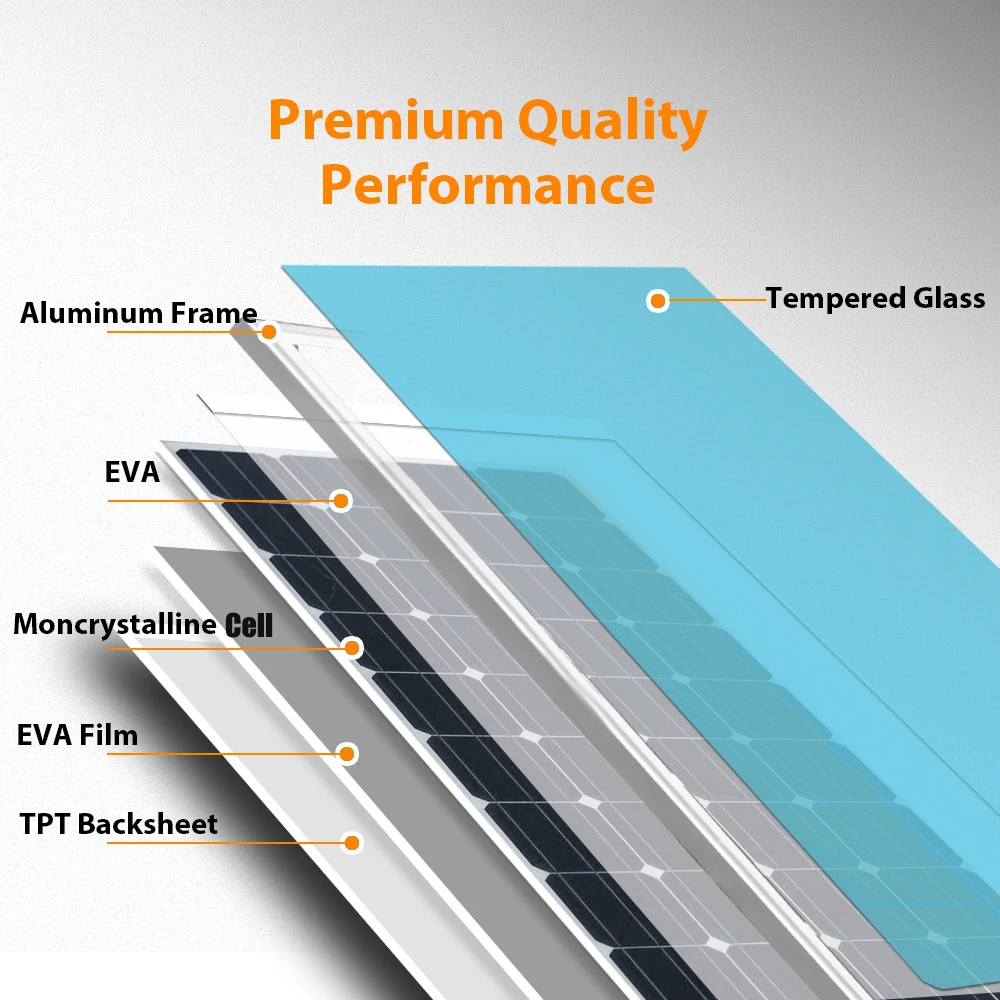

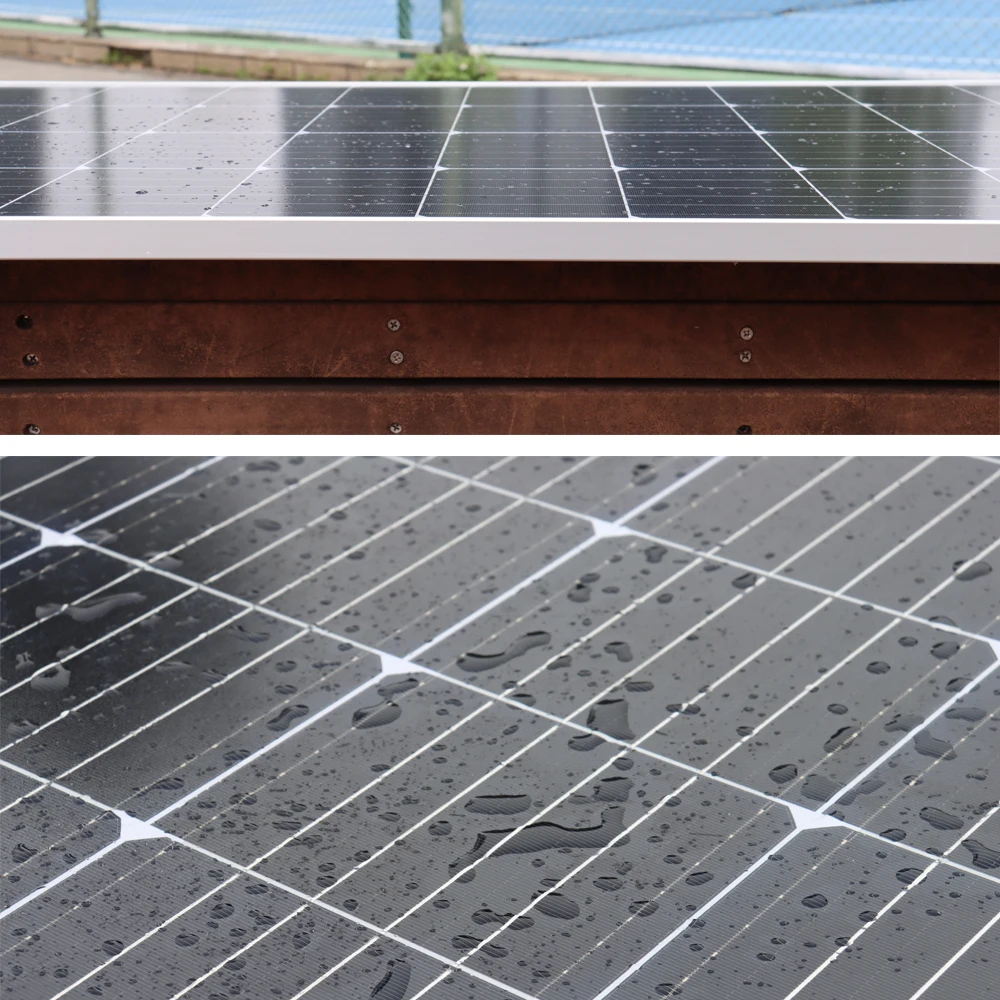

Kind of Glass: 3.2mm Tempered glass

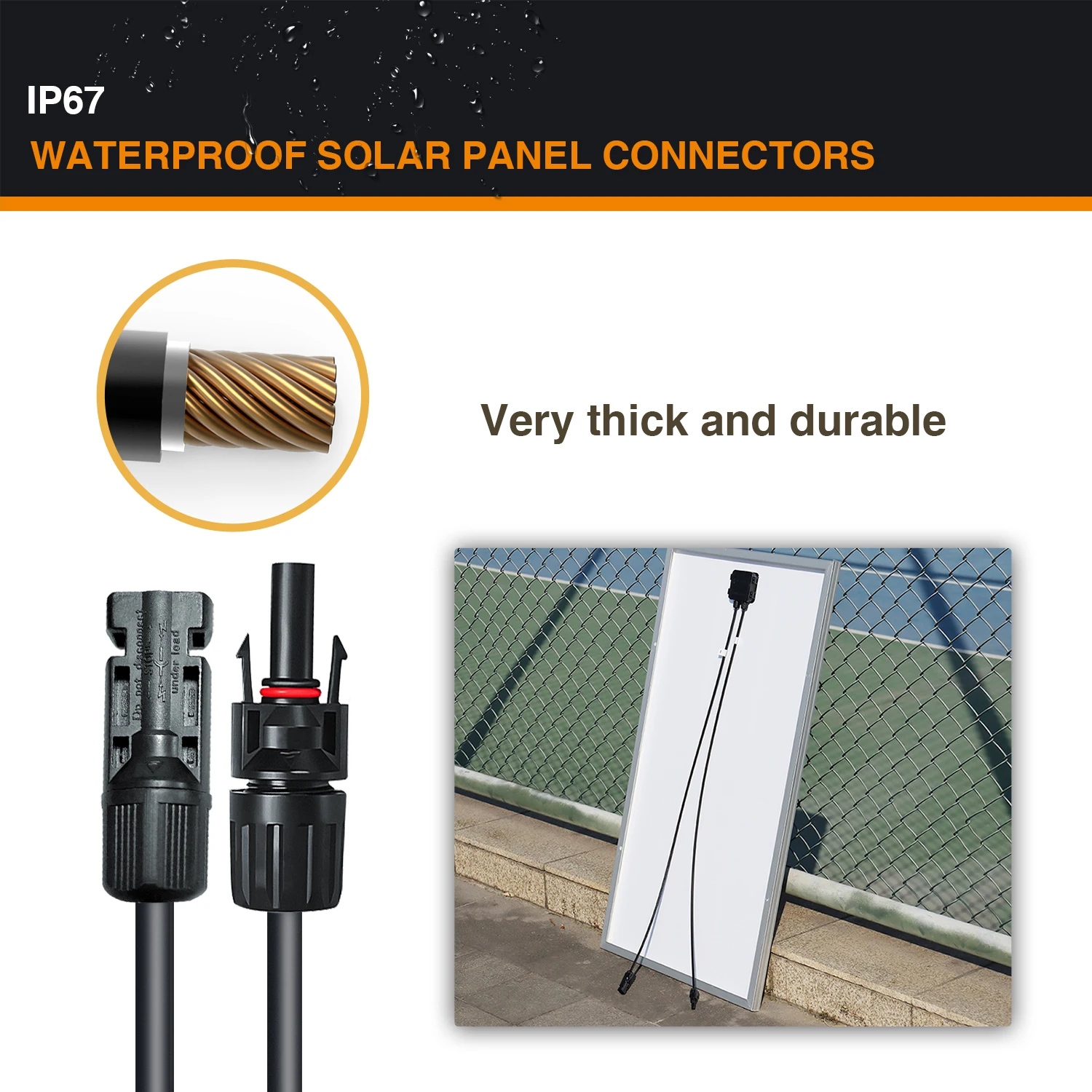

Output Cable: 2.5mm²/14AWG 90mm/3.54＂

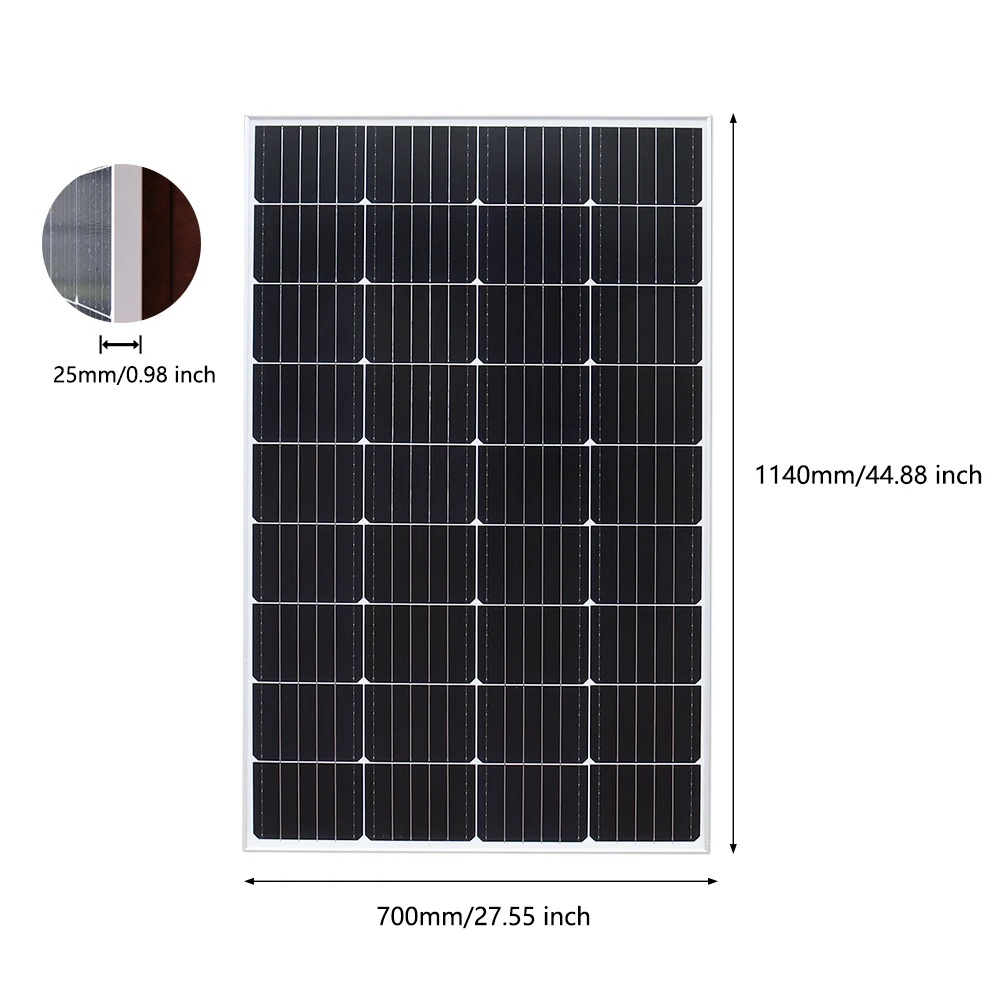

Dimensions: 1140*700*25mm

Weight: 7.96kg

Max System Voltage : 1000V DC(IEC)/600V DC (UL)

STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5

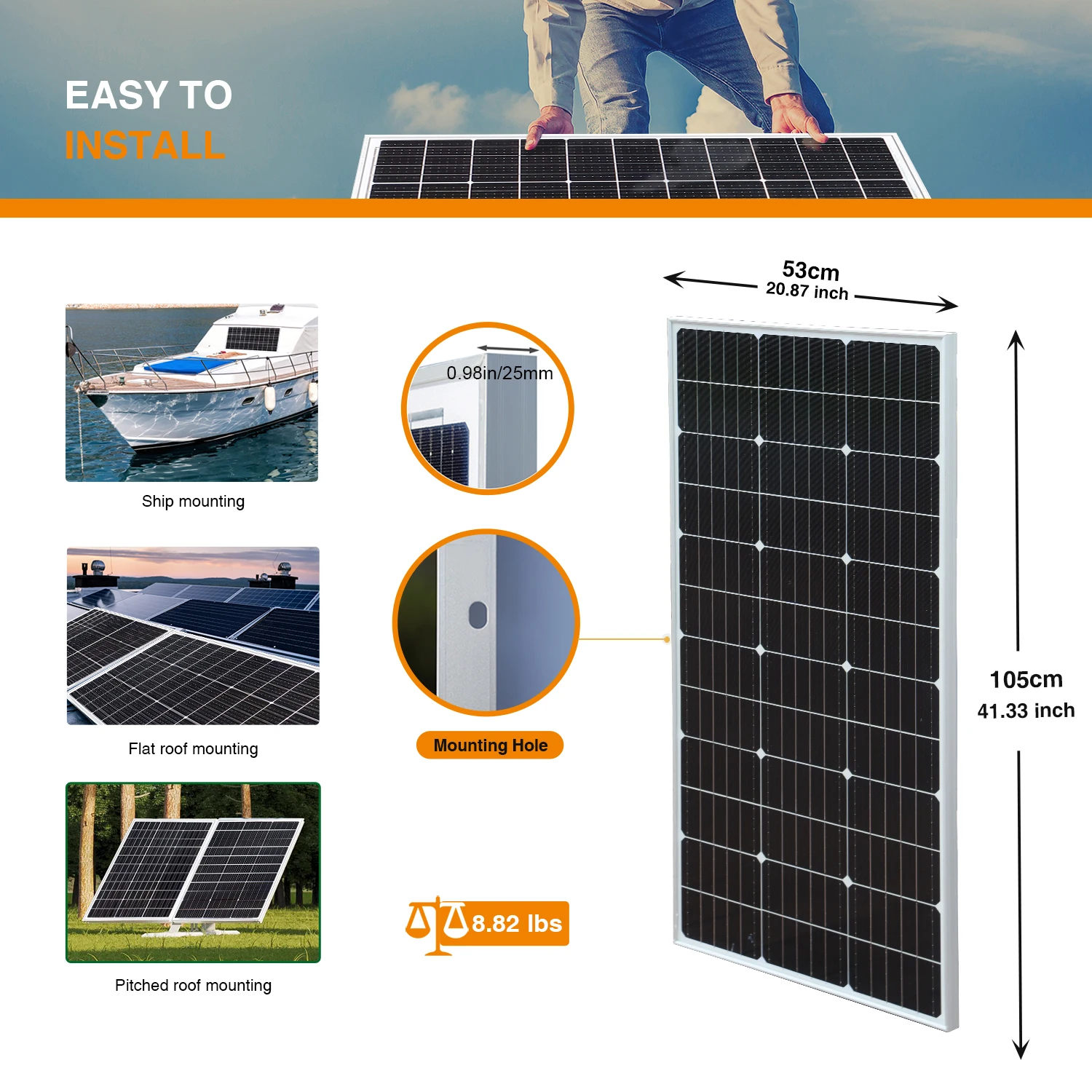

150w solar panel rigid

Monocrystallline Glass Solar Panel

Maximum power(Pmax) ： 150W

Maximum system voltage ： 1000V DC

Open circuit voltage(Voc)： 23.76V

Maximum power voltage(Vmp) ： 19.8V

Operating temperature（NOCT）： 45±2℃

Temperature range： -40℃～+80℃

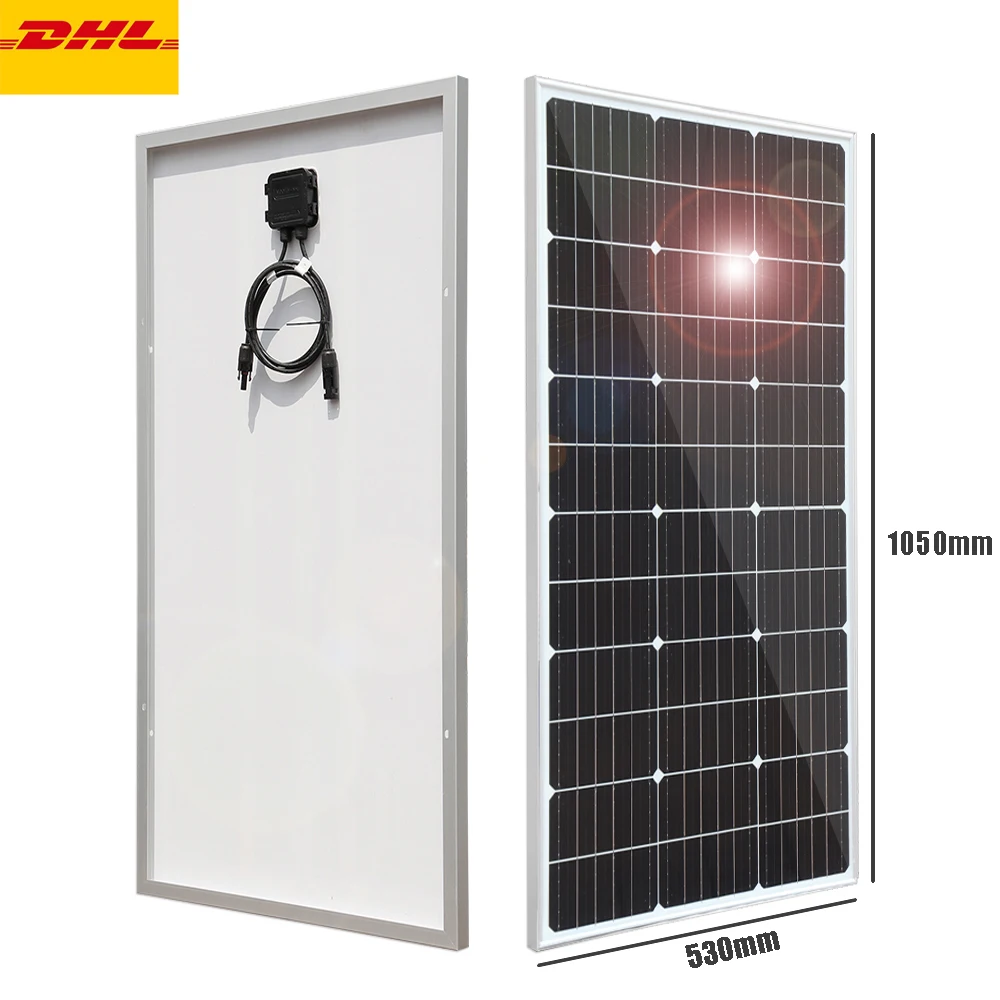

Size ： 1050*530*25mm

Weight: 6.8kg

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

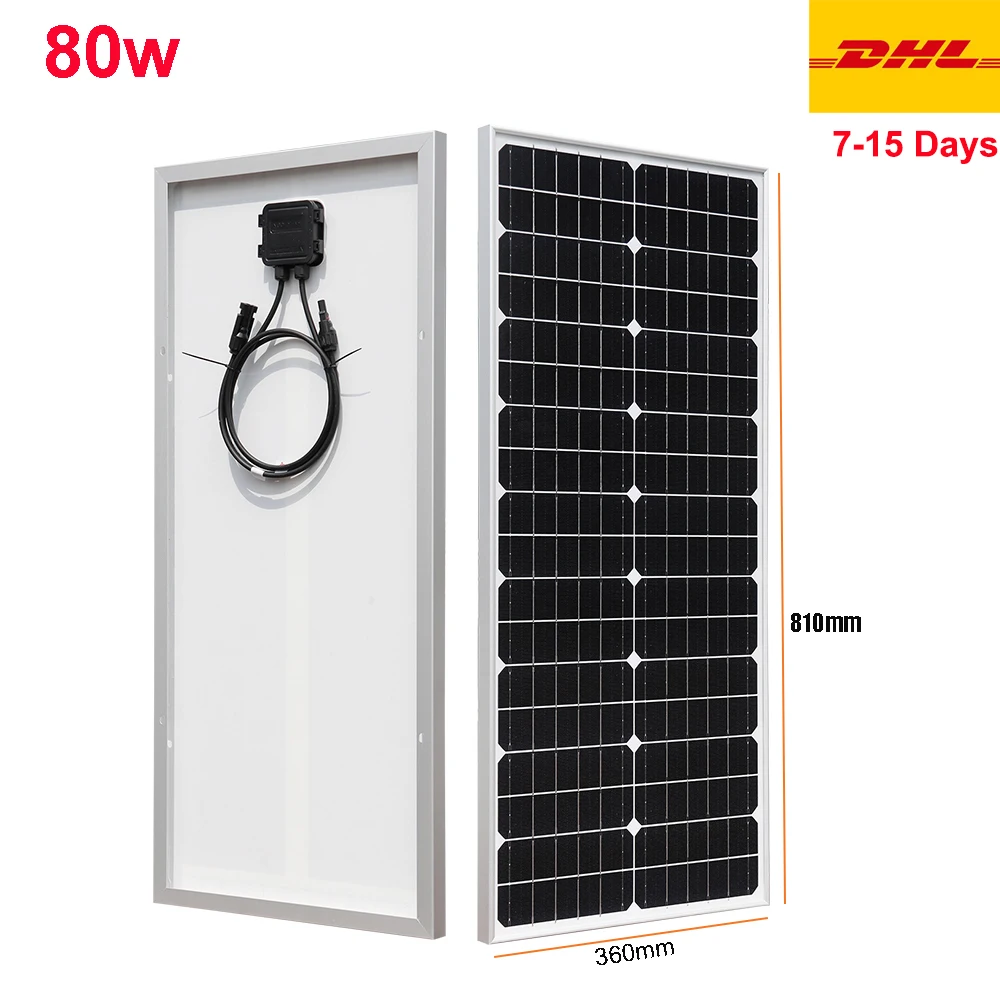

80w solar panel rigid

Maximum power(Pmax) : 80W

Output tolerance : ± 3%

Maximum system voltage : 1000V DC

Open circuit voltage(Voc) : 23.76V

Maximum power voltage(Vmp) : 19.8V

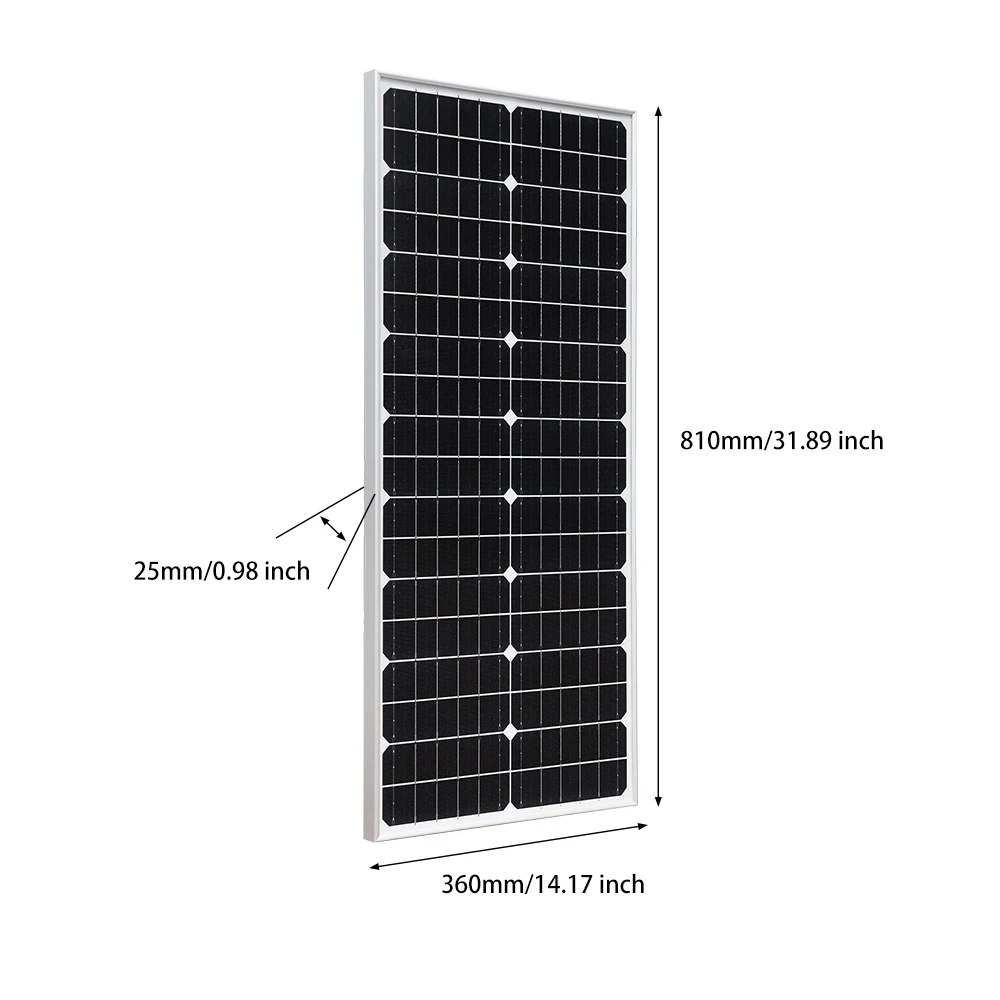

Size : 810*360*25mm

Weight : 4kg
