Products Description
Advantages:
l Bypass charging function,AC charge available when the unit off
l 90-280V AC Widely input voltage
l Grid electricity and battery power priority is optional.
l Higher charge current and adjustable
l Communicate with our MPPT charge controller.

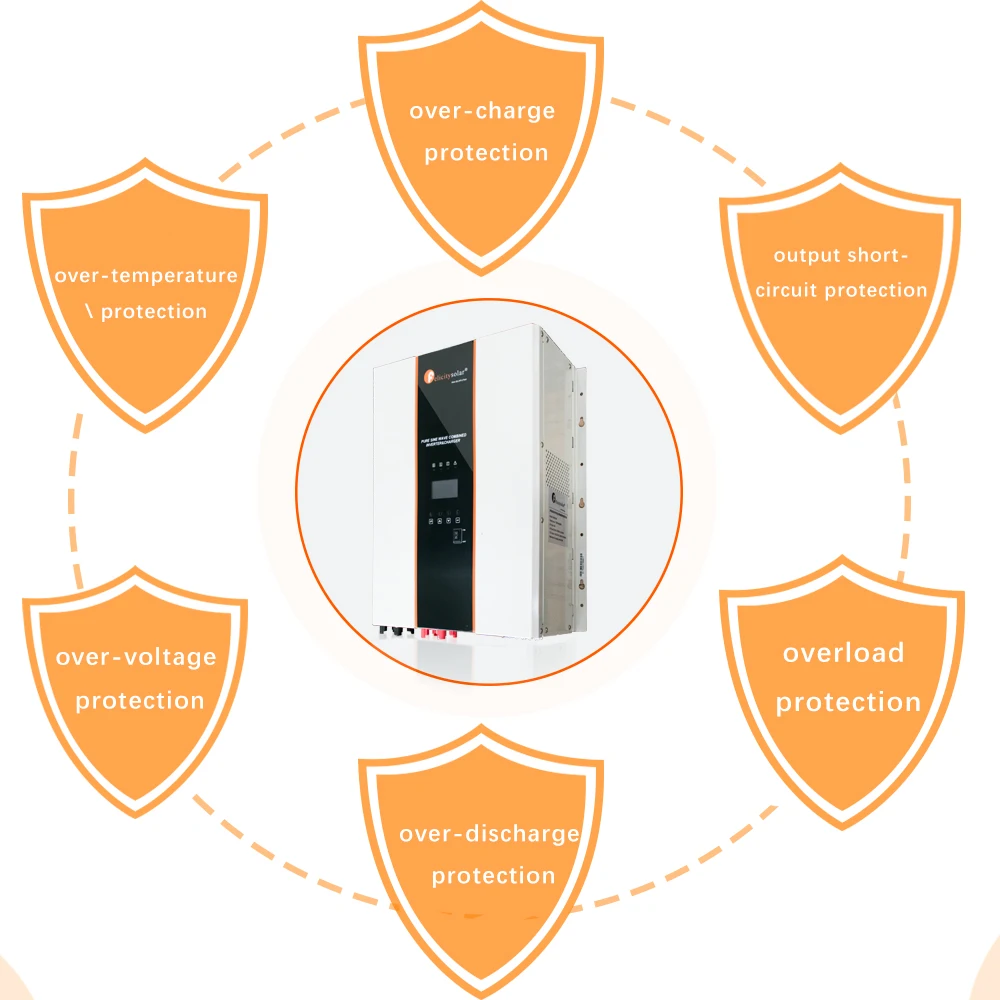

l Intelligent protection, high class of security.
l Bypass charging function,AC charge available when the unit off
l 90-280V AC Widely input voltage
l Grid electricity and battery power priority is optional.
l Higher charge current and adjustable
l Communicate with our MPPT charge controller.
l Intelligent protection, high class of security.

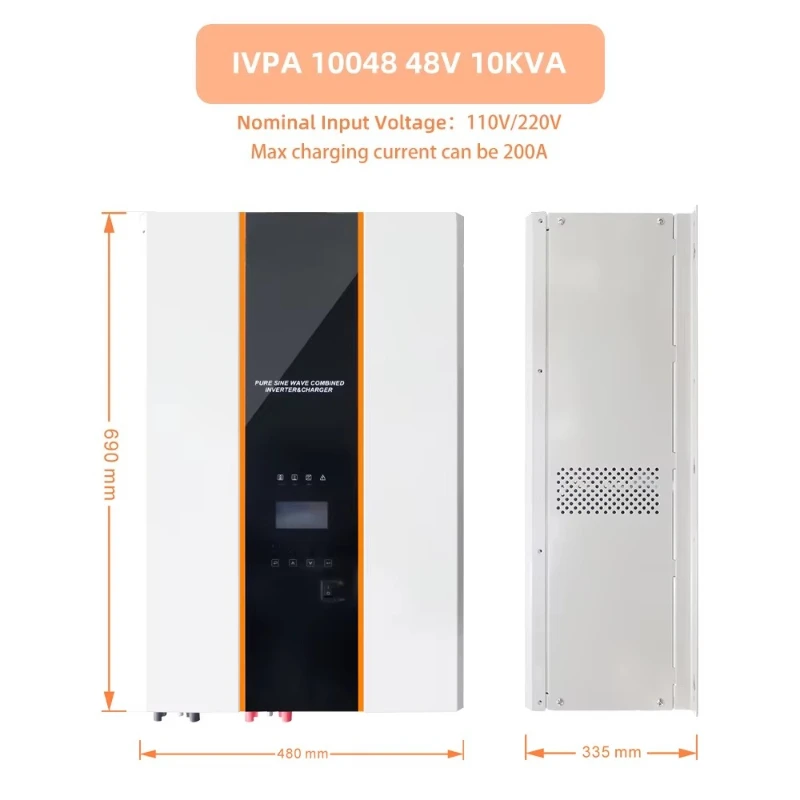

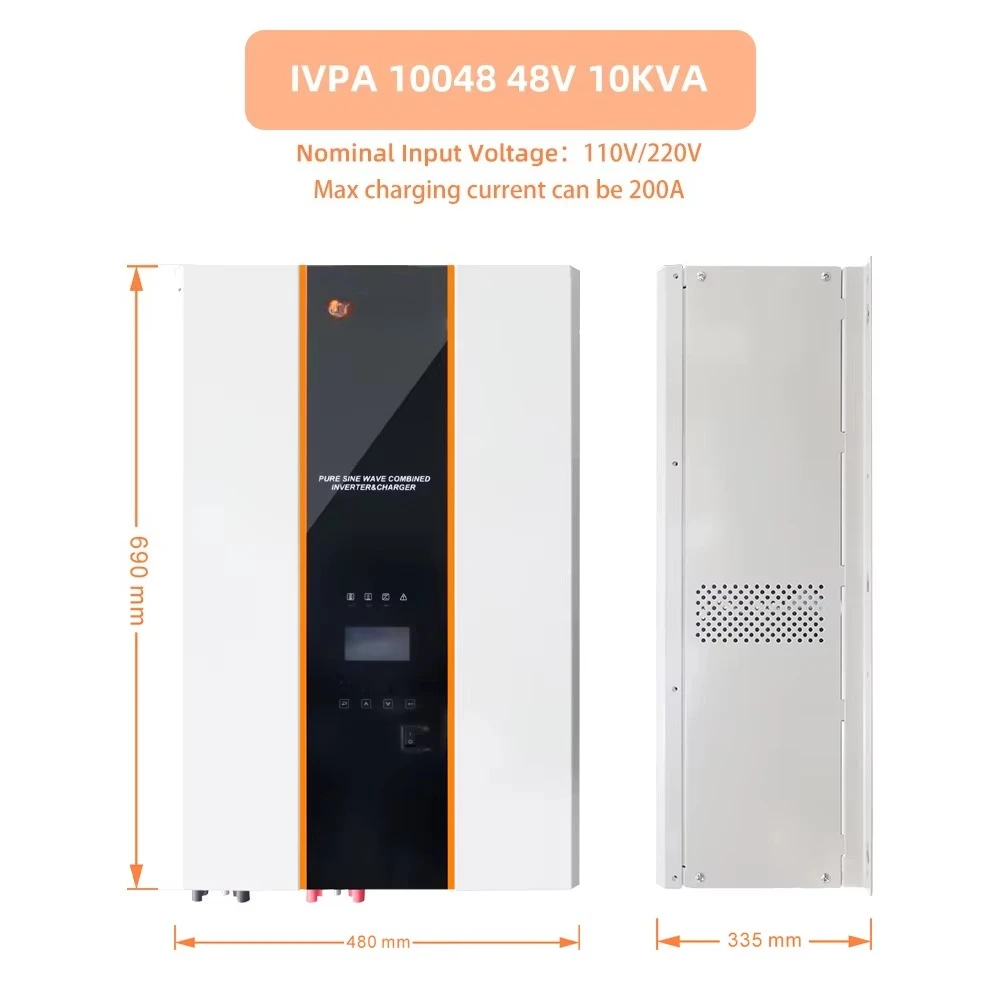

Model | IVPA10048 | IVPA10048 | ||||
DC Input Voltage | 48V | |||||
Rated output power(VA) | 10000VA 8000W | |||||
Rated output power(W) | 8000W | |||||
Input voltage waveform | Sine(public facility or generator) | |||||
Rated input voltage | 220vac | |||||
Grid low voltage | 90Vac±7Vac | |||||
Grid low voltagerecovery voltage | 100Vac±7Vac | |||||
Grid high voltage | 280Vac±7Vac | |||||
Grid high voltage recovery voltage | 270Vac±7Vac | |||||
Max input voltage | 280Vrms | |||||
Rated input frequency | 50Hz/60Hz | |||||
Grid underfrequency | 40±1Hz | |||||
Grid underfrequency recovery | 42±1Hz | |||||
Grid overfrequency | 65±1Hz | |||||
Grid overfrequency recovery | 43±1Hz | |||||
Output waveform | Synchronize with input voltage | |||||
Overload protection | Air switch protection | |||||
Output short circuit protection | Air switch protection | |||||
Efficiency(grid) | ≥95% | |||||
Switching time(AC TO DC) | 15ms Typical value | |||||
Switching time(DC TO AC) | 15ms Typical value/30ms special value | |||||
Through battery free | NO | |||||
Grid max bypass current | 60A | |||||
Charging parameter | ||||||
Rated input voltage | 220Vac | |||||
Input voltage range | 90-280Vac | |||||
Rated voltage output | Depending on batty type | |||||
Max charging current | 80A | |||||
Adjustable charging current range | 0-80A | |||||
Initial voltage of the battery | Breaker | |||||
Charging short circuit current | 63A | |||||
Breaker size | Dependent on battery type or self-defined | |||||
Overcharge protection | Yes | |||||
MPPT Charging&Grid Charging(MPPT built-in controller is option) | ||||||
Max PV open circuit voltage | / | 195V | ||||
PV voltage working range | / | 60-195VDC | ||||
Max input power | / | 6600W | ||||
Max mains charging current | / | 120A | ||||
Max charging current(mains+solar energy) | / | 200A | ||||

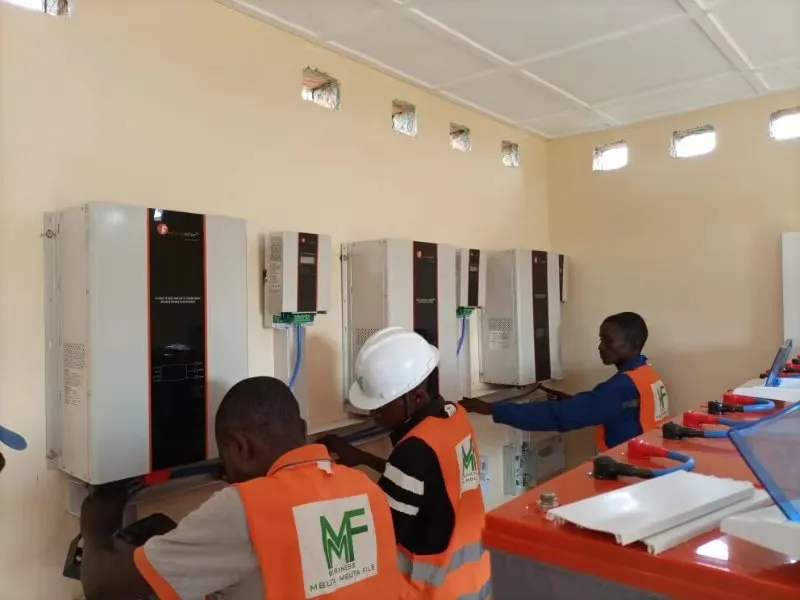

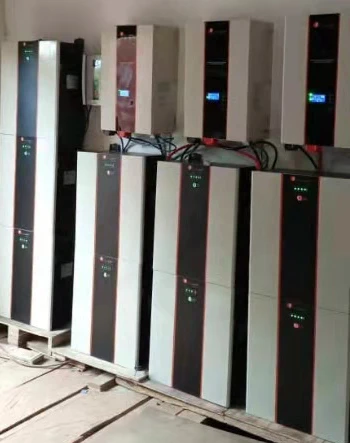

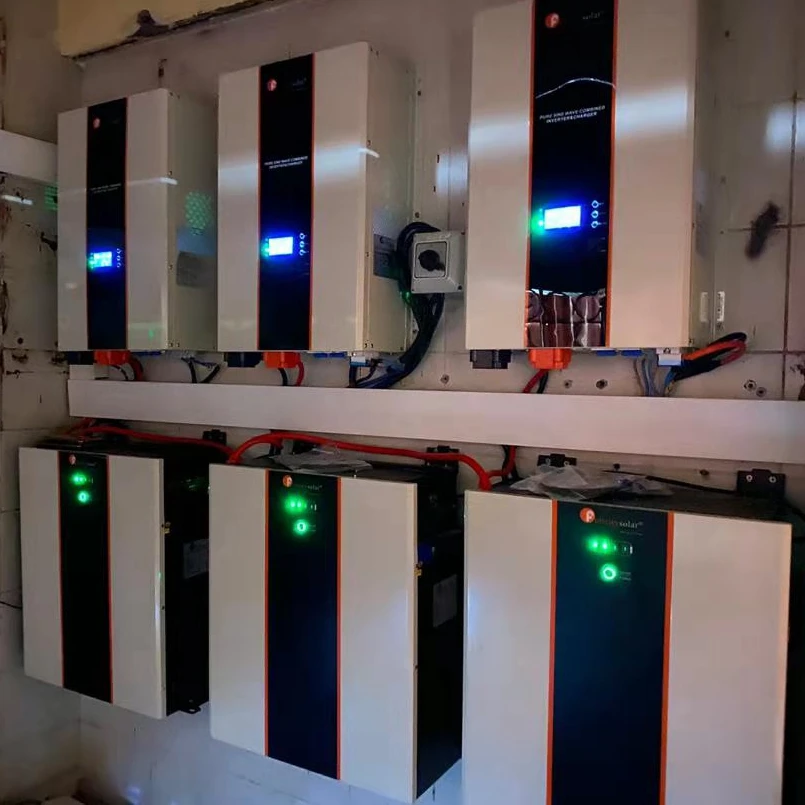

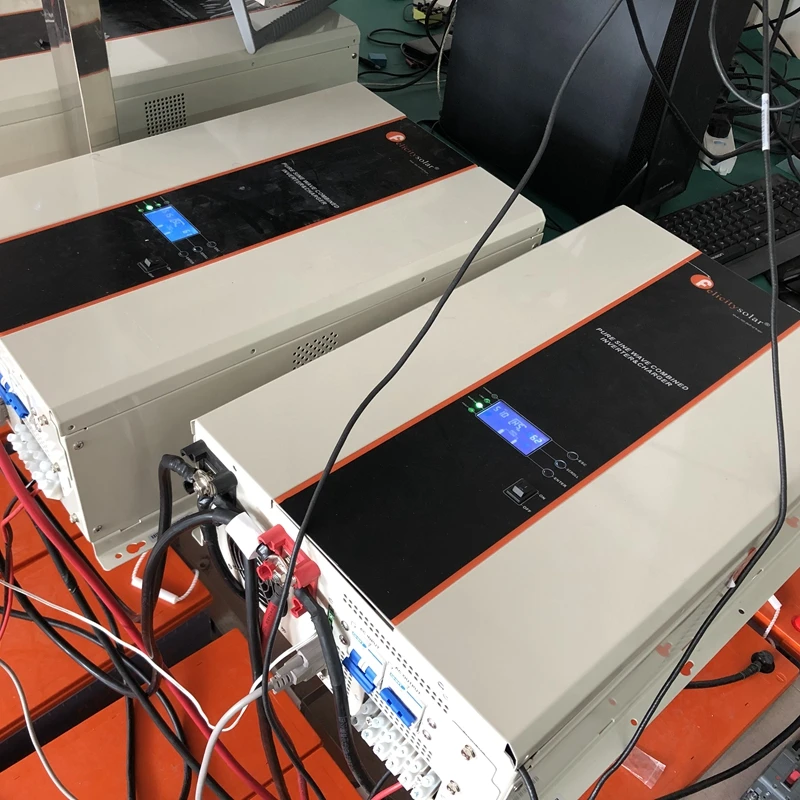

Project Case
